Instruments and controls

The following indications appear if

required:

● warning messages 3 106
● gear shift indication 3 98
● drive mode indication 3 192
● tyre pressure warning 3 263
● seat belt reminder indication

3

 95

● service information 3 91

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill. Some functions are only

available when the vehicle is being

driven.

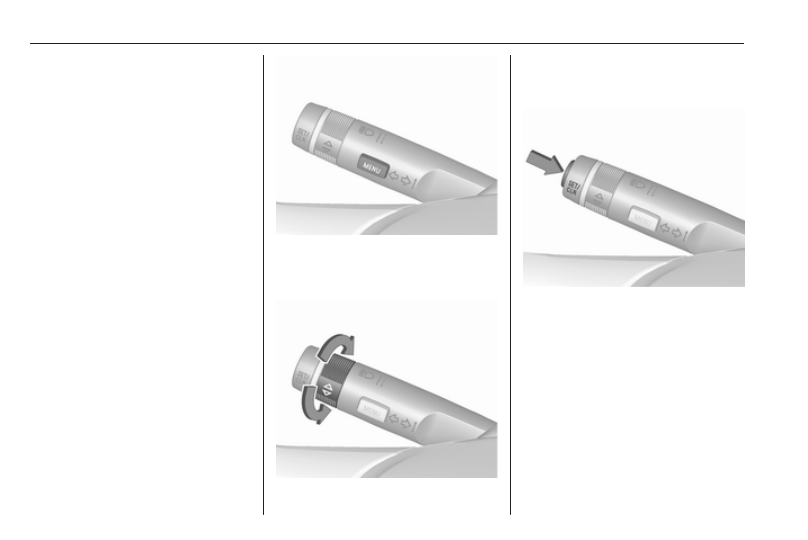

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

Press MENU to switch between the

menus or to return from a submenu to

the next higher menu level.

Turn the adjuster wheel to select a

submenu of the main menu or to set

a numeric value.

Press SET/CLR to select and confirm

a function.
Vehicle and service messages are

popped-up in the Driver Information

Centre if required. Confirm messages

by pressing SET/CLR. Vehicle

messages 3 106.

Trip/Fuel information ;

Possible pages are:

● digital vehicle speed
● trip odometer

Instruments and controls

103

● average fuel economy
● average vehicle speed
● instantaneous fuel economy
● fuel range
● fuel range, bi-fuel engine
● fuel level, bi-fuel engine
● timer

Digital vehicle speed

Digital display of the instantaneous

speed.

Trip odometer

Trip odometer displays the current

distance since a certain reset.
Trip odometer counts up to 9999 km

and then restarts at 0.
Turn the adjuster wheel to select

between trip page 1 and 2.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

Average fuel economy

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

Average vehicle speed

Display of average speed. The

measurement can be reset at any

time.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

Instantaneous fuel economy

Display of the instantaneous

consumption.

Fuel range

Range is calculated from current fuel

tank level and current consumption.

The display shows average values.

After refuelling, the range is updated

automatically after a brief delay.
When the fuel level in the tank is low,

a message appears on the display

and control indicator Y in the fuel

gauge illuminates.
When the tank must be refuelled

immediately, a warning message

appears and remains on the display.

Additionally, control indicator Y

flashes in the fuel gauge 3 100.

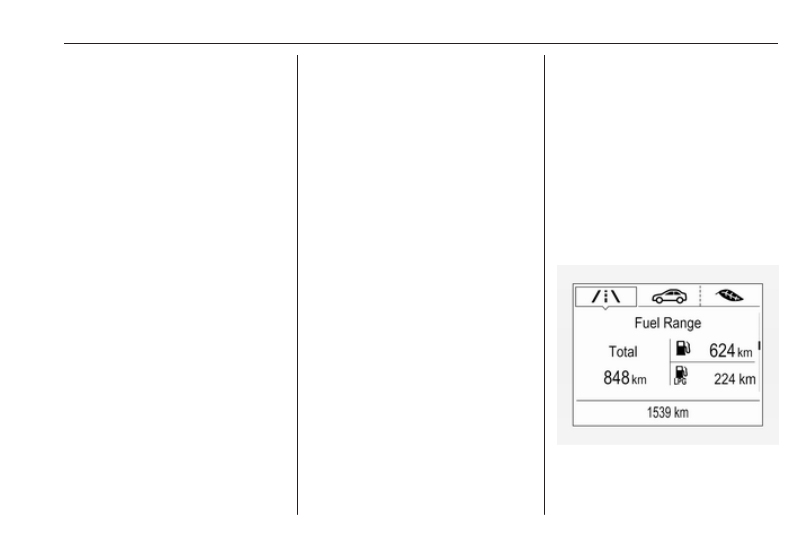

Fuel range, bi-fuel engine

104

Instruments and controls

Display of the approximate total fuel

range. A low fuel level in either tank is

indicated by Low in the respective

section.

Fuel level

Display of the fuel level in percent.

Timer

To operate follow the instructions on

the display.

AdBlue

Indicates an estimate of the AdBlue

level. The number of percentage

means the remainder of AdBlue.

Additionally, it is indicated whether

the level is sufficient or low.

Vehicle information ?

Possible pages are:

● unit
● speed warning
● remaining engine oil life

indication

● tyre pressure
● tyre load

● following distance
● traffic sign assistant

Unit

Press SET/CLR while page is

displayed. Select imperial (unit 1) or

metric (unit 3) by turning the adjuster

wheel. Press SET/CLR to set the unit

of measurement.

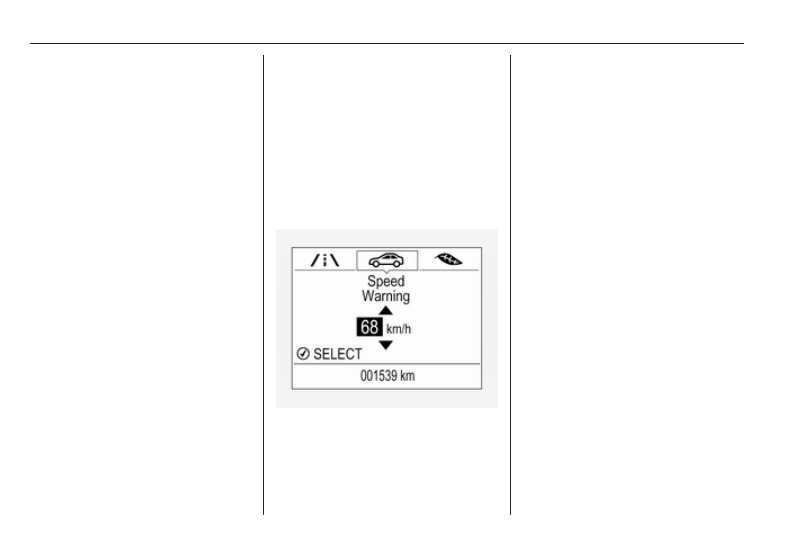

Speed warning

The speed warning function alerts the

driver when a set speed is exceeded.

To set the speed warning, press

SET/CLR while the page is displayed.

Turn the adjuster wheel to select the

value. Press SET/CLR to set the

speed.
If the selected speed limit is

exceeded, a warning chime sounds.

Once the speed is set, this feature

can be turned off by pressing

SET/CLR while viewing this page.

Remaining oil life

Indicates an estimate of the oil's

useful life. The number in percentage

means the current remaining oil life

and indicates when to change the

engine oil and filter 3 91.

Tyre pressure

Tyre pressures of all wheels are

displayed on this page during driving

3

 263.

Tyre load

The tyre pressure category according

to the actual tyre inflation pressure

can be selected 3 263.

Instruments and controls

105

Following distance

Displays the distance in seconds to a

preceding moving vehicle 3 215. If

Adaptive cruise control is active this

page shows the following distance

setting instead.

Traffic sign assistant

Displays the detected traffic signs for

the current route section 3 224.

Economy information menu@

Possible pages are:

● economy trend
● economy index
● top consumers

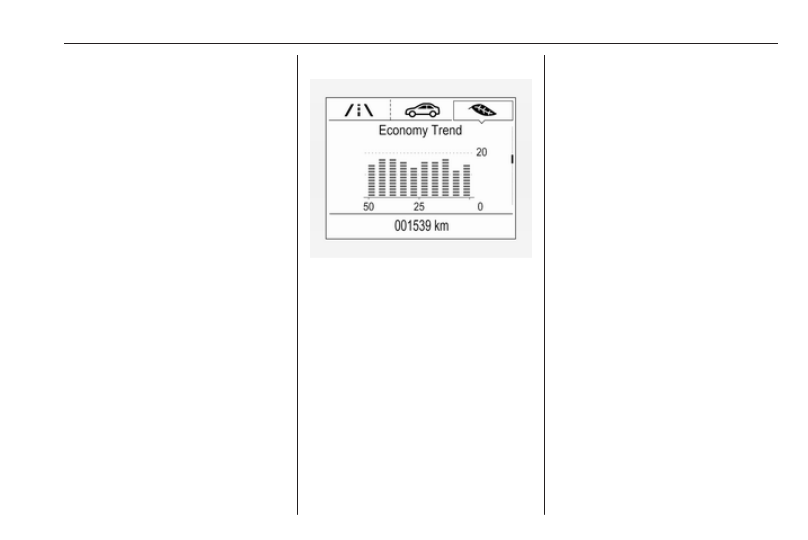

Economy trend

Displays the average consumption

development over a distance of

50 km. Filled segments display the

consumption in 5 km steps and shows

the effect of topography or driving

behaviour on fuel consumption.
Graph can be reset by pressing

SET/CLR.

Economy index

The current fuel consumption is

indicated on an economic scale. For

economical driving, adapt driving

style to keep the filled segments

within the Eco area. The more

segments are filled, the higher the

fuel consumption.
Simultaneously, the average

consumption value is indicated.

Top consumers

List of top comfort consumers

currently switched on is displayed in

descending order. Fuel saving

potential is indicated.
During sporadic driving conditions,

the engine will activate the heated

rear window automatically to increase

the engine load. In this event, the

heated rear window is indicated as

one of the top consumers, without

activation by the driver.

Info Display

The Info-Display is located in the

instrument panel near the instrument

cluster.
The vehicle has a 7'' R 4.0 IntelliLink

display with touch-screen

functionality.

106

Instruments and controls

The Info displays can indicate:

● time 3 86
● outside temperature 3 86
● date 3 86
● Infotainment system, see

description in the Infotainment

instruction

● indication of rear view camera

3

 222

● parking assist indication 3 218
● navigation, see description in the

Infotainment instruction

● system messages
● settings for vehicle

personalisation 3 108

R 4.0 IntelliLink

Selecting menus and settings

Menus and settings are accessed via

the display.

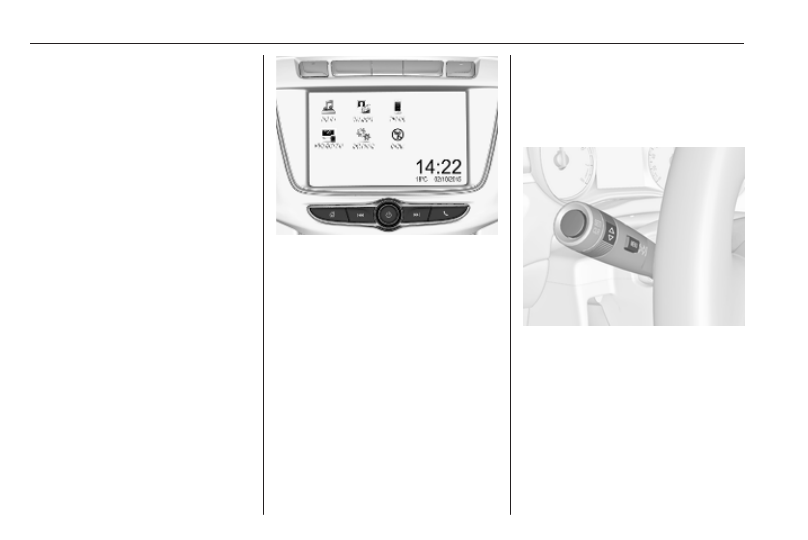

Press X to switch on the display.
Press ; to display the homepage.
Touch required menu display icon

with the finger.
Touch a respective icon to confirm a

selection.
Touch 9 to return to the next higher

menu level.
Press ; to return to the homepage.
For further information, see

Infotainment instruction.
Vehicle personalisation 3 108.

Vehicle messages

Messages are indicated mainly in the

Driver Information Centre, in some

cases together with a warning chime.

Vehicle and service messages in

the Driver Information Centre

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.
Press SET/CLR, MENU or turn the

adjuster wheel to confirm a message.

Instruments and controls

107

Messages in the Info-Display

Some important messages appear

additionally in the Info-Display. Some

messages only pop-up for a few

seconds.

Warning chimes

If several warnings appear at the

same time, only one warning chime

will sound.

When starting the engine or whilst

driving

The warning chime regarding

unfastened seat belts has priority

over any other warning chime.

● If seat belt is not fastened.
● If a door or the tailgate is not fully

closed when starting-off.

● If a certain speed is exceeded

with parking brake applied.

● If adaptive cruise control

deactivates automatically.

● If approaching a vehicle ahead

too closely.

● If a programmed speed or speed

limit is exceeded.

● If a warning message appears in

the Driver Information Centre.

● If the parking assist detects an

object.

● If an unintended lane change

occurs.

● If reverse gear is engaged and

the rear carrier system is

extended.

● If the exhaust filter has reached

the maximum filling level.

When the vehicle is parked and/or

the driver's door is opened

● With exterior lights on.

During an Autostop

● If the driver's door is opened.
● If any condition for an autostart is

not fulfilled.

Battery voltage

When the vehicle battery voltage is

running low, a warning message will

appear in the Driver Information

Centre.

1. Switch off immediately any

electrical consumers which are

not required for a safe ride, e.g.

seat heating, heated rear window

or other main consumers.

2. Charge the vehicle battery by

driving continuously for a while or

by using a charging device.

The warning message will disappear

after the engine has been started two

times consecutively without a voltage

drop.
If the vehicle battery cannot be

recharged, have the cause of the fault

remedied by a workshop.

108

Instruments and controls

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info-Display.
Some of the personal settings for

different drivers can be memorised

individually for each vehicle key.

Memorised settings 3 22.
Depending on vehicle equipment and

country-specific regulations, some of

the functions described below may

not be available.
Some functions are only displayed or

active when the engine is running.

Personal settings

7" IntelliLink Display

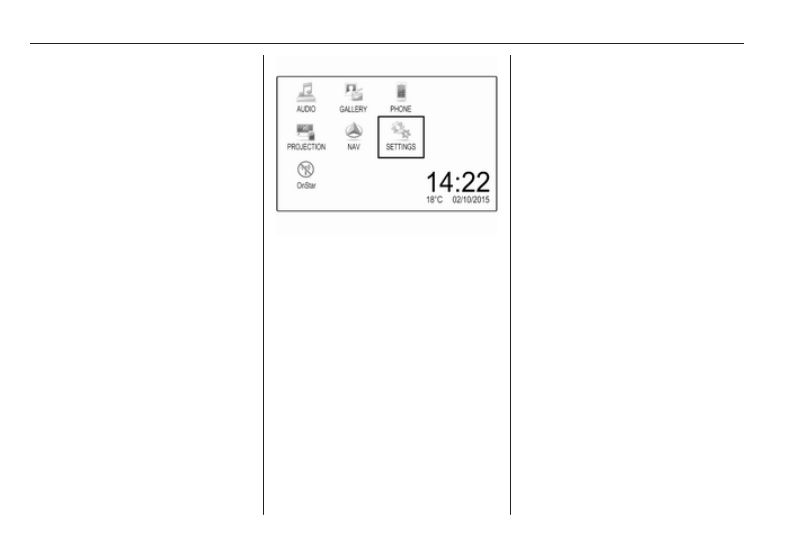

Press ;, select Settings and then

Vehicle on the touch-screen.

In the corresponding submenus the

following settings can be changed:

Vehicle

● Climate & Air Quality

Auto Fan Max Speed: Modifies

the fan regulation. Changed

setting will be active after

switching the ignition off and on

again.
Air Conditioning Mode: Activates

or deactivates cooling when

switching on the ignition or uses

the last chosen setting.
Auto Defog: Activates or

deactivates auto defog.

Auto Rear Defog: Automatically

activates heated rear window.

● Collision / Detection Systems

Rear View Camera Guidelines:

Activates or deactivates the rear

view camera guidelines on the

Info Display.
Park Assist: Activates or

deactivates the ultrasonic

parking assist. Activation is

selectable with or without

attached trailer coupling.
Auto Collision Preparation:

Activates or deactivates the

automatic brake functionality of

the vehicle in the event of

imminent collision danger. The

following is selectable: the

system will take over brake

control, warn by chimes only or is

deactivated completely.
Side Blind Zone Alert: Activates

or deactivates side blind zone

alert.

● Comfort and Convenience

Chime Volume: Changes the

volume of warning chimes.

Instruments and controls

109

Personalization By Driver:

Activates or deactivates the

personalisation function.
Auto Wipe in Reverse Gear:

Activates or deactivates

automatic switching on of the

rear window wiper when reverse

gear is engaged.

● Lighting

Vehicle Locator Lights: Activates

or deactivates the entry lighting.
Exit Lighting: Activates or

deactivates and changes the

duration of exit lighting.

● Power Door Locks

Unlocked Door Anti Lock Out:

Activates or deactivates the door

locking function while a door is

open.
Auto Door Lock: Activates or

deactivates the automatic door

unlocking function after switching

off ignition. Activates or

deactivates the automatic door

locking function after driving-off.

Delayed Door Lock: Activates or

deactivates the delayed door

locking function.

● Remote Lock, Unlock, Start

Remote Unlock Light Feedback:

Activates or deactivates the

hazard warning flasher feedback

whilst unlocking.
Remote Lock Feedback:

Changes what kind of feedback

is given when locking the vehicle.
Remote Door Unlock: Changes

the configuration to unlock only

the driver's door or the whole

vehicle whilst unlocking.
Relock Remotely Unlocked

Doors: Activates or deactivates

the automatic relock function

after unlocking without opening

the vehicle.

Telematics service

OnStar

OnStar is a personal connectivity and

service assistant with integrated

Wi-Fi hotspot. The OnStar service is

available 24 hours a day, seven days

a week.

Note

OnStar is not available for all

markets. For further information,

contact your workshop.
Note

In order to be available and

operational, OnStar needs a valid

OnStar subscription, functioning

vehicle electrics, mobile service and

GPS satellite link.

To activate the OnStar services and

set up an account, press Z and speak

with an advisor.

110

Instruments and controls

Depending on the equipment of the

vehicle, the following services are

available:

● Emergency services and support

in the case of a vehicle

breakdown

● Wi-Fi hotspot
● Smartphone application
● Remote control, e.g. location of

the vehicle, activation of horn and

lights, control of central locking

system

● Stolen vehicle assistance
● Vehicle diagnostics
● Destination download

Note

The OnStar module of the vehicle is

deactivated after ten days without an

ignition cycle. Functions requiring a

data connection will be available

again after switching on the ignition.

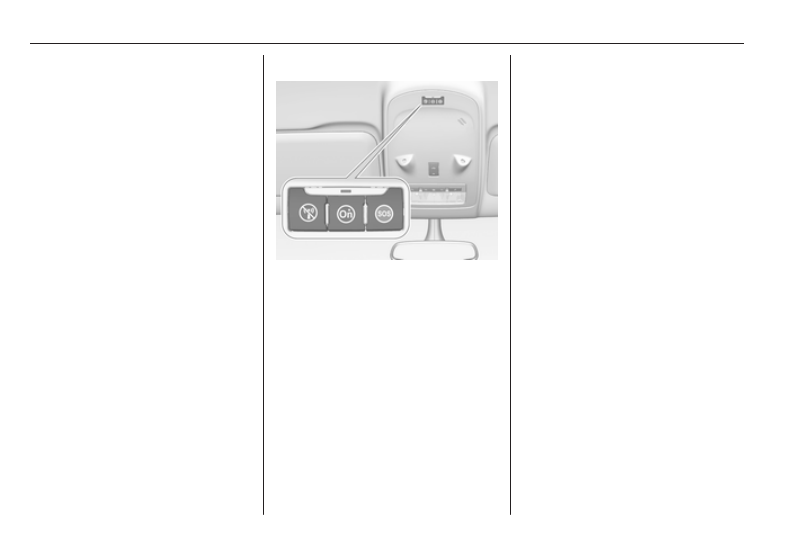

OnStar buttons

Note

Depending on the equipment, the

OnStar buttons can also be

integrated in the rear view mirror.

Privacy button

Press and hold j until a message is

heard to activate or deactivate the

transmission of the vehicle location.
Press j to answer a call or to end a

call to an advisor.
Press j to access the Wi-Fi settings.

Service button

Press Z to establish a connection to

an advisor.

SOS button

Press [ to establish a priority

emergency connection to a specially

trained emergency advisor.

Status LED

Green: The system is ready with

activated transmission of the vehicle

location.
Green flashing: The system is on a

call.
Red: A problem arose.
Off: The system is ready with

deactivated transmission of the

vehicle location or the system is in

standby mode.
Red / green flashing for a short period

of time: The transmission of the

vehicle location has been

deactivated.

OnStar services

General services

If you need any information e.g.

opening hours, points of interest and

destinations or if you need any

support e.g. in the case of a vehicle

Instruments and controls

111

breakdown, a flat tyre and empty fuel

tank, press Z to establish a

connection to an advisor.

Emergency services

In the case of an emergency situation,

press [ and talk to an advisor. The

advisor then contacts emergency or

assistance service providers and

directs them to your vehicle.
In the case of an accident with

activation of airbags or belt

tensioners, an automatic emergency

call is established. The advisor is

immediately connected to your

vehicle to see whether help is

needed.

Wi-Fi hotspot

The Wi-Fi hotspot of the vehicle

provides internet connectivity with a

maximum speed of 4G/LTE.

Note

The Wi-Fi hotspot functionality is not

available for all markets.
Note

Some mobile devices connect to Wi-

Fi hotspots automatically and use

mobile data capacity in the

background, even if they are not in

use. This includes automatic

updates, downloads, as well as

programme or app synchronisation

traffic. The data volume purchased

via OnStar might be consumed

rapidly. Turn off automatic

synchronisations in the settings of

your device.

Up to seven devices may be

connected.
To connect a mobile device with the

Wi-Fi hotspot:

1. Press j and then select Wi-Fi

settings on the Info-Display. The

settings displayed include the Wi-

Fi hotspot name (SSID),

password and connection type.

2. Start a Wi-Fi network search on

your mobile device.

3. Select your vehicle hotspot

(SSID) when listed.

4. When prompted, enter the

password on your mobile device.

Note

To change the SSID or password,

press Z and talk to an advisor or log

in to your account.

To switch off the Wi-Fi hotspot

functionality, press Z to call an

advisor.

Smartphone app

With the myOpel smartphone app,

some vehicle functions can be

operated remotely.
The following functions are available:

● Lock or unlock vehicle.
● Honk horn or flash lights.
● Check fuel level, engine oil life

and tyre pressure (only with tyre

pressure monitoring system).

● Send navigation destination to

the vehicle, if equipped with a

built-in navigation system.

● Locate vehicle on a map.
● Manage Wi-Fi settings.

To operate these functions, download

the app from App Store

®

 or

Google Play™ Store.

112

Instruments and controls

Remote control

If desired, use any phone to call an

advisor, who can remotely operate

specific vehicle functions. Find the

respective OnStar phone number on

our country-specific website.
The following functions are available:

● Lock or unlock vehicle.
● Provide information on the

vehicle location.

● Honk horn or flash lights.

Stolen vehicle assistance

If the vehicle is stolen, report the theft

to the authorities and request OnStar

stolen vehicle assistance. Use any

phone to call an advisor. Find the

respective OnStar phone number on

our country-specific website.
OnStar can provide support in

locating and recovering the vehicle.
Theft alert

When the anti-theft alarm system is

triggered, a notification is sent to

OnStar. You are then informed about

this event by text message or email.

Restart prevention

By sending remote signals, OnStar

can prevent the vehicle from

restarting once it has been turned off.

On-demand diagnostics

At any time e.g. if the vehicle displays

a vehicle message, press Z to

contact an advisor and ask to

complete a real-time diagnostic check

to directly determine the issue.

Depending on the results, the advisor

will provide further support.

Diagnostic report

The vehicle automatically transmits

diagnostic data to OnStar which

sends a monthly email report to you

and your preferred workshop.

Note

The workshop notification function

can be disabled in your account.

The report contains the status of key

operating systems of the vehicle like

engine, transmission, airbags, ABS,

and other major systems. It also

provides information on possible

maintenance items and tyre pressure

(only with tyre pressure monitoring

system).
To look at the information in greater

detail, select the link within the email

and log in to your account.

Destination download

A desired destination can be directly

downloaded to the navigation system.
Press Z to call an advisor and

describe the destination or point of

interest.
The advisor can look up any address

or point of interest and directly send

the destination to the built-in

navigation system.

OnStar settings

OnStar PIN

To have full access to all OnStar

services, a four-digit PIN is required.

The PIN has to be personalised when

first talking to an advisor.
To change the PIN, press Z to call an

advisor.

Instruments and controls

113

Account data

An OnStar subscriber has an account

where all the data is stored. To

request a change of the account

information, press Z and talk to an

advisor or log in to your account.
If the OnStar service is used on

another vehicle, press Z and request

that the account be transferred to the

new vehicle.

Note

In any case, if the vehicle is disposed

of, sold or otherwise transferred,

immediately inform OnStar about

the changes and terminate the

OnStar service on this vehicle.

Vehicle location

The vehicle location is transmitted to

OnStar when service is requested or

triggered. A message on the Info-

Display informs about this

transmission.
To activate or deactivate the

transmission of the vehicle location,

press and hold j until an audio

message is heard.

The deactivation is indicated by the

status light flashing red and green for

a short period of time and each time

the vehicle is started.

Note

If the transmission of the vehicle

location is deactivated, some

services are no longer available.
Note

The vehicle location always remains

accessible to OnStar in the case of

an emergency.

Find the privacy policy in your

account.

Software updates

OnStar may remotely carry out

software updates without further

notice or consent. These updates are

to enhance or maintain safety and

security or the operation of the

vehicle.
These updates may concern privacy

issues. Find the privacy policy in your

account.

114

Lighting

Lighting

Exterior lighting .......................... 114

Light switch .............................. 114

Automatic light control ............. 115

High beam ............................... 115

High beam assist ..................... 115

Headlight flash ......................... 116

Headlight range adjustment .... 116

Headlights when driving

abroad .................................... 117

Daytime running lights ............. 117

LED headlights ........................ 118

Hazard warning flashers .......... 119

Turn lights ................................ 119

Front fog lights ......................... 119

Rear fog light ........................... 120

Parking lights ........................... 120

Reversing lights ....................... 120

Misted light covers ................... 120

Interior lighting ........................... 121

Instrument panel illumination

control ..................................... 121

Interior lights ............................ 121

Reading lights .......................... 122

Sunvisor lights ......................... 122

Lighting features ........................ 122

Centre console lighting ............ 122

Entry lighting ............................ 122

Exit lighting .............................. 122

Battery discharge protection .... 123

Exterior lighting

Light switch

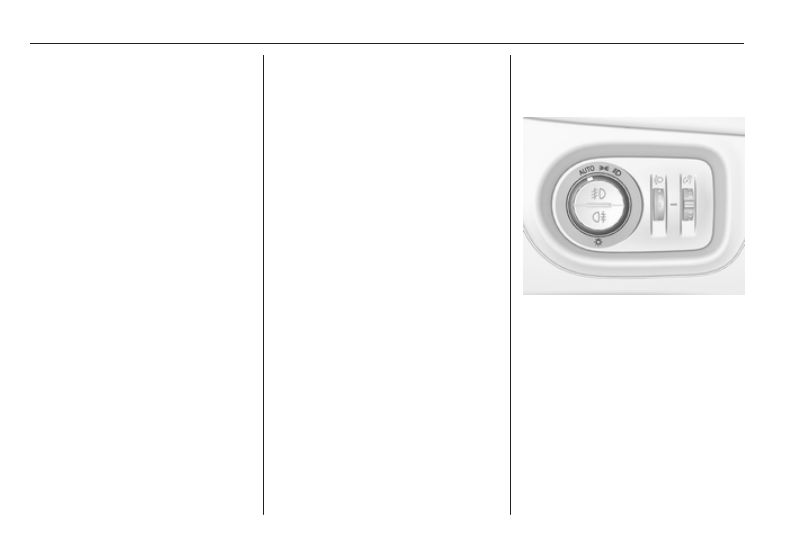

Turn light switch:
AUTO : automatic light control

switches automatically

between daytime running

light and headlight

8

: sidelights

9

: headlights

When switching on the ignition,

automatic light control is active.
Control indicator 8 3 100.

Lighting

115

Tail lights

Tail lights are illuminated together

with low/high beam and sidelights.

Automatic light control

When the automatic light control

function is switched on and the

engine is running, the system

switches between daytime running

lights and headlights automatically

depending on the external lighting

conditions and information given by

the wiper system.
Daytime running light 3 117.

Automatic headlight activation

During poor lighting conditions the

headlights are switched on.
The headlights are also switched on

if the windscreen wipers have been

activated for several wipes.

Tunnel detection

When a tunnel is entered headlights

are switched on immediately.

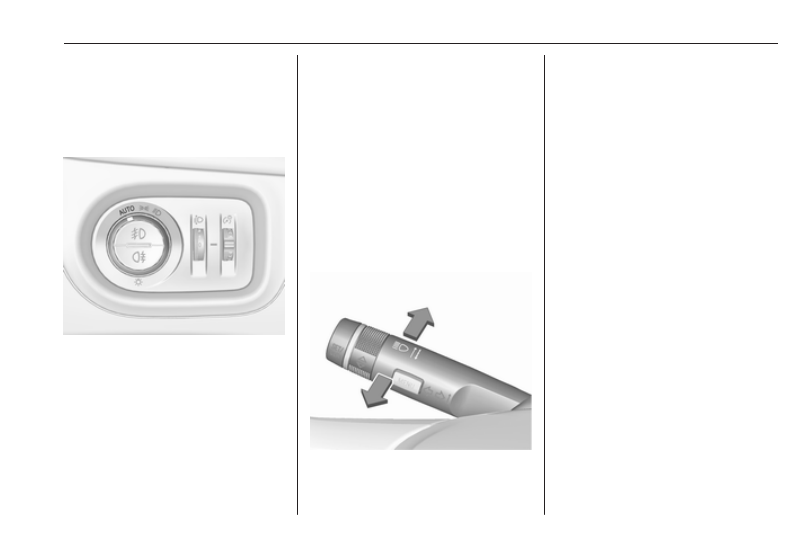

High beam

Push lever to switch from low to high

beam.
Pull lever to deactivate high beam.

High beam assist 3 118.

High beam assist

This feature automatically activates

the high beam at night when vehicle

speed is faster than40 km/h.
It switches automatically back to low

beam when:

● The camera or a sensor in the

windscreen detects the lights of

oncoming or preceding vehicles.

● The vehicle speed drops below

20 km/h.

● It is foggy or snowy.
● Driving in urban areas.

If there are no restrictions detected,

the system switches back to high

beam.

116

Lighting

Activation

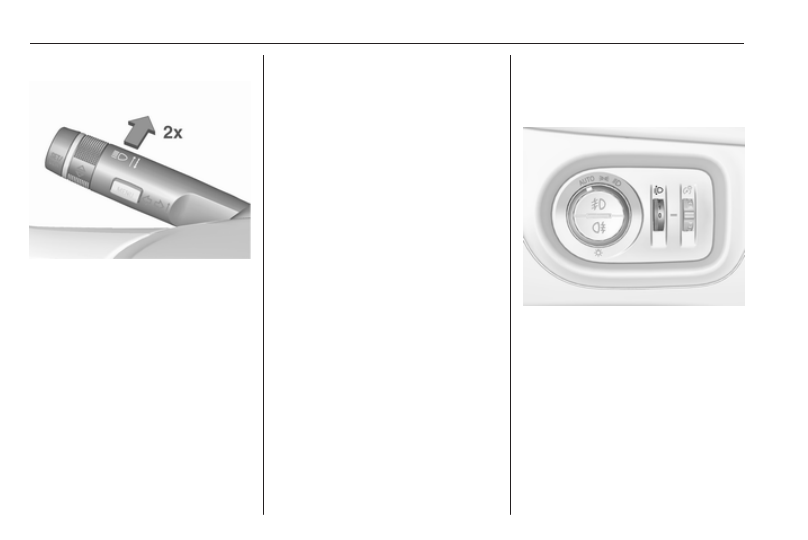

The high beam assist is activated by

pushing the indicator lever twice with

a speed above 40 km/h.
The green control indicator f

illuminates continuously when the

assist is activated, the blue one 7

illuminates when high beam is on.
Control indicator f 3 100.

Deactivation

Push indicator lever once. It is also

deactivated when front fog lights are

switched on.

If a headlight flash is activated when

the high beam is on, the high beam

assist will be deactivated.
If a headlight flash is activated when

the high beam is off, the high beam

assist will remain activated.
The latest setting of the high beam

assist will remain after the ignition is

switched on again.

Headlight flash

To activate the headlight flash, pull

lever.
Pulling lever deactivates high beam.
LED headlights 3 118.

Headlight range adjustment

Manual headlight range

adjustment

To adapt headlight range to the

vehicle load to prevent dazzling: turn

thumb wheel ? to required position.
0 : front seats occupied

1 : all seats occupied

2 : all seats occupied and load

compartment laden

3 : driver's seat occupied and load

compartment laden

Dynamic automatic headlight

levelling 3 118.

Lighting

117

Headlights when driving

abroad

The asymmetrical headlight beam

extends visibility at the edge of the

road at the passenger side.
However, when driving in countries

where traffic drives on the opposite

side of the road, adjust the headlights

to prevent dazzling of oncoming

traffic.

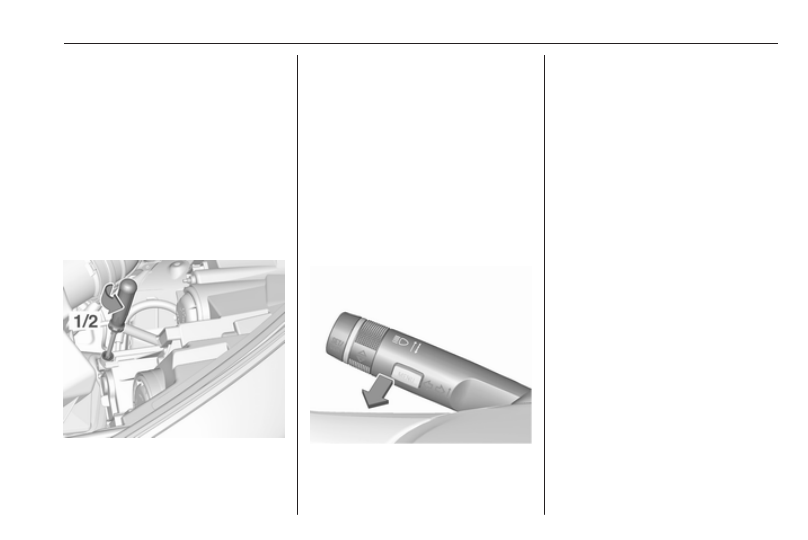

Vehicles with halogen headlight

There is a white adjuster element on

the rear of each headlight housing.

Turn adjuster element on each

headlight housing

1

/

2

 turn with a

size six hexagon key anticlockwise to

set to right-hand traffic mode. To

adjust, insert the key in the guide as

shown in the illustration. Alternatively,

a Phillips head screwdriver

size three can be used for setting.
To reset to left-hand traffic mode, turn

adjuster elements on both headlight

housings

1

/

2

 turn clockwise.

Vehicles with LED headlight

1. Key in ignition switch.
2. Pull turn signal lever and hold

(headlight flash).

3. Switch on ignition.
4. After approx. five seconds the

control indicator f starts flashing

and an acoustic signal sounds.

Control indicator f 3 100.
Every time the ignition is switched on,

f

 flashes as a reminder for approx.

four seconds.
For deactivation, operate the same

procedure as described above. f will

not flash when function is

deactivated.

Daytime running lights

Daytime running light increases

visibility of the vehicle during daylight.
They are switched on automatically

when the engine is running.
The system switches between

daytime running lights and headlights

automatically, depending on the

lighting conditions. Automatic light

control 3 115.
