Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.
Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature 3 169.
All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only silicate-free long life coolant

(LLC) antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -36 °C. In

northern countries with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -50 °C. This concentration

should be maintained all year round.

The use of additional coolant

additives that intend to give additional

corrosion protection or seal against

minor leaks can cause function

problems. Liability for consequences

resulting from the use of additional

coolant additives will be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake and clutch fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.

Technical data

167

Technical data

Vehicle identification .................. 167

Vehicle Identification Number .. 167

Identification plate ................... 168

Engine identification ................ 168

Vehicle data ............................... 169

Recommended fluids and

lubricants ................................ 169

Engine data ............................. 171

Vehicle dimensions ................. 173

Tyre pressures ........................ 174

Vehicle identification

Vehicle Identification

Number

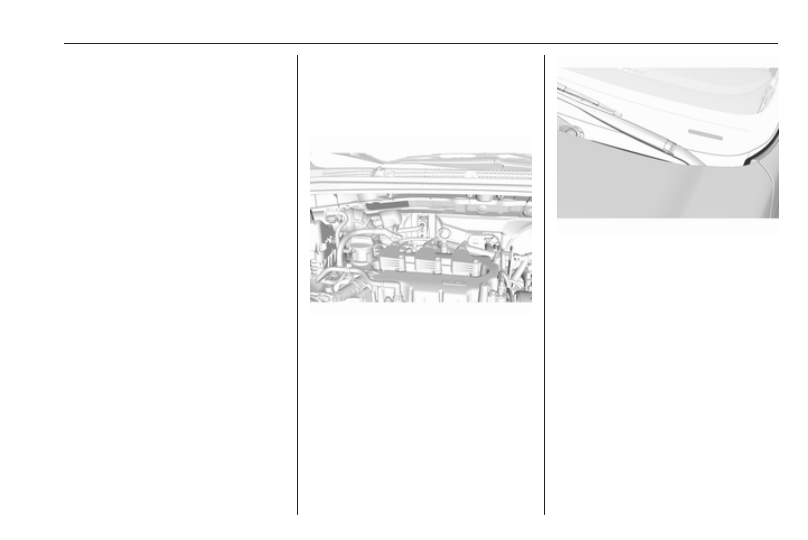

The Vehicle Identification Number is

located in the engine compartment.

The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen.

168

Technical data

Identification plate

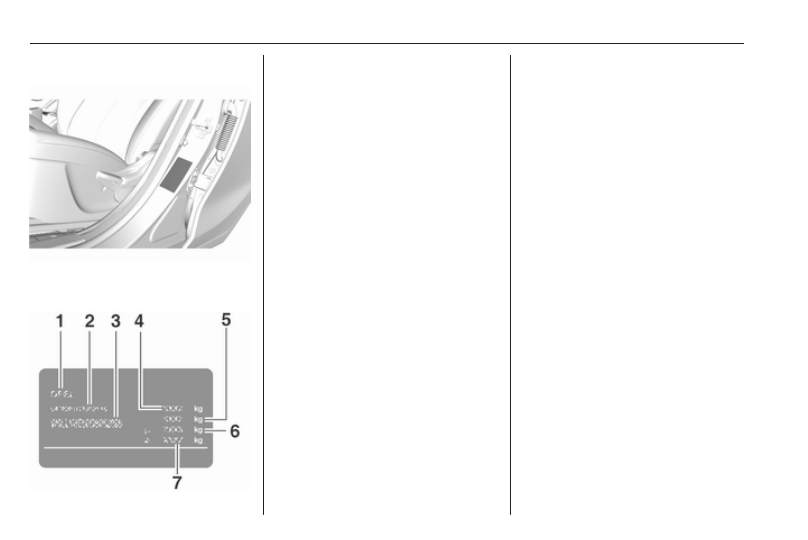

The identification plate is located on

the left door frame.

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight. For

example, if the front axle is bearing its

maximum permissible load, the rear

axle can only bear a load that is equal

to the gross vehicle weight minus the

front axle load.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this instruction.

Engine identification

The technical data tables use the

engine identifier code.
Engine data 3 171.
To identify the respective engine,

refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The Certificate of Conformity shows

the engine identifier code, other

national publications may show the

engineering code. Check piston

displacement and engine power to

identify the respective engine.

Technical data

169

Vehicle data

Recommended fluids and lubricants

European service schedule

Required engine oil quality

All European countries with European service interval 3 164

Engine oil quality

Petrol engines

dexos2

✔

In case dexos quality is unavailable, you may use max. 1 l engine oil quality ACEA C3 once between each oil change.

Engine oil viscosity grades

All European countries with European service interval 3 164

Ambient temperature

Petrol engines

down to -25 °C

SAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

170

Technical data

International service schedule

Required engine oil quality

All countries with international service interval 3 164

Engine oil quality

Petrol engines

dexos2

✔

In case dexos quality is unavailable, you may use the oil qualities listed below:

All countries with international service interval 3 164

Engine oil quality

Petrol engines

ACEA A3/B4

✔

ACEA C3

✔

Engine oil viscosity grades

All countries with international service interval 3 164

Ambient temperature

Petrol engines

down to -25 °C

SAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

down to -20 °C

SAE 10W-30

1)

 or SAE 10W-40

1)

Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

Technical data

171

Engine data

Engine identifier code

D10XE

Sales designation

1.0

Piston displacement [cm

3

]

999

Engine power [kW]

54

at rpm

6500

Torque [Nm]

95

at rpm

4500

Fuel type

Petrol

Octane rating RON

2)

recommended

95

possible

91

possible

98

Additional fuel type

–

2)

A country-specific label at the fuel filler flap can supersede the engine specific requirement.

172

Technical data

Vehicle data

Maximum speed [km/h]

170

Minimum / maximum kerb weight
[kg]

3)

938 / 1034

Engine oil
including filter [l]

3.5

Engine oil
between MIN and MAX [l]

1.0

Fuel tank
Petrol, refilling quantity [l]

32

3)

Optional accessories increase the kerb weight.

Loading information 3 58.

Technical data

173

Vehicle dimensions

Length [mm]

3675

Width without exterior mirrors [mm]

1595 - 1632

4)

Width with two exterior mirrors [mm]

1876

Height (without antenna) [mm] without roof rack

1476 - 1495

4)

Length of load compartment floor [mm]

486

Length of load compartment with folded rear seats [mm]

1109

Load compartment width [mm]

968

Load compartment height with cover [mm]

499

Height of load compartment opening [mm]

608

Wheelbase [mm]

2385

Turning circle diameter [m]

4)

9.8 - 10.7

4)

Depending on equipment variants.

174

Technical data

Tyre pressures

Comfort with up to 3 people

ECO with up to 3 people

With full load

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

165/65 R14,
185/55 R15,
195/45 R16

220/2.2 (32)

210/2.1 (30)

270/2.7 (39)

250/2.5 (36)

260/2.6 (38)

300/3.0 (44)

Temporary spare wheel
T105/70D14

420/4.2 (60)

Customer information

175

Customer

information

Customer information ................ 175

Declaration of conformity ......... 175

REACH .................................... 178

Software acknowledgement .... 178

Registered trademarks ............ 179

Vehicle data recording and pri‐

vacy ........................................... 180

Event data recorders ............... 180

Radio Frequency Identification

(RFID) ..................................... 183

Customer information

Declaration of conformity

Radio transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU. The

manufacturers of the systems listed

below declare conformity with

Directive 2014/53/EU. The full text of

the EU declaration of conformity for

each system is available at the

following internet address:

www.opel.com/conformity.
Importer is

Opel / Vauxhall, Bahnhofsplatz,

65423 Ruesselsheim am Main,

Germany.

Antenna

INFAC ELECS
Saneop-ro 155beon-gi Gwonseon-

gu, Suwon city, Gyeonggi-do, Korea
Operation frequency: N/A
Maximum output: N/A

Antenna

Laird
Daimlerring 31, 31135 Hildesheim,

Germany
Operation frequency: N/A
Maximum output: N/A

Immobiliser

Robert Bosch GmbH
Robert Bosch Platz 1, 70839

Gerlingen, Germany
Operation frequency: 125 kHz
Maximum output:

5.1 dBµA/m @ 10 m

Infotainment system R 4.0 / Navi 4.0

LG Electronics
Electronics European Shared Service

Center B.V., Krijgsman 1, 1186 DM

Amstelveen, The Netherlands
Operation

frequency (MHz)

Maximum output

(dBm)

2400.0 - 2483.5 4
2400.0 - 2483.5 13
5725.0 - 5850.0 13

176

Customer information

Infotainment system Multimedia

LG Electronics
European Shared Service Center

B.V., Krijgsman 1, 1186 DM

Amstelveen, The Netherlands
Operation

frequency (MHz)

Maximum output

(dBm)

2400.0 - 2483.5 8
2400.0 - 2483.5 16
5725.0 - 5875.0 9

Infotainment system R300 BT

Humax Automotive Co. Ltd.
2, Yeongmun-ro, Cheoin-gu, Yongin-

si, Gyeonggi-do, Korea
Operation frequency: 2402 - 2480

MHz
Maximum output: 4 dBm EIRP

OnStar module

LG Electronics
Electronics European Shared Service

Center B.V., Krijgsman 1, 1186 DM

Amstelveen, The Netherlands

Operation

frequency (MHz)

Maximum output

(dBm)

2402 - 2480

4

2412 - 2462

18

880 - 915

33

1710 - 1785

24

1850 - 1910

24

1920 - 1980

24

2500 - 2570

23

Radio remote control transmitter

Continental Automotive GmbH
Siemensstraße 12, 93055

Regensburg, Germany
Operation frequency: 433.92 MHz
Maximum output: -5.7 dbm
Robert Bosch GmbH
Robert Bosch Platz 1, 70839

Gerlingen, Germany
Operation frequency: 433.92 MHz
Maximum output: -4 dbm

Radio remote control receiver

Robert Bosch GmbH
Robert Bosch Platz 1, 70839

Gerlingen, Germany
Operation frequency: N/A
Maximum output: N/A

Tyre pressure sensors

Schrader Electronics Ltd.
11 Technology Park, Belfast Road,

Antrim BT41 1QS, Northern Ireland,

United Kingdom
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

178

Customer information

REACH

Registration, Evaluation,

Authorisation and Restriction of

Chemicals (REACH) is a European

Union regulation adopted to improve

the protection of human health and

the environment from the risks that

can be posed by chemicals. Visit

www.opel.com/reach for further

information and for access to the

Article 33 communication.

Software acknowledgement

Certain OnStar components include

libcurl and unzip software and other

third party software. Below are the

notices and licenses associated with

libcurl and unzip and for other third

party software please see http://

www.lg.com/global/support/

opensource/index.

libcurl

Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel

Stenberg, <daniel@haxx.se>.
All rights reserved.

Permission to use, copy, modify, and

distribute this software for any

purpose with or without fee is hereby

granted, provided that the above

copyright notice and this permission

notice appear in all copies.
The software is provided "as is",

without warranty of any kind, express

or implied, including but not limited to

the warranties of merchantability,

fitness for a particular purpose and

noninfringement of third party rights.

In no event shall the authors or

copyright holders be liable for any

claim, damages or other liability,

whether in an action of contract, tort

or otherwise, arising from, out of or in

connection with the software or the

use or other dealings in the software.
Except as contained in this notice, the

name of a copyright holder shall not

be used in advertising or otherwise to

promote the sale, use or other

dealings in this Software without prior

written authorization of the copyright

holder.

unzip

This is version 2005-Feb-10 of the

Info-ZIP copyright and license. The

definitive version of this document

should be available at ftp://ftp.info-

zip.org/pub/infozip/license.html

indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All

rights reserved.
For the purposes of this copyright and

license, “Info-ZIP” is defined as the

following set of individuals:
Mark Adler, John Bush, Karl Davis,

Harald Denker, Jean-Michel Dubois,

Jean-loup Gailly, Hunter Goatley, Ed

Gordon, Ian Gorman, Chris Herborth,

Dirk Haase, Greg Hartwig, Robert

Heath, Jonathan Hudson, Paul

Kienitz, David Kirschbaum, Johnny

Lee, Onno van der Linden, Igor

Mandrichenko, Steve P. Miller, Sergio

Monesi, Keith Owens, George

Petrov, Greg Roelofs, Kai Uwe

Rommel, Steve Salisbury, Dave

Smith, Steven M. Schweda, Christian

Spieler, Cosmin Truta, Antoine

Verheijen, Paul von Behren, Rich

Wales, Mike White.

Customer information

179

This software is provided “as is,”

without warranty of any kind, express

or implied. In no event shall Info-ZIP

or its contributors be held liable for

any direct, indirect, incidental, special

or consequential damages arising out

of the use of or inability to use this

software.
Permission is granted to anyone to

use this software for any purpose,

including commercial applications,

and to alter it and redistribute it freely,

subject to the following restrictions:

1. Redistributions of source code

must retain the above copyright

notice, definition, disclaimer, and

this list of conditions.

2. Redistributions in binary form

(compiled executables) must

reproduce the above copyright

notice, definition, disclaimer, and

this list of conditions in

documentation and/or other

materials provided with the

distribution. The sole exception to

this condition is redistribution of a

standard UnZipSFX binary

(including SFXWiz) as part of a

self-extracting archive; that is

permitted without inclusion of this

license, as long as the normal

SFX banner has not been

removed from the binary or

disabled.

3. Altered versions--including, but

not limited to, ports to new

operating systems, existing ports

with new graphical interfaces, and

dynamic, shared, or static library

versions--must be plainly marked

as such and must not be

misrepresented as being the

original source. Such altered

versions also must not be

misrepresented as being Info-ZIP

releases--including, but not

limited to, labeling of the altered

versions with the names “Info-

ZIP” (or any variation thereof,

including, but not limited to,

different capitalizations), “Pocket

UnZip,” “WiZ” or “MacZip” without

the explicit permission of Info-ZIP.

Such altered versions are further

prohibited from misrepresentative

use of the Zip-Bugs or Info-ZIP e-

mail addresses or of the Info-ZIP

URL(s).

4. Info-ZIP retains the right to use

the names “Info-ZIP,” “Zip,”

“UnZip,” “UnZipSFX,” “WiZ,”

“Pocket UnZip,” “Pocket Zip,” and

“MacZip” for its own source and

binary releases.

Registered trademarks

Apple Inc.

Apple CarPlay™ is a trademark of

Apple Inc.
App Store

®

 and iTunes Store

®

 are

registered trademarks of Apple Inc.
iPhone

®

, iPod

®

, iPod touch

®

, iPod

nano

®

, iPad

®

 and Siri

®

 are registered

trademarks of Apple Inc.
Bluetooth SIG, Inc.

Bluetooth

®

 is a registered trademark

of Bluetooth SIG, Inc.
DivX, LLC

DivX

®

 and DivX Certified

®

 are

registered trademarks of DivX, LLC.

180

Customer information

EnGIS Technologies, Inc.

BringGo

®

 is a registered trademark of

EnGIS Technologies, Inc.
Google Inc.

Android™ and Google Play™ Store

are trademarks of Google Inc.
Stitcher Inc.

Stitcher™ is a trademark of Stitcher,

Inc.
Verband der Automobilindustrie e.V.

AdBlue

®

 is a registered trademark of

the VDA.

Vehicle data recording

and privacy

Event data recorders

Electronic control units are installed in

your vehicle. Control units process

data which is received by vehicle

sensors, for example, or which they

generate themselves or exchange

amongst themselves. Some control

units are necessary for the safe

functioning of your vehicle, others

assist you while you drive (driver

assistance systems), while others

provide comfort or infotainment

functions.
The following contains general

information about data processing in

the vehicle. You will find additional

information as to which specific data

is uploaded, stored and passed on to

third parties and for what purpose in

your vehicle under the key word Data

Protection closely linked to the

references for the affected functional

characteristics in the relevant owner's

manual or in the general terms of

sale. These are also available online.

Operating data in the vehicle

Control units process data for

operation of the vehicle.
This data includes, e.g.:

● vehicle status information (e.g.

speed, movement delay, lateral

acceleration, wheel rotation rate,

"seat belts fastened" display)

● ambient conditions (e.g.

temperature, rain sensor,

distance sensor)

As a rule such data is transient, not

stored for longer than an operational

cycle, and only processed on board

the vehicle itself. Control units often

include data storage (including the

vehicle key). This is used to allow

information to be documented

temporarily or permanently on vehicle

condition, component stress,

maintenance requirements and

technical events and errors.

Customer information

181

Depending on technical equipment

level, the data stored is as follows:

● system component operating

states (e.g. fill level, tyre

pressure, battery status)

● faults and defects in important

system components (e.g. lights,

brakes)

● system reactions in special

driving situations (e.g. triggering

of an airbag, actuation of the

stability control systems)

● information on events damaging

the vehicle

● for electric vehicles the amount of

charge in the high-voltage

battery, estimated range

In special cases (e.g. if the vehicle

has detected a malfunction), it may be

necessary to save data that would

otherwise just be volatile.
When you use services (e.g. repairs,

maintenance), the operating data

saved can be read together with the

vehicle identification number and

used when necessary. Staff working

for the service network (e.g. garages,

manufacturers) or third parties (e.g.

breakdown services) can read the

data from the vehicle. The same

applies to warranty work and quality

assurance measures.
Data is generally read via the OBD

(On-Board Diagnostics) port

prescribed by law in the vehicle. The

operating data which is read out,

documents the technical condition of

the vehicle or individual components

and assists with fault diagnosis,

compliance with warranty obligations

and quality improvement. This data,

in particular information on

component stress, technical events,

operator errors and other faults, is

transmitted to the manufacturer

where appropriate, together with the

vehicle identification number. The

manufacturer is also subject to

product liability. The manufacturer

potentially also uses operating data

from vehicles for product recalls. This

data can also be used to check

customer warranty and guarantee

claims.
Fault memories in the vehicle can be

reset by a service company when

carrying out servicing or repairs or at

your request.

Comfort and infotainment

functions

Comfort settings and custom settings

can be stored in the vehicle and

changed or reset at any time.
Depending on the equipment level in

question, these include

● seat and steering wheel position

settings

● chassis and air conditioning

settings

● custom settings such as interior

lighting

You can input your own data in the

infotainment functions for your

vehicle as part of the selected

features.
Depending on the equipment level in

question, these include

● multimedia data such as music,

videos or photos for playback in

an integrated multimedia system

● address book data for use with an

integrated hands-free system or

an integrated navigation system

182

Customer information

● input destinations
● data on the use of online services

This data for comfort and

infotainment functions can be stored

locally in the vehicle or be kept on a

device that you have connected to the

vehicle (e.g. a smartphone, USB stick

or MP3 player). Data that you have

input yourself can be deleted at any

time.
This data can only be transmitted out

of the vehicle at your request,

particularly when using online

services in accordance with the

settings selected by you.

Smartphone integration, e.g.

Android Auto or Apple CarPlay

If your vehicle is equipped

accordingly, you can connect your

smartphone or another mobile device

to the vehicle so that you can control

it via the controls integrated in the

vehicle. The smartphone image and

sound can be output via the

multimedia system in this case. At the

same time, specific information is

transmitted to your smartphone.

Depending on the type of integration,

this includes data such as position

data, day / night mode and other

general vehicle information. For more

information, please see the operating

instructions for the vehicle /

infotainment system.
Integration allows selected

smartphone apps to be used, such as

navigation or music playback. No

further integration is possible

between smartphone and vehicle, in

particular active access to vehicle

data. The nature of further data

processing is determined by the

provider of the app used. Whether

you can define settings, and if so

which ones, is dependent on the app

in question and your smartphone's

operating system.

Online services

If your vehicle has a radio network

connection, this allows data to be

exchanged between your vehicle and

other systems. The radio network

connection is made possible by

means of a transmitter device in your

vehicle or a mobile device provided

by you (e.g. a smartphone). Online

functions can be used via this radio

network connection. These include

online services and applications /

apps provided to you by the

manufacturer or other providers.

Proprietary services

In the case of the manufacturer's

online services, the relevant functions

are described by the manufacturer in

an appropriate location (e.g. Owner's

Manual, the manufacturer's website)

and the associated data protection

information is provided. Personal

data may be used to provide online

services. Data exchange for this

purpose takes place via a protected

connection, e.g. using the

manufacturer's IT systems provided

for the purpose. Collection,
