Instruments and controls

87

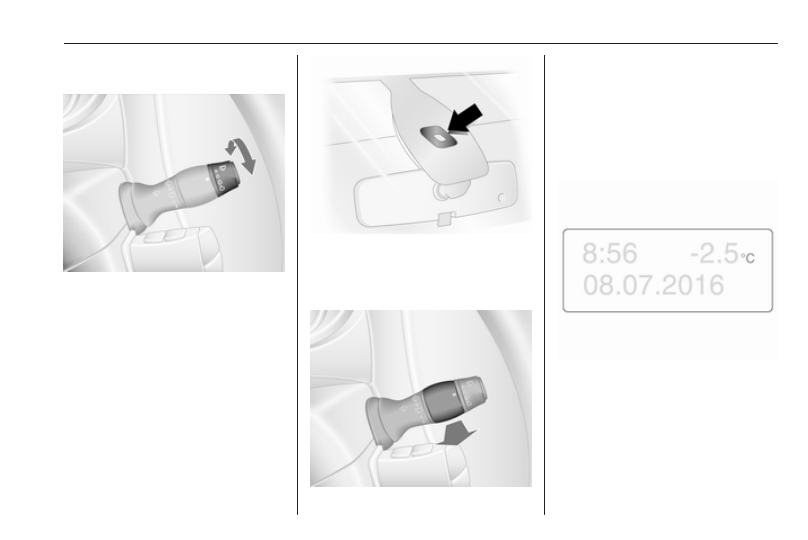

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity:
low sensitivity : turn adjuster

wheel downwards

high sensitivity : turn adjuster

wheel upwards

Keep the sensor free from dust, dirt

and ice.

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen.
short pull : wiper swipes once

long pull : wiper swipes for a few

strokes

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.
If outside temperatures drop to 3 °C,

the °C flashes in the information

display as a warning for icy road

conditions. This will continue to flash

until temperatures rise above 3 °C.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

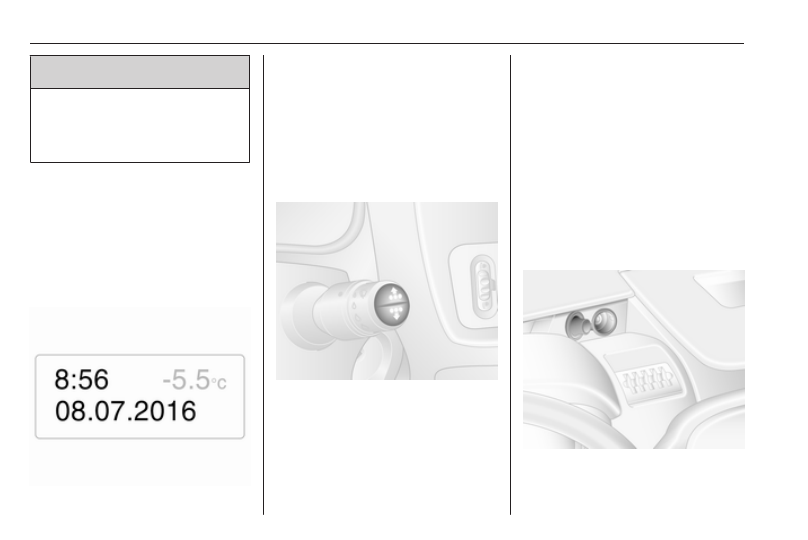

88

Instruments and controls

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Depending on vehicle, the current

time and/or date may appear in the

information display 3 103 or the

Driver Information Centre 3 103.

Set time and date in information

display

Hours and minutes can be adjusted

by pressing the appropriate buttons

by the display or with the Infotainment

system controls.
Further information is available in the

Infotainment instruction.

Set time in Driver Information

Centre

Display the clock function by pressing

button repeatedly on end of wiper

lever. When the time flashes (after

approx. two seconds):

● Press and hold the bottom

button.

● Hours flash.

● Press top button to change

hours.

● Press and hold bottom button to

set hours.

● Minutes flash.
● Press top button to change

minutes.

● Press and hold bottom button to

set minutes and exit setting

mode.

Power outlets

12 V power outlets are located on top

of the instrument panel, or beside the

gearshift lever.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

89

Depending on vehicle, an additional

outlet may be located in the rear of the

vehicle.
Connecting electrical accessories

while the engine is off will discharge

the vehicle battery. Do not exceed the

maximum power consumption of

120 watts.

9 Danger

To avoid the risk of fire, if multiple

power outlets are used

simultaneously, the total power

consumption of connected

accessories must not exceed

180 watts.

With ignition off the power outlet may

be deactivated.
Additionally, the power outlet may be

deactivated in case of low battery

voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

Caution

Do not connect any current-

delivering accessories, e.g.

electrical charging devices or

batteries.
Do not damage the outlets by

using unsuitable plugs.

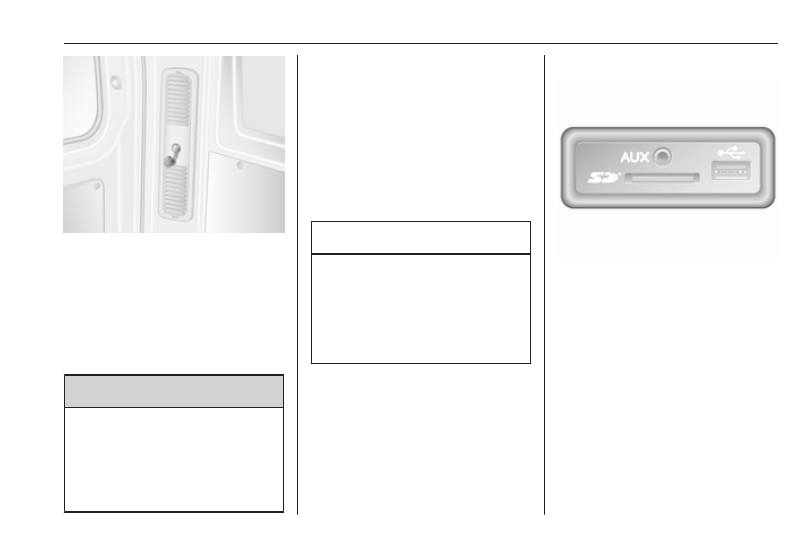

USB socket

In the Infotainment unit (or on the

instrument panel) there is a USB

socket M for the connection of external

audio sources and for charging

devices.

Note

The sockets must always be kept

clean and dry.

AUX socket, SD card slot - refer to the

Infotainment instruction.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Instruments and controls

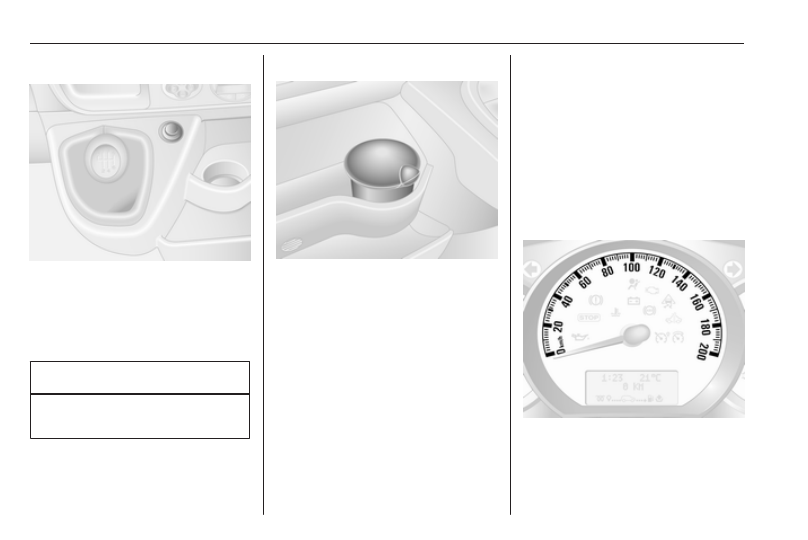

Cigarette lighter

Press in cigarette lighter. It switches

off automatically once the element is

glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

Portable ashtray

Ashtray container for mobile use in

the vehicle. To use, open cover.

Warning lights, gauges

and indicators

Instrument cluster

In some versions, the needles of the

instruments briefly rotate to the end

position when the ignition is switched

on.

Speedometer

Indicates vehicle speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

Speed limiter

Maximum speed may be restricted by

a speed limiter. As a visible indication

of this, a warning label is located on

the instrument panel.
A warning buzzer will sound for

ten seconds if the vehicle briefly

exceeds the set limit.

Note

Under certain conditions (e.g. steep

inclines) the vehicle speed may

exceed the set limit.

Speed limiter 3 164, cruise control

speed limiter 3 160.

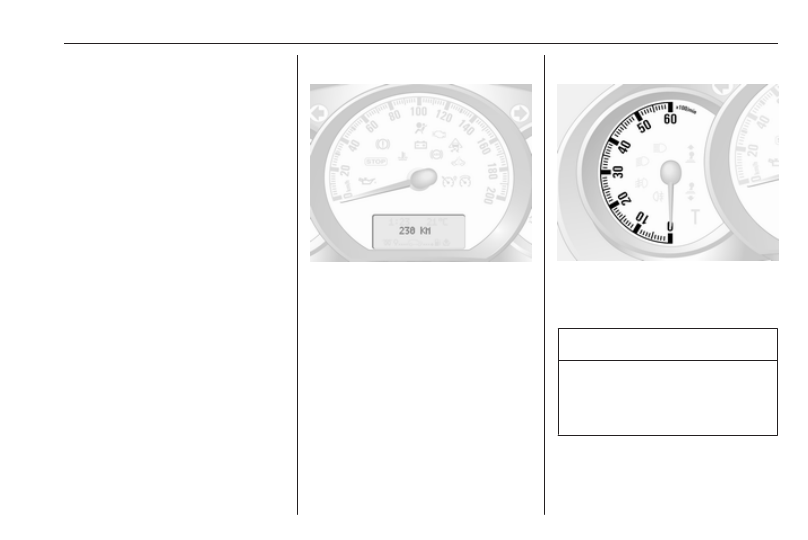

Odometer

Displays the recorded distance in km.

Trip odometer

The trip odometer displays the

distance travelled since the last reset.
Press button once on end of

windscreen wiper lever to display the

trip odometer.
To reset, with the trip odometer

displayed, press and hold button for a

few seconds with the ignition on. The

display will flash and the value will

reset to zero.
Tachograph 3 107.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

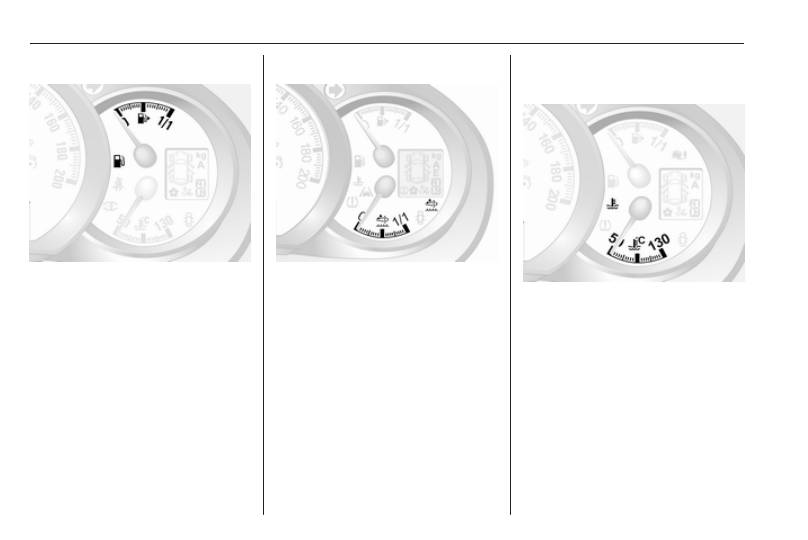

Fuel gauge

Displays fuel level in the tank.
Control indicator Y illuminates if the

level in the tank is low. Refuel

immediately 3 170.
Never run the tank dry. Diesel fuel

system, bleeding 3 184.
Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified tank capacity.

AdBlue gauge

In versions without AdBlue level

warnings in the Driver Information

Centre, an AdBlue gauge is present,

which shows the current AdBlue fluid

level remaining in the tank.
Control indicator Y 3 100 illuminates

if the level in the tank is low. Refill

AdBlue as soon as possible to avoid

prevention of engine starts.
AdBlue 3 144.

Engine coolant temperature

gauge

Displays the coolant temperature.
left area : engine operating

temperature not yet

reached

central

area

: normal operating

temperature

right area : temperature too high
Control indicator W illuminates if the

temperature is too high 3 99,

3

 100.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

For physical reasons, the coolant

temperature gauge shows the coolant

temperature only if the coolant level is

adequate.

Engine oil level monitor

The engine oil level monitor is correct

only if the vehicle is parked on a level

surface with a cold engine.
If the engine oil level is correct when

the ignition is switched on OIL LEVEL

CORRECT appears briefly in the

Driver Information Centre.
If the engine oil is above the minimum

level, press the trip computer button

on the end of the wiper lever within

30 seconds of switching on the

ignition. The message OIL LEVEL is

displayed in combination with the

squares that correspond to the oil

level.

As the oil level diminishes, the

squares in the display are replaced

with dashes.
▢▢▢▢▢▢ : maximum level

▢▢▢- - - : intermediate level

- - - - - - : minimum level
If the minimum engine oil level is

reached TOP-UP OIL LEVEL is

displayed in combination with control

indicator A after the ignition is

switched on for 30 seconds. Check

and top up engine oil 3 178.
To exit the oil level monitor display,

press either trip computer button.
Trip computer 3 105.

Service display

When the ignition is switched on, the

remaining distance before the next

service is due may be shown briefly in

the Driver Information Centre. Based

on driving conditions, the interval at

which a service will be indicated can

vary considerably.

When the remaining distance before

the next service is less than

3000 km or two months, SERVICE

IN appears in the Driver Information

Centre.
When the distance reaches 0 km or

the service date is due, control

indicators o and A illuminate in the

instrument cluster and SERVICE

DUE appears in the Driver

Information Centre.
The vehicle needs a service. Seek the

assistance of a workshop.

Resetting the service display

After a service, the service display

must be reset: if available, select the

distance before service display in the

Driver Information Centre, then press

and hold button on end of wiper lever

for approx. ten seconds until the

distance before service is displayed

continuously.
Trip computer 3 105.
Driver Information Centre 3 103.
Service information 3 221.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

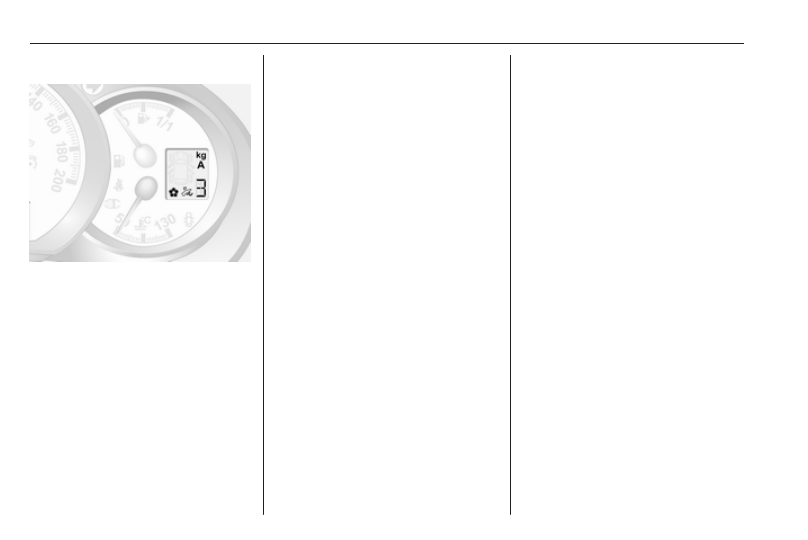

Transmission display

The mode or selected gear of the

instruction transmission automated is

shown in the transmission display.
R : reverse gear

N : neutral

A : automatic mode

kg : laden mode

V

: winter mode

T

: apply footbrake

W

: transmission electronics

Instruction transmission automated

3

 151.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

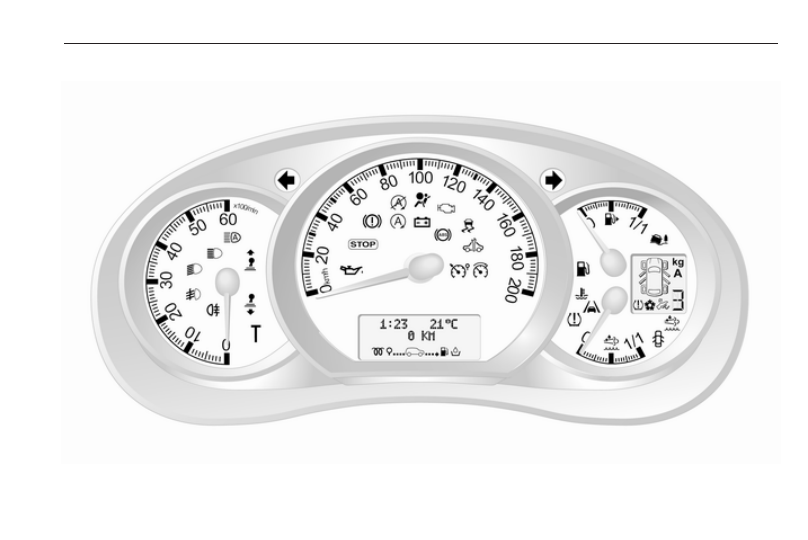

Control indicators in the instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

Control indicators in the

instrument panel

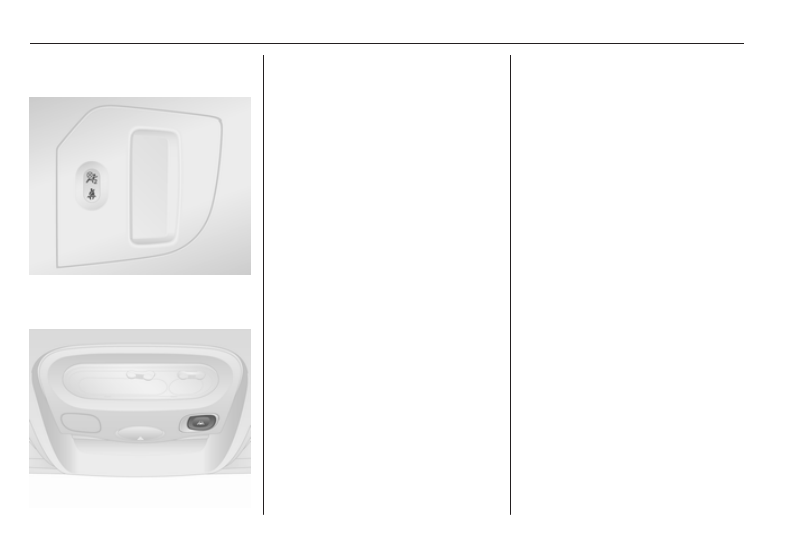

Control indicators in the roof

console

Overview

O

Turn signal 3 97

X

Seat belt reminder 3 97

v

Airbag and belt tensioners

3

 97

W

Airbag deactivation 3 97

p

Charging system 3 98

Z

Malfunction indicator light

3

 98

A

Service vehicle soon 3 98

o

Service display 3 98

C

Stop engine 3 99

R

Brake system 3 99

u

Antilock brake system (ABS)

3

 99

kj

Upshift, downshift 3 99

ì

Lane departure warning 3 99

R

Electronic Stability Program

3

 100

Ø

Electronic Stability Program off

3

 100

W

Engine coolant temperature

3

 100

!

Preheating 3 100

Y

AdBlue 3 100

w

Tyre pressure monitoring

system 3 100

I

Engine oil pressure 3 101

Y

Low fuel 3 101

D

Autostop (Stop-start system)

3

 101

\

Autostop inhibited (Stop-start

system) 3 101

9

Exterior light 3 102

C

High beam 3 102

í

High beam assist 3 102

>

Fog light 3 102

ø

Rear fog light 3 102

m

Cruise control 3 102

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

U

Cruise control speed limiter

3

 102

&

Tachograph 3 102

y

Door open 3 102

Turn signal

O

 flashes green.

Flashes if a turn signal or the hazard

warning flashers are activated.
Rapid flashing: failure of a turn signal

light or associated fuse.
An audible warning can be heard

when the turn signals are on. When

towing a trailer, the pitch of the

audible warning changes.
Bulb replacement 3 185.
Fuses 3 194.
Turn signals 3 112.

Seat belt reminder

X

 illuminates or flashes red.

If the seat belt is unfastened, control

indicator X will flash when vehicle

speed exceeds approx. 16 km/h. A

warning chime also sounds for

approx. 90 seconds.
If the seat belt is fastened, the

indicator light extinguishes.

9 Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

Three-point seat belts 3 54.

Airbag and belt tensioners

v

 illuminates yellow.

When the ignition is switched on, the

control indicator illuminates briefly. If

it does not illuminate or illuminates

whilst driving, there is a fault in the

airbag system. Seek the assistance

of a workshop. The airbags and belt

pretensioners may fail to trigger in the

event of an accident.

Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners, airbag system

3

 53, 3 57.

Airbag deactivation

W

 illuminates yellow when the

ignition is switched on and remains

illuminated when the front passenger

airbag has been deactivated 3 61.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

9 Danger

Risk of fatal injury for a child using

a child restraint system together

with activated front passenger

airbag.
Risk of fatal injury for an adult

person with deactivated front

passenger airbag.

Airbag system 3 57, belt tensioners

3

 53, airbag deactivation 3 61.

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

Illuminates briefly when the ignition is

switched on.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.
If Z illuminates in combination with

A

, stop vehicle and switch off engine

as soon as possible.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the immediate assistance of a

workshop.

Service vehicle soon

A

 illuminates yellow.

Illuminates briefly when the ignition is

switched on.
The vehicle needs a service.
May illuminate in combination with

another control indicator or a

message in the Driver Information

Centre 3 103.
Illuminates if cleaning of the diesel

particle filter is required and

automatic cleaning does not occur

3

 143.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Service display

Control indicator o also illuminates in

the Driver Information Centre when

the remaining distance before the

next service reaches 0 km or the

service date is due.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

The message SERVICE DUE also

appears in the Driver Information

Centre.
Service display 3 93.

Stop engine

C

 illuminates red.

Illuminates briefly when the ignition is

switched on.
If C illuminates (possibly in

combination with W and/or R), stop

vehicle and switch off engine as soon

as possible.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Depending on the type of fault, a

warning message may also appear in

the Driver Information Centre 3 103.

Brake system

R

 illuminates red.

Control indicator R remains

illuminated after the ignition is

switched on if the parking brake is

applied and extinguishes when the

parking brake is released 3 156.
When the parking brake is released,

R

 illuminates (possibly in

combination with C) if the brake fluid

level is too low 3 181.

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Brake system 3 155.

Antilock brake system

(ABS)

u

 illuminates yellow.

Illuminates briefly when the ignition is

switched on. The system is ready for

operation when u extinguishes.
If control indicators u and A

illuminate with the messages CHECK

ABS and CHECK ESP in the Driver

Information Centre 3 103, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
If control indicators u, A, R and
C

 illuminate, the ABS and ESP are

deactivated and the message

BRAKING FAULT is displayed. Seek

the assistance of a workshop.
Antilock brake system 3 155.

Upshift

k

 or j illuminates yellow.

Illuminates when gearshifting is

recommended for fuel saving

reasons.
ECO mode 3 134.

Lane departure warning

ì

 illuminates white.

Illuminates briefly when the ignition is

switched on and the system is ready

to operate.
A warning chime sounds in

conjunction with ì when the system

recognises an unintended lane

change.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

Lane departure warning 3 168.

Electronic Stability Program

b

 flashes or illuminates yellow.

Illuminates briefly when the ignition is

switched on.

Flashing during driving

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree

3

 158.

Illuminates during driving

The system is unavailable.
May illuminate together with control

indicator A 3 98. A corresponding

message also appears in the Driver

Information Centre 3 103.
ESP®

Plus

 3 158, Traction Control

system 3 157.

Electronic Stability Program

off

Ø

 illuminates green.

If ESP®

Plus

 has been deactivated with

Ø

 on the instrument panel, control

indicator Ø illuminates and a

corresponding message appears in

the Driver Information Centre 3 103.
ESP®

Plus

 3 158, Traction Control

system 3 157.

Engine coolant temperature

W

 illuminates red.

Illuminates briefly when the ignition is

switched on.

Illuminates when the engine is

running

If W illuminates (possibly in

combination with control indicator
C

), stop vehicle and switch off

engine.

Caution

Coolant temperature too high.

Check coolant level 3 179.
If there is sufficient coolant, consult a

workshop.

Preheating

!

 illuminates yellow.

Preheating is activated. Only

activates when outside temperature

is low.

AdBlue

Õ

 illuminates yellow.

AdBlue level is low. Refill AdBlue as

soon as possible, to avoid prevention

of engine starts.
Illuminates together with control

indicator A to indicate a system

failure or as a warning that engine

starting may not be possible after a

certain distance. Seek the assistance

of a workshop immediately.
A corresponding message appears in

the Driver Information Centre 3 103.
AdBlue 3 144.

Tyre pressure monitoring

system

w illuminates or flashes yellow.
Illuminates briefly when the ignition is

switched on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

Illuminates

Tyre pressure loss. Stop immediately

and check tyre pressure.
Control indicator w illuminates

together with C 3 99 and a

corresponding message appears in

the Driver Information Centre when a

puncture or severely under-inflated

tyre is detected.

Flashes

Fault in system. After a delay the

control indicator illuminates

continuously. Consult a workshop.
Control indicator w illuminates

together with A 3 98 and a

corresponding message appears in

the Driver Information Centre when a

tyre without a pressure sensor is

mounted (e.g. spare wheel).
Tyre pressure monitoring system

3

 202.

Engine oil pressure

I

 illuminates red.

Illuminates briefly when the ignition is

switched on.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear, set selector

lever to N.

3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.

Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Check oil level before seeking

assistance of a workshop 3 178.

Low fuel

Y

 illuminates yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fuel level in the tank is too low. Refuel

immediately.
Never run the tank dry.
Refuelling 3 170.
Catalytic converter 3 143.
Bleeding the diesel fuel system

3

 184.

Stop-start system

\

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102

Instruments and controls

Illuminates when an Autostop is

inhibited when certain conditions are

not fulfilled.
Ï

 illuminates or flashes yellow /

green.

Illuminates

Illuminates green during an Autostop.
If Ï illuminates yellow there is a fault

in the stop-start system. Seek the

assistance of a workshop.

Flashes

Flashes green during an automatic

restart.
Stop-start system 3 137.

Exterior light

9

 illuminates green.

Illuminated when the exterior lights

are on 3 109.

High beam

P

 illuminates blue.

Illuminated when high beam is on and

during headlight flash 3 110.

High beam assist

í

 illuminates when the high beam

assist is activated 3 110.

Fog light

>

 illuminates green.

Illuminated when the front fog lights

are on 3 113.

Rear fog light

ø

 illuminates yellow.

Illuminated when the rear fog light is

on 3 113.

Cruise control

m

, U illuminates green or yellow.

m

 illuminates green when a certain

speed is stored.
U illuminates green when the system

is on.

Speed limiter

U illuminates yellow.
U illuminates yellow when the

system is on.

Cruise control, Speed limiter 3 160.

Tachograph

& illuminates when there is a fault

3

 107.

Door open

y illuminates yellow.
Illuminates with the ignition switched

on when a door or the load

compartment is open.
Depending on version, control

indicator also illuminates in

transmission display, indicating

relevant open door.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
