Opel Zafira (2017 year). Instruction - part 17

262

Technical data

Technical data

Vehicle identification .................. 262

Vehicle Identification Number .. 262

Identification plate ................... 262

Engine identification ................ 263

Vehicle data ............................... 264

Recommended fluids and

lubricants ................................ 264

Engine data ............................. 267

Performance ............................ 269

Vehicle weight ......................... 270

Vehicle dimensions ................. 270

Capacities ................................ 272

Tyre pressures ........................ 273

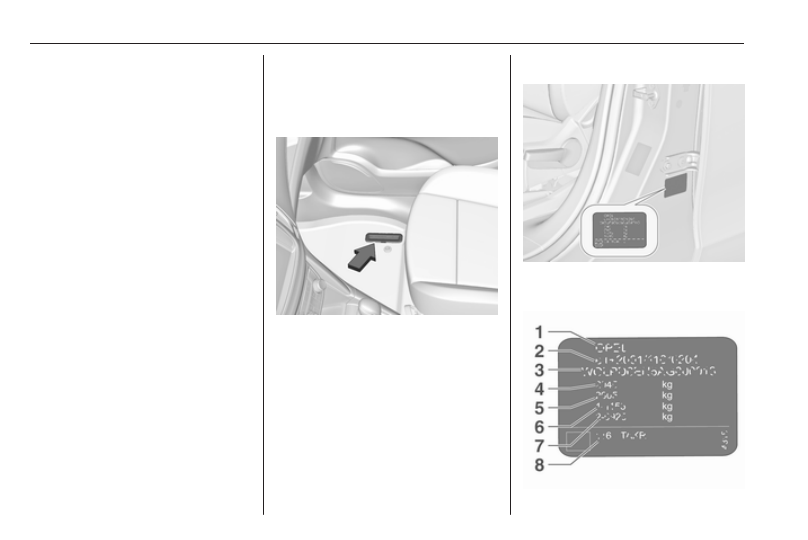

Vehicle identification

Vehicle Identification

Number

The Vehicle Identification Number

may be stamped on the identification

plate and on the floor pan, under the

floor covering, visible under a cover.
The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen,

or in the engine compartment on the

right body panel.

Identification plate

The identification plate is located on

the front left or right door frame.

Technical data

263

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : vehicle-specific or country-

specific data

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight. For

example, if the front axle is bearing its

maximum permissible load, the rear

axle can only bear a load that is equal

to the gross vehicle weight minus the

front axle load.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this instruction.

Engine identification

The technical data tables show the

engine identifier code. Engine data

3

 267.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

264

Technical data

Vehicle data

Recommended fluids and lubricants

European service schedule

Required engine oil quality

All European countries with European service interval 3 258

Engine oil quality

Petrol engines

(including CNG, LPG, E85)

Diesel engines

dexos 1

–

–

dexos 2

✔

✔

In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.

Engine oil viscosity grades

All European countries with European service interval 3 258

Ambient temperature

Petrol and diesel engines

down to -25 °C

SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

Technical data

265

International service schedule

Required engine oil quality

All countries with international service interval 3 258

Engine oil quality

Petrol engines

(including CNG, LPG, E85)

Diesel engines

dexos 1 (if available)

✔

–

dexos 2

✔

✔

In case dexos quality is unavailable you may use the oil qualities listed below:

All countries with international service interval 3 258

Engine oil quality

Petrol engines

(including CNG, LPG, E85)

Diesel engines

GM-LL-A-025

✔

–

GM-LL-B-025

–

✔

All countries with international service interval 3 258

Engine oil quality

Petrol engines

(including CNG, LPG, E85)

Diesel engines

ACEA A3/B3

✔

–

ACEA A3/B4

✔

✔

266

Technical data

All countries with international service interval 3 258

ACEA C3

✔

✔

API SM

✔

–

API SN resource conserving

✔

–

Engine oil viscosity grades

All countries with international service interval 3 258

Ambient temperature

Petrol and diesel engines

down to -25 °C

SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

down to -20 °C

SAE 10W-30

1)

 or SAE 10W-40

1)

1)

Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

Technical data

267

Engine data

Engine identifier code

B14NEL

B14NET

B14NET

B16XNT

B16SHL

B16SHT

Sales designation

1.4

1.4

1.4 LPG

1.6 CNG

1.6

1.6

Engineering code

B14NET

B14NET

B14NET

B16XNT

B16SHT

B16SHT

Piston displacement [cm

3

] 1364

1364

1364

1598

1598

1598

Engine power [kW]

88

103

103

110

125

147

at rpm

4200-6000 4900-6000 4900

5000

4750-6000

5500

Torque [Nm]

200

200

200

210

260

280

at rpm

1850-4200 1850-4900 1850-4900

2300

1650-4500

1650-5000

Fuel type

Petrol

Petrol

Liquid gas/Petrol Natural gas/Petrol

Petrol

Petrol

Octane rating RON

2)

recommended

95

95

95

95

98

98

possible

98

98

98

98

95

95

possible

91

91

91

91

91

91

Additional fuel type

–

–

Liquid gas (LPG) Natural gas (CNG)

–

–

2)

A country specific label at the fuel filler flap can supersede the engine specific requirement.

268

Technical data

Engine identifier code

B20DTJ

B20DTH

Sales designation

2.0 Turbo

2.0 Turbo

Engineering code

B20DTH

B20DTH

Piston displacement [cm

3

]

1956

1956

Engine power [kW]

96

125

at rpm

3750

4000

Torque [Nm]

300

400

at rpm

1500-2750

1750-2500

Fuel type

Diesel

Diesel

Technical data

269

Performance

Engine

B14NEL

B14NET

B14NET
LPG

B16XNT
CNG

B16SHL

B16SHT

Maximum speed

3)

 [km/h]

Instruction transmission
with Stop-start system

190
192

200
202

195
–

200
–

–
–

–
220

Automatic transmission

–

197

–

–

208

–

3)

The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce

the specified maximum speed of the vehicle.

Engine

B20DTJ

B20DTH

Maximum speed

3)

 [km/h]

Instruction transmission
with Stop-start system

–
–

208
208

Automatic transmission

190

205

3)

The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce

the specified maximum speed of the vehicle.

270

Technical data

Vehicle weight

Kerb weight, basic model without any optional equipment

Engine

Instruction transmission

Automatic transmission

5-seats/7-seats
[kg]

B14NEL

1613/1640

–

B14NET

1613/1640

1613/1640

B14NET LPG

1664/1691

–

B16XNT CNG

1701/1728

–

B16SHL

–

1701/1728

B16SHT

1664/1691

–

B20DTJ

–

1788/1815

B20DTH

1733/1760

1788/1815

Optional equipment and accessories increase the kerb weight.
Loading information 3 94.

Vehicle dimensions

Length [mm]

4666

Width with folded exterior mirrors [mm]

1928

Width with two exterior mirrors [mm]

2100

Height (without antenna) [mm]

1620 - 1710

Technical data

271

Length of load compartment floor with folded third row [mm]

1094

Length of load compartment with folded second and third row [mm]

1842

Load compartment width [mm]

1057

Load compartment height at tailgate [mm]

840

Wheelbase [mm]

2760

Turning circle diameter [m]

11.9

272

Technical data

Capacities

Engine oil

Engine

B14NEL

B14NET,
B14NET LPG

B16XNT CNG

B16SHL,
B16SHT

including Filter [l]

4.0

4.0

4.5

5.5

between MIN and MAX [l]

1.0

1.0

1.0

1.0

Engine

B20DTJ

B20DTH

including Filter [l]

5.25

5.25

between MIN and MAX [l]

1.0

1.0

Fuel tank

Petrol/diesel, refilling quantity [l]

58

Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity [l]

25 kg

4)

 or 144 l

14

Liquid gas LPG, refilling quantity [l]

60

4)

At 20 MPa/200 bar/2900 psi and 15 °C.

Technical data

273

AdBlue tank

AdBlue, refilling quantity [l]

7.5

Tyre pressures

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

B14NEL,
B14NET

215/60 R16,

220/2.2 (32) 220/2.2 (32) 260/2.6 (38) 260/2.6 (38) 230/2.3

(33)

300/3.0

(43)

225/50 R17,
235/45 R18,
235/40 R19

B14NET LPG 225/50 R17,

220/2.2 (32) 220/2.2 (32) 260/2.6 (38) 260/2.6 (38) 230/2.3

(33)

300/3.0

(43)

235/45 R18,
235/40 R19

B16XNT CNG 225/50 R17

220/2.2 (32) 220/2.2 (32) 260/2.6 (38) 260/2.6 (38) 230/2.3

(33)

280/2.8

(41)

274

Technical data

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

B16SHL,
B16SHT

225/50 R17,

260/2.6 (38) 240/2.4 (35) 280/2.8 (41) 280/2.8 (41) 270/2.7

(39)

320/3.2

(46)

235/45 R18,
235/40 R19

B20DTJ,
B20DTH

225/50 R17,

260/2.6 (38) 240/2.4 (35) 280/2.8 (41) 280/2.8 (41) 280/2.8

(41)

320/3.2

(46)

235/45 R18,
235/40 R19

All

Temporary spare

wheel
125/70 R17

420/4.2 (61) 420/4.2 (61) –

–

420/4.2

(61)

420/4.2

(61)

282

Index

A

Accessories and vehicle

modifications .......................... 214

Active Emergency Braking......... 186

Active head restraints................... 37

Adaptive cruise control....... 117, 176

AdBlue........................ 115, 159, 259

Adjustable air vents ................... 148

Airbag and belt tensioners ......... 111

Airbag deactivation .............. 58, 112

Airbag label................................... 54

Airbag system .............................. 54

Air conditioning regular

operation ................................ 149

Air conditioning system .............. 143

Air intake .................................... 149

Air vents...................................... 148

Antilock brake system ................ 166

Antilock brake system (ABS) ..... 113

Anti-theft alarm system ................ 26

Anti-theft locking system .............. 26

Appearance care........................ 254

Armrest......................................... 42

Armrest storage ........................... 69

Ashtrays ..................................... 103

Automatic anti-dazzle .................. 30

Automatic light control ............... 133

Automatic locking ........................ 24

Automatic transmission ............. 162

Autostop..................................... 154

Auxiliary heater........................... 148

B

Battery discharge protection ...... 141

Battery voltage ........................... 124

Bicycle rack.................................. 70

BlueInjection............................... 159

Bonnet ....................................... 215

Brake and clutch fluid................. 259

Brake and clutch system ........... 112

Brake assist ............................... 168

Brake fluid .................................. 219

Brakes ............................... 166, 219

Breakdown.................................. 252

Bulb replacement ....................... 222

C

Capacities .................................. 272

Cargo management system ........ 88

Car Pass ...................................... 21

Catalytic converter ..................... 158

Central locking system ................ 22

Centre console lighting .............. 140

Centre console storage ............... 69

Changing tyre and wheel size ... 241

Charging system ........................ 112

Child locks ................................... 25

Child restraint installation

locations ................................... 63

Child restraints.............................. 60

283

Child restraint systems ................ 60

Cigarette lighter ......................... 103

Climate control ............................. 16

Climate control systems............. 142

Clock........................................... 101

Code........................................... 123

Collision damage repair.............. 278

Control indicators........................ 108

Control of the vehicle ................. 151

Controls........................................ 97

Convex shape .............................. 29

Coolant and antifreeze............... 259

Cruise control .................... 116, 173

Cupholders .................................. 66

Curtain airbag system .................. 58

Curve lighting.............................. 136

D

Danger, Warnings and Cautions ... 4

Daytime running lights ............... 135

Declaration of conformity............ 275

DEF............................................ 159

Diesel exhaust fluid.................... 159

Diesel fuel system bleeding ....... 221

Diesel particle filter............. 115, 157

Door open .................................. 117

Door panel storage....................... 68

Doors............................................ 25

Driver assistance systems.......... 173

Driver Information Centre........... 117

Driving characteristics and

towing tips .............................. 208

Driving hints................................ 151

E

Electric adjustment ...................... 29

Electrical system......................... 229

Electric parking brake......... 113, 166

Electric parking brake fault......... 113

Electronic climate control system 144

Electronic driving programmes .. 163

Electronic Stability Control.......... 170

Electronic Stability Control and

Traction Control system.......... 114

Electronic Stability Control off..... 114

End-of-life vehicle recovery ....... 215

Engine compartment fuse box ... 230

Engine coolant ........................... 217

Engine coolant temperature

gauge ..................................... 107

Engine data ............................... 267

Engine exhaust .......................... 157

Engine identification................... 263

Engine oil ................... 216, 259, 264

Engine oil pressure .................... 115

Entry lighting .............................. 140

Event data recorders.................. 280

Exit lighting ................................ 140

Exterior care .............................. 254

Exterior light ............................... 116

Exterior lighting .................... 13, 132

Exterior mirrors............................. 29

F

Fault ........................................... 164

First aid kit ................................... 92

Fixed air vents ........................... 149

Flex-Fix system............................ 70

Fog light ..................................... 116

Fog lights ................................... 224

Folding mirrors ............................. 29

Folding tray .................................. 92

Following distance...................... 114

Following distance indication...... 185

Forward collision alert................. 182

Front airbag system ..................... 57

Front fog lights ........................... 137

Front seats.................................... 38

Front storage................................ 68

Fuel............................................. 198

Fuel consumption - CO

2

-

Emissions ............................... 207

Fuel for diesel engines .............. 199

Fuel for liquid gas operation....... 200

Fuel for natural gas operation . . . 199

Fuel for petrol engines ............... 198

Fuel gauge ................................. 105

Fuel selector .............................. 106

Fuses ......................................... 229

284

G

Gauges....................................... 104

Gear shifting............................... 114

General information ................... 208

Glass panel .................................. 34

Glovebox ..................................... 66

H

Halogen headlights .................... 222

Hand brake................................. 166

Hazard warning flashers ............ 137

Headlight flash ........................... 134

Headlight range adjustment ...... 134

Headlights................................... 132

Headlights when driving abroad  135

Head restraint adjustment ............. 8

Head restraints ............................ 36

Heated mirrors ............................. 30

Heated rear window ..................... 33

Heated steering wheel ................. 97

Heating ........................................ 43

Heating and ventilation system . 142

High beam ......................... 116, 133

High beam assist................ 116, 133

Hill start assist ........................... 168

Horn ....................................... 14, 98

I

Identification plate ..................... 262

Ignition switch positions ............. 151

Immobiliser .......................... 28, 116

Indicators.................................... 104

Info display................................. 121

Information displays.................... 117

Instrument cluster ...................... 104

Instrument panel fuse box ......... 232

Instrument panel illumination ..... 229

Instrument panel illumination

control .................................... 139

Instrument panel overview ........... 10

Interactive driving system........... 171

Interior care ............................... 256

Interior lighting............................ 139

Interior lights ...................... 139, 228

Interior mirrors.............................. 30

Interruption of power supply ...... 164

Introduction .................................... 3

J

Jump starting ............................. 251

K

Keys ............................................. 20

Keys, locks................................... 20

L

Lane departure warning..... 114, 197

Lashing eyes ............................... 88

LED headlights........... 116, 136, 224

Lighting features......................... 140

Light switch ................................ 132

Load compartment ................ 25, 79

Load compartment cover ............. 81

Load compartment fuse box ...... 233

Loading information ..................... 94

Load rails and hooks ................... 88

Low fuel ..................................... 116

M

Malfunction indicator light .......... 112

Manual anti-dazzle ...................... 30

Manual mode ............................. 163

Manual seat adjustment............... 39

Manual transmission .................. 165

Manual windows .......................... 31

Memorised settings...................... 22

Mirror adjustment ........................... 8

Misted light covers ..................... 138

N

New vehicle running-in .............. 151

Number plate light ..................... 228

O

Object detection systems........... 188

Odometer ................................... 104

Oil, engine.................. 216, 259, 264

OnStar........................................ 128

Operate pedal............................. 113

Outside temperature .................. 100

Overhead console ....................... 68

Overrun cut-off ........................... 153
