Opel GT (2012 year). Instruction - part 1





6

In  brief

In brief

To unlock and open the doors:

Press button c on remote control

to unlock driver’s door,

pull door handle

Press button c ag ain  within 5 seconds to

unlock passenger’s door.
The lug gage comp artment rema ins closed.
6 Door locks - see page 21,
Keys  - see page 21,

Elec tronic imm obiliser  - see page 21,
Remote control - see page 22,

Central lock ing  system - see page 24.

To open luggage compartment:

Press and hold button

on remote control,

lift luggage compartment lid

towards rear of vehicle

6 Remote control  - see page 22,
Central locking system  - see  page 24,

Luggage compartment - see page 26,
Luggage compartment release button  -

see page 27,
Emergency luggag e comp artment release

handle  - see page 27,
Soft top - see page 31.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

7

To adjust seats:

Pull handle, slide seat,

release handle

6 Seats - see pa ge 37,
Seat position -  see p age  38.

Adjusting seat backrests:

Turn handwheel

Move seat back rest to suit seating position.
Do  not lean on seat when adjusting the
seat back rest.
6 Seats - see page 37,
Sea t  position - see page 38.

Adjusting driver’s seat height:

Press and  hold  switch up or  down

until desired position  is  reached

6 Seats -  see p age  37,
Seat position  - see  page 38.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8

In  brief

Fitting seat belt:

Draw seat belt smoothly from

inertia  reel, guide over shoulder,

engage in buckle

The b elt must not be  twisted at any point.

The lap  belt  must lie snugly against  the
body.
The b ackrests must  not b e tilted  back  too
far (recom mended maximum tilting angle

approx. 25

o

).

To release belt, press red button  on  belt

buckle.
6 Seat  position - see page 38,

Three-point seat belts - see pag e 40,
Opel Full  Size  airbag system - see page 45.

Adjusting electrical exterior

mirrors:

Four way switch in driver’s door

Move  switch below four  way  switch to left
or  rig ht  from  centre p osition: four  way

switch operates corresponding mirror.
6 Further  information - see pag e 29.

Adjusting interior mirror:

Swivel mirror housing

Swivel lever on underside of m irror housing

to reduce d azzle  at night.
Take care when driving with interior mirror

adjusted for night vision. Rear v iew may be
slightly distorted in this  position.
6 Further information  - see  page 29.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

9

Steering column lock and ignition:

Rotate steering wheel slightly,

turn key to position ACC

Positions:

To lock the steering wheel,  switch ignition

off, rem ov e k ey  and turn  steering wheel
slig htly until lock  is  engaged.
6 Starting  - see page 17,
Parking the  vehicle - see page 17,

Electronic  immobiliser - see pag e 21.

Steering wheel adjustment:

Swivel lever down, adjust height,

swivel lever up,  engage

Do not adjust steering w heel unless v ehicle
is stationary and steering column lock has

been released.
Push the lever  firmly upwards to ensure

that the steering wheel is locked in position.
6 Opel Full Size airbag  system -

see p age 45.

J

J

J

J

=

Ignition off

ACC

=

Steering unlock ed, ignition off

I

=

Ignition on

Y

=

Start

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10

In brief

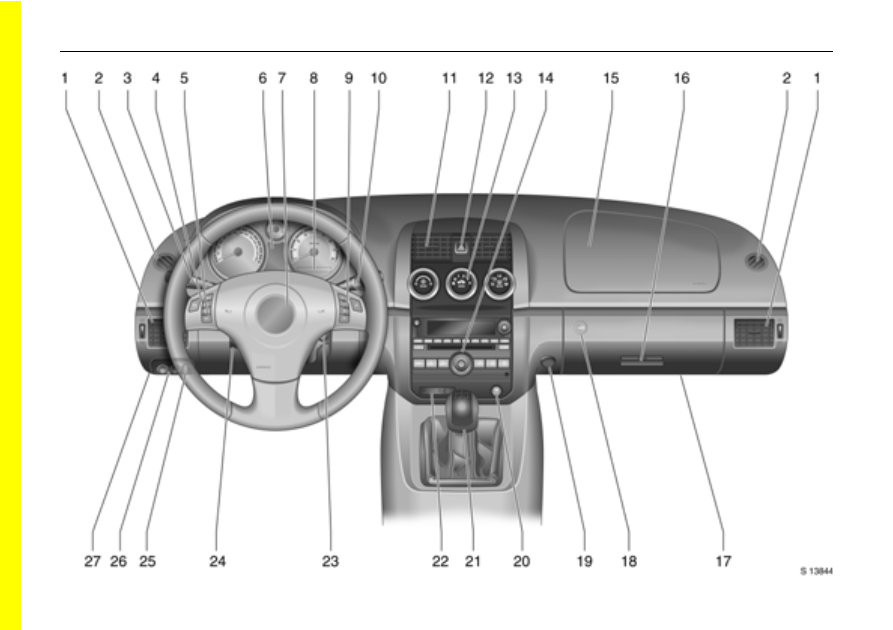

s0013844.tif

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

11

Page

1

Side air v ents  .................................. 103

2

Door window defroster v ents  ........ 103

3

Turn signals ................................14, 74

high or low beam ........................ 13, 74
head lamp flash ........................... 13, 74

parking la mps ............................. 13, 73
auto light control ..............................73

4

Cruise control
rem ote control on  steering wheel .. 121

5

Driver information centre
rem ote control on  steering wheel ....60

6

Instruments........................................55

7

Driver’s airb ag...................................45

Horn ...................................................14

8

Driver information centre .................59

Pa ge

9

Infotainment system 3

remote  control on steering  wheel.... 79

10 Windscreen wipers,

wind screen washer system ...15, 71, 72

11 Centre air vents ............................... 102
12 Hazard w arning ..........................14, 75
13 Climate control ............................... 102
14 Infotainment system 3 .....................78
15 Pa ssenger’s airbag .......................... 45
16 Glov e com partment.......................... 51
17 Fuse box

(under instrument p anel) ............... 143

18 Luggag e comp artment release

(in g lov e com partment) ................... 27

19 Ac cessory socket............................... 54

Page

20 ESP/Traction Control  ..................... 118
21 Gear shift lever .................................. 16
22 Passenger’s seat  belt wa rning

device ................................................ 43
Seat occupancy recognition ............ 48

23 Ignition switc h......................................9
24 Steering w heel a djustment .................9
25 Instrum ent panel, informa tion

display illumination .......................... 76

26 Front fog  la mps,

fog tail lam p ............................... 13, 75

27 Bonnet release

(under instrum ent panel) ...............130

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

In brief

Control indicators

u

Anti-lock Brake System (ABS):

see p ages 55, 124.

s

Lugg age comp artment op en:
see p ages 28, 55.

r

Fog tail la mp:

see p ages 55, 75.

O

Turn  sig na ls:
see p ages 14, 56,  74.

P

Hea dlam p high beam :

see p ages 13, 56,  74.

Z

Exhaust em issions:
see p ages 56, 116.

R

Brake system, clutch system:
see pages 56, 70, 124, 156.

I

Engine oil pressur e:

see page 57.

W

Coolant temp era ture:
see page 57.

v

Airb ag systems, b elt tensioners:

see pages  41, 45, 57.

X

Driver’s seat b elt:
see pages  39, 43, 57.

p

Alternator:

see page 58.

v

Electr onic Sta bility Program  (ESP),
Electr onic Sta bility Contr ol (ESC):

see  pages 58, 118.

>

Front fog lam ps:
see  pages 58, 75.

o

Electr onic imm obiliser:

see  pages 21, 58.

W

Seat occup ancy  recog nition:
passeng er’s airbag  deactiv ated -

see page 48.

V

Seat occup ancy  recog nition:
passeng er’s airbag  activated  -

see page 49.

k

Pa ssenger’s sea t belt:
see  pages 39, 43.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

13

Exterior lamps: Turn light switch

6 Headla mp warning device - see p age 71,
Lighting - see page 73,

Headlamps when  driving abroad -
see page 77.

Front  fog  lamps, fog tail lam p:

Press button

6 Front fog la mps  - see page 75,
Fog tail  lamp - see pa ge 75.

Headlamp flash, high and low

beam:

6 High beam, headlamp  fla sh -

see page 74.

9

=

High  or  low  beam

8

=

Parking  lamps

AUTO =

Auto light control

X

=

Auto light control

off/on

>

=

Front  fog  lamps

r

=

Fog  tail  lamp

Headlamp

flash

= Pull lever towards

steering wheel

and release

High beam = Push lever

forwards

Low  beam = Pull lever towards

steering wheel

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

In brief

Activate turn signals:

6 Turn signals - see page 74.

Hazard warning lamps:

6 Haz ard warning lamps - see pa ge 75.

Activate horn:

Press

j

on steering wheel

6 Opel Full Size airbag system -

see page 45,
Remote  control on steering w heel  -

see page 79.

Right

=

Move lever up

Left

=

Move lever down

On

=

Press

¨

Off

=

Press

¨

 again

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

15

Windscreen wipers:

Move lever from rest position

6 Windscreen  wipers - see pag e 71,

Adjustable wiper interval  - see  page  71,
Further  information - see pages 163, 157.

Windscreen washer  system:

Press button on end  of lever

Washer fluid is sprayed onto  the

wind screen and  at the same time the
wipers are operated for four  cycles.
6 Windscreen wa sher system -
see p age 72,

Further inform ation  - see  pages 163, 158.

Heated rear window:

The  control indicator in the  button

illuminates when  rear window heating  is
on.
Do not turn  on  rear window heating when
the soft top has been stowed in the

luggage compa rtm ent.
6 Climate control  - see  page 102,

Heated  rear w indow  - see  page 103.

z

=

Fast

]

=

Slow

P

=

Tim ed  interval  wipe

O

=

Off

Q

=

Misting function

Press Ü

=

On

Press Ü again =

Off

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

In brief

Drying misted-up  windows:

Air distribution to J

rotary switches for temperature

and fan to the right;

press buttons n and  Ü

Open side  air vents and d irect them
towards the d oor w indows.
6 Climate control -  see p age  102.

Instruction transmission:

Reverse: with the vehicle stationary,
engage the g ear.
If the  gear d oes not engage, set the  lev er  in
neutra l, release the clutc h pedal and

depress aga in; then rep eat gear selection.

Before starting-off,  check:

z Tyre  pressures and  tyre c ondition -

see pages 125,  180.

z Engine oil level a nd  fluid levels in engine

compartment - see pages 152 to 157.

z All windows, mirrors, exterior lig hting

and license  plates are free  from  dirt,
snow and  ice a nd  are operationa l.

z Objects are securely located and  will not

be  thrown forward in the  event of

sudden braking.

z No objects are p laced on the instrum ent

panel or in the area in which the airbags
inflate.

z Seats,  seat belts and  mirrors are

correctly a djusted .

z Brake operation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

17

Starting the engine:

Transmission in neutral, depress

clutch pedal fully, do not

accelerate, turn key to

and release

The  engine  cranking is comp uter controlled
and will c ontinue until the engine starts  or

up to a  maximum  of  15 seconds. To stop
the engine cranking, turn the ignition k ey

back  to the ACC or  J

J

J

J

  p osition.

When the  fuel level is low, the controlled

cranking feature is disa bled  to  prevent
engine dama ge.  Hold the k ey  in  the Y

position to start the engine.
Start a ttempts should not last longer than

15 second s. If engine does not sta rt, wait
10 second s b efore repeating  procedure.
To switch  on ignition, only turn  the key to I.
6 Elec tronic imm obiliser  - see  page 21,

Further information - see pages 110 to 114.

Releasing  the hand brake:

Raise lever slightly,

press release button,

lower lever fully

6 Hand  brake  - see page 124.

Parking the vehicle:

Apply hand brake firmly,

switch ignition off,

engage steering column lock,

lock the vehicle

To lock  vehicle, press button  e.
6 Further information  - see  page 21,

Remote  control - see pag e 22,
Central locking system  - see  page 24,

Vehicle decom missioning - see page 160.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

18

In brief

Advice when parking:

z Do  not the park v ehicle  on  easily

ig nitable surfaces.  The high  temperature
of the exhaust system  could  ignite the

surface.

z Alwa ys apply  the hand brak e firmly.

Ap ply the  ha nd  brake as firm ly as
possible on uphill or downhill slopes. To

reduce  operating forces, d epress brake
pedal  at the same time.

z Close windows.
z Before  switching off ignition, engage  first

or reverse gear.

z If the vehicle is parked on a level surface

or  an  up hill incline, engag e first  gear
before  switching off ig nition. On an  up hill

incline, also  turn the front wheels away
from the kerb.

z If  the vehicle is on a d ow nhill incline,

engage reverse gear before switc hing off

the ignition.  Also turn the front wheels
towa rd s the kerb .

z Turn  steering wheel until lock is felt to

eng age (anti-theft protection), removing

ignition key beforeha nd.

z Sw itch  off exterior lam ps, otherwise the

hea dlamp wa rning device will sound
when the driver’s door is opened.

z The  engine cooling fans may  run a fter

the engine has been switched off -

see page 152.

6 Further  information - see pag es 159 to

160.

That was the most important

information for your first drive in

your vehicle in brief.

The other pages of this chapter

contain a summary  of  the

interesting functions in your

vehicle.

The remaining chapters of the

Owner’s Instruction contain

important information

on operation, safety and

maintenance as well as a

com plete index.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

19

Opel  Full Size airbag  system

The airbag system  is triggered in the event
of a serious accident inv olv ing a frontal

impac t  and forms  safety cushions for  the
driver and passenger. The forward

movement  of the driver and passenger  is
check ed and the risk of injuries to the up per

body  and head  are  thereby substantially
red uced.
6 Opel Full Size  airb ag system  -
see page 45.

Remote control on steering wheel

The functions of the Infota inm ent system  3
and the driv er inform ation  centre  can be

op erated with the b uttons  on  the steering
wheel.
6 Driver information centre - see pag e 59,
Remote control  on steering wheel -

see p age 79,
Infotainment system 3 - see page 78.

Driver information centre

Inform ation d isplay
The  information display p rov id es

inform ation on d riv ing  data, which is
continually recorded and evaluated

electronically.
Functions:

z Outsid e air  temperature and odom eter,
z Trip  odometer A,

z Trip  odometer B,
z Fuel range,

z Average fuel c onsumption,
z Average speed,

z Engine oil life monitor,
z Coolant temp erature,

z Turbo boost.
6 Informa tion display  - see page 60.

TRIP A

33 km

-------------------------------------------------------------------------------------------------------------------------------------------------------------

20

In brief

Check control

The c heck control software monitors:
z Fluid levels

z Engine
z Fuel filler cap

z Remote control b attery
z Airbag  systems

z Vehicle features includ ing cruise control,

trac tion control and Electronic Stability

Program (ESP).

6 Check  control - see p age 68.

Competitive mode

To activate:
Press button R  twice w ithin 5 seconds;

"COMPETITIVE MODE"  appea rs in the
driver information centre and control

indica tor v illuminates in the  instrument
panel.
Competitiv e m ode a llows the  driver  full
control of the  rear wheels. The  trac tion

control aspect of  the Electronic Stability
Program  (ESP) is deactivated for high

performance driving, while ESP continues
to assist in maintaining driving  stab ility.
6 Driver information centre - see pag e 59,
Check  control w arning m essa ge -

see p age  69,
Elec tronic Stability Programme (ESP)  -

see p age  118,
Competitiv e m ode -  see p age  120.

DOOR AJAR



COMP ETITIV E MO DE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

21

Locks, doors, windows



Locks, doors, windows

Replacement keys

The key number is  specified  in  the vehic le

docum ents and in the Car Pass  3.
The key is a c onstituent of  the electronic

immobiliser. Ordering k eys from an Opel
Serv ic e Partner  gua ra ntees problem-free

op eration of the electronic immobiliser.
Keep the sp are k ey accessible in a  safe

place.
Locks - see pa ge 164.

Car Pass

3

The Ca r  Pass contains a ll  of  the vehicle’s
data and should  therefore not be k ept in

the vehicle.
Have your Ca r  Pa ss rea dy to hand w hen

consulting your Opel Service Partner.

Electronic imm obiliser

The  system check s  whether the vehicle is
allowed to be sta rted using  the key  that

has been inserted. If the key is recognised
as "authorised", the vehicle c an be started.

The  checking tak es place via  a
transponder in the k ey.
The  electronic im mobiliser activates itself
automatically after the key has been

removed  from  the ignition sw itch.
The code number of the electronic

imm ob iliser  is shown in the Car Pass 3 .

Replacem ent keys ..............................

21

Ca r Pass 3 ...........................................  21
Electronic immobiliser.........................  21
Remote control ...................................   22
Central locking system .......................   24
Instruction locking or unlocking .............   26
Lug gage compartment ......................  26
Vehicle loca tor and  panic alarm .......   28
Exterior mirrors....................................   29
Interior mirror ......................................   29
Electric windows..................................   30
Soft top ................................................   31
Sun visors.............................................   36

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
