Opel Frontera UBS. Service manual - part 955





2A – 38 POWER STEERING

REASSEMBLY

23. Front Housing

22. Oil Seal

Be sure to discard used parts, and always used new
parts for installation.

21. Shaft

20. Bearing

19. Shaft Assembly

18. Retaining Ring

17. Gear

16. O-ring

Be sure to discard used parts, and always used new
parts for installation.

15. O-ring

Be sure to discard used parts, and always used new
parts for installation.

14. Pressure Plate

CAUTION:
When install pressure plate, be careful not to damage its
inner surface. Damaged pressure plate may cause poor
pump performance, pump seizure or oil leakage.

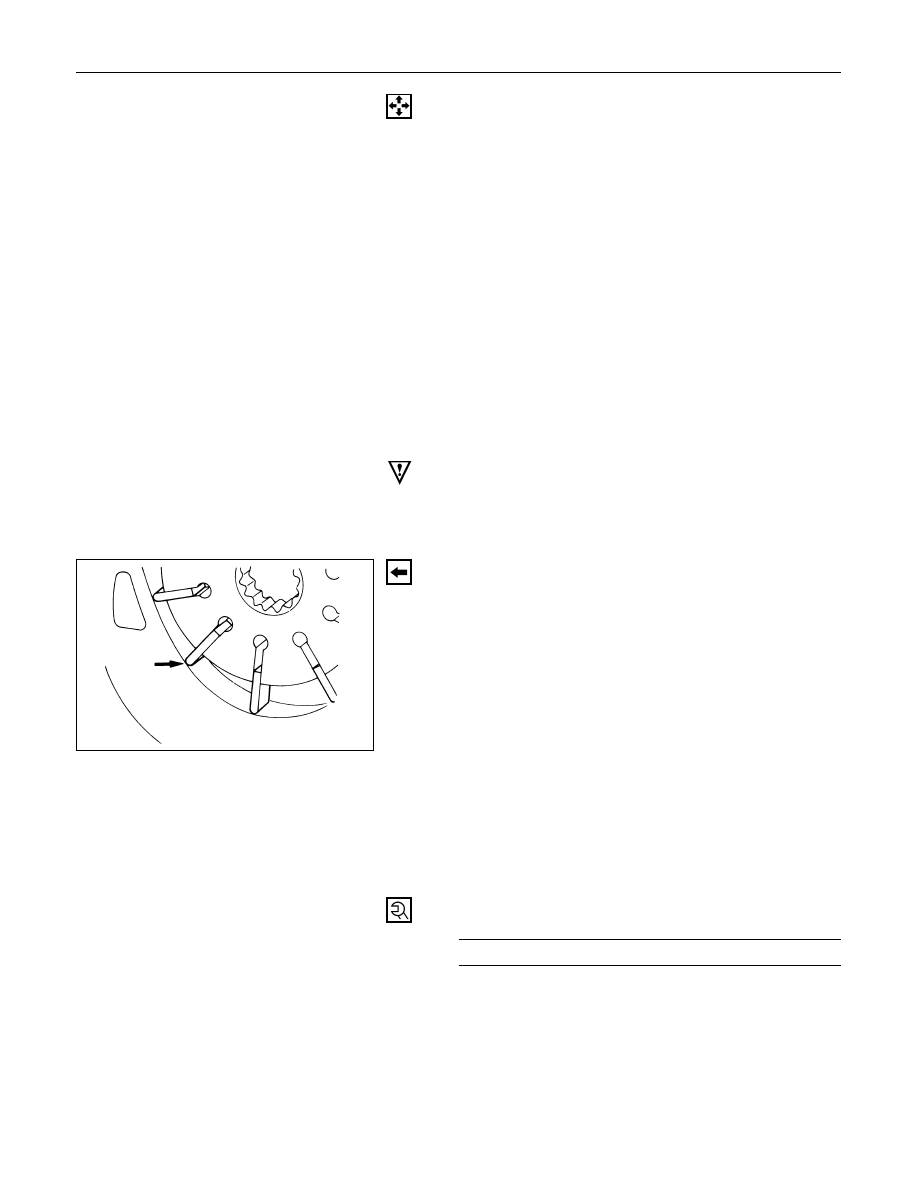

13. Rotor and Vane

Install the vane with curved face in contact with the
inner wall of the cam.

12. Cam

11. Pump Cartridge

10. O-ring

Be sure to discard used parts, and always used new
parts for installation.

9. Rear Housing Assembly

8. Bolt

Rear Housing Bolt Torque

N·m (kg·m/lb·ft)

24 (2.4 / 17)

POWER STEERING  2A – 39

7. Spring

6. Valve

5. O-ring

Be sure to discard used parts, and always used new
parts for installation.

4. Connector

Connector Torque

N·m (kg·m/lb·ft)

59 (6.0 / 43)

3. O-ring

Be sure to discard used parts, and always used new
parts for installation.

2. Pipe, Suction

Suction Pipe Bolt Torque

N·m (kg·m/lb·ft)

9.8 (1.0 / 7.1)

1.

O-ring
Be sure to discard used parts, and always used new
parts for installation.

2A – 40 POWER STEERING

MEMO

STEERING LINKAGE  2A – 41

SECTION 2A

STEERING LINKAGE

CONTENTS

PAGE

General Description ......................................................................................................... 2A – 42

On-Vehicle Service........................................................................................................... 2A – 43

Center Track Rod Assembly........................................................................................ 2A – 43

Outer Track Rod Assembly ......................................................................................... 2A – 46

Relay Lever ................................................................................................................... 2A – 49
