1D – 4 COMPRESSOR OVERHAUL

COMPRESSOR OIL

OIL SPECIFICATION

The HFC-134a system requires a synthetic
(PAG) compressor oil.

Compressor (PAG) oil varies according to
compressor model. Be sure to use oil specified
for the model of compressor.

DKV-14D

: ZXL-200PG

(ISUZU PART NO.

8-97101-336-0)

DKS-15CH

: ZXL-100PG

(ISUZU PART NO.

8-97101-338-0)

HANDLING OF OIL

The oil should be free from moisture, dust,
metal powder, etc.

Do not mix with other oil

The water content in the oil increases when
exposed to the air. After use, seal oil from air
immediately.

The compressor oil must be stored in steel
containers, not in plastic containers.

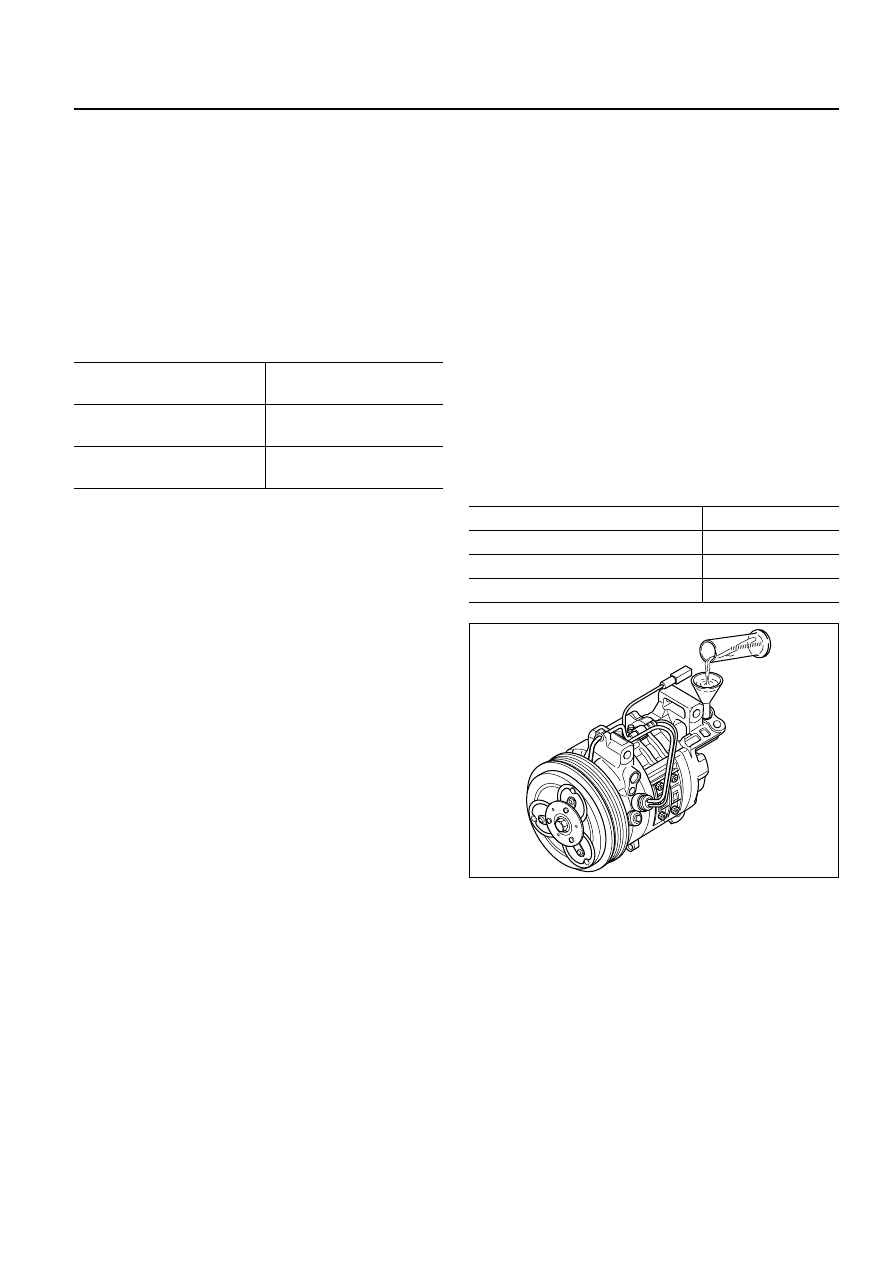

COMPRESSOR OIL CHECK

The oil used to lubricate the compressor is
circulating with the refrigerant.
Whenever replacing any component of the system
or a large amount of gas leakage occurs, add oil to
maintain the original amount of oil.

Oil Capacity

Capacity total in system 150cc (4.2 Imp fl oz)

Compressor (Service

150cc (4.2 Imp fl oz)

parts) charging amount

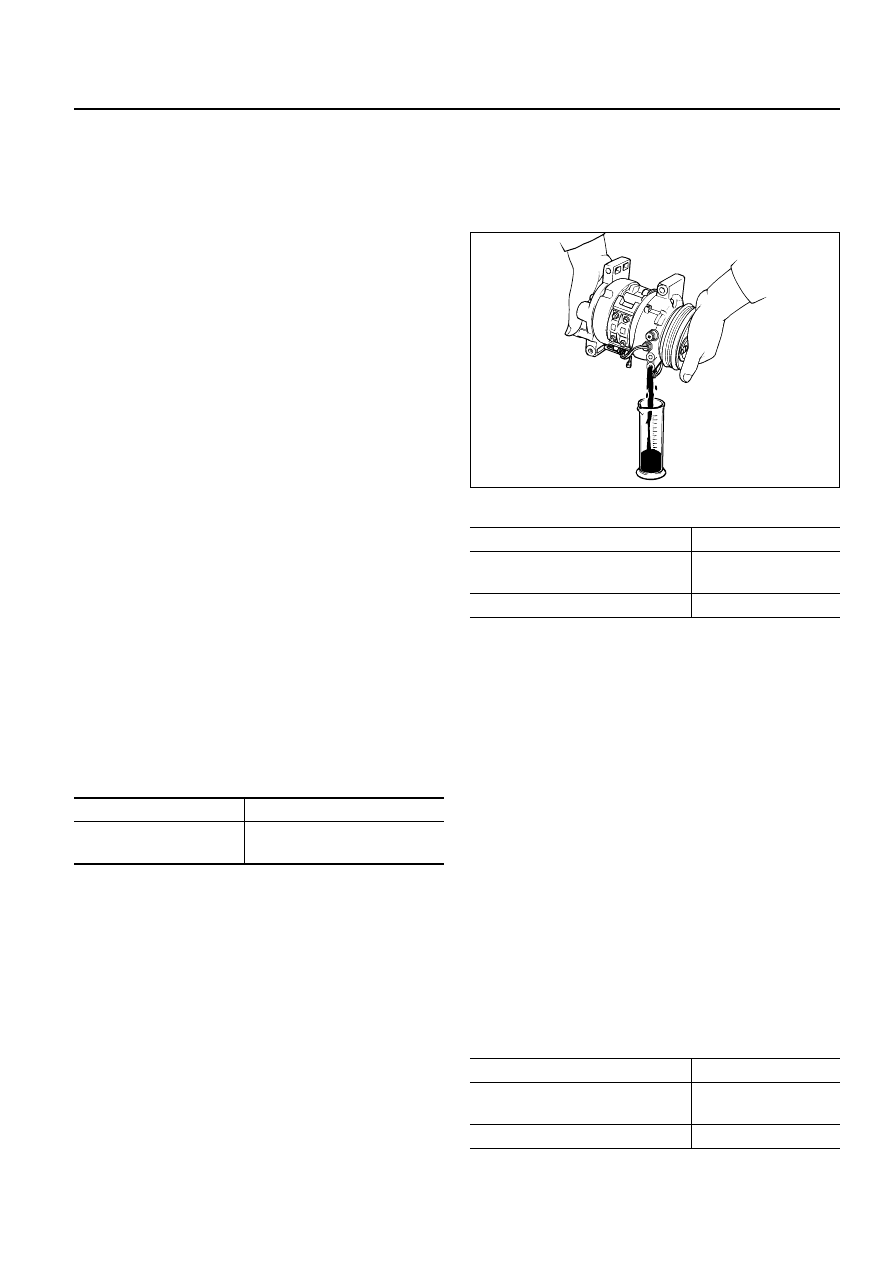

Checking and Adjusting for Used Compressor

1) Perform Oil return operation.

(Refer to “Oil Return Operation” in this section.)

2) Discharge refrigerant and remove the

compressor.

3) Drain the compressor oil and measure the

extracted oil with a measuring cylinder.

4) If the amount of oil drained is much less than

90cc (2.5 Imp fl oz), some refrigerant may have
leaked out. Conduct leak tests on connections
of each system, and if necessary, repair or
replace faulty parts.

5) Check the compressor oil for contamination.

(Refer to “Contamination of Compressor Oil” in
this section.)

6) Adjust oil level following the procedure below.

Collected Amount

Charging Amount

same as collected

more than 90cc (2.5 Imp fl oz)

amount

less than 90cc (2.5 Imp fl oz)

90cc (2.5 Imp fl oz)

7) Install the compressor, then evacuate, charge

and perform oil return operation.

8) Check system operation.

When it is impossible to perform oil return
operation, the compressor oil should be checked in
the following order:

1) Discharge refrigerant and remove the

compressor.

2) Drain the compressor oil and measure the

extracted oil with a measuring cylinder.

3) Check the oil for contamination.
4) If more than 90cc (2.5 Imp fl oz) of oil is

extracted from the compressor, supply same
amount of oil to the compressor to be installed.
If the amount of oil extracted is less than 90cc
(2.5 Imp fl oz), recheck the compressor oil in the
following order:

5) Supply 90cc (2.5 Imp fl oz) of oil to the

compressor and install it onto the vehicle.

6) Perform oil return operation.
7) Remove the compressor and recheck the

amount of oil.

8) Adjust the compressor oil, if necessary.

Collected Amount

Charging Amount

same as collected

more than 90cc (2.5 Imp fl oz)

amount

less than 90cc (2.5 Imp fl oz)

90cc (2.5 Imp fl oz)

GENERAL INFORMATION

871RX020

COMPRESSOR OVERHAUL  1D – 5

Checking and Adjusting for Compressor
Replacement

150cc (4.2 Imp fl oz) of oil is charged in compressor
(service parts). So it is necessary to drain the proper
amount of oil from the new compressor.

1) Perform oil return operation.
2) Discharge refrigerant and remove the

compressor.

3) Drain the compressor oil and measure the

extracted oil.

4) Check the compressor oil for contamination.
5) Adjust oil level as required.

Amount of oil drained

Draining amount of oil

from used compressor

from new compressor

less than

Same as drained

90cc (2.5 Imp fl oz)

amount

more than

90cc (2.5 Imp fl oz)

90cc (2.5 Imp fl oz)

6) Evacuate, charge and perform oil return

operation.

7) Check system operation.

CONTAMINATION OF COMPRESSOR OIL

Unlike engine oil, no cleaning agent is added to the
compressor oil. Even if the compressor runs for a
long period of time (approximately 1 season), the
oil never becomes contaminated as long as there is
nothing wrong with the compressor or its method
of use.

Inspect the extracted oil for any of the following
conditions:

The capacity of the oil has increased.

The oil has changed color to red.

Foreign substances, metal powder, etc., are
present in the oil.

If any of these conditions exists, compressor oil is
contaminated. Whenever contaminated
compressor oil is discovered, the receiver/drier
must be replaced.

OIL RETURN OPERATION

There is close affinity between the oil and the
refrigerant. During normal operation, part of the oil
recirculates with the refrigerant in the system.

When checking the amount of oil in the system, or

replacing any component of the system, the
compressor must be run in advance for oil return
operation. The procedure is as follows:

1) Open the all doors and engine hood.
2) Start the engine and A/C switch is “ON” and

Set the fan control knob at its highest position.

3) Run the compressor for more than 20 minutes

between 800 and 1,000 rpm in order to operate
the system.

4) Stop the engine.

REPLACEMENT OF COMPONENT PARTS

When replacing system component parts, supply
the following amount of oil to the component parts
to be installed.

Component parts to be installed

Amount of oil

Evaporator

50cc (1.4 Imp fl oz)

Condenser

30cc (0.8 Imp fl oz)

Receiver/drier

30cc (0.8 Imp fl oz)

871RX013

1D – 6 COMPRESSOR OVERHAUL

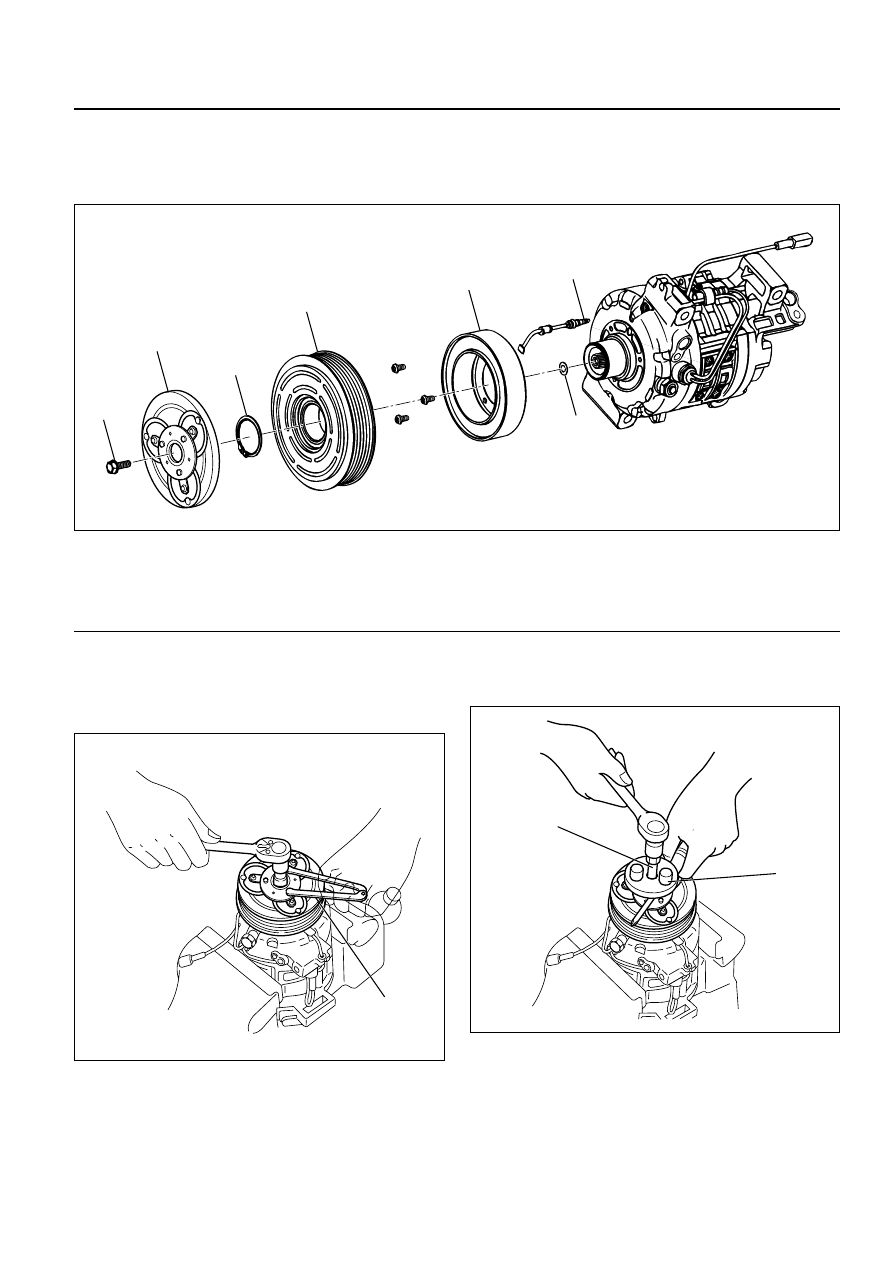

Legend

(1)

Drive Plate Bolt

(2)

Drive Plate

(3)

Snap Ring

(4)

Pulley Assembly

(5)

Field Coil

(6)

Shim(s)

(7)

Lead Wire

Removal

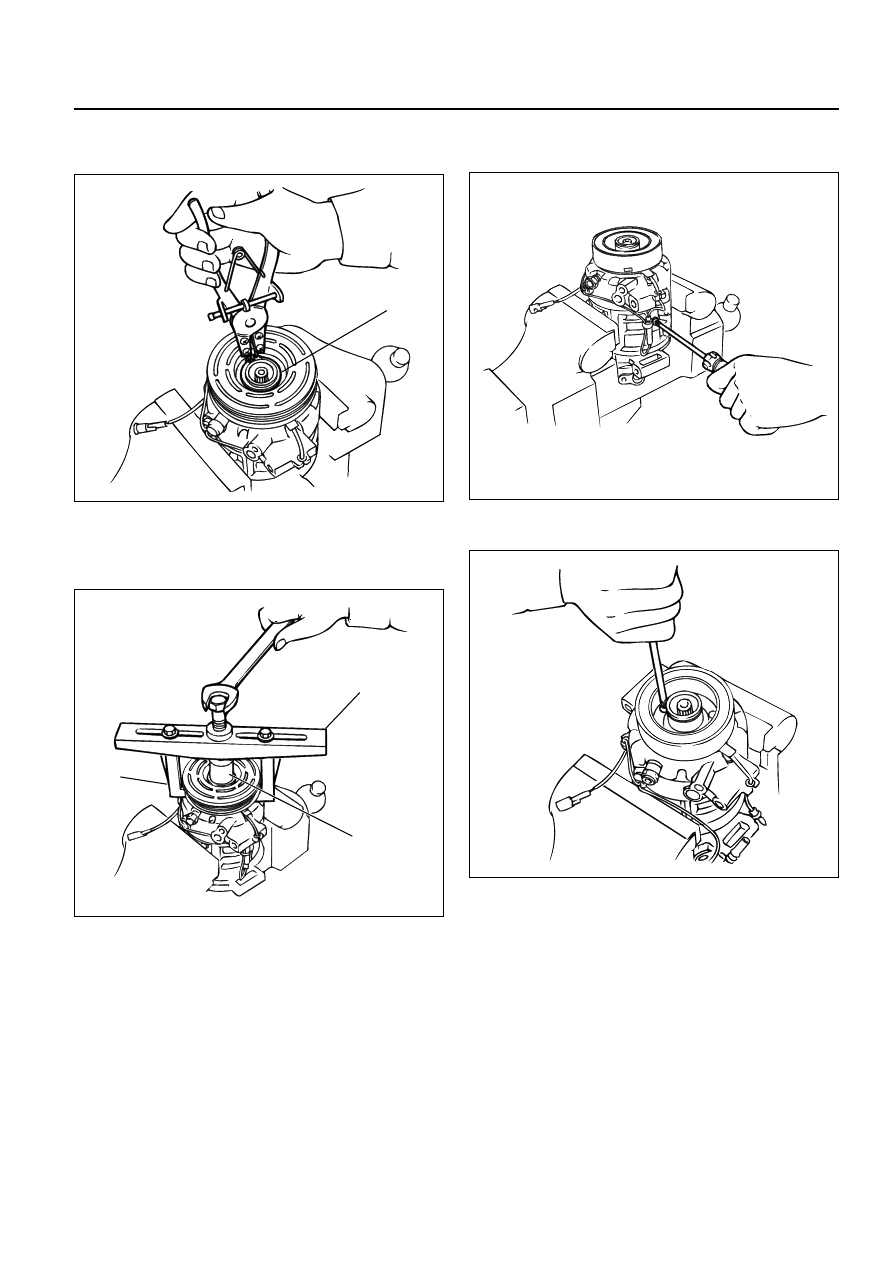

1. Remove drive plate bolt by using drive plate holder

J-7624 (1) to prevent the drive plate from rotating.

2. Remove drive plate by using drive plate puller

J-33944-A (2) and forcing screw J-33944-4 (1).

SERVICE PROCEDURE

DKV-14D TYPE COMPRESSOR

1

2

3

4

5

6

7

871RX012

1

901RX055

1

2

871RX016

COMPRESSOR OVERHAUL  1D – 7

3. Remove shim(s).

4. Remove snap ring (1) by using snap ring pliers.

5. Remove pulley assembly by using pulley puller pilot

J-38424 (2), pulley puller J-8433 (1) and pulley
puller leg J-24092-2 (3).

6. Loosen screw and disconnect the coil lead wire

connector.

7. Loosen three screws and remove the field coil.

1

871RW016

871RS010

3

1

2

871RX031

871RS011
