1A – 18 HEATING AND VENTILATION

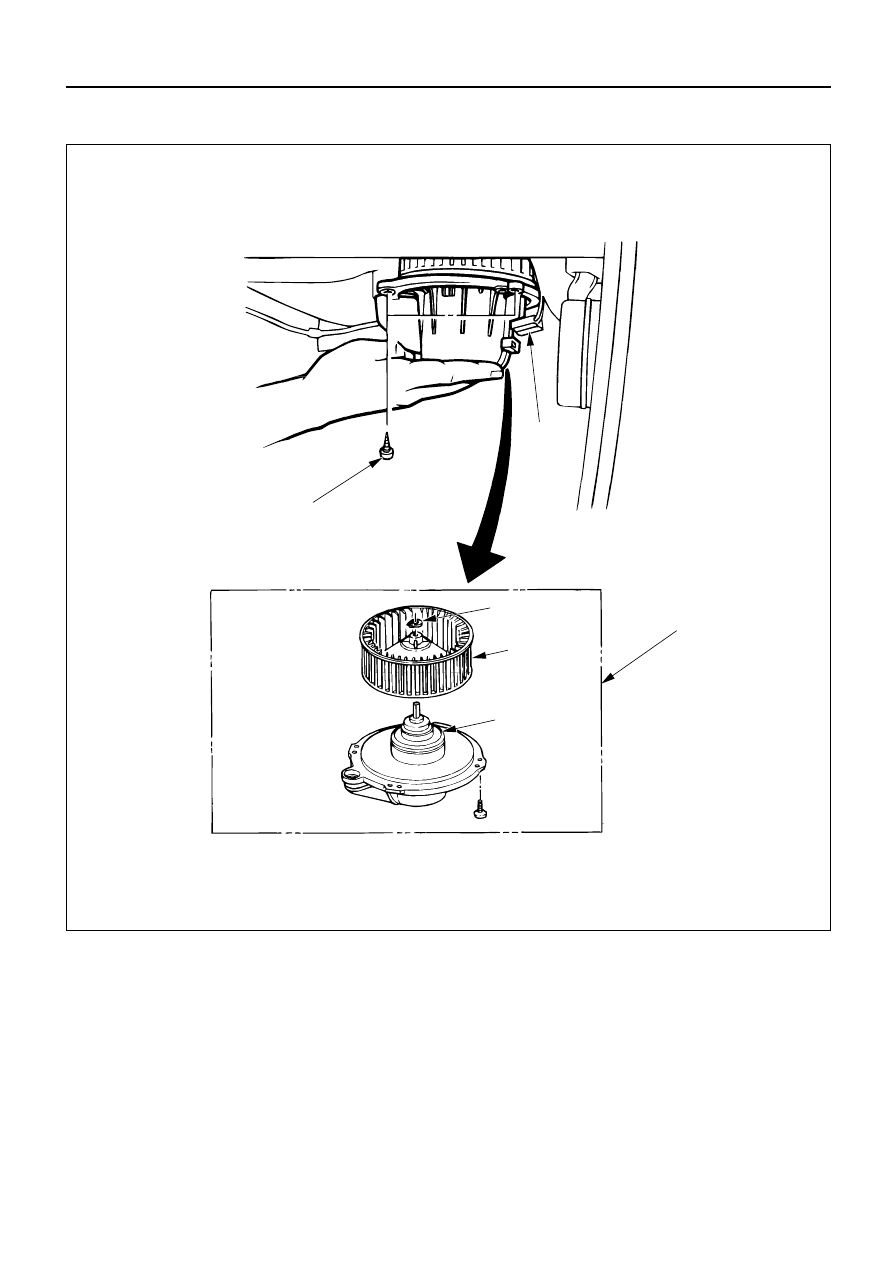

Removal Steps

1. Blower motor connector
2. Attaching screw
3. Blower motor assembly
4. Clip
5. Fan
6. Blower motor

Installation Steps

To install, follow the removal steps in the
reverse order.

BLOWER MOTOR

This illustration is based on LHD

HEATING AND VENTILATION  1A – 19

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Blower Motor Connector

2. Attaching Screw

3. Blower Motor Assembly

4. Clip

5. Fan

6. Blower Motor

INSTALLATION

To install, follow the removal steps in the reverse order.

1A – 20 HEATING AND VENTILATION

REAR HEATER DUCT, DEFROSTER NOZZLE AND VENTILATION DUCT

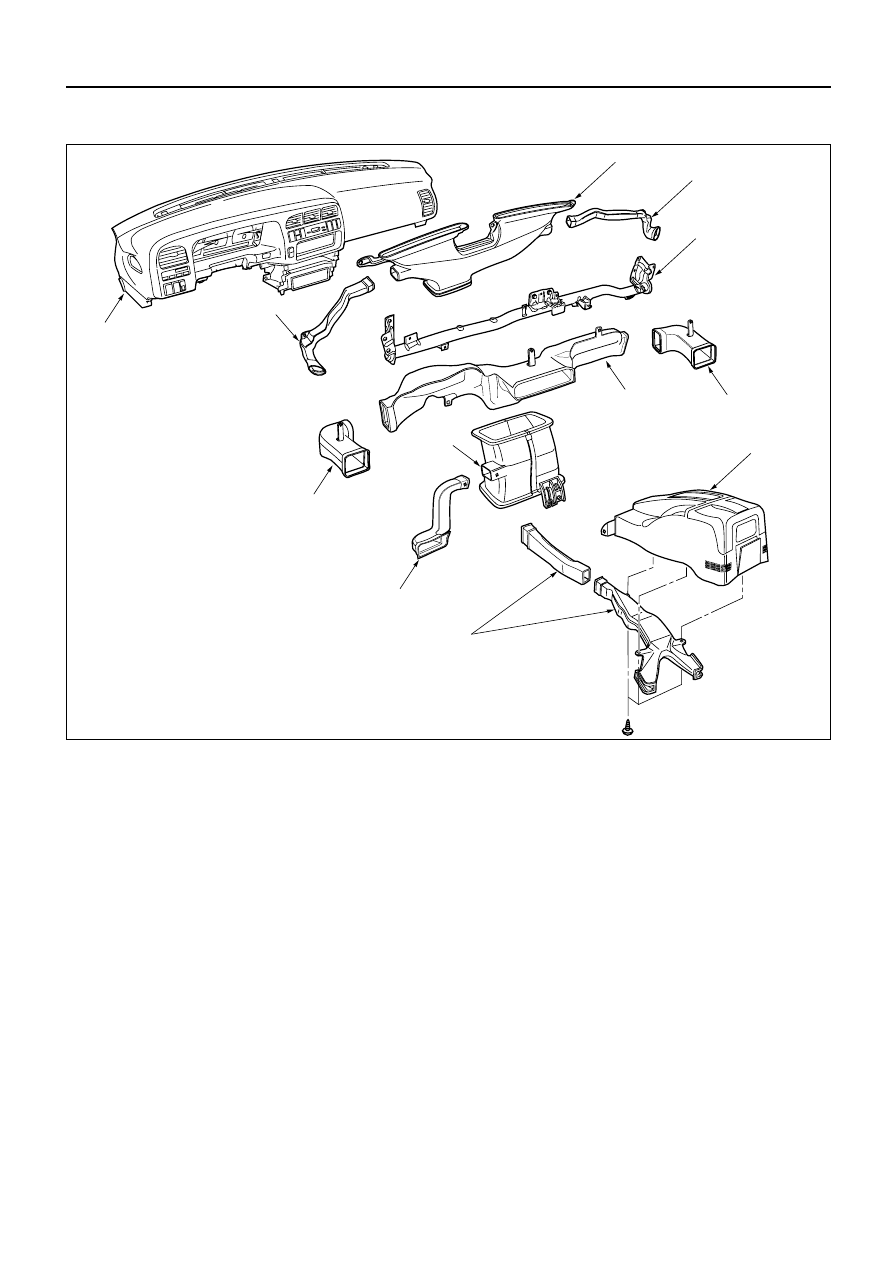

Removal Steps

1. Instrument panel assembly
2. Center ventilation upper duct
3. Side ventilation duct
4. Center ventilation lower duct
5. Driver lap duct
6. Center console
7. Rear heater duct
8. Cross beam assembly
9. Side defroster nozzle

10. Center defroster nozzle

Installation Steps

To install, follow the removal steps in the
reverse order.

7

9

9

10

8

6

3

5

1

3

4

2

This illustration is based on LHD

HEATING AND VENTILATION  1A – 21

INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following point:

1. Connect each duct and nozzle securely leaving no

clearance between them and making no improper
matching.

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Instrument panel assembly

Refer to Section 10 “BODY” for INSTRUMENT
PANEL ASSEMBLY removal procedure.

2. Center ventilation upper duct

3. Side ventilation duct

4. Center ventilation lower duct

5. Driver lap duct

6. Center console

7. Rear heater duct

Refer to Section 10 “BODY” for CONSOLES
removal procedure.

8. Cross beam assembly

Refer to Section 10 “BODY” for CROSS BEAM
ASSEMBLY removal procedure.

9. Side defroster nozzle

10. Center defroster nozzle
