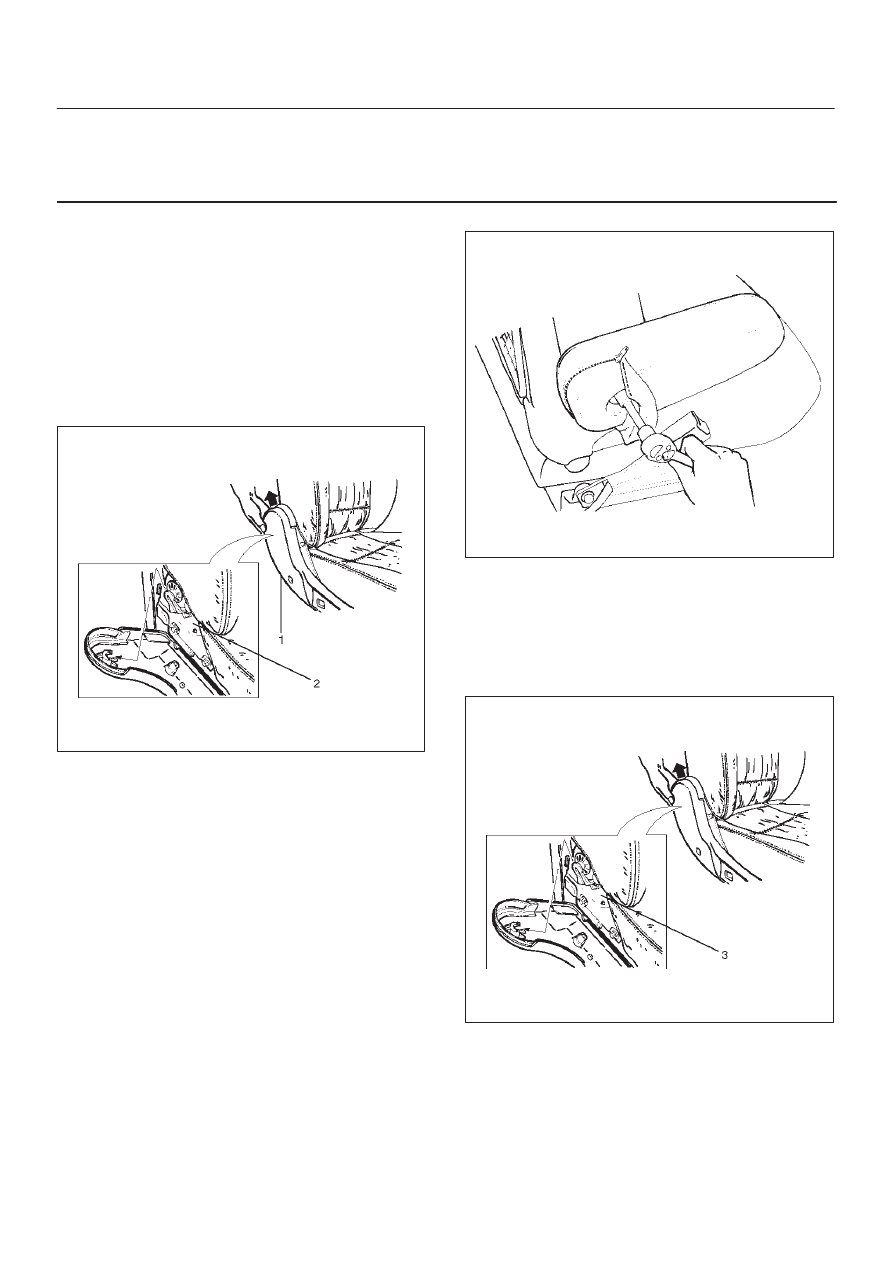

SEATS 8G–7 6. Remove the reclining device. D Trun up the seat back trim cover in order to remove 750RS006 D Remove the push nut (2) and disconnect walk-in 750RW034 7. Remove the seat back assembly. D Remove the seat back assembly fixing nut on the 750RS007 8. Remove the guide holder. D Pull the guide holder out by holding the bottom end 9. Remove the trim cover. D Remove the trim cover hog rings from the back side D With close attention paid to the hog rings and the 10. Remove the pad and frame assembly. 11. Remove the walk-in cover. 12. Remove the seat adjuster. D Disconnect the release wire (4) and remove the 750RW006 D Remove the seat belt buckle assembly. |
