8D–178
WIRING SYSTEM
(LHD-2)
DOES THE TAILLIGHT LIGHT UP WHEN THE LIGHTING
SWITCH IS AT THE CLEARANCE LIGHT POSITION?
•
YES
NO
GROUND R-4 SECURELY
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT BETWEEN 2 F-9 (2 F-10 )
AND R-4

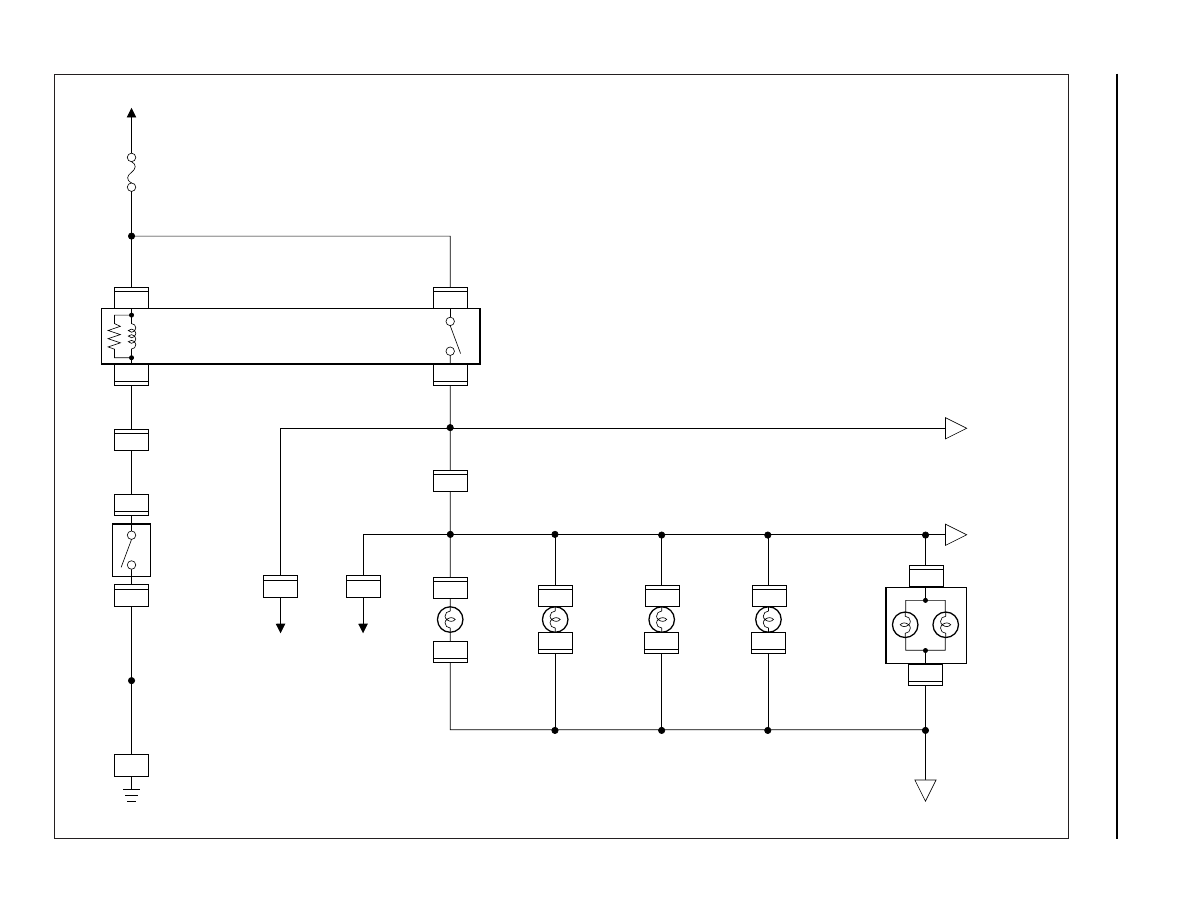

2-7 License Plate Light On The Left (Or Right) Side Inoperative
(LHD-2)
IS THE LICENSE PLATE LIGHT BULB ON THE LEFT
(OR RIGHT) SIDE NORMAL?
•
•
•
YES
NO
REPLACE THE BULB
IS FUSE F-11 (10A) (F-12 (10A)) NORMAL?
YES
NO
REPLACE THE FUSE
WITH THE LIGHTING SWITCH AT THE CLEARANCE
LIGHT POSITION, IS THE BATTERY VOLTAGE APPLIED
BETWEEN 1 F-9 (OR 1 F-10 ) AND THE GROUND?
YES
NO
REPAIR A POOR CONNECTION AT
THE CONNECTORS OR AN OPEN
CIRCUIT BETWEEN 1 F-9 AND
FUSE F-11 (10A) (OR 1 F-10 AND
FUSE F-12 (10A))
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT BETWEEN 2 F-9 (OR 2 F-10 )
AND R-4
