RESTRAINT CONTROL SYSTEM
DTC 29 Passenger Pretensioner Loop Short To Ground

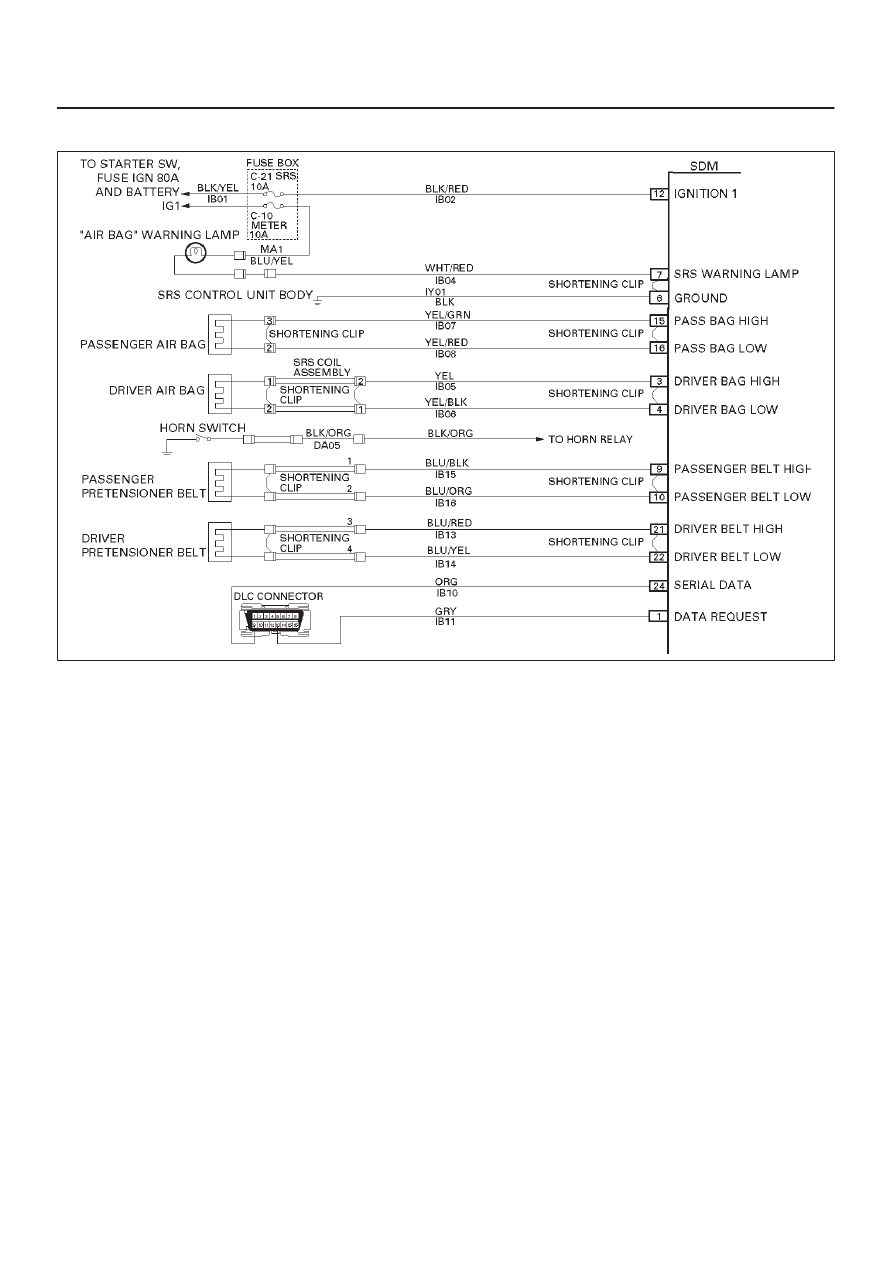

D09RW014
Circuit Description:
When the ignition switch is turned “ON”, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, “Ignition 1”, and
pretensioner loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltages at “Driver Belt Low”
terminal “10” and “Passenger Belt Low” terminal “22” to
detect short to ground in the pretensioner assembly
circuits.
DTC Will Set When:
Neither of the air bag and the pretensioner belt are open.
“Ignition 1” is within the normal operating voltage range.
Once these conditions are met and the voltage at
“Passenger Belt Low” is below a specified value, DTC 29
will set. This test is run once each ignition cycle and
“Continuous Monitoring”.
Action Taken:
SDM turns “ON” the “AIR BAG” warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
This malfunction is no longer occurring and the ignition
switch is turned “OFF”.
DTC Chart Test Description:
Number(s) below refer to circled number(s) on the
diagnostic chart.
2. This test determines whether the SDM is
malfunctioning.
3. This test isolates the malfunction to one side of the
passenger pretensioner assembly yellow 2–pin
connector at the base of the passenger seat.
4. This test determines whether the malfunction is in
IB15–BLU/BLK.
5. This test determines whether the malfunction is in
IB16–BLU/ORG.
Diagnostic Aids:
An intermittent condition is likely to be caused by a short
to ground in the passenger pretensioner assembly circuit.
Inspect IB15–BLU/BLK and IB16–BLU/ORG carefully for
cutting or chafing. If the wiring pigtail of the passenger
pretensioner assembly is damaged, the component must
be replaced.
