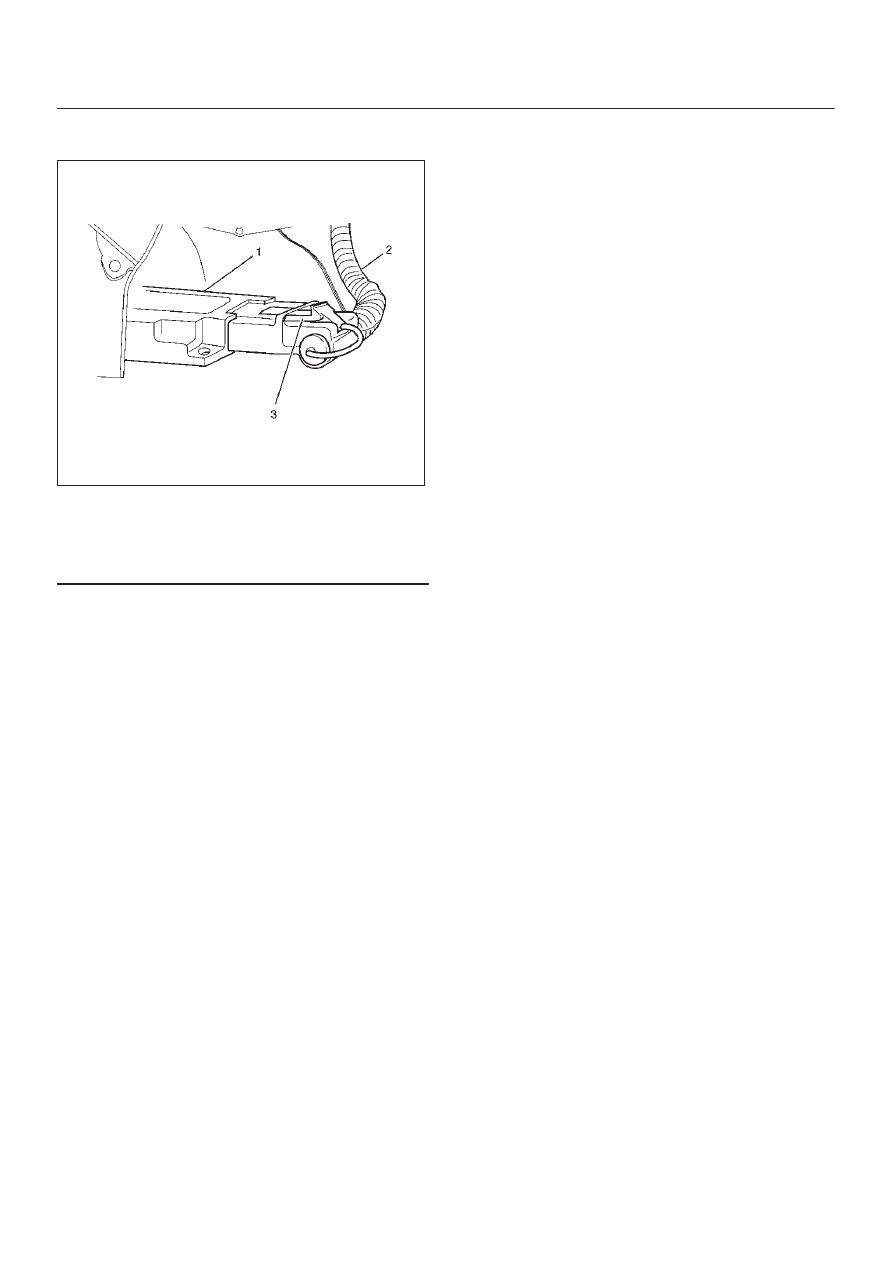

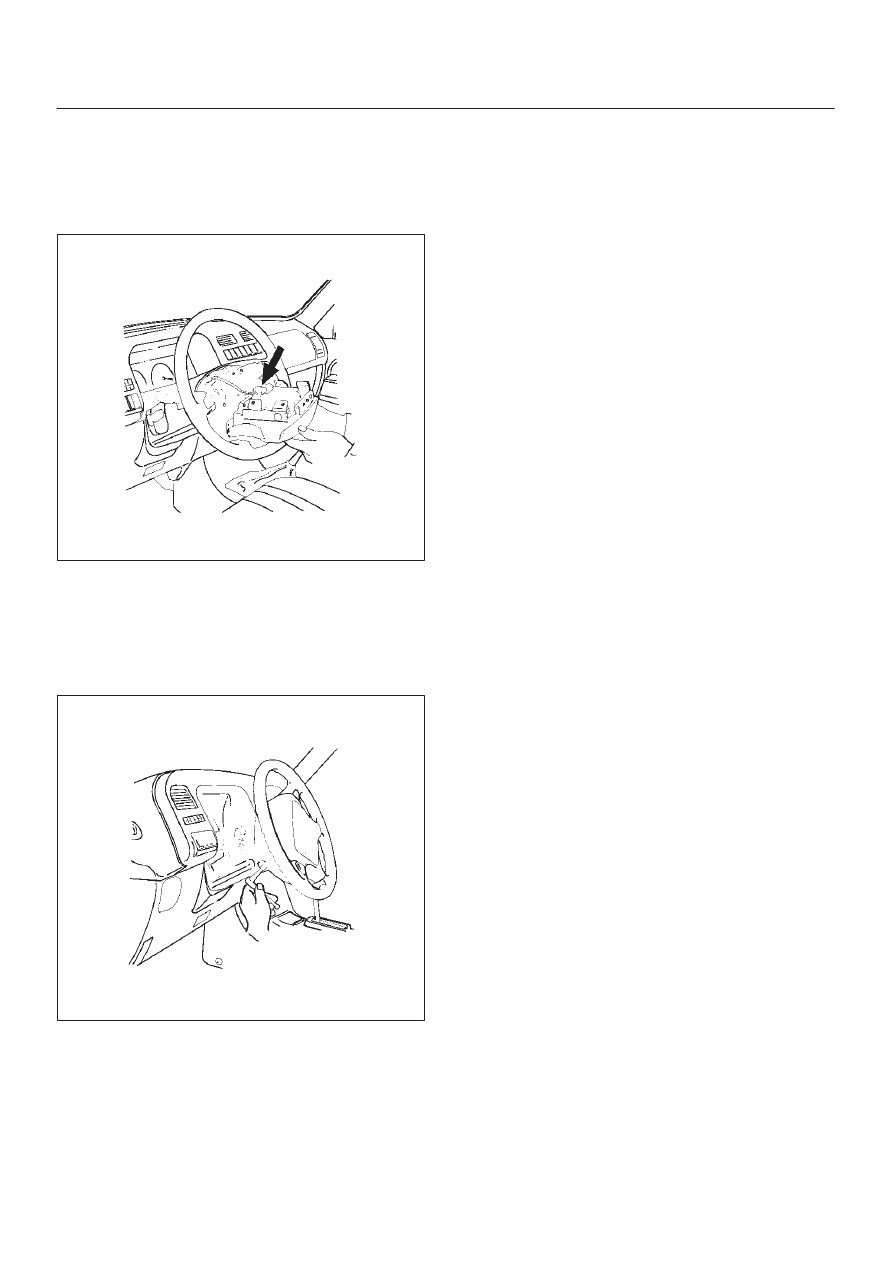

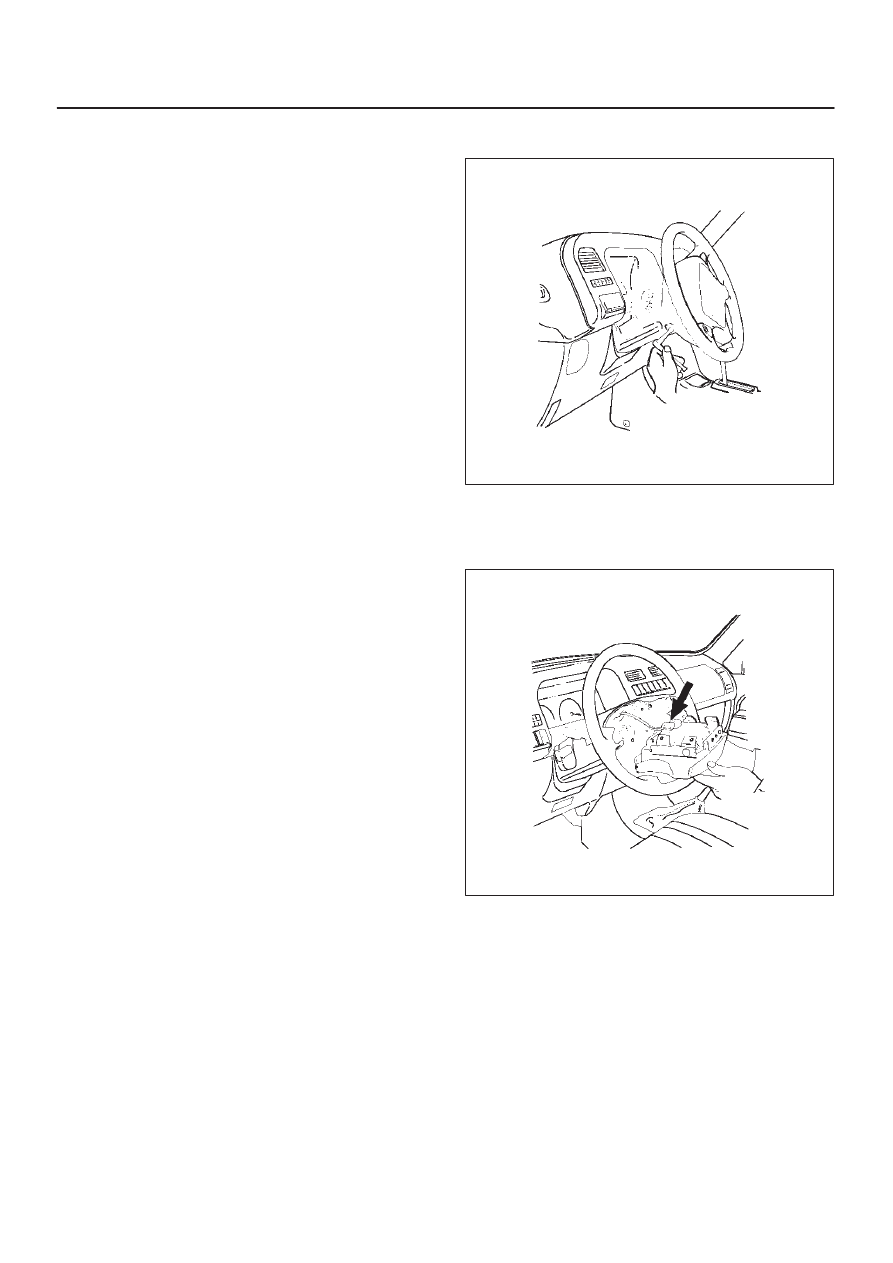

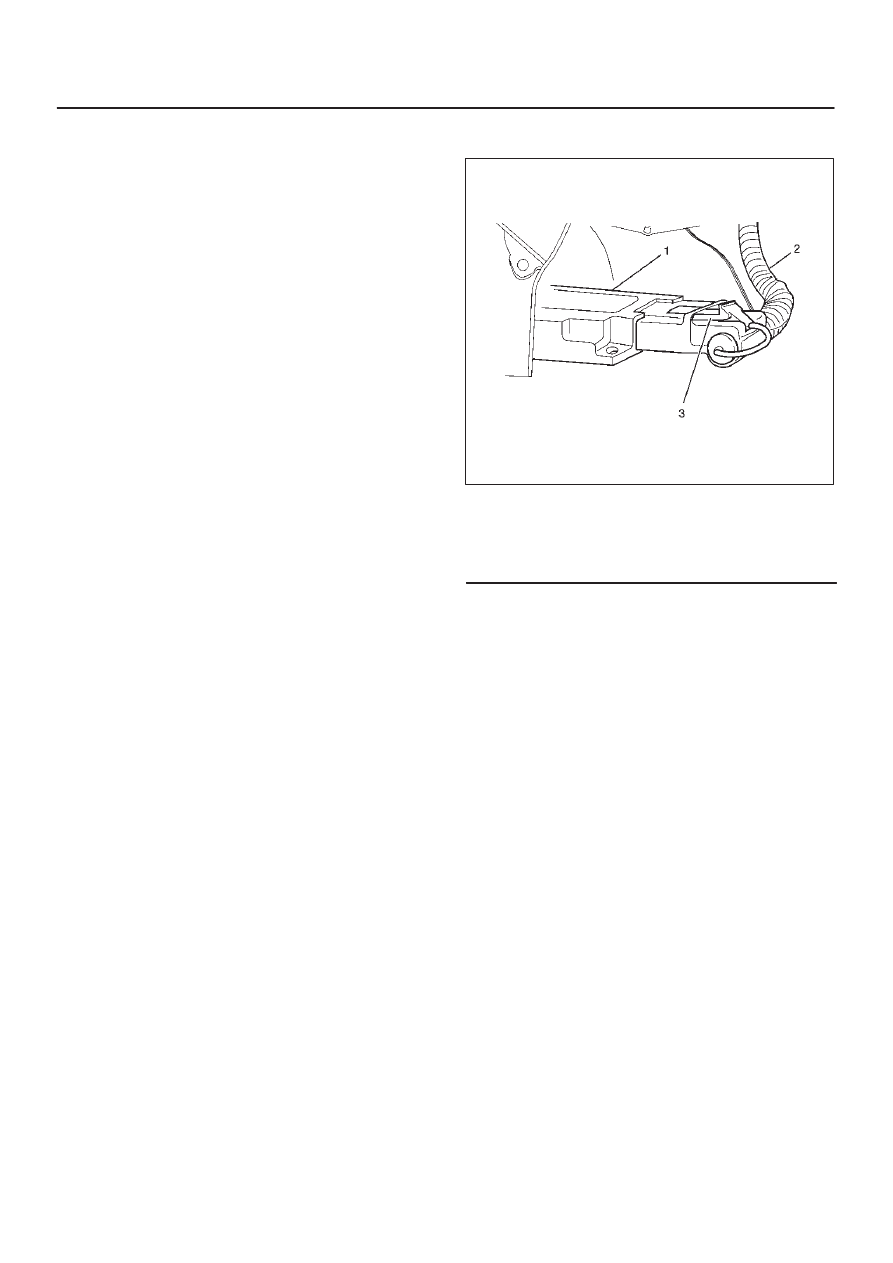

SUPPLEMENTAL RESTRAINT SYSTEM 9J–33 Sensing And Diagnostic Module (SDM) Service Precautions WARNING: DURING SERVICE PROCEDURES, BE WARNING: PROPER OPERATION OF THE SENSING SDM is specifically calibrated and is keyed to the SDM Removal 1. Disable the SRS (Refer to “Disabling the SRS” in this section). 2. Remove the transmission knob (for M/T) and transfer lever knob. 3. Remove the front console assembly and disconnect wiring harness connector. 4. Pull CPA (Connector Position Assurance) out and push connector lock down to disconnect the SDM 5. Remove the three SDM fixing bolts and remove SDM. 827RW044 Legend (1) SDM Installation 1. Install the SDM on bracket and fixing bolts and tighten the fixing bolts to the specified torque. Torque: 10 N·m (1.0 Kg·m/87 Ib in) 2. Connect the SDM harness connector and after that, put CPA into connector. 3. Install the front console. lever knob. |
