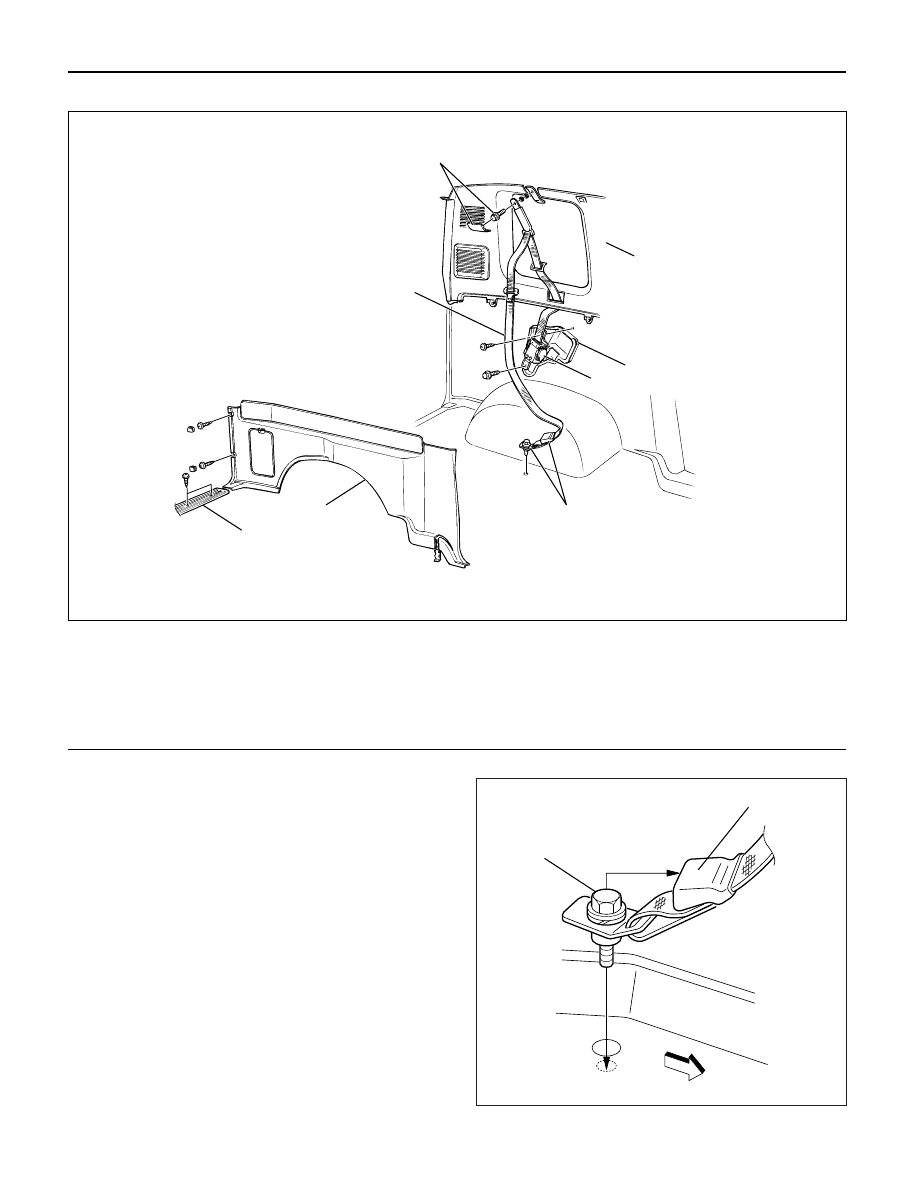

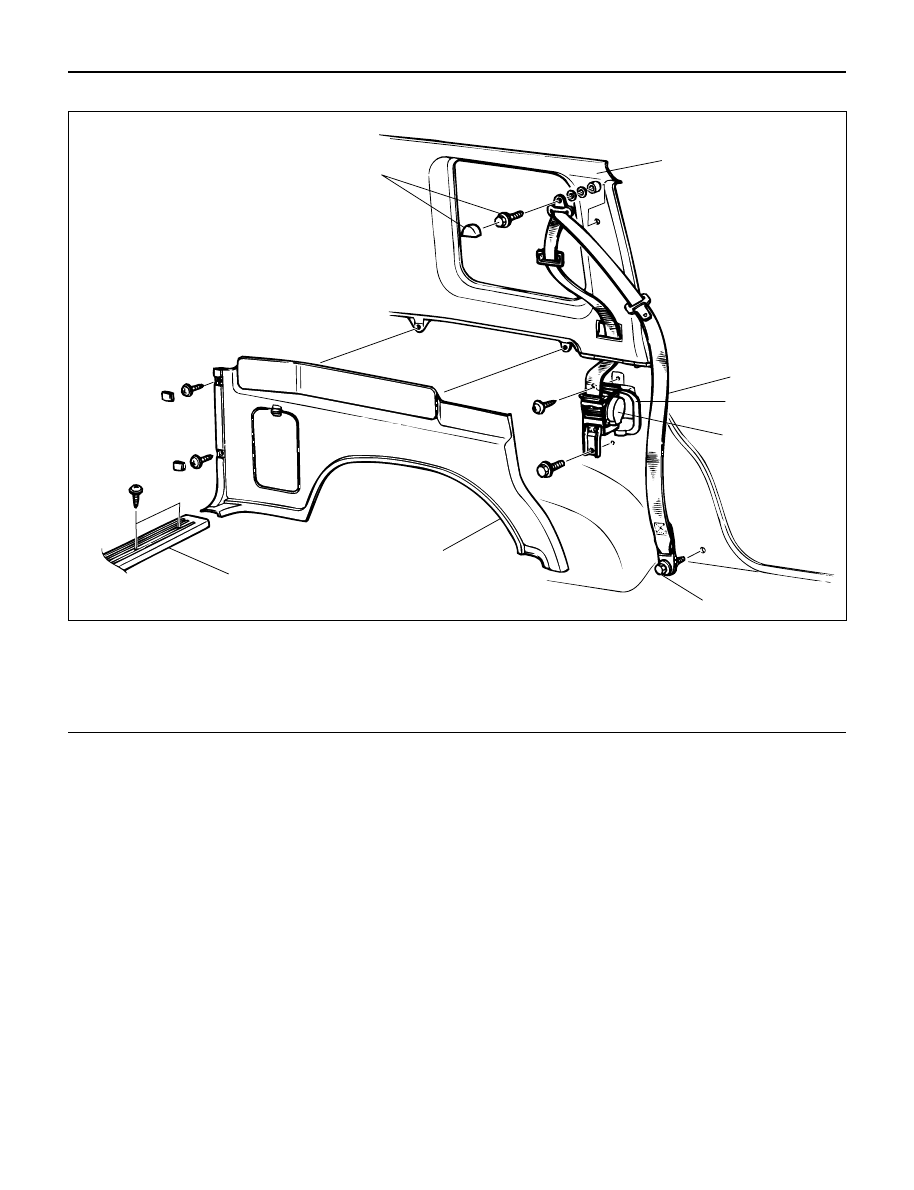

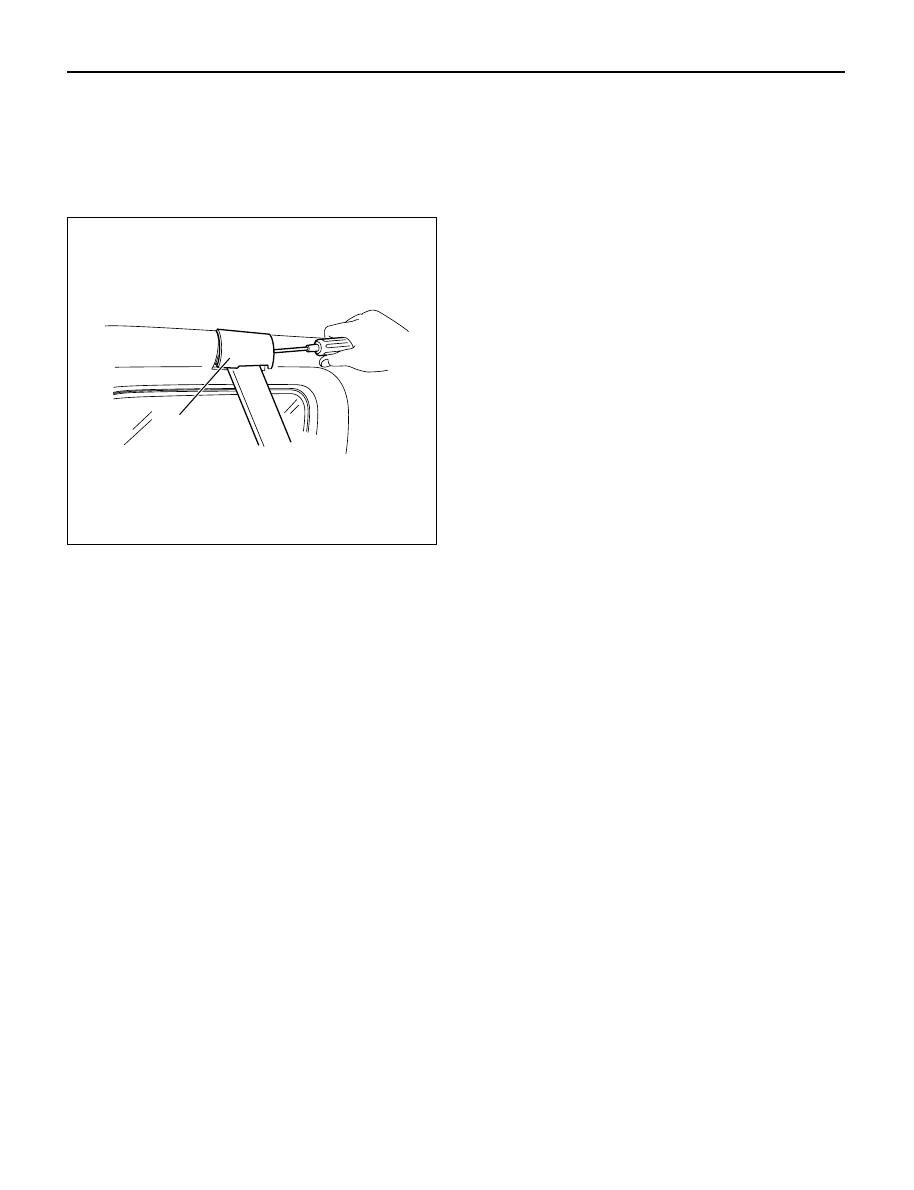

9A–6 SEAT BELT SYSTEM 760RS006 Legend (1) Rear Seat Belt Anchor Bolt Cover and Anchor (2) Quarter Upper Trim Cover (3) Rear Seat Belt Assembly (4) Dust Cover (5) Retractor (6) Anchor Bolt (Lower Side) (7) Luggage Side Trim Cover (8) Rear End Floor Trim Cover Rear Seat Belt and Associated Parts (Long Wheel Base) 1 2 3 4 5 6 7 8 Removal 1. Disconnect the battery ground cable. ● Refer to Luggage Side and Quarter Upper Trim 4. Remove the rear seat belt anchor bolt cover and anchor bolt (Upper Side). 5. Remove the seat belt lower anchor bolt and remove the retractor from dust cover slit to remove the rear Inspection If any of the following abnormalities is found, replace on ● No smooth move of upper/lower anchors in the ● Damaged and/or deformed through ring. ● Damaged and/or deformed tongue. ● Damaged and/or frayed of webbing. ● Deformed retractor bracket. ● Seat belt not rewound up. ● Resistance or abnormal sound when seat belt is ● Retractor abnormality. |
