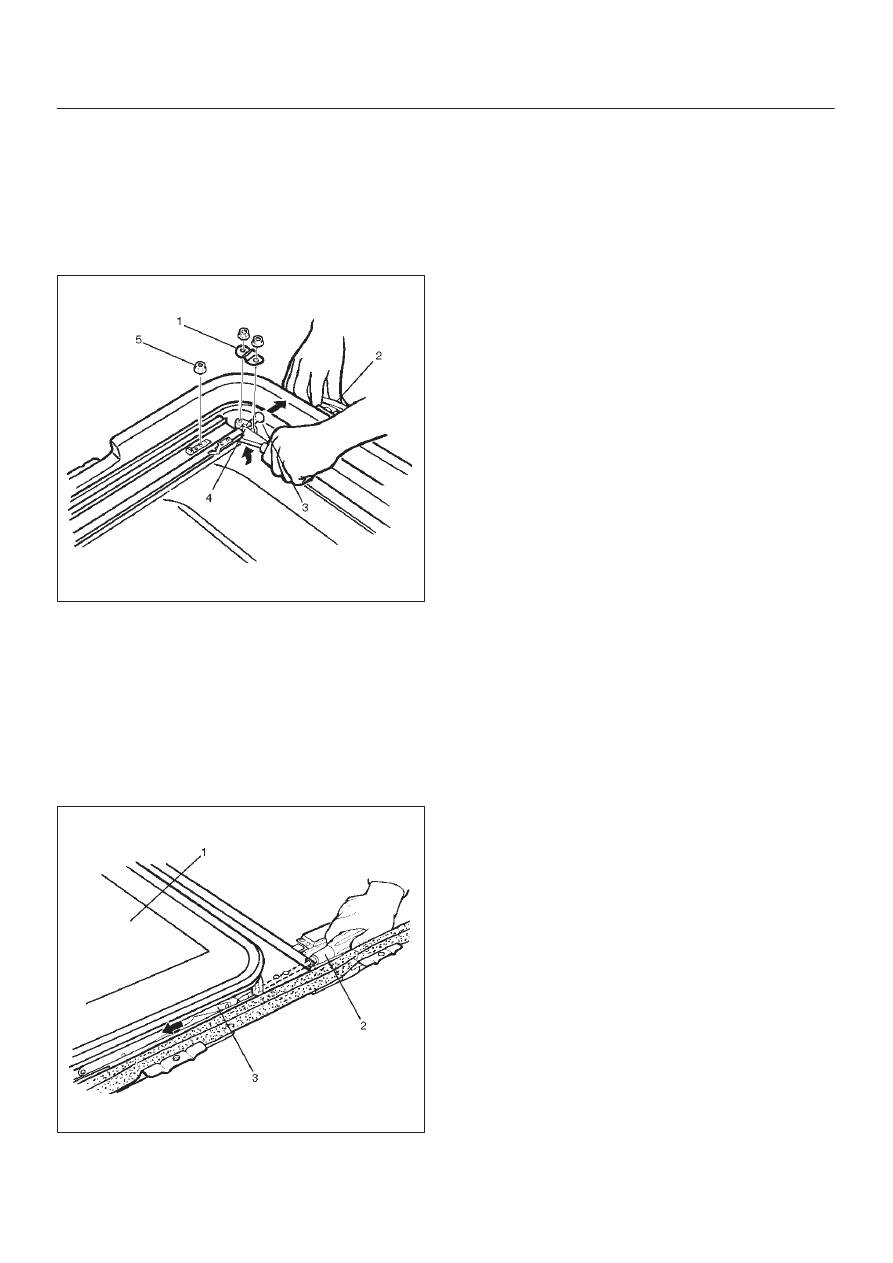

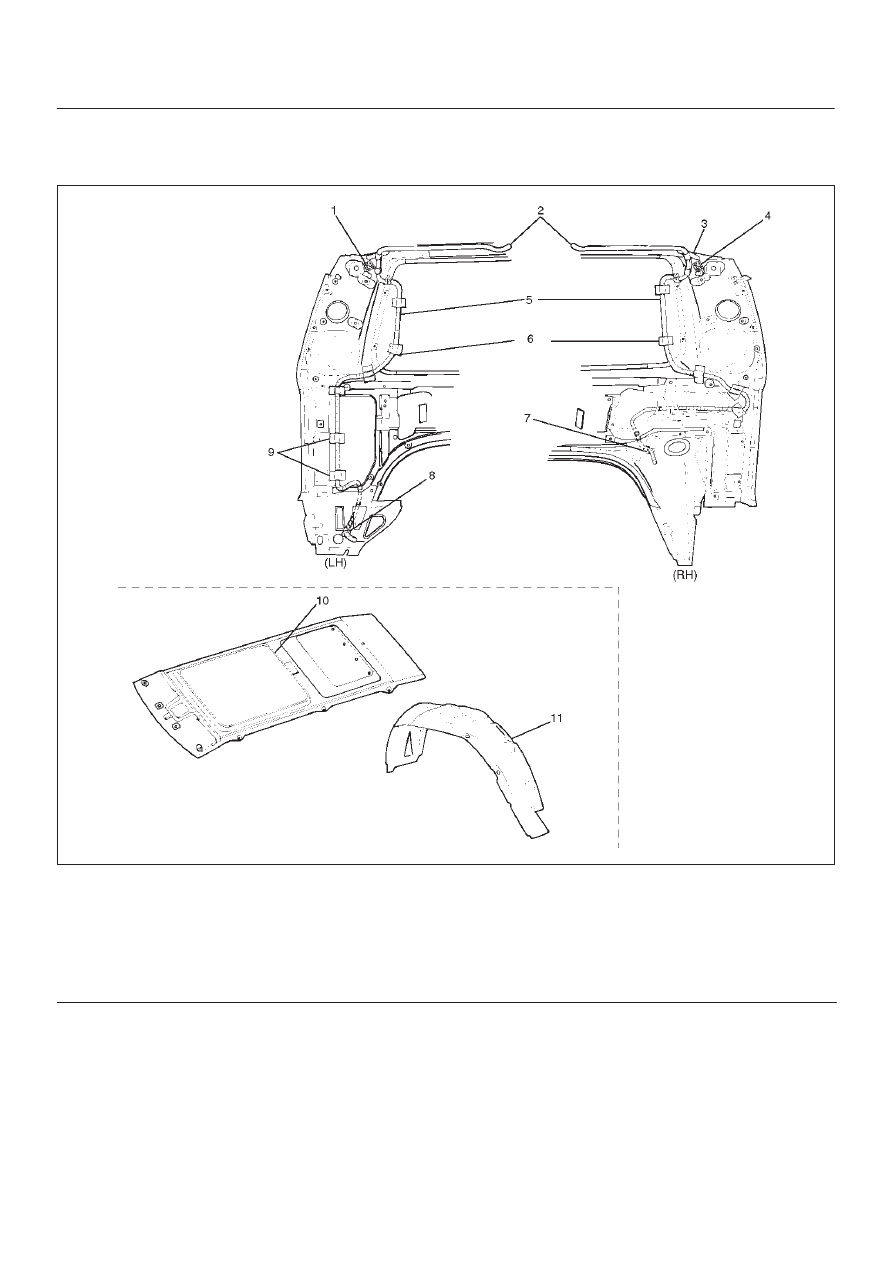

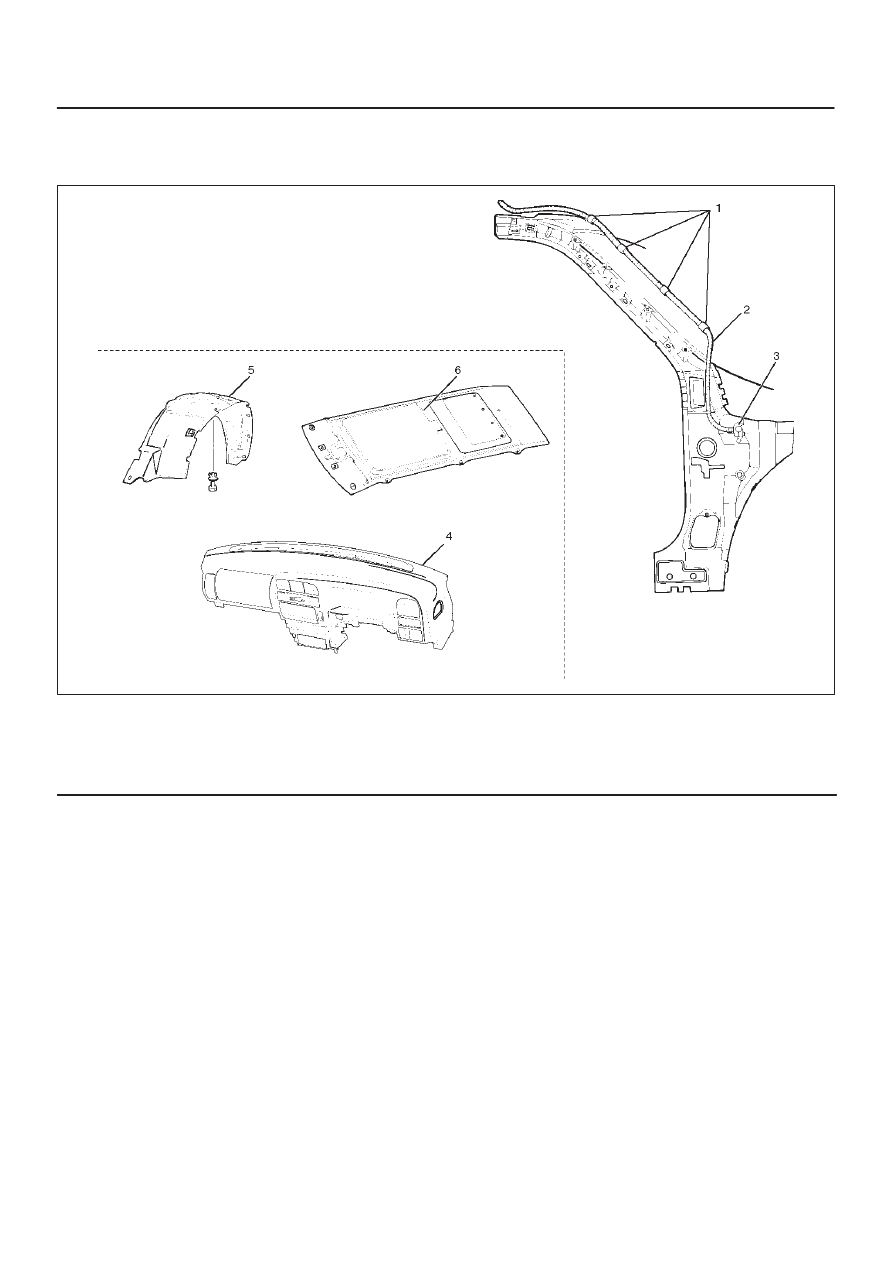

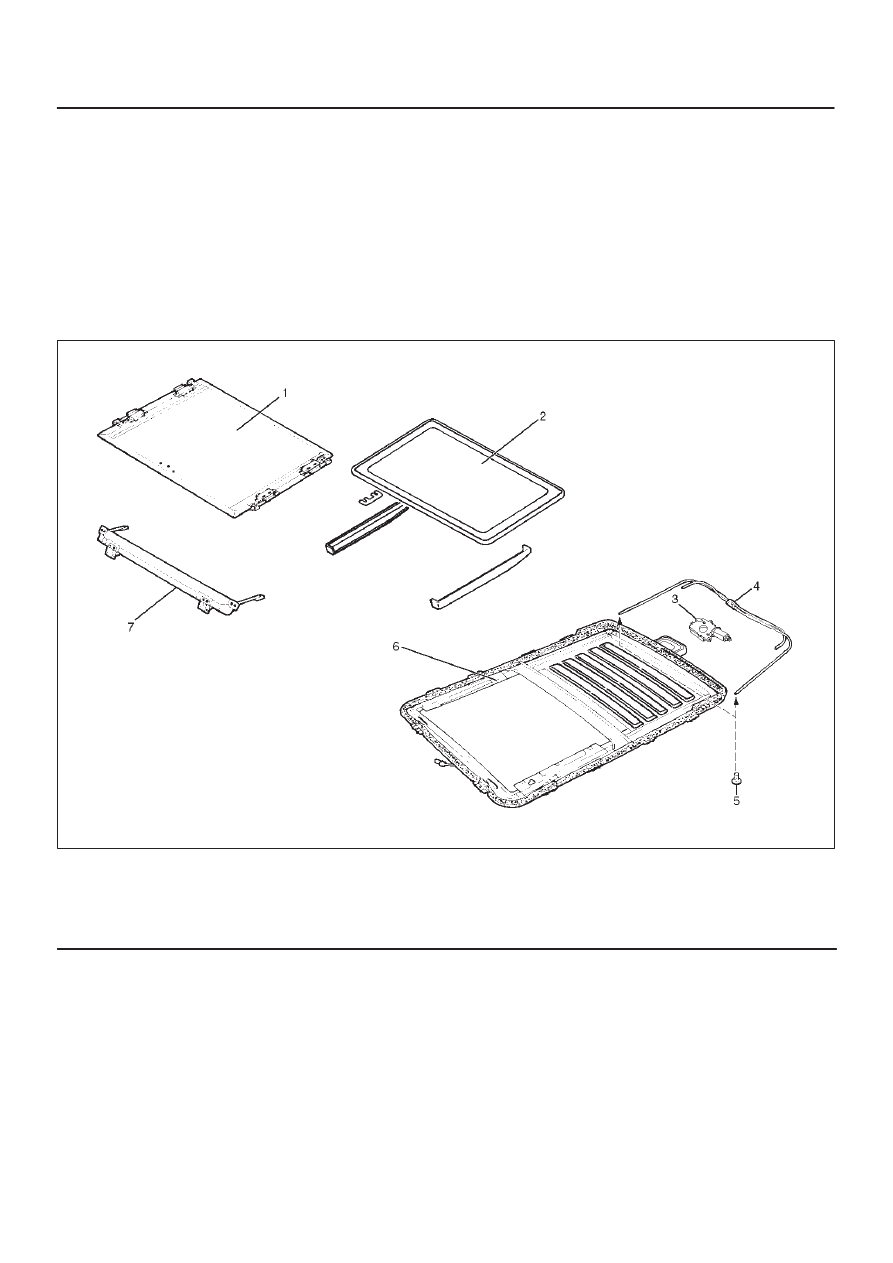

SUN ROOF/CONVERTIBLE TOP 8I–7 5. Remove two sun roof frame complete assembly fixing nuts (front side) and four fixing bolts (each side) from NOTE: Be sure to remove the frame complete while Installation To install, follow the removal steps in the reverse order, 1. Tighten the sun roof frame complete assembly fixing bolts and nuts to the specified torque. Torque: 10 N·m(1.0 kg·m/87 lb in) 2. After installing the frame complete, loosen the sun roof glass fixing nuts and adjust the sun roof glass D Refer to the Sun Roof Glass in this section. Disassembled View 665RW035 Legend (1) Sunshade (4) Sun Roof Drive Unit Assembly Disassembly 1. Open the sun roof. remove the sun roof deflector. 3. Remove the sunshade. D Refer to the Sunshade in this section. 4. Close the sun roof, remove the decoration cover and the fixing screws and then remove the sun roof glass. 5. If the shims are used between the sun roof set plate and the glass, note the number of the shims. 6. Disconnect the sun roof motor connector, remove the sun roof fixing nuts and screws, and then remove the |
