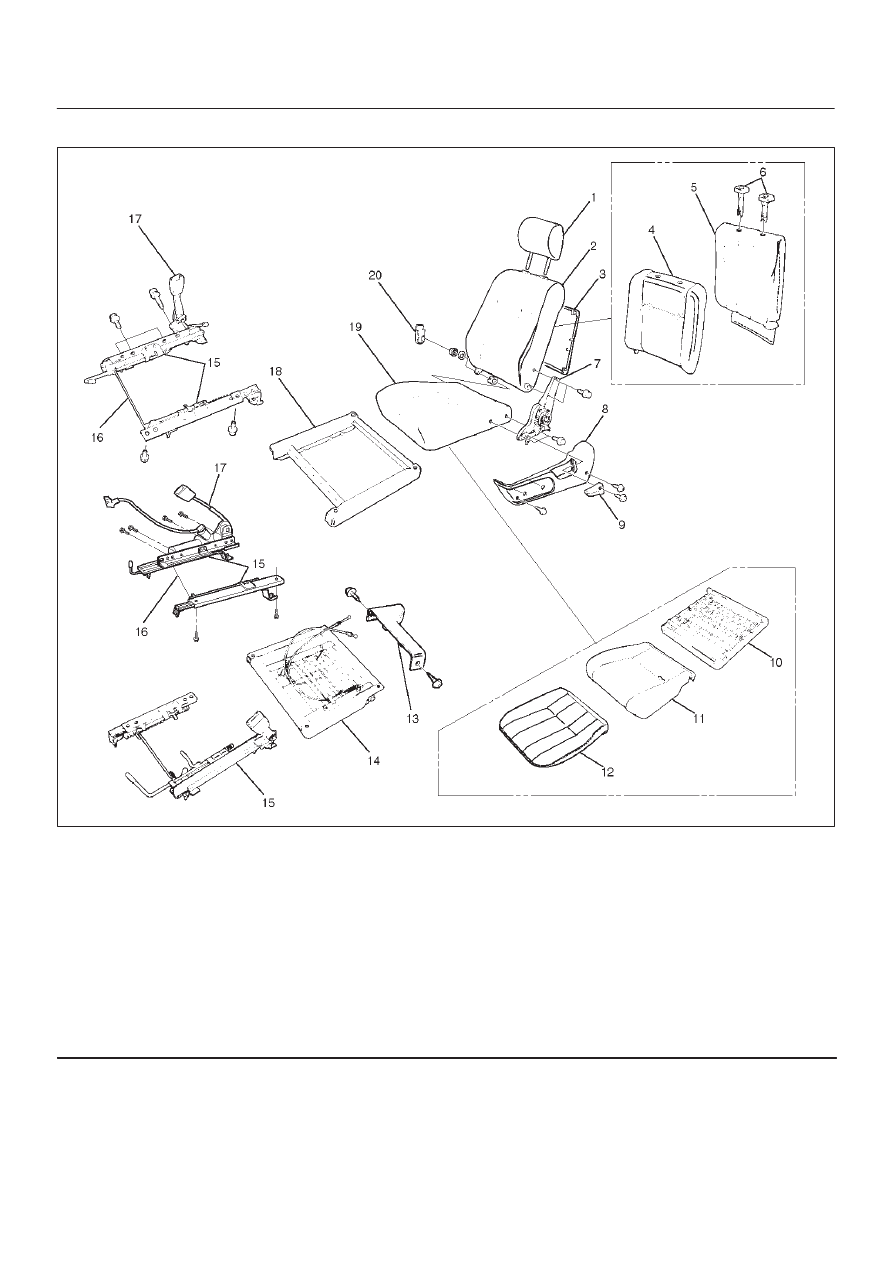

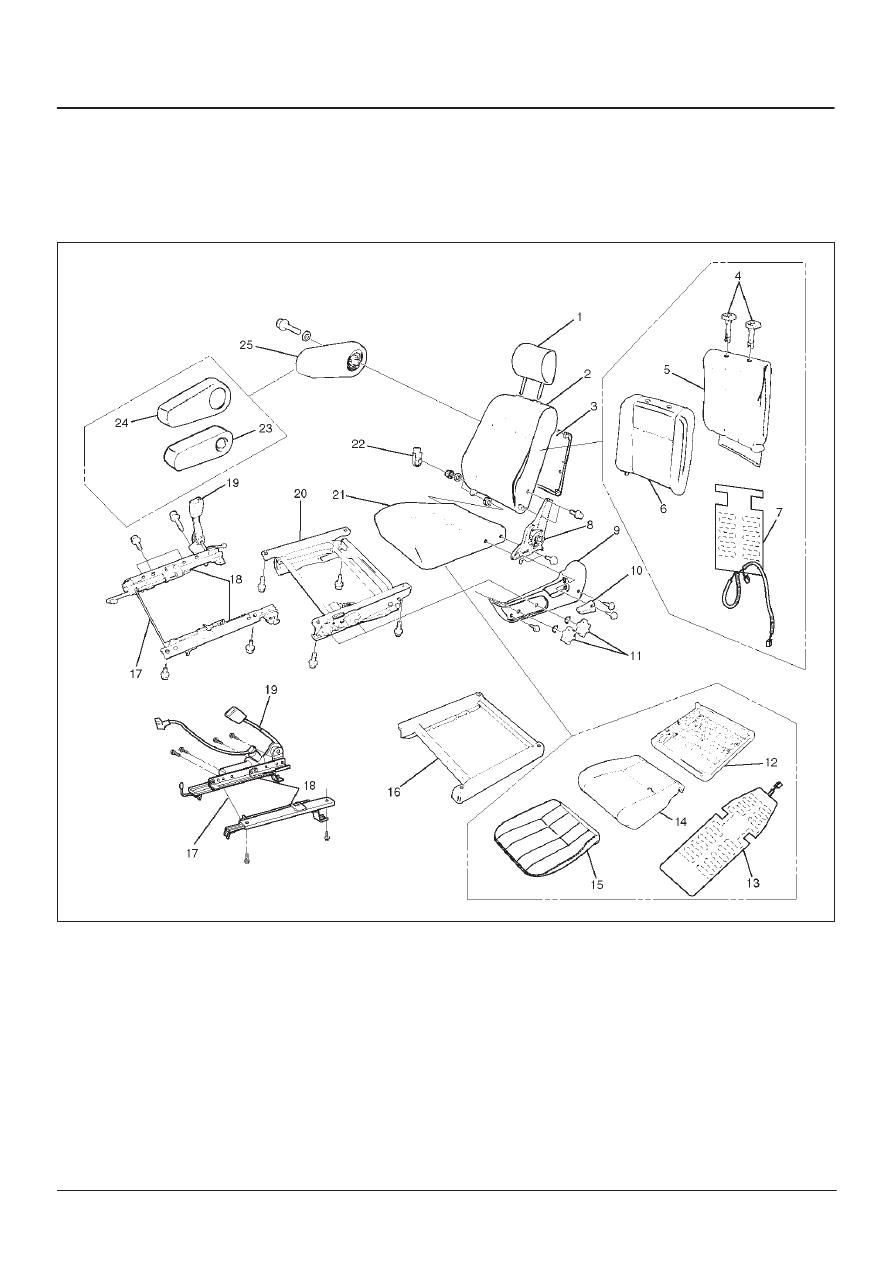

SEATS 8G–3 Installation To install, follow the removal steps in the reverse order, 1. Tighten the front seat assembly fixing bolts to the specified torque. Torque: 40 N·m (4.1 kg·m/30 lb ft) 2. Install the longest bolt to the rear inner side fixing location, if this model is equipped with power seats. Disassembled View (LWB) 750RX017 Legend (1) Head Rest (10) Reclining Knob (11) Dial (W/Height Adjuster) (12) Frame Assembly (13) Seat Heater Assembly |
