Opel Frontera UBS. Service manual - part 2871





8F–78

BODY STRUCTURE

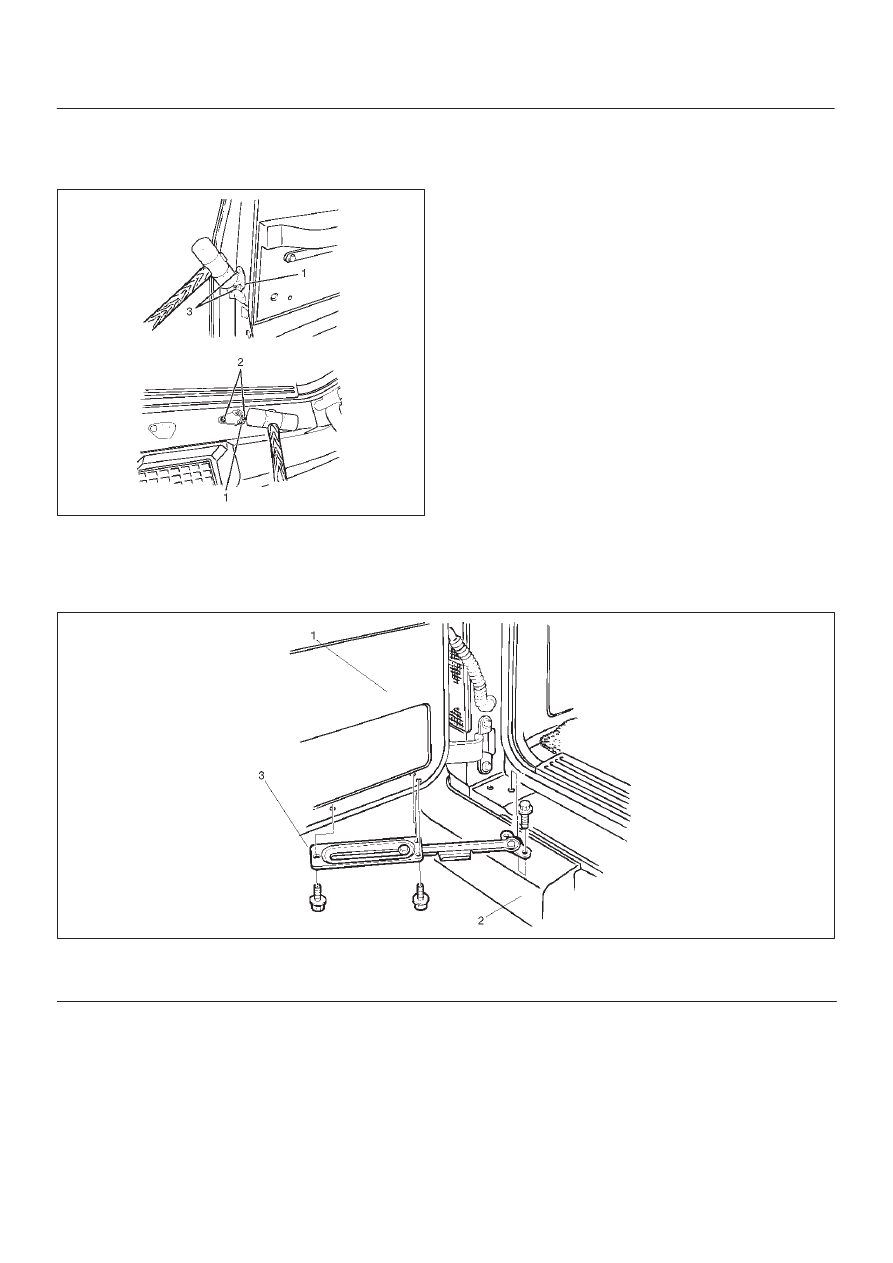

Tailgate Strikers

Adjustment

683RW012

1. Loosen the striker screws (3) (or bolts (2)).
2. Tap the striker (1) with a plastic hammer to align.
3. Tighten the striker screws (3) (or bolts (2)).

Screw Torque : 15 N

m (1.5kg·m/11  lb ft)

Bolt Torque : 12 N

m (1.2kg·m/104  lb in)

Tailgate Stopper Assembly

Parts Location

683RS010

Legend

(1) Tailgate

(2) Rear Bumper
(3) Tailgate Stopper Assembly

Removal

1. Remove tailgate stopper assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the fixing bolts to the specified torque.

Torque : 12 N

m (1.2kg·m/104  lb in)

2. Apply chassis grease to the stopper moving surface.

8F–79

BODY STRUCTURE

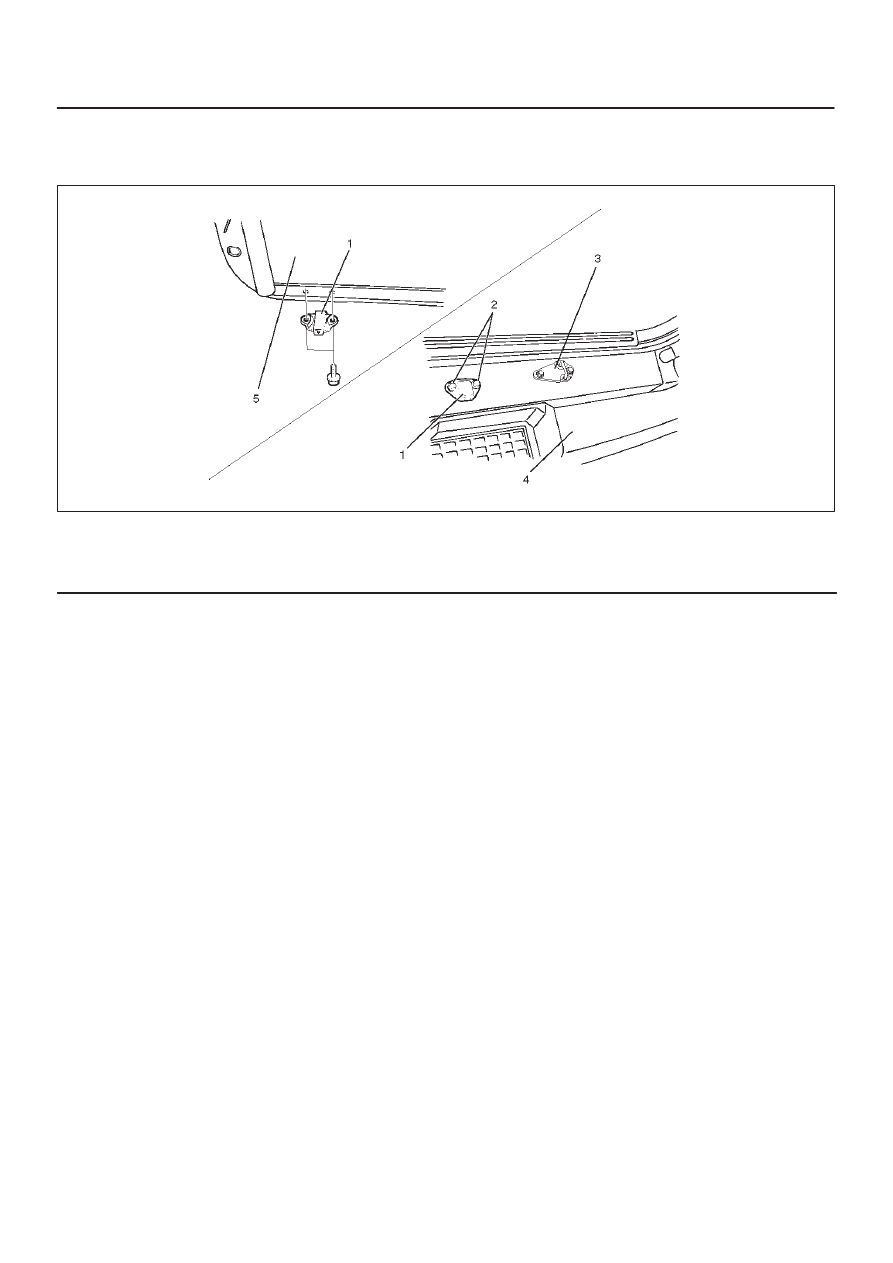

Tailgate Dove-Tail

Parts Location

683RW011

Legend

(1) Dove-Tail
(2) Fixing Bolt

(3) Tailgate Striker
(4) Rear Bumper
(5) Tailgate (LH)

Removal

1. Remove tailgate dove-tail.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the dove–tail (A) moving

surface.

2. Tighten the fixing bolts to the specified torque.

Torque : 12  N

m (1.2kg·m/104  lb in)

8F–80

BODY STRUCTURE

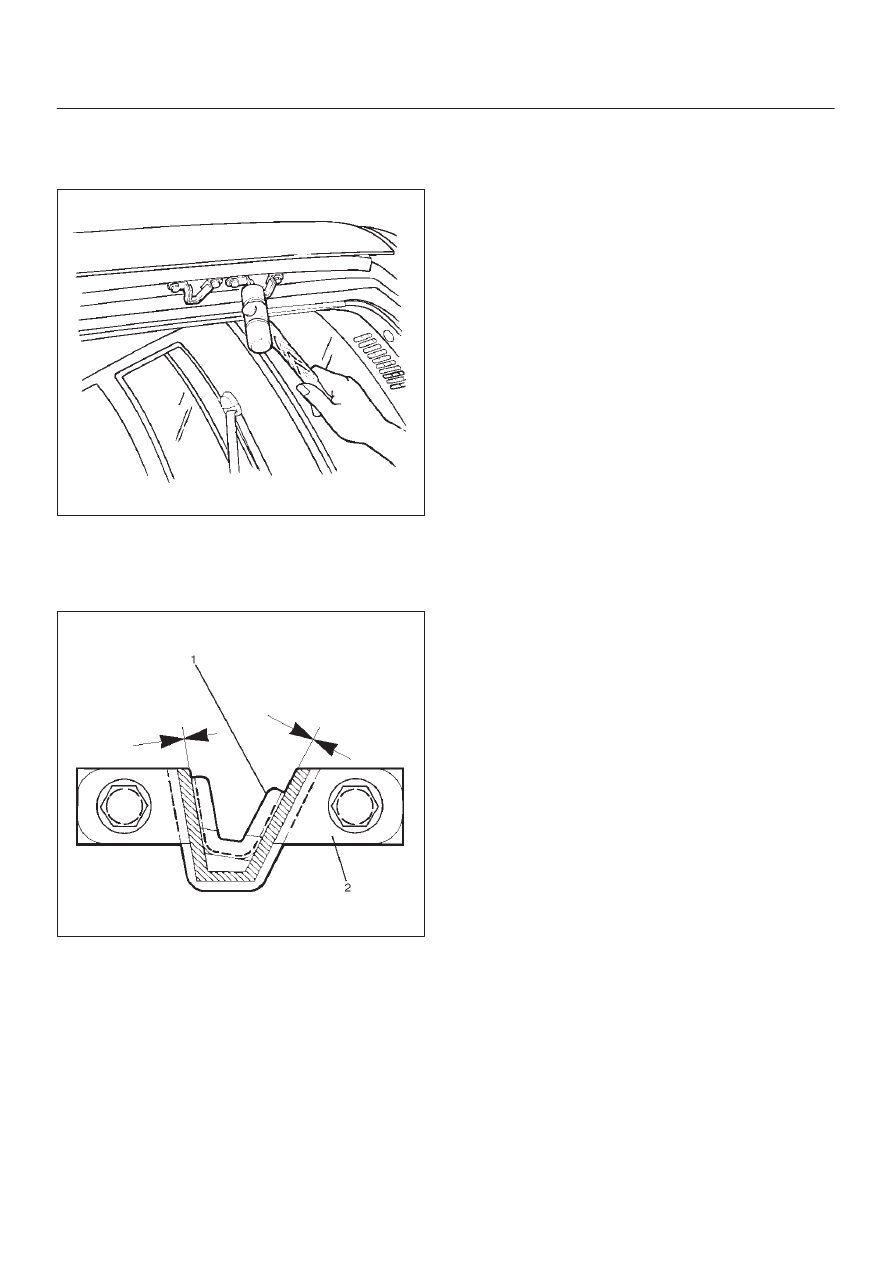

Tailgate Dove-Tail Striker

Adjustment

683RS012

1. Loosen the striker bolts.
2. Tap with a plastic hammer to align.

D

Gaps between Dove–Tail Striker (2) and bracket (1)
are 0 mm (No clearance).

683RS013

3. Tighten striker bolts.

Torque : 12 N

m (1.2kg·m/104 lb in)

8F–81

BODY STRUCTURE

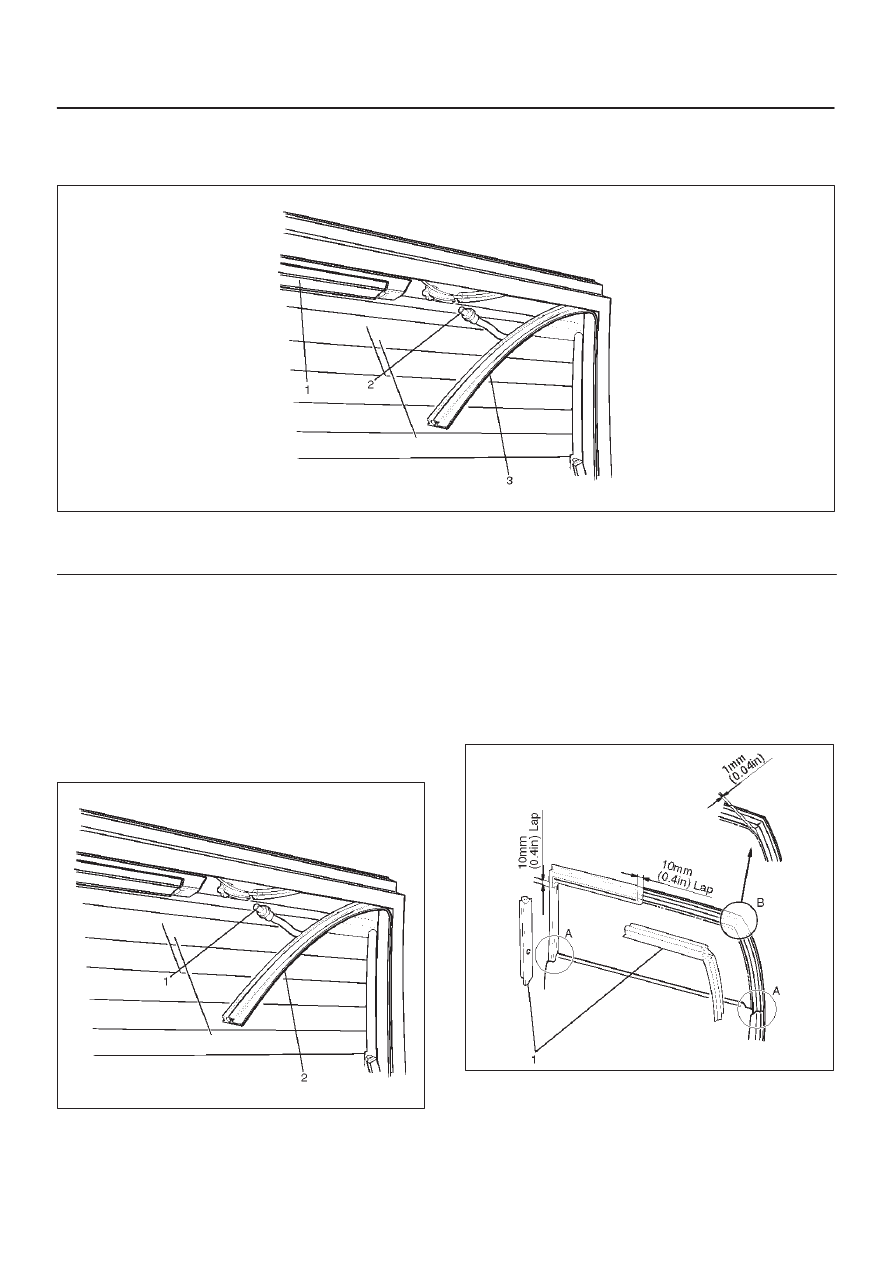

Tailgate Frame Cover (LH)

Parts Location

684RW001

Legend

(1) High Mount Stop Light

(2) Washer Tube
(3) Tailgate Frame Cover

Removal

1. Disconnect the battery ground cable.
2. Remove tailgate frame cover.

D

Pull the tailgate frame cover (2) out.

D

Disconnect the washer tube (1) at the nozzle and
pull the washer tube out from the frame cover (2).

D

Disconnect the rear defogger and pull the harness
from the cover.

684RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Hit the lower A edge portion of the cover (1) to the

tailgate flange.

2. Clearance between the frame cover and the tailgate

panel (B portion) is 1 mm (0.04 in).

684RS008
