LIGHTING SYSTEM

8A–3

Headlight Bulb

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove the cap(3) while turning it counter clockwise.
4. Remove the cover(2).
5. Pull the bulb(1) out from the headlight body.

CAUTION: The halogen bulb develops a very high
temperature.  Do not touch the glass portion.  If any
stain is on the glass surface,  It will scorch and the
glass will be damaged.

801RW014

Installation

To install, follow the removal steps in the reverse order.

8A–4

LIGHTING SYSTEM

Headlight

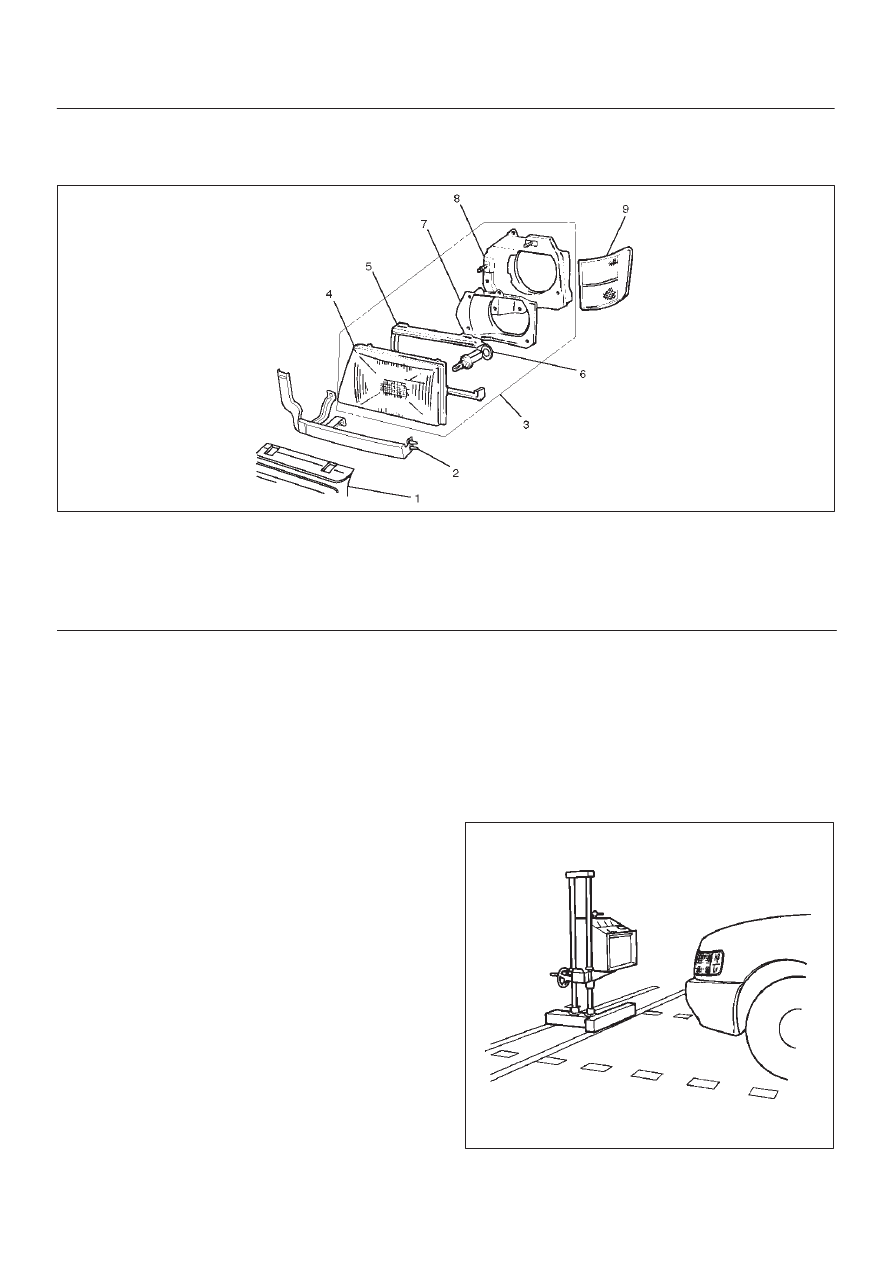

Headlight and Associated Parts

801RW003

Legend

(1) Radiator Grille
(2) Front End Lower Panel
(3) Headlight Assembly
(4) Headlight

(5) Headlight Rim
(6) Headlight Bulb
(7) Rear Cover
(8) Bracket
(9) Front Combination Light

Removal

1.  Disconnect the battery ground cable.
2. Remove the screw and pull out the two projecting

portions on the fender to remove the front
combination light.

3. Remove five clips and two screws to remove the

radiator grille.

4. Remove two screws to remove the front end lower

panel(2).

5. Remove two bolts and two nuts to remove the

headlight assembly (with bracket).

6. Remove the headlight bulb.
7. Remove two screws, two nuts and the spring for the

headlight aim adjustment to remove the bracket.

8. Remove four screws to remove the rear cover.
9. Remove the headlight rim.

10. Remove the headlight.

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the headlight, be sure to
adjust the headlight aim.

Headlight Adjustment

Preparation

 Place the unloaded vehicle on a level surface and check
to see if the inflation pressure of the tires is correct, the
lenses are clean, and the battery is sufficiently charged.
Adjust the aim with the headlight tester, if necessary.
When adjusting, follow the procedure of the tester
manufacturer’s.

801RS009

LIGHTING SYSTEM

8A–5

Vertical adjustment

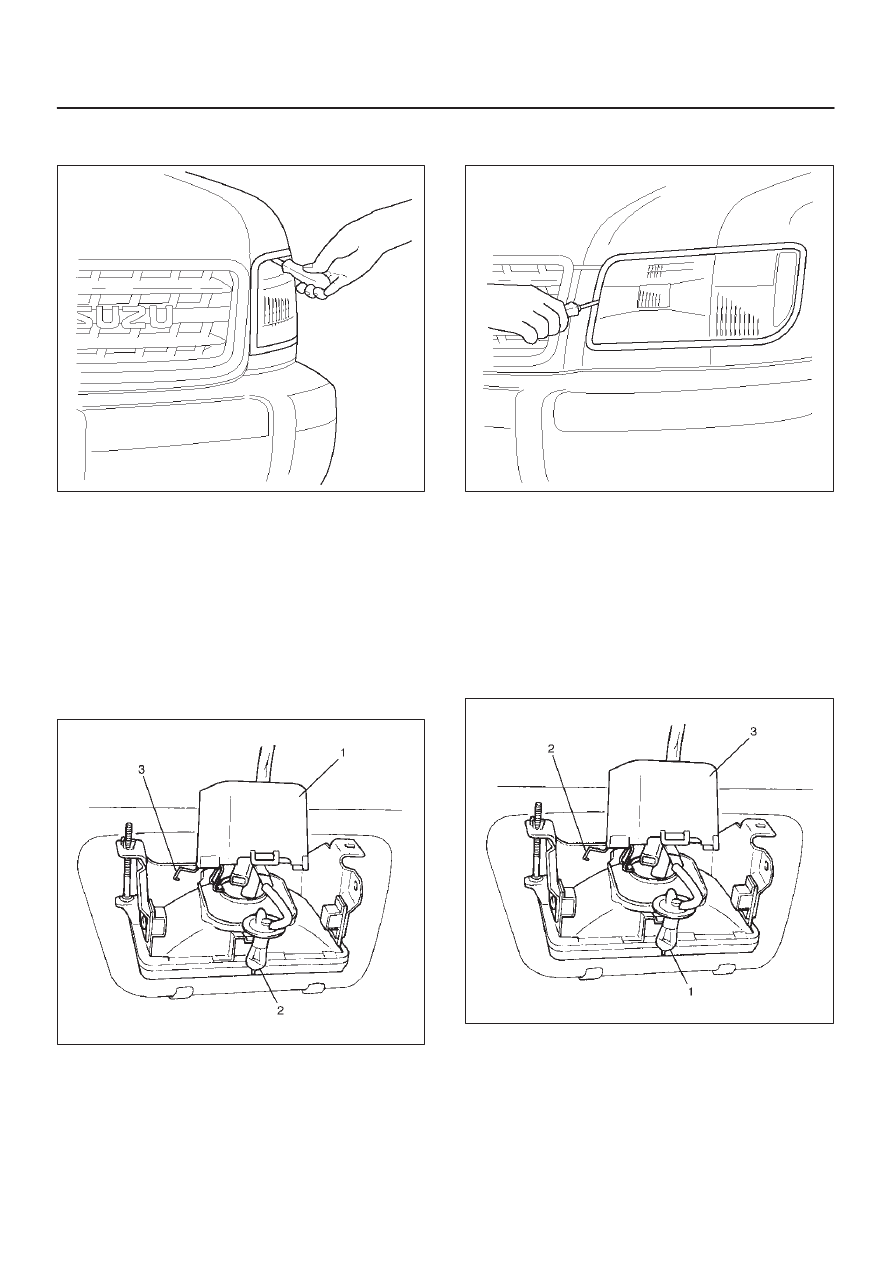

Use a screwdriver for vertical adjustment.

801RW004

Horizontal adjustment

Use a screwdriver for horizontal adjustment.

801RW005

Fog Light Bulb

Removal

1. Disconnect the battery ground cable.

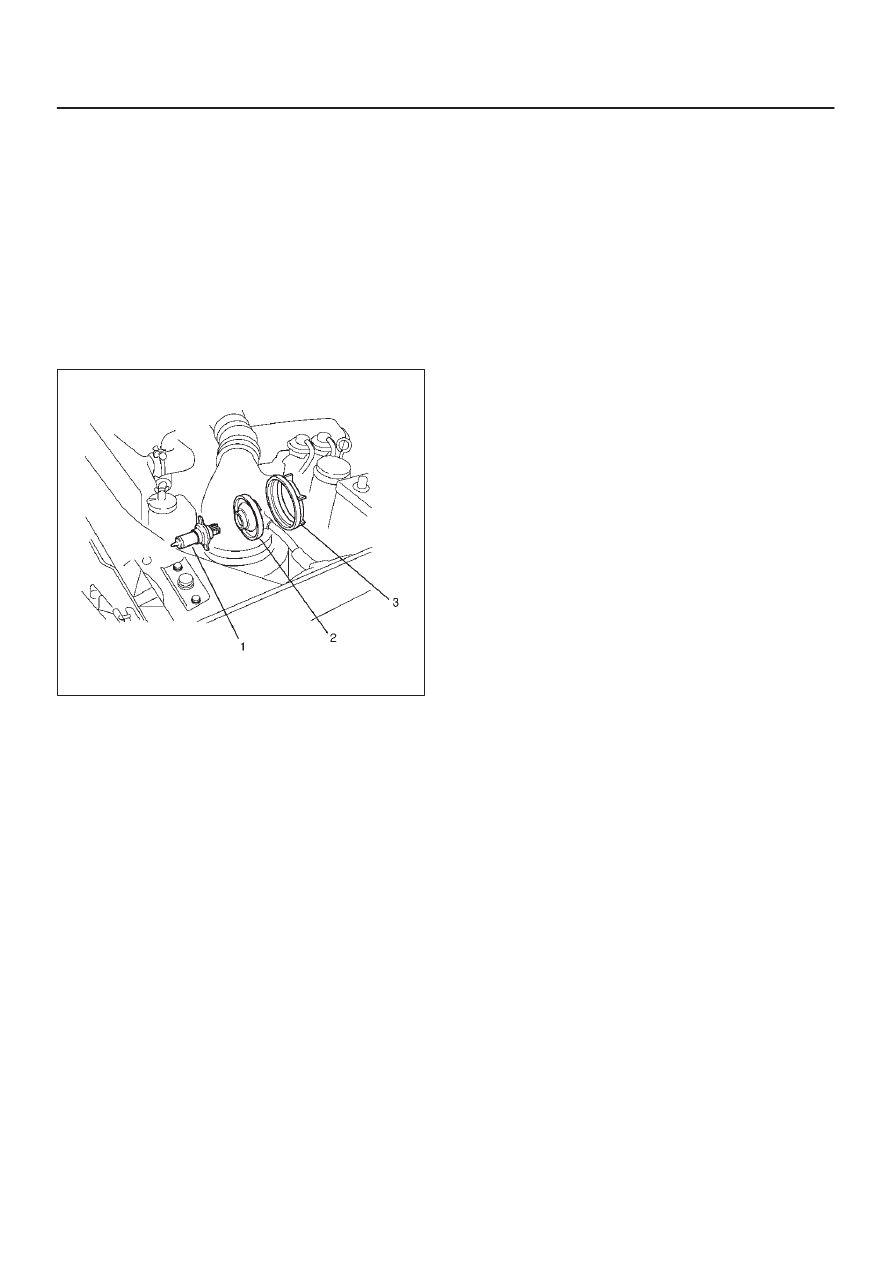

2. Open the rear cover(1) of the case.
3. Remove the dust cover.
4. Disconnect the bulb connector.
5. Remove the clip(3).
6. Remove the fog light bulb(2).

801RW012

Installation

1. Install the fog light bulb(1).
2. Install the clip(2).
3. Connect the bulb connector.
4. Install the dust cover.
5. Close the rear cover(3) of the case.

801RW017

6. Connect the battery ground cable.
