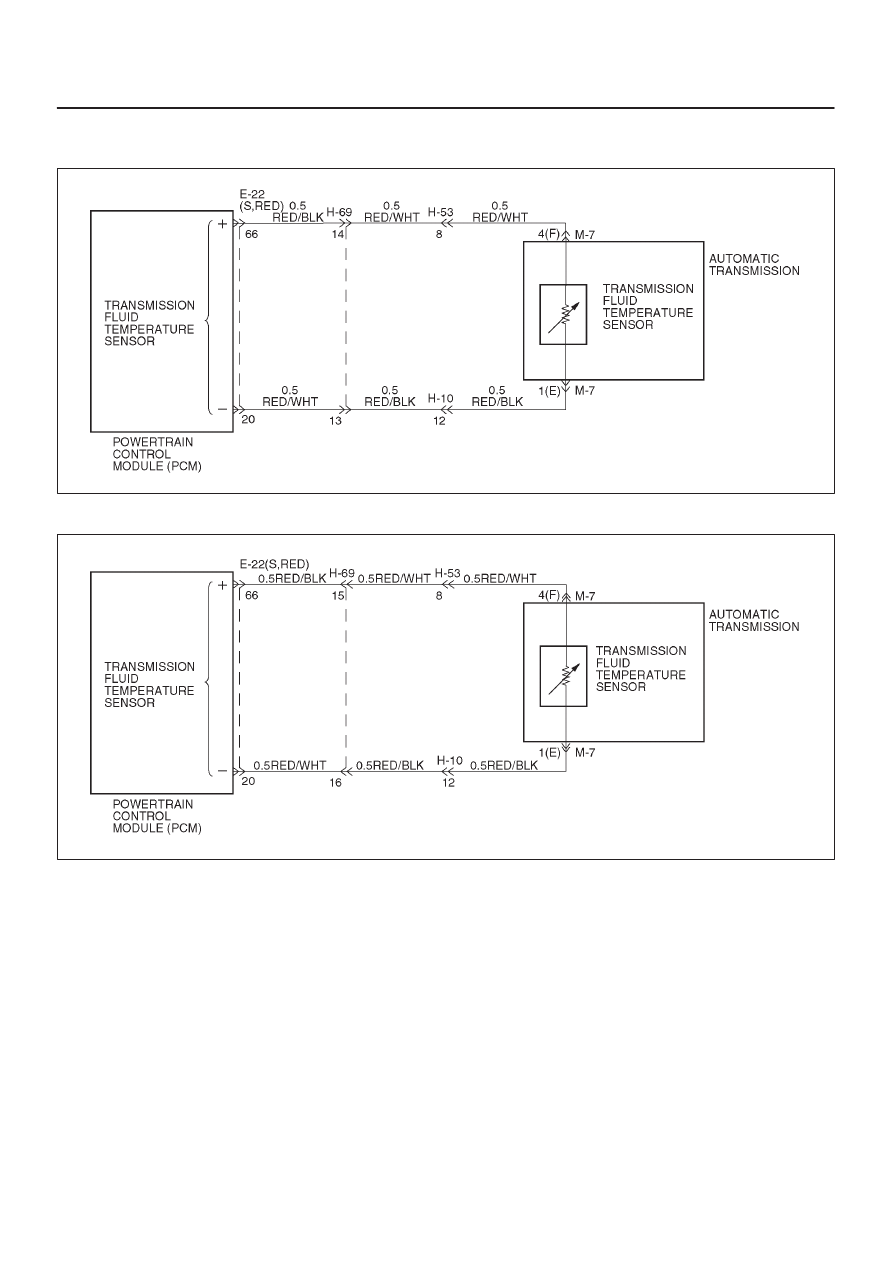

TRANSMISSION CONTROL SYSTEM (4L30–E) 7A1–43 DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input LHD D07R200043 RHD D07R200044 Circuit Description The TFT sensor is a thermistor that controls the signal ° C (212 ° F), the sensor resistance becomes less and the voltage decreases to Conditions For Setting The DTC D Battery voltage is between 10 and 16 volts. D Ignition is “on”. D TFT sensor indicating a voltage greater than 4.86 D All conditions met for 20 seconds. Action Taken When The DTC Sets D Transmission default temperature will be: 80 ° C (176 ° F) if engine temperature code is set. 100 ° C (212 ° F) if engine temperature is warm. 80 ° C (176 ° F) if engine run time is greater than 5 minutes. 21 ° C (69.8 ° F) if engine run time is less than 5 minutes. |
