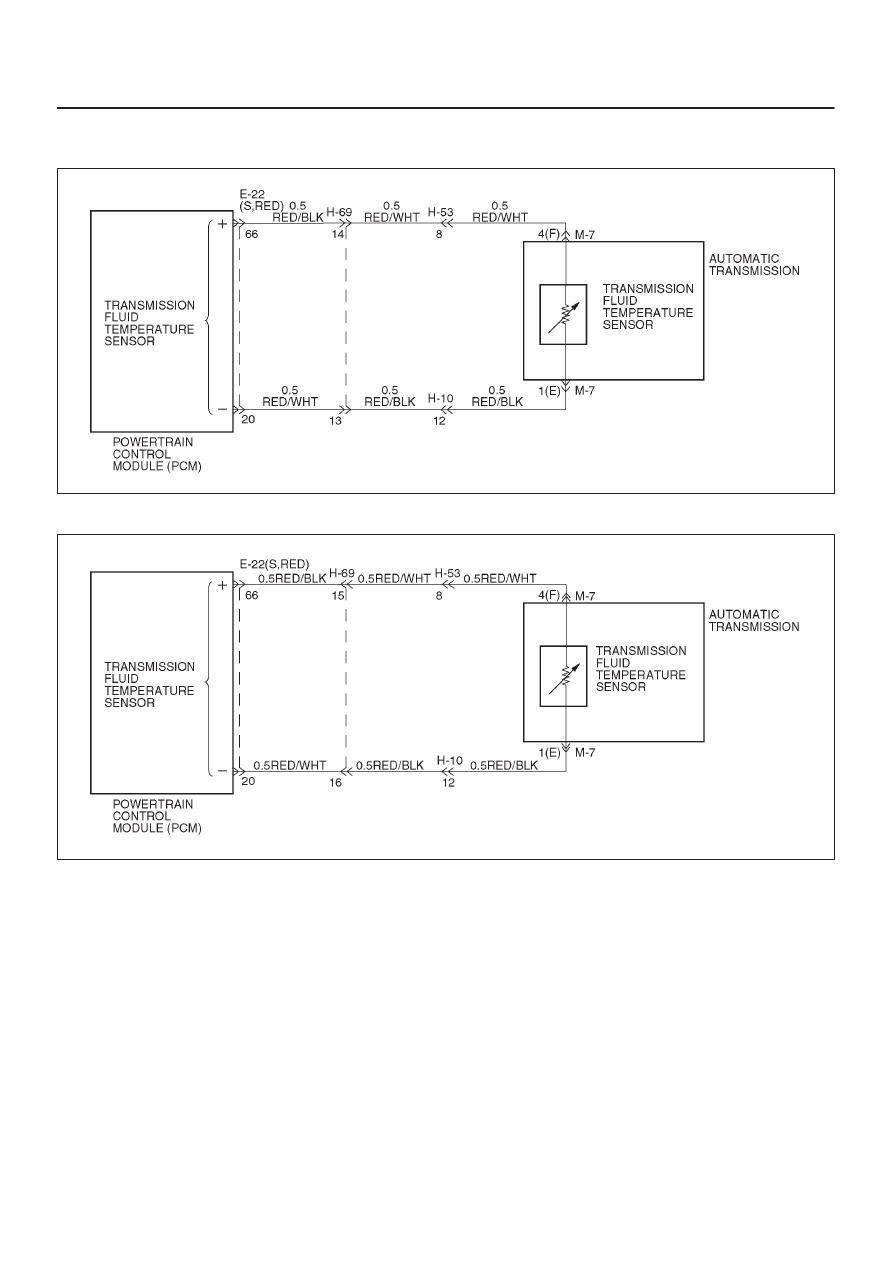

TRANSMISSION CONTROL SYSTEM (4L30–E) 7A1–27 DTC P0218 Transmission Fluid Over Temperature LHD D07R200043 RHD D07R200044 Circuit Description The Transmission Fluid Temperature (TFT) sensor is a ° C (212 ° F), the sensor resistance becomes less and the voltage decreases to 1.5 to 2.0 volts. Conditions For Setting The DTC D No TFT DTCs P0712 or P0713. D TFT is greater than 135 ° C (275 ° F). D All conditions met for 21 seconds. Action Taken When The DTC Sets D Hot mode TCC Shift Pattern. D The PCM will not illuminate the Malfunction Indicator D ATF Lamp ON. (TFT is greater than 145 ° C (293 ° F).) D Disable E–side TCC OFF request. Conditions For Clearing The DTC D The DTC can be cleared from the PCM history by D The DTC will be cleared from history when the vehicle D The PCM will cancel the DTC default actions when |
