Opel Frontera UBS. Service manual - part 2568





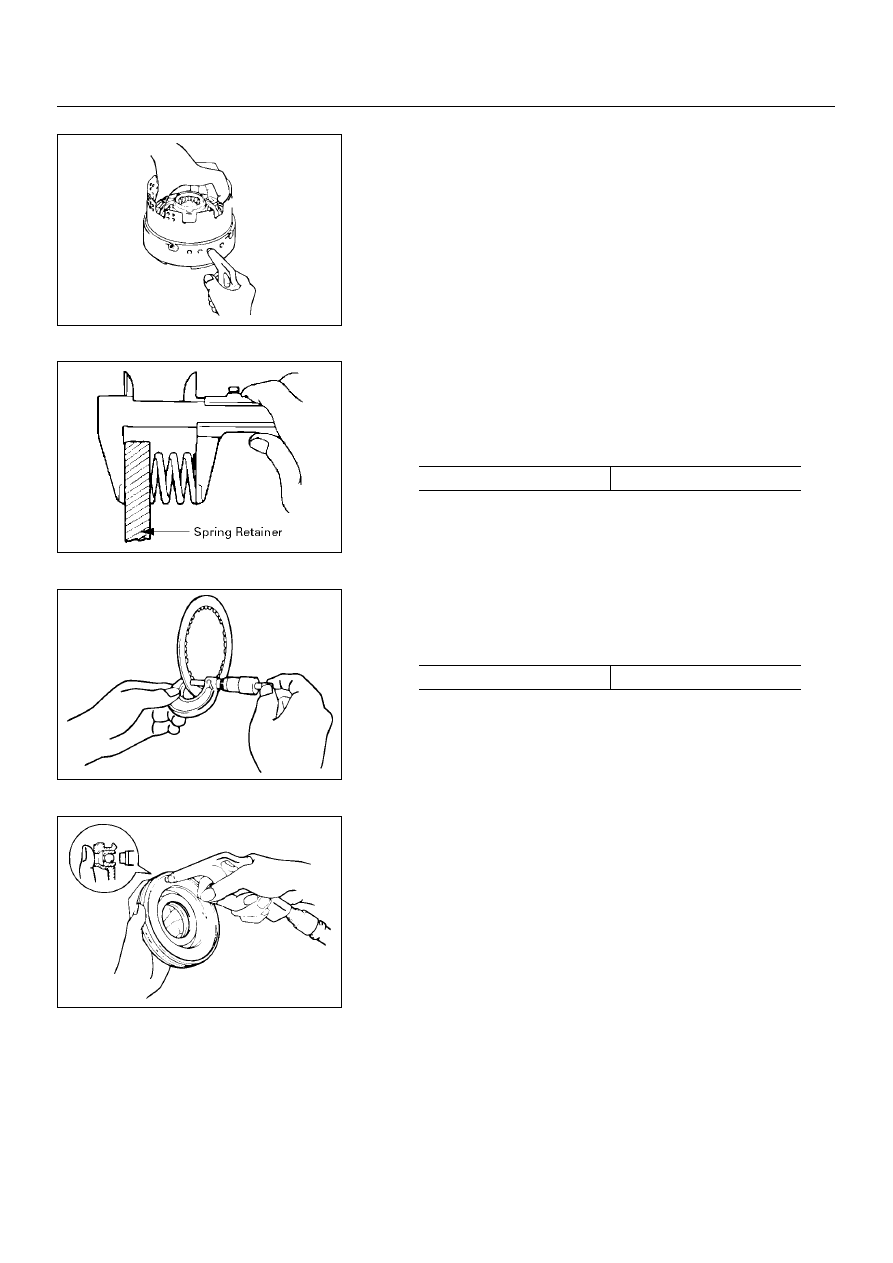

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–135

248RY00030

247RY00034

252RY00027

248RY00031

7. Direct clutch piston

Place the direct clutch drum onto the OD support.
Holding the direct clutch piston by hand, apply compressed
air to the OD support to remove the direct clutch piston.
Remove the direct clutch piston.
Remove two O-ring from piston.

INSPECTION AND REPAIR

Check piston return spring

Using calipers, measure the free length of the return spring.

Check discs

Using a micrometer, measure the thickness of the discs.

If the thickness is less than the minimum, replace the disc.

Check direct clutch piston

Check that check ball is free by shaking the piston.
Check that the valve does not leak by applying low-pressure
compressed air.

mm (in.)

Standard

21.3 (0.839)

mm (in.)

Minimum thickness

1.84 (0.0724)

7A–136

AUTOMATIC TRANSMISSION (AW30-40LE)

248RY00032

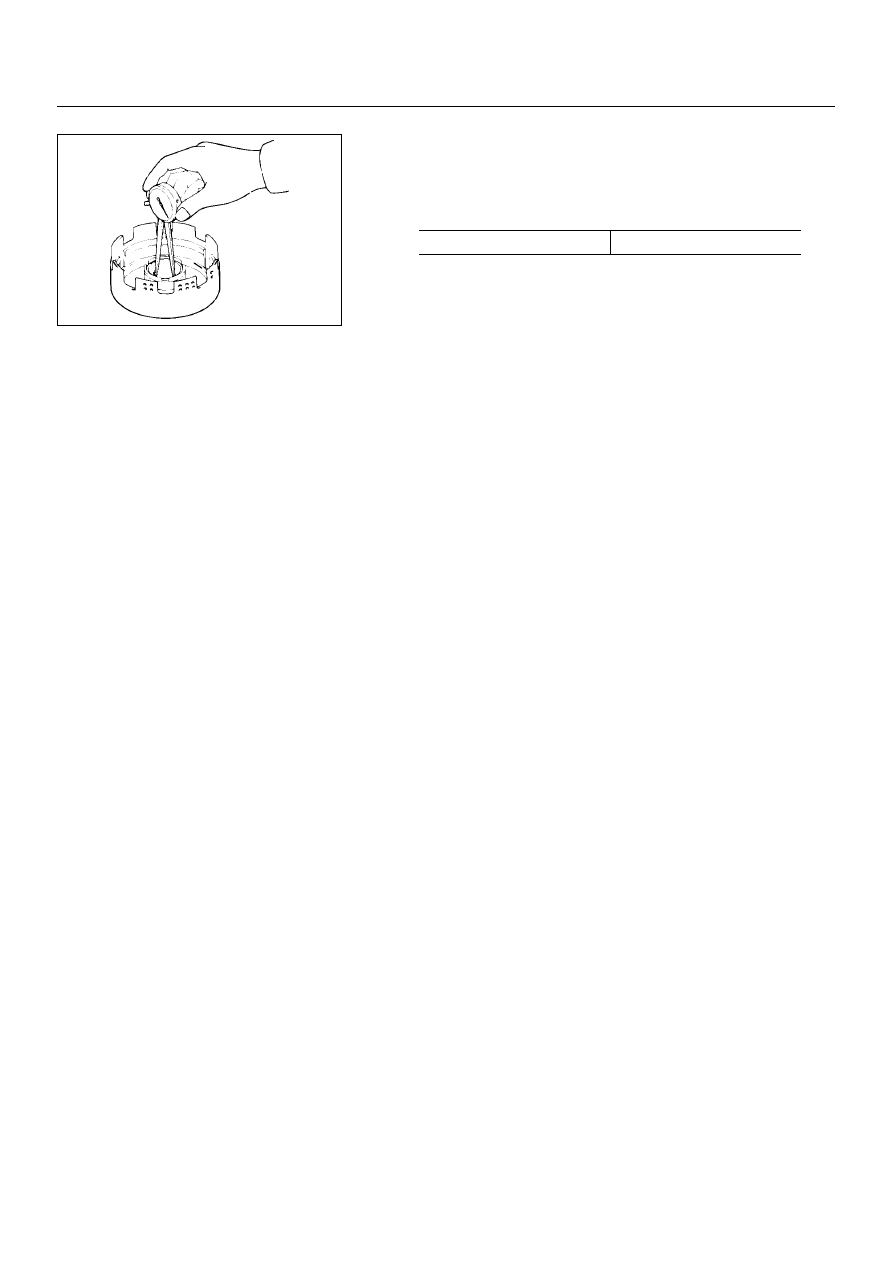

Check direct clutch drum bushing

Using a dial indicator, measure the inside diameter of the
clutch drum bushing.

If the inside diameter is grater than maximum, replace the
clutch drum.

mm (in.)

Maximum inside diameter

53.99 (2.1256)

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–137

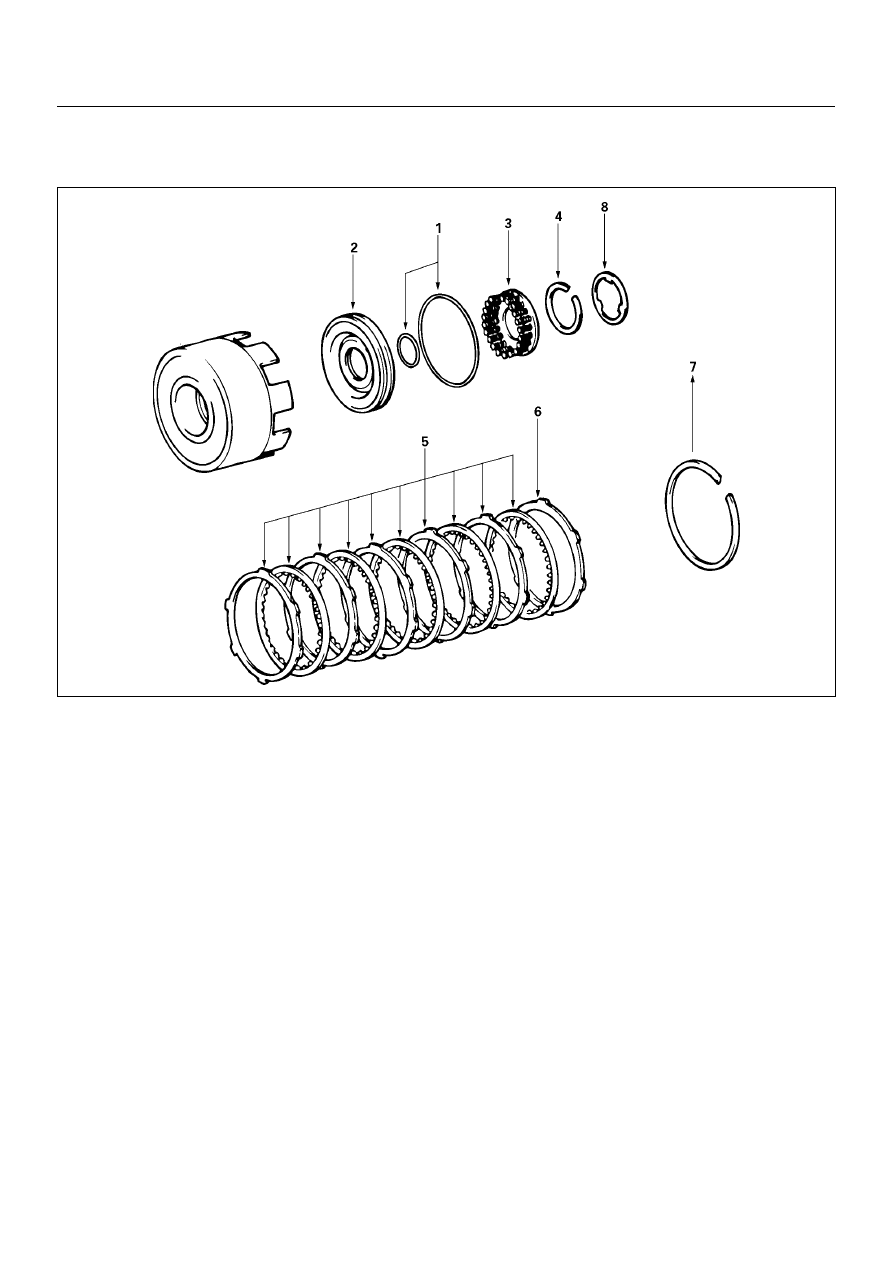

REASSEMBLY

248RY00060

Reassembly steps

 1. O-ring

 2. Direct clutch piston

 3. Piston return spring

 4. Snap ring

 5. Disc and plate

 6. Flange

 7. Snap ring.

 8. Clutch drum thrust washer (plastic)

7A–138

AUTOMATIC TRANSMISSION (AW30-40LE)

248RY00033

248RY00034

248RY00002

248RY00062

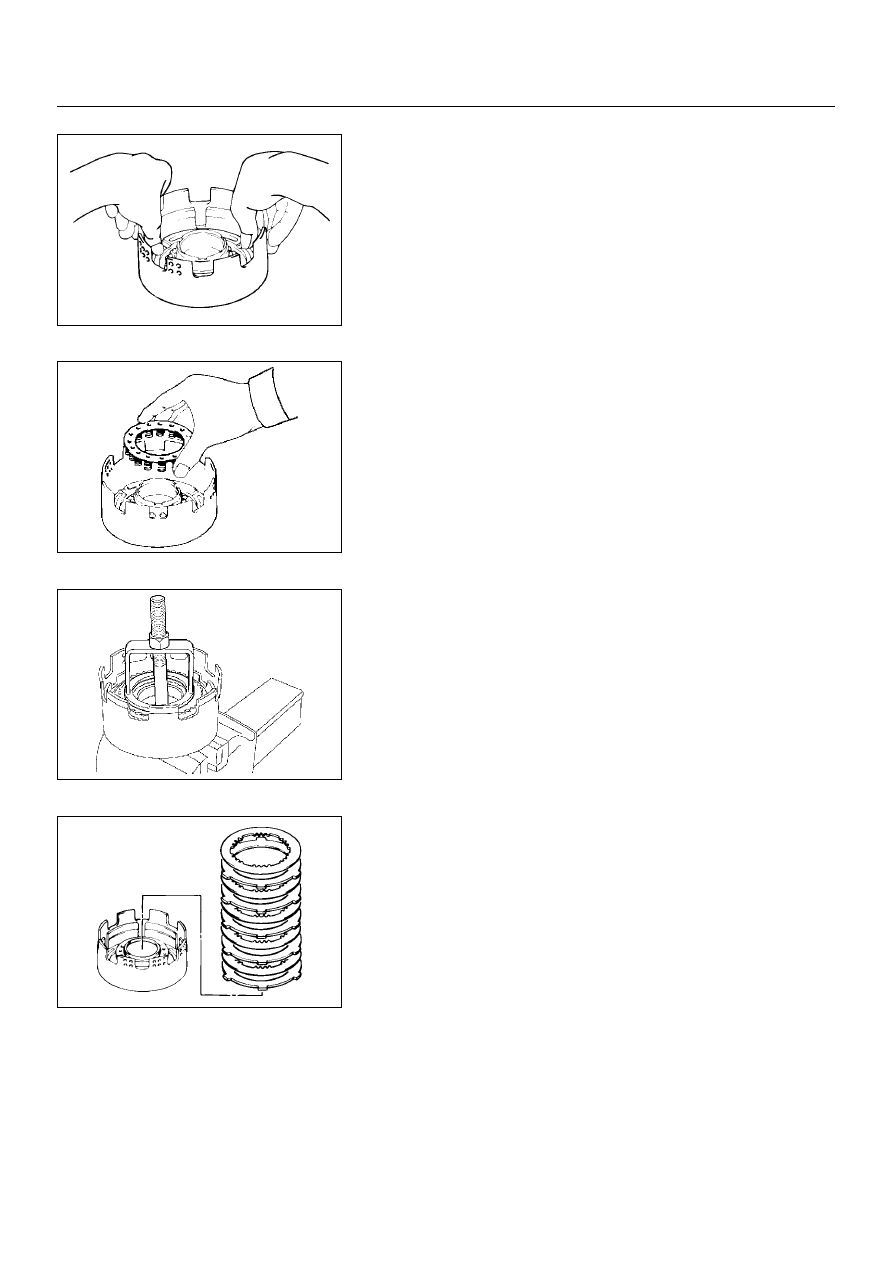

Important operations

1. O-ring

Coat new O-rings with ATF and install them on the direct
clutch piston.

2. Direct clutch piston

Install direct clutch piston to direct clutch drum.
Being careful not to damage the O-rings, press in the direct
clutch piston into the clutch drum, using both hands.

3. Piston return spring

Install piston return spring.

4. Snap ring

Compress piston return spring and install snap ring in
groove.
Place special tool and a suitable ring on the spring retainer,
and compress the return spring.
Install the snap ring with snap ring pliers. Be sure the end
gap of the snap ring is not aligned with the spring retainer
claw.
Spring compressor: 5-8840-0254-0 (J-25048)

5. Disc and plate

Install plates and discs.
Install in order: P– D– P– D– P– D– P– D– P– D
P: Plate, D: Disc
