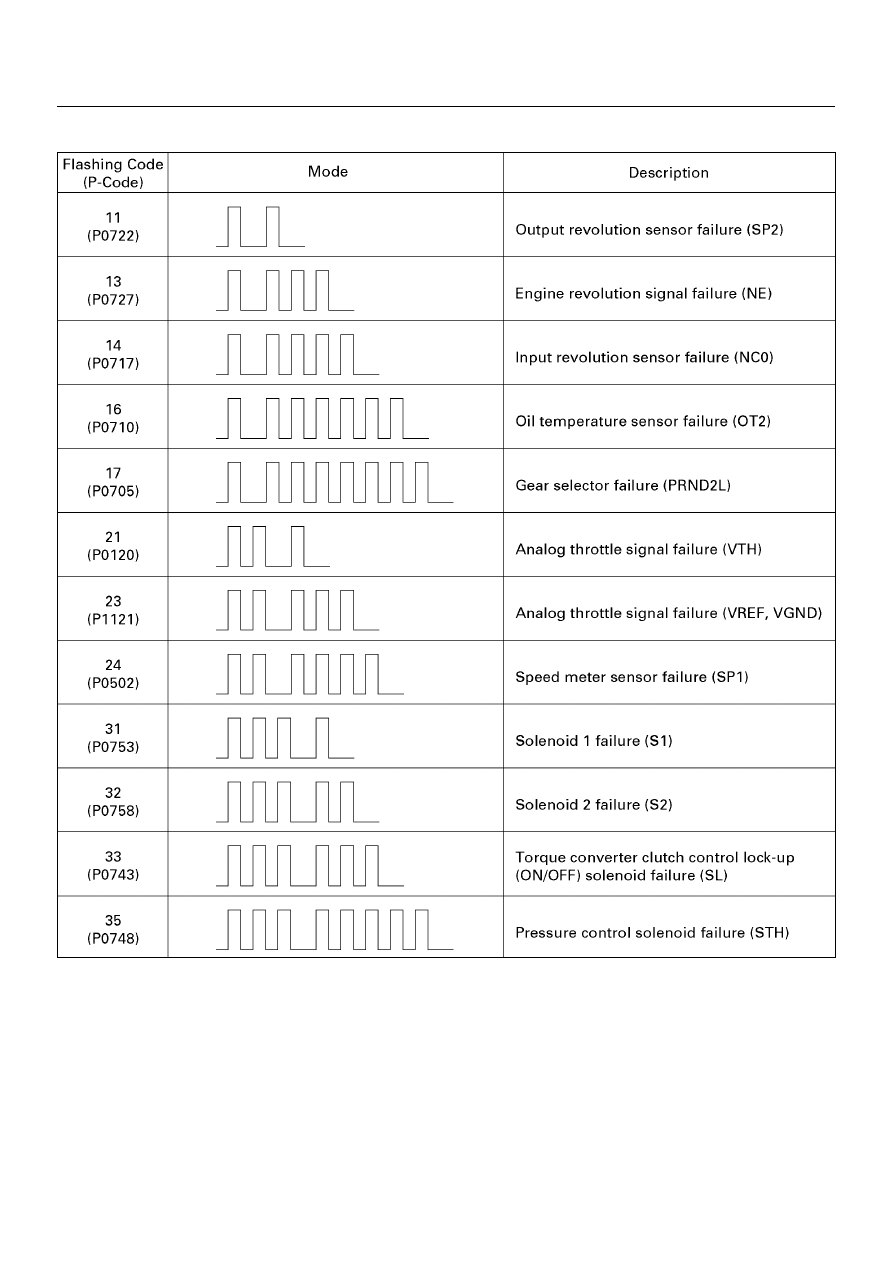

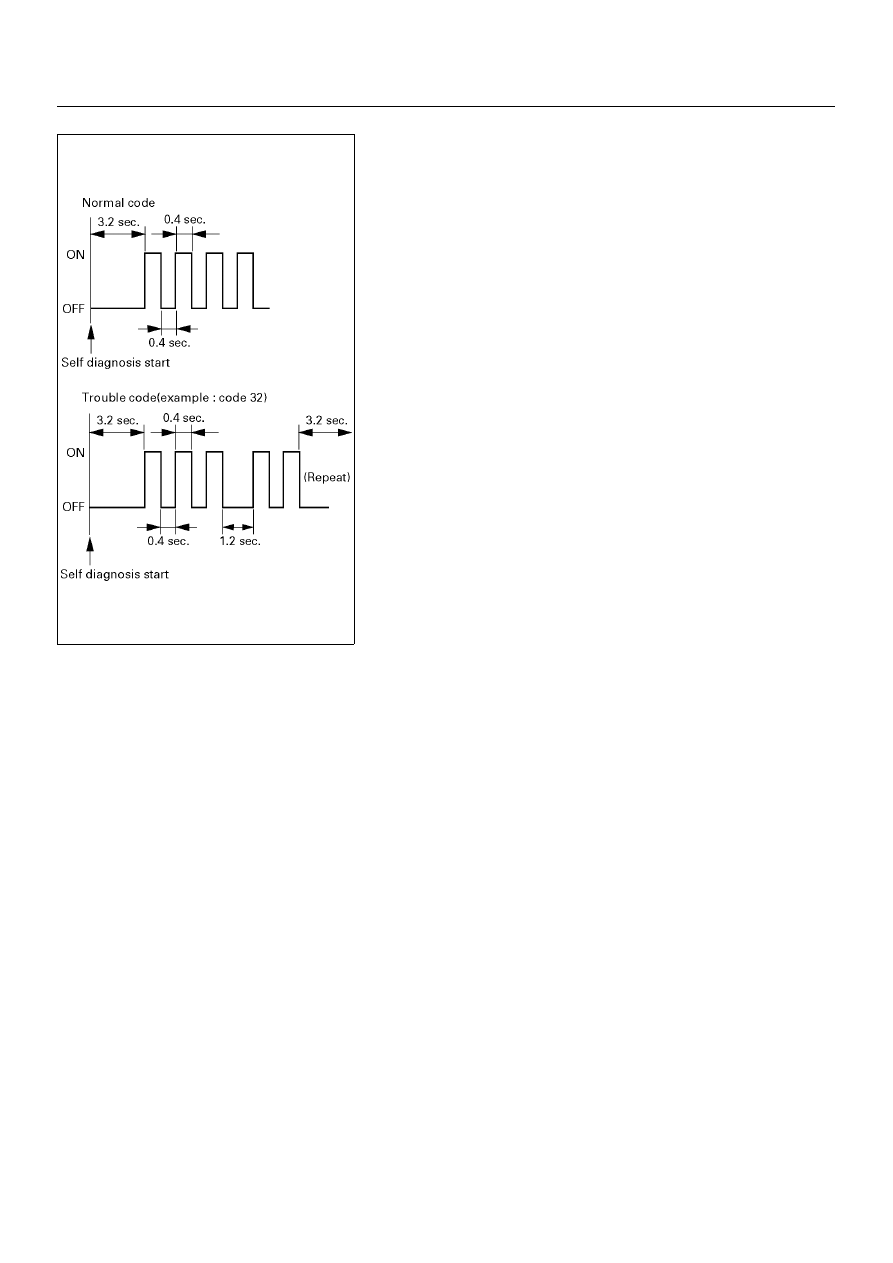

AUTOMATIC TRANSMISSION (AW30-40LE) 7A–15 F07LV001 Indication Method: 1. Terminals No. 11 are No. 4 or 5 (ground) of data link connector are short circuited. 2. Turn the ignition key to the ON position. 3. In case there no trouble, normal code is indicated. 4. In case a plurality of trouble codes have occurred at a time, each code is indicated three times in numerical order. NOTE: Clear of trouble code memory 1. Clear the trouble code memory using F1: Clear DTC Information for Tech2. 2. After more than 1 second has elapsed after the ignition key has been turned ON, short between No. 11 and No. 4 or 5 |
