AUTOMATIC TRANSMISSION (4L30–E)

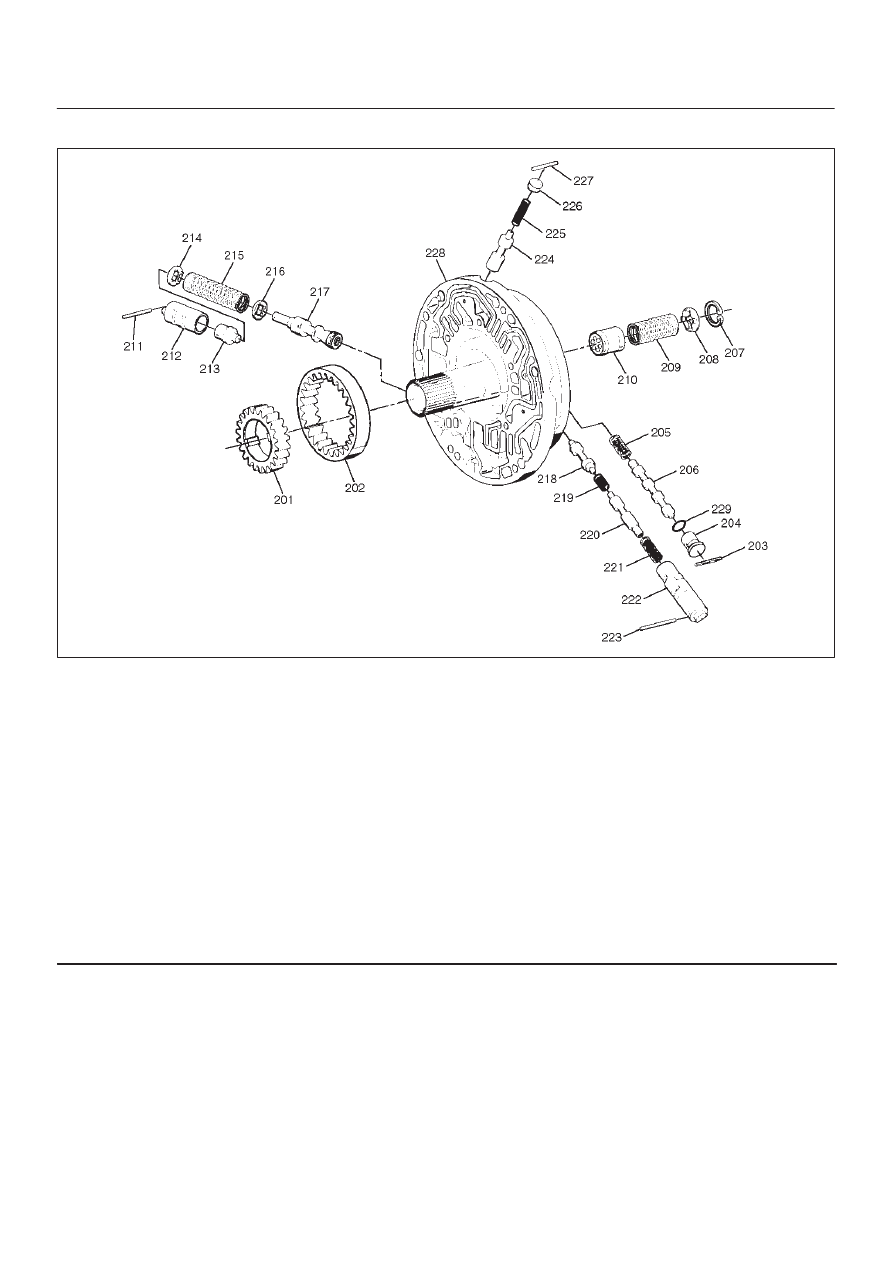

Pump Assembly
241RY003
Legend
(201) Gear, Oil Pump Drive
(202) Gear, Oil Pump Driven
(203) Pin, Plug Converter Clutch Control
(204) Plug, Converter Clutch Control Valve
(205) Spring, Converter Clutch Control Valve
(206) Valve, Converter Clutch Control
(207) Ring, Snap/Throttle Signal Accumulator
(208) Seat, Spring/Throttle Signal Accumulator
(209) Spring, Throttle Signal Accumulator
(210) Piston, Throttle Signal Accumulator
(211) Pin, Boost Valve Sleeve
(212) Sleeve, Boost Valve
(213) Valve, Boost
(214) Seat, Spring/Pressure Regulator Valve
(215) Spring, Pressure Regulator Valve
(216) Seat, Spring/Pressure Regulator Valve
(217) Valve, Pressure Regulator
(218) Isolator Valve
(219) Spring, Isolator
(220) Valve, Converter Clutch Regulator
(221) Spring, Converter Clutch Regulator
(222) Sleeve, Converter Clutch Regulator
(223) Pin, Retainer Sleeve
(224) Valve, Enable
(225) Spring, Enable Valve
(226) Spring Guide, Enable Valve
(227) Pin, Enable Valve
(228) Pump Assembly
(229) Seal Ring, Plug
