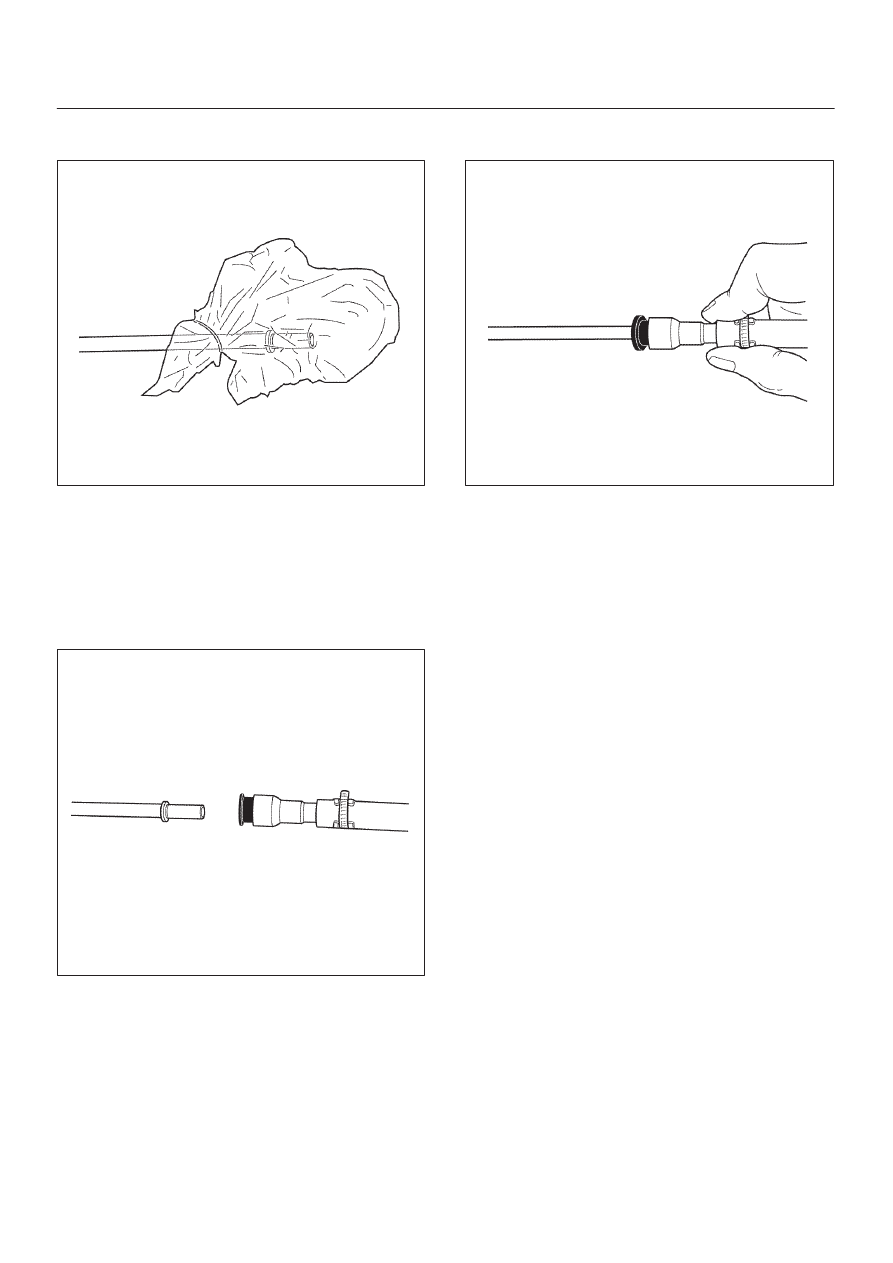

7A–34 AUTOMATIC TRANSMISSION (4L30–E) 3. Tie a vinyl bag around the connector and fuel pipe to protect them from dirt. 141RY00004 2. Joining the connector and fuel hose 1. Remove the vinyl bag from the connector and fuel hose. Check that the contact surfaces are 2. Align the axis of the fuel pipe and connector. Push the connector into the fuel pipe until a 141RY00005 3. Gently pull on the connector to check that it is securely latched. 141RY00006 23. Disconnect transmission harness connectors (15) from transmission, transfer, and right catalytic 24. Remove under covers (3 pieces) (16) from transmission case. 25. Remove flex plate torque converter fixing bolts (6 pieces) (17) by turning crankshaft. 26. Support the transmission with a transmission jack, and hoist engine with a chain block. 27. Remove engine transmission fixing bolts (18). (19). 29. Remove transfer case from the transmission assembly if necessary. Installation 1. Slowly raise transmission jack until front of the transmission is aligned with rear of the engine, then |
