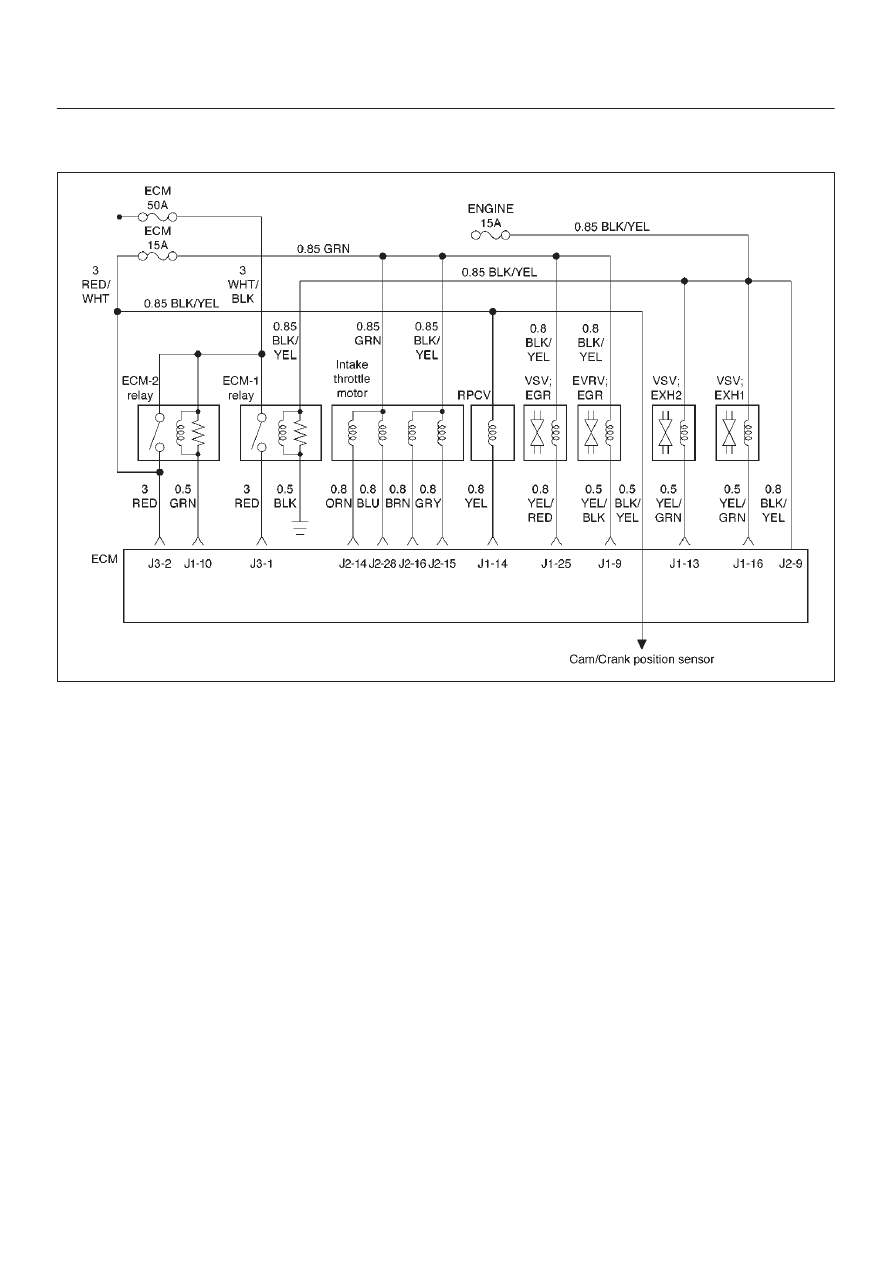

6E–142 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1475 (Flash DTC 71) EXH #2 VSV Circuit Open/Short 060RW135 Circuit Description EXH. #1, #2 VSV Circuit receives current through Engine Action Taken When the DTC Sets D The ECM will illuminate the malfunction indicator lamp D The ECM will store conditions which were present Conditions for Clearing the MIL/DTC D DTC P1475 can be cleared by using the Tech 2 “Clear Diagnostic Aids Check for the following conditions: D Poor connection at ECM – Inspect harness connectors D Damaged harness – Inspect the wiring harness for |
