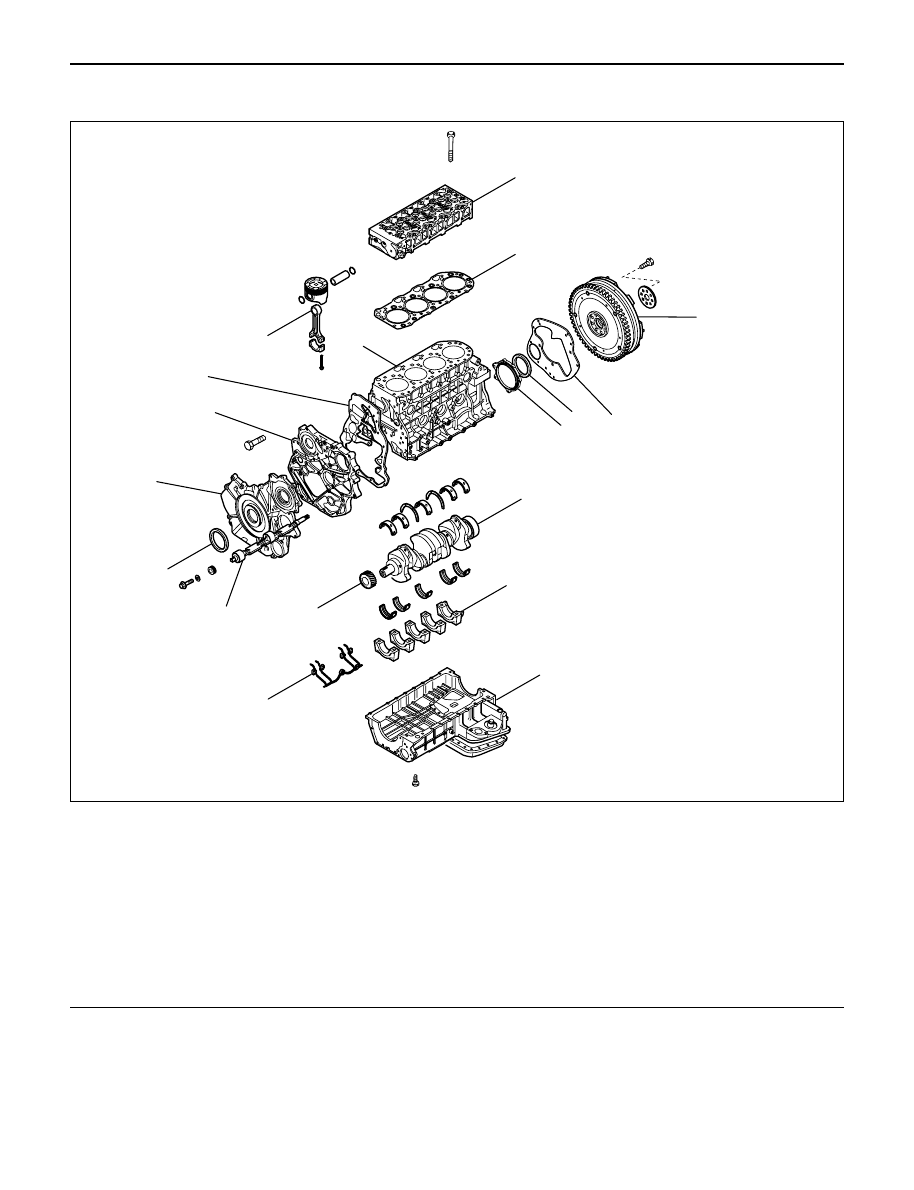

6A – 74 ENGINE MECHANICAL CRANKSHAFT 1 15 14 13 8 11 16 17 10 9 7 2 12 3 4 6 5 18 012RW023 Legend (1) Cylinder Head (2) Cylinder Head Gasket (3) Flywheel (4) Cylinder Block Rear Plate (for A/T) or Flywheel (5) Crankshaft Rear Oil Seal (6) Retainer (7) Timing Gear Case (8) Crankshaft Front Oil Seal (9) Timing Gear Case (10) Gasket (11) Balance Shaft (12) Crank Case (13) Piston Cooling Oil Pipe (14) Main Bearing Cap (15) Crankshaft (16) Crankshaft Timing Gear (17) Piston and Connecting Rod Assembly (18) Cylinder Block |
