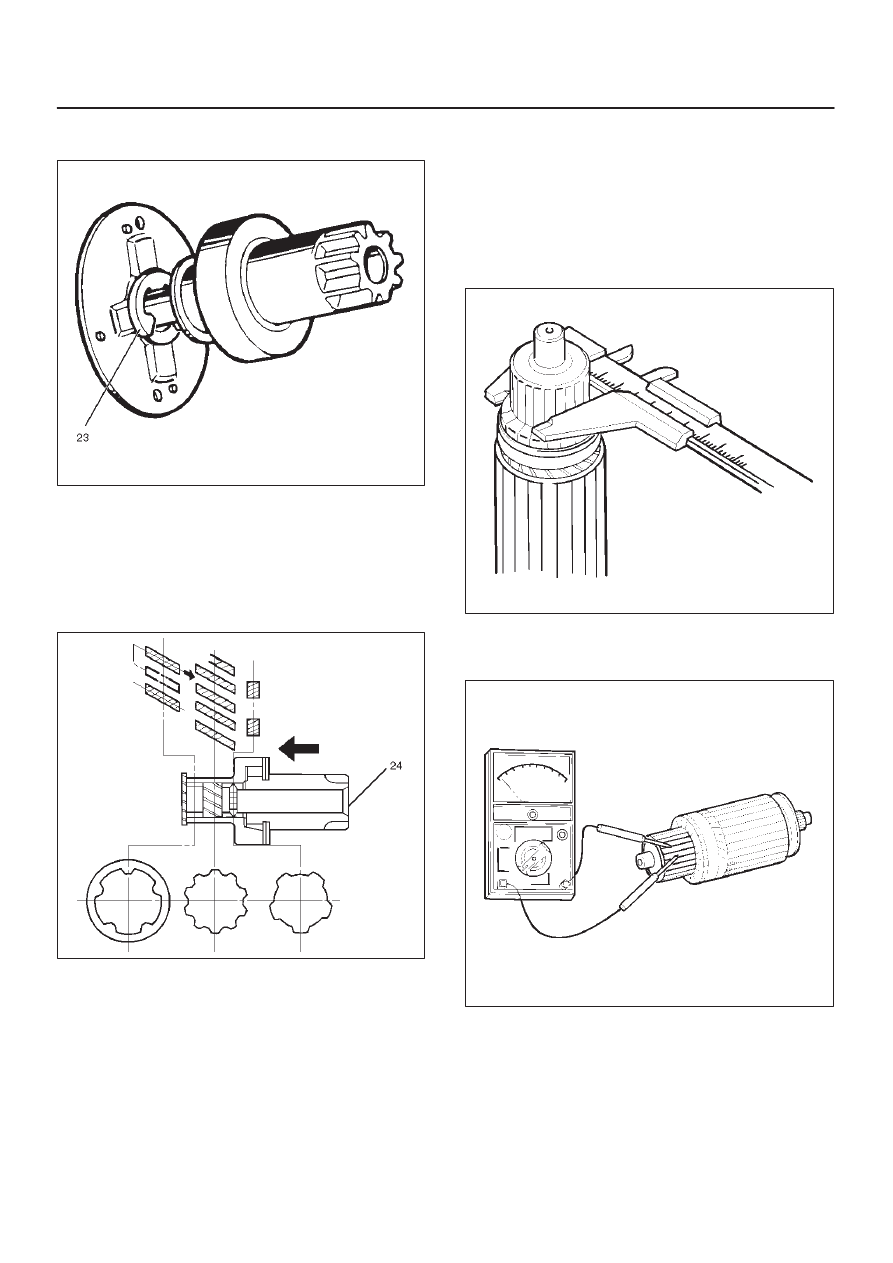

6D3–9 STARTING AND CHARGING SYSTEM 22. Remove an E–ring(23) from the pinion shaft using a flat blade screwdriver. 065RW010 23. Holding the pinion shaft, push pinion toward the center bracket. and turn the pinion clockwise or 24. Remove thrust washer(24). 065RW011 Inspection and Repair Repair or replace necessary parts if extreme wear or Armature Measure the outer diameter of commutator, and replace Standard: 33.0 mm (1.30 in) 065RS014 Check for continuity between commutator and segment. 065RS015 |
