5A–41
BRAKE CONTROL SYSTEM

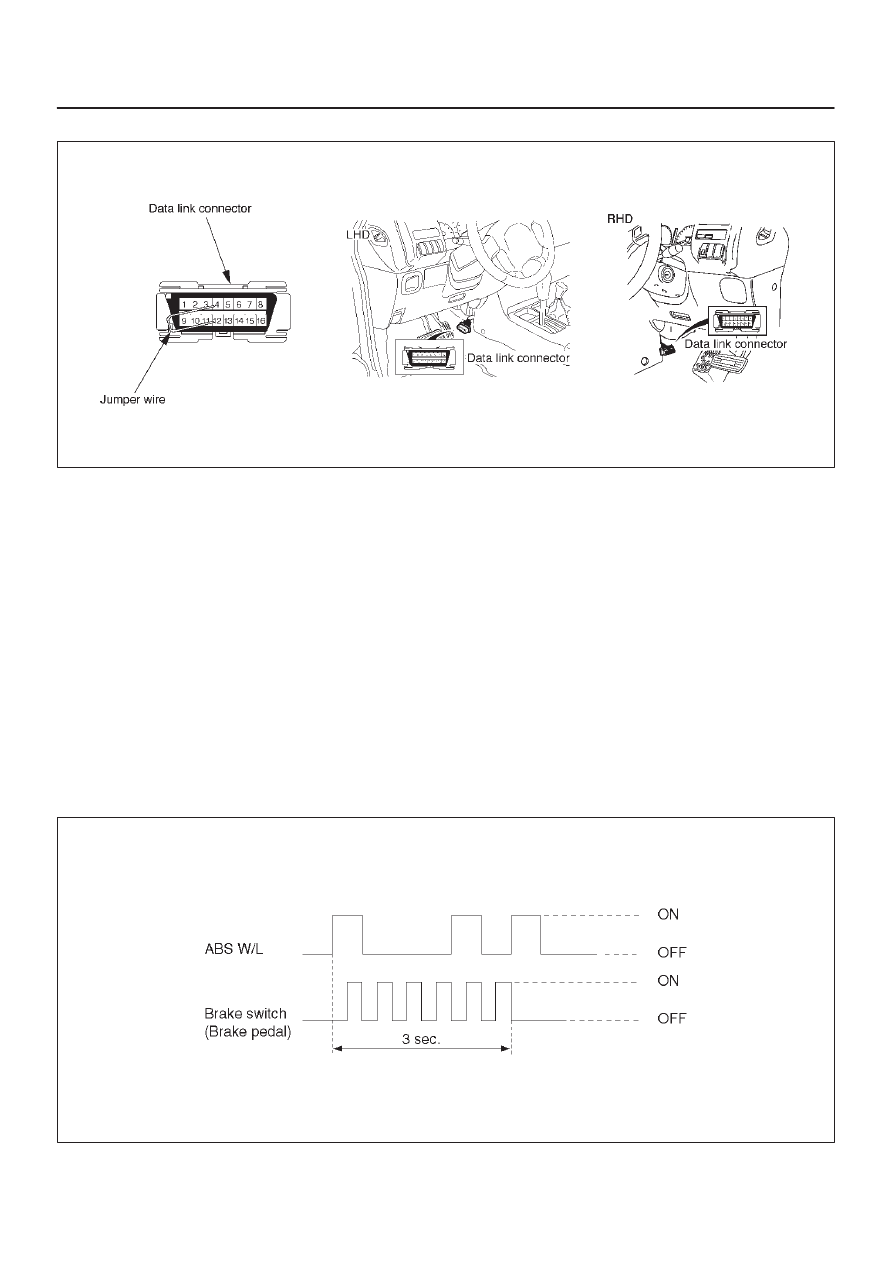

The DLC is located behind the center console
350RV010
D
Keep #12 terminal connected with #4 terminal or # 5
terminal (GND) during DTC display. (If #12 terminal
is separated from #4 terminal or # 5 terminal (GND)
during display, display will stop.)

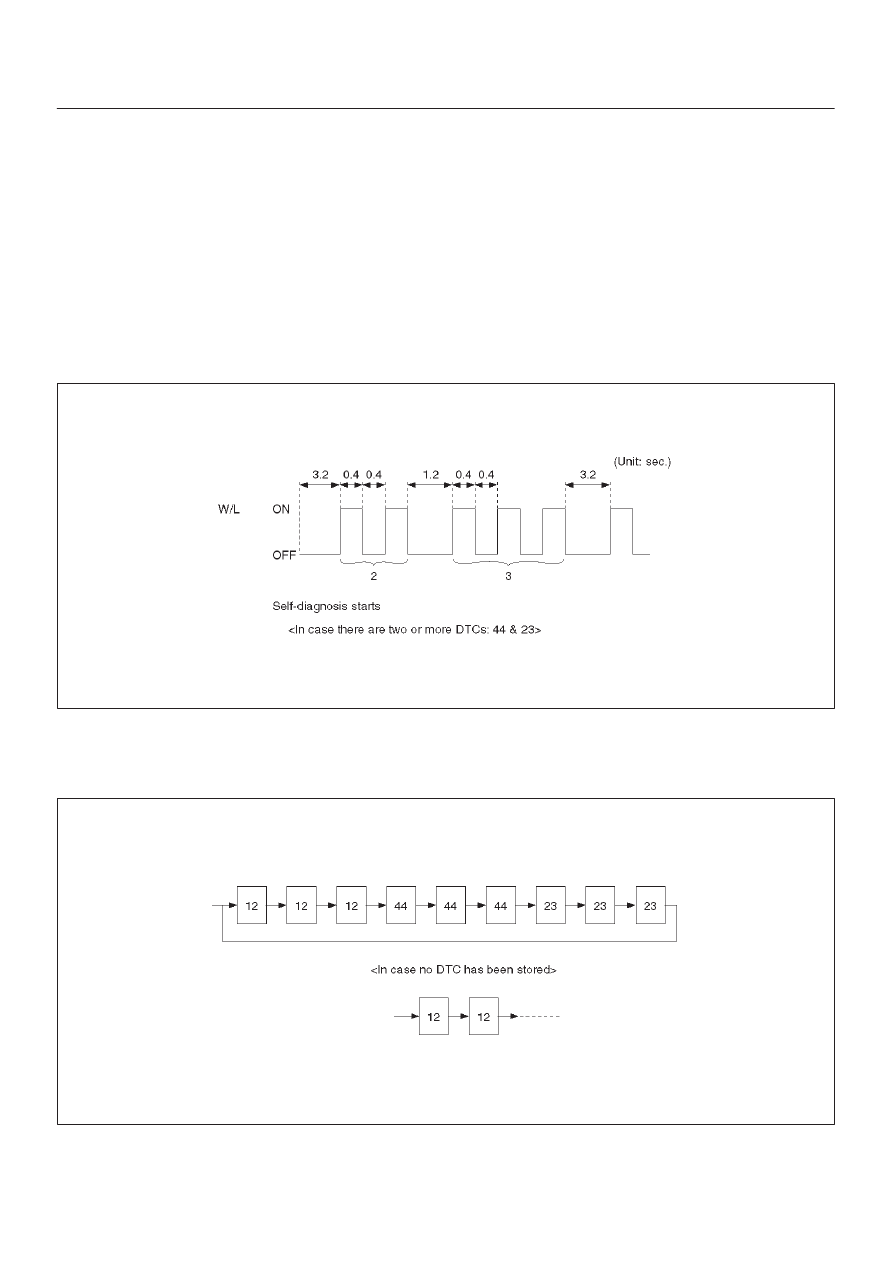

2. DTC display:
D
DTC is displayed by blinking warning light.
D
Double-digit display.
D
First, normal DTC 12 is displayed three times and
then any other DTCs are displayed three times. (If
no other DTCs have been stored, the display of DTC
12 will be repeated.)
3. How to erase code:
D
Conduct brake switch ON/OFF operation 6 or more
times within 3 seconds of self-diagnosis startup.
D
The code cannot be erased if more than 3 seconds
have passed since self-diagnosis startup, or if
self-diagnosis has started with brake switched on
(brake pedal depressed).
