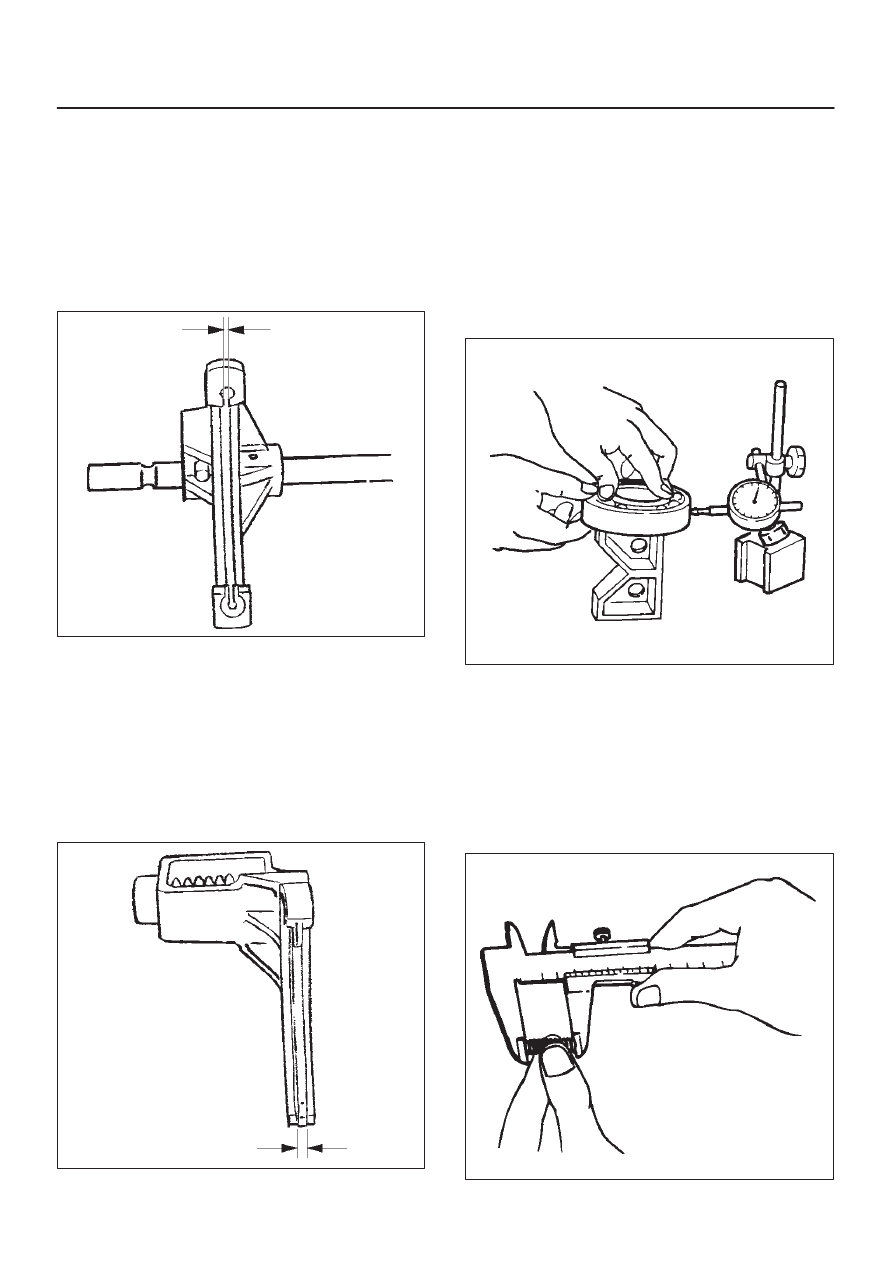

4D2–27 TRANSFER CASE (TOD) Reduction Fork Check the reduction fork and shaft for wear, distortion, and scratches. If defects are observed, replace the Thickness of Reduction Fork D If the measurement exceeds the limit, replace the Standard : 3.41-3.79 mm (0.134-0.149 in) Allowable limit : 4.4 mm (0.173 in) 261RW026 Lock-up Fork D Check the lock-up fork and shaft for wear, distortion, Thickness Lock-up Fork If the measurement exceeds the limit, replace the lock-up fork. Standard : 6.99-7.09 mm (0.275-0.279 in) Allowable limit : 6.3 mm (0.248 in) 261RW027 Bearing Check the profile of the needle, roller, ball, and thrust NOTE: If the bearing is rotated excessively, the rollers D Use a dial indicator to measure the ball bearing play. Allowable limit : 0.23 mm (0.009 in) 226RW143 Lock-up Fork Spring Check the lock-up fork spring for distortion, cracking, and wear. If defects are observed, replace the part. Free Length of the Lock-up Fork Spring D If the measurement exceeds the limit, replace the Standard : 60.96 mm (2.40 in) Allowable limit : 55.0 mm (2.17 in) 220RW045 |
