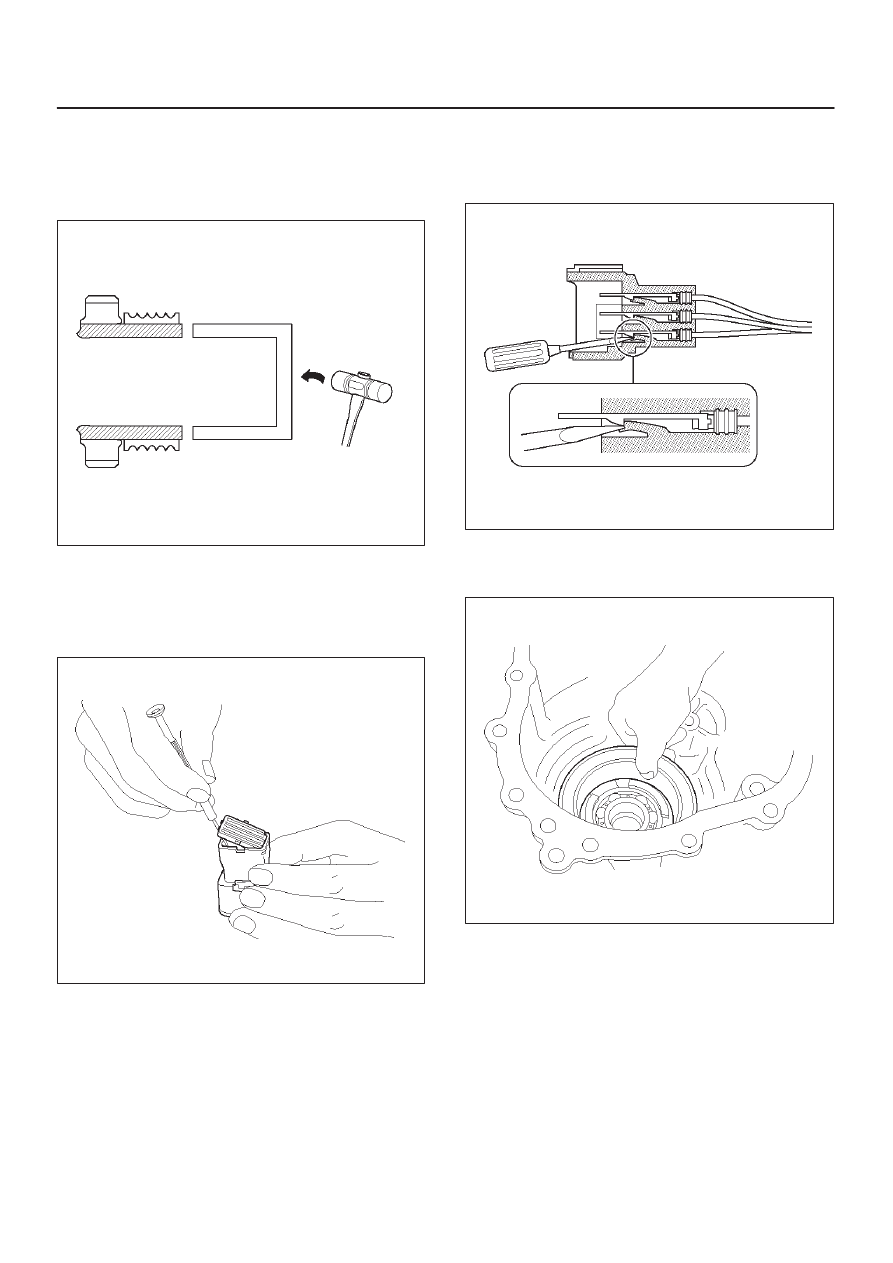

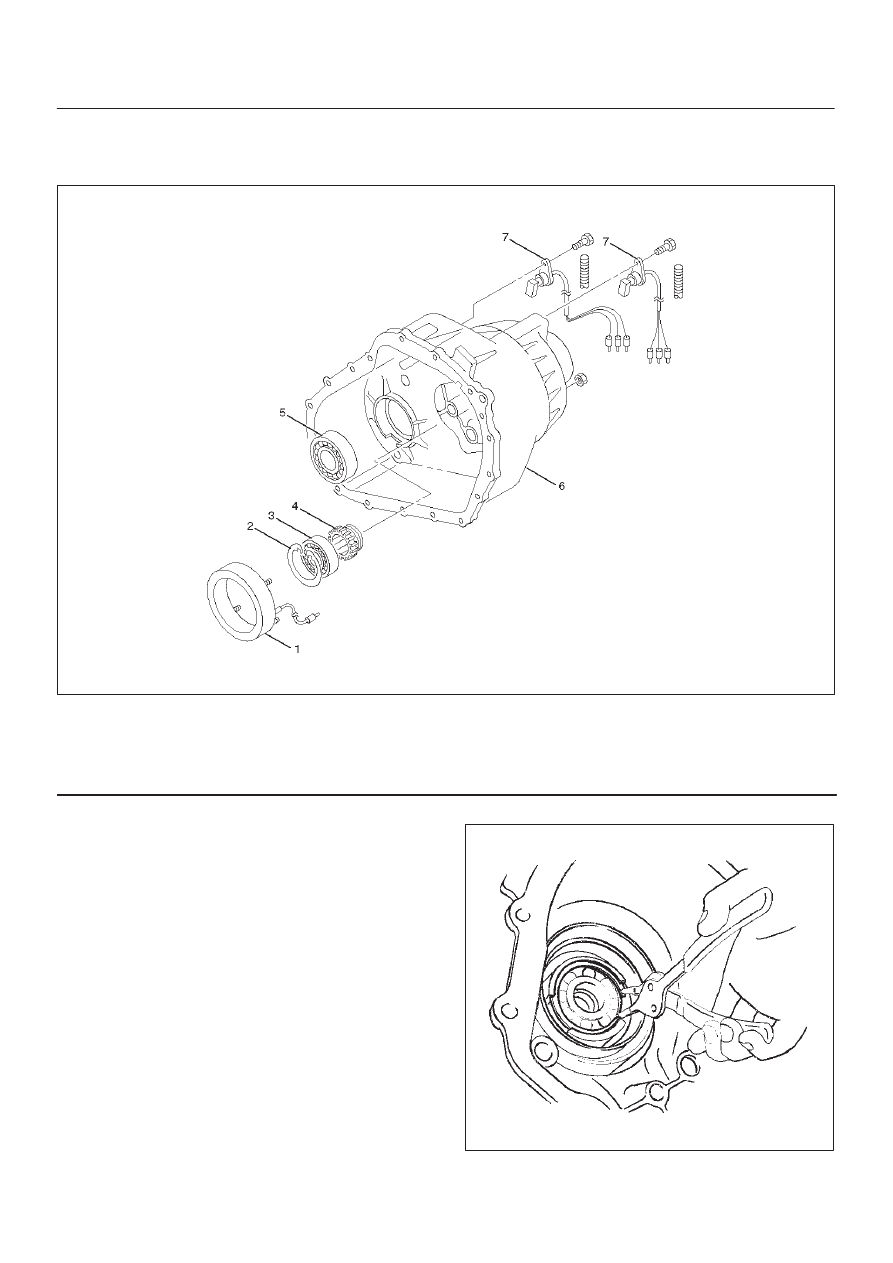

4D2–11 TRANSFER CASE (TOD) 2. Tighten the sixteen bolts to the specified torque. Torque : 31 N·m (3.2 kg·m/23 lb ft) 3. Wind the sealing tape around the drain plug thread and tighten the plug to the specified torque. Torque : 25 N·m (2.5 kg·m/18 lb ft) 4. Mount the offset lever to the transfer shift and install the spring pin. 261RW016 5. Attach the O-ring and washer to the companion flange. NOTE: Securely push the O-ring to the hollow of the 6. Use the flange holder 5-8840-0133-0 (J-8614-11) to tighten the flange nut. 7. Tighten the flange nut to the specified torque. Torque : 167 N·m (17.0 kg·m/123 lb ft) 8. Using the punch 5-8840-2293-0 (J-39209), securely stake the flange nut at two spots. NOTE: Check the staked flange nut is free from cracks. 266RW028 260RW007 9. Fix the harness with the clip. 10. Tighten the 4L and 4H switch to the specified torque. Torque : 24 N·m (2.4 kg·m/17 lb ft) 11. Fill the transfer case with ATF II or III (1.9 liters). 12. Wind the sealing tape around the filler plug thread and tighten the plug to the specified torque. Torque : 25 N·m (2.5 kg·m/18 lb ft) |
