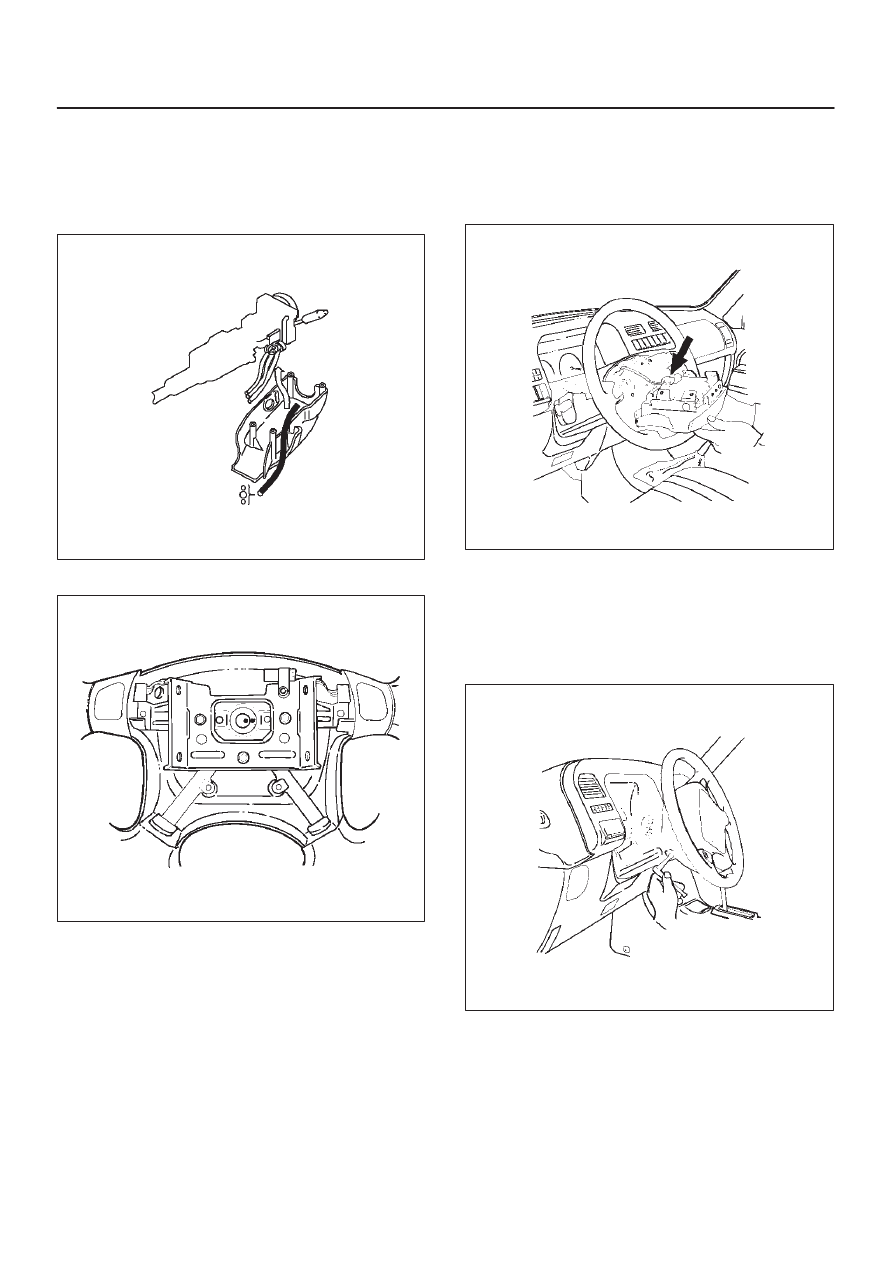

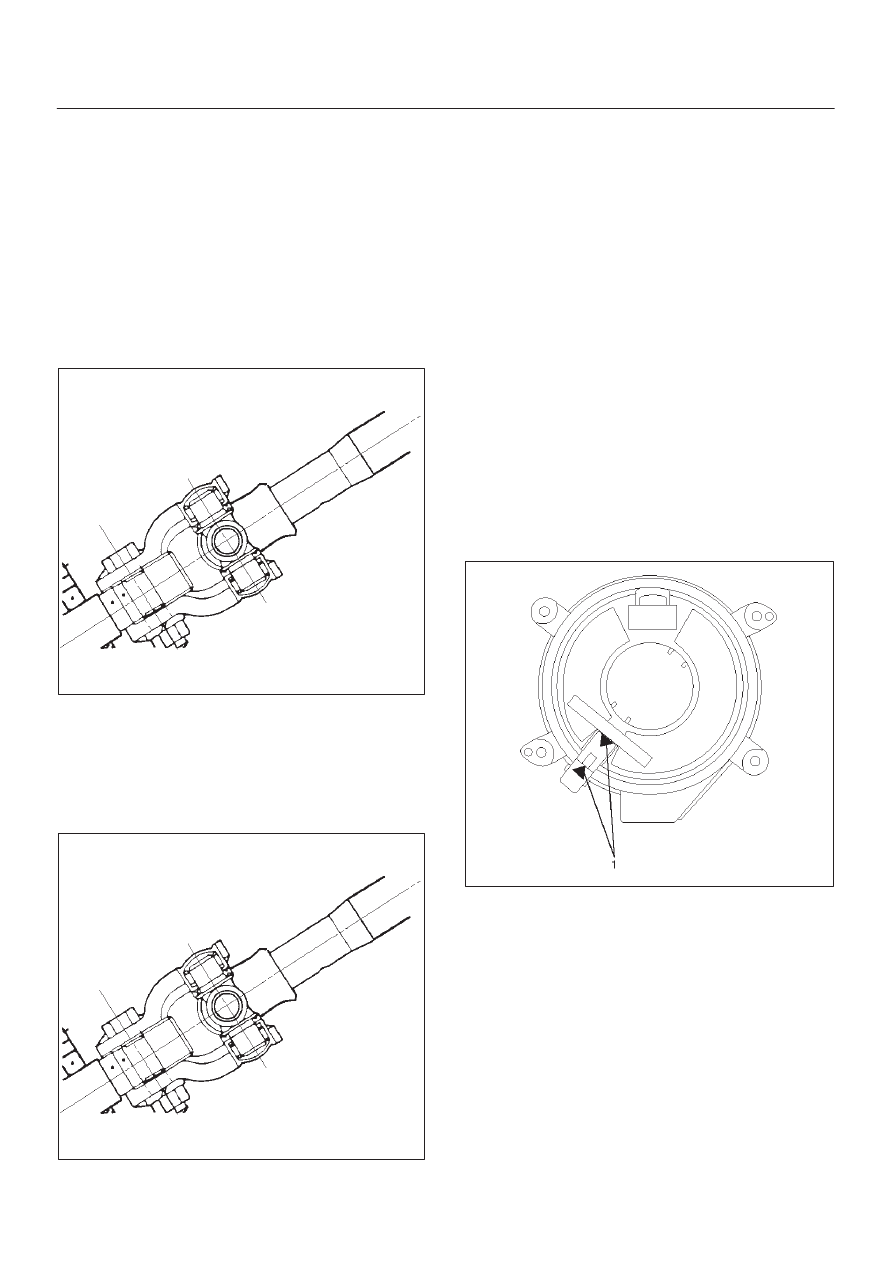

SUPPLEMENTAL RESTRAINT SYSTEM 9J–46 NOTE: SRS coil is a part of combination switch 15. Remove the snap ring. located base of steering column. 19. Remove steering lock cylinder assembly. steering shaft to reassemble the parts in their original 431RS013 21. Remove steering column assembly. Installation 1. Install the steering column assembly and align the setting marks on the universal joint and steering shaft 431RS013 2. Tighten the steering column fixing bolts (dash panel side) to the specified torque. Torque: 19 N·m (1.9 Kg·m/14 Ib ft) 3. Tighten the steering column fixing bolts (Pedal bracket) to the specified torque. Torque: 17 N·m (1.7 Kg·m/13 Ib ft) 4. Tighten the universal joint to the specified torque. Torque: 25 N·m (2.6 Kg·m/18 Ib ft) 5. Install steering lock cylinder assembly. coil. 10. Connect the wiring harness connector located on the base of steering column. 11. Turn the SRS coil counterclockwise to full, return about 3 turns and align the neutral mark (1). CAUTION: When turning the SRS coil 826RW014 |
