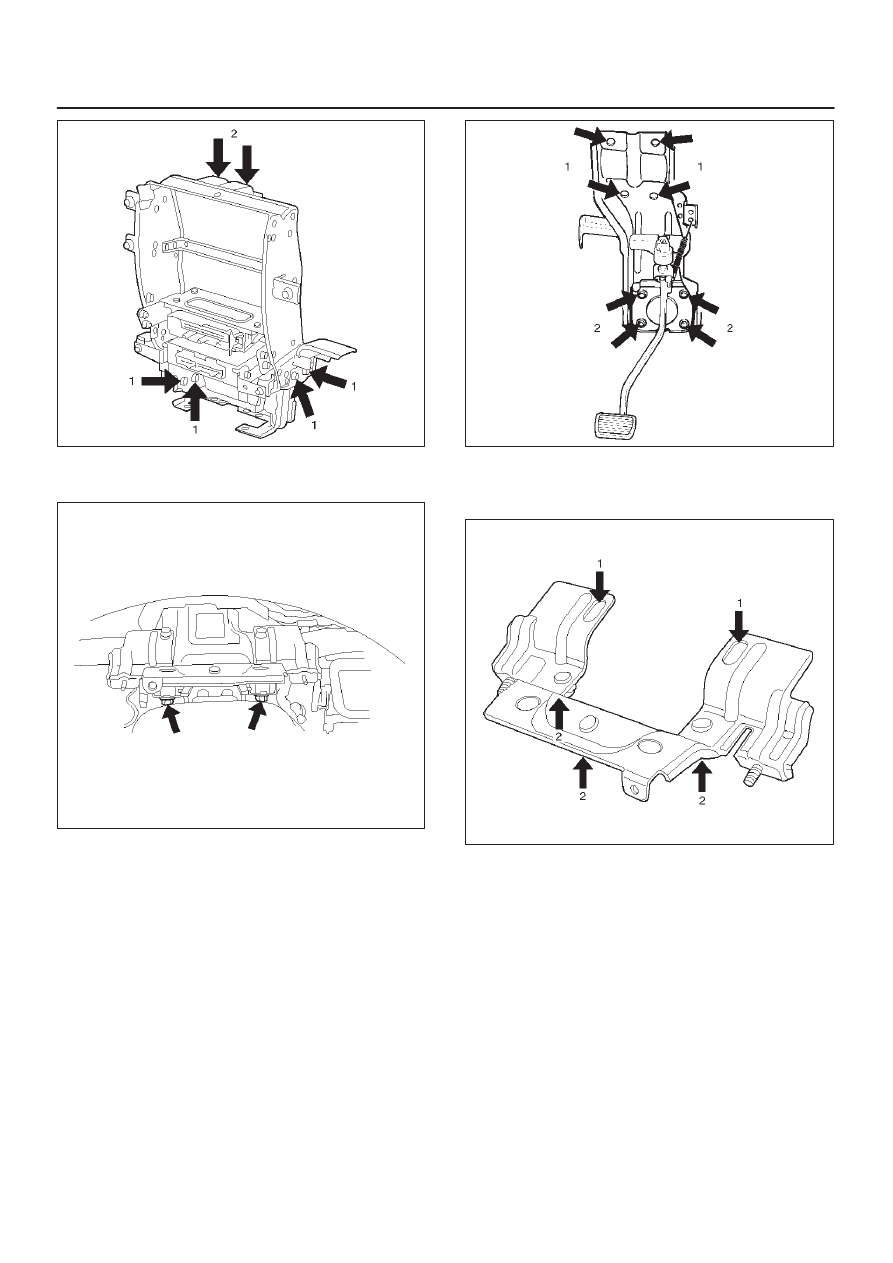

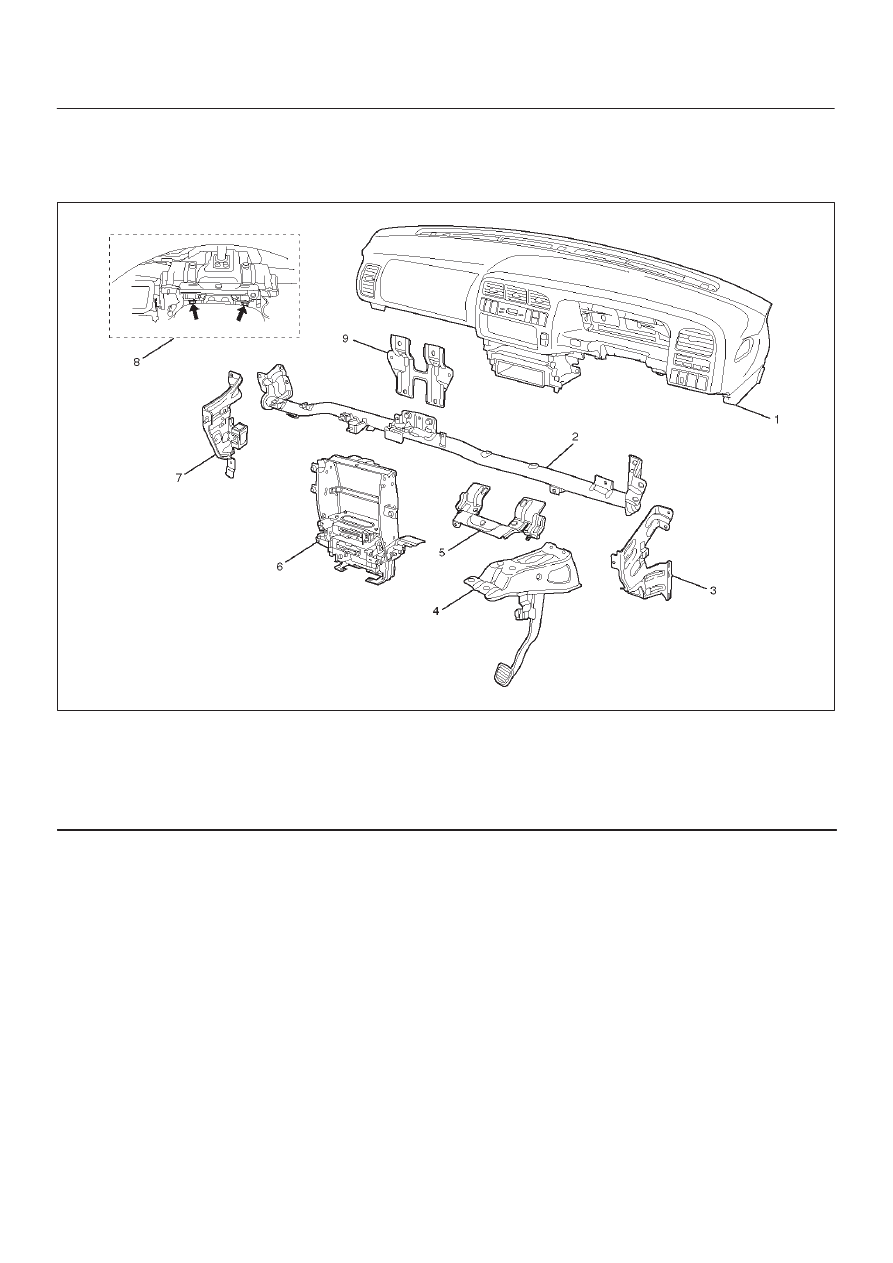

8F–51 BODY STRUCTURE Installation To install, follow the removal steps in the reverse order. Removal Item Removal Procedure Removal Step Front console Shift knob (M/T), Power & Winter SW (A/T), Transfer knob, Seat 1, 2 Lower cluster 3 screws, Ciger lighter conn. and Ashtray illumination conn. 1 ∼ 3 Glove box 2 screws 4 Instrument panel 7 screws and 1 clip 1 ∼ 5 Passenger knee 4 nuts and 4 bolts 1 ∼ 6 Instrument panel driver Engine hood opening fixing screw, 2 screws, 1 bolt, 1 clip and 1 ∼ 3, 7 Driver knee bolster 6 nuts 1 ∼ 3, 7, 8 Front defroster grille Claws at 8 positions 9 Instrument panel 2 bolts (SRS adjust bracket ∼ cross beam), A/C control cable (Unit side at 3 position), Instrument harness connector (Driver side 5 1 ∼ 10 Passenger inflator 4 nuts (SRS module ∼ Instrument panel), 2 nuts 0 and 2 washers (SRS module ∼ support bracket) and 2 clips 1 ∼ 6, 11 Instrument panel 5 Screws, fastener at 4 position and each SW conn. 1 ∼ 3, 7, 12 Meter assembly 4 screws and connectors 1 ∼ 3, 7, 12, 13 A/C control panel 4 screws and connectors 1 ∼ 3, 7, 12, 14 Radio assembly 2 screws 1 ∼ 3, 15 Vent duct assembly 5 screws 1 ∼ 10, 16 Instrument harness 4 screws, fasteners at 4 position, and clips at 7 position 1 ∼ 10, 17 Side defroster grille 18 M/T = Manual Transmission |
