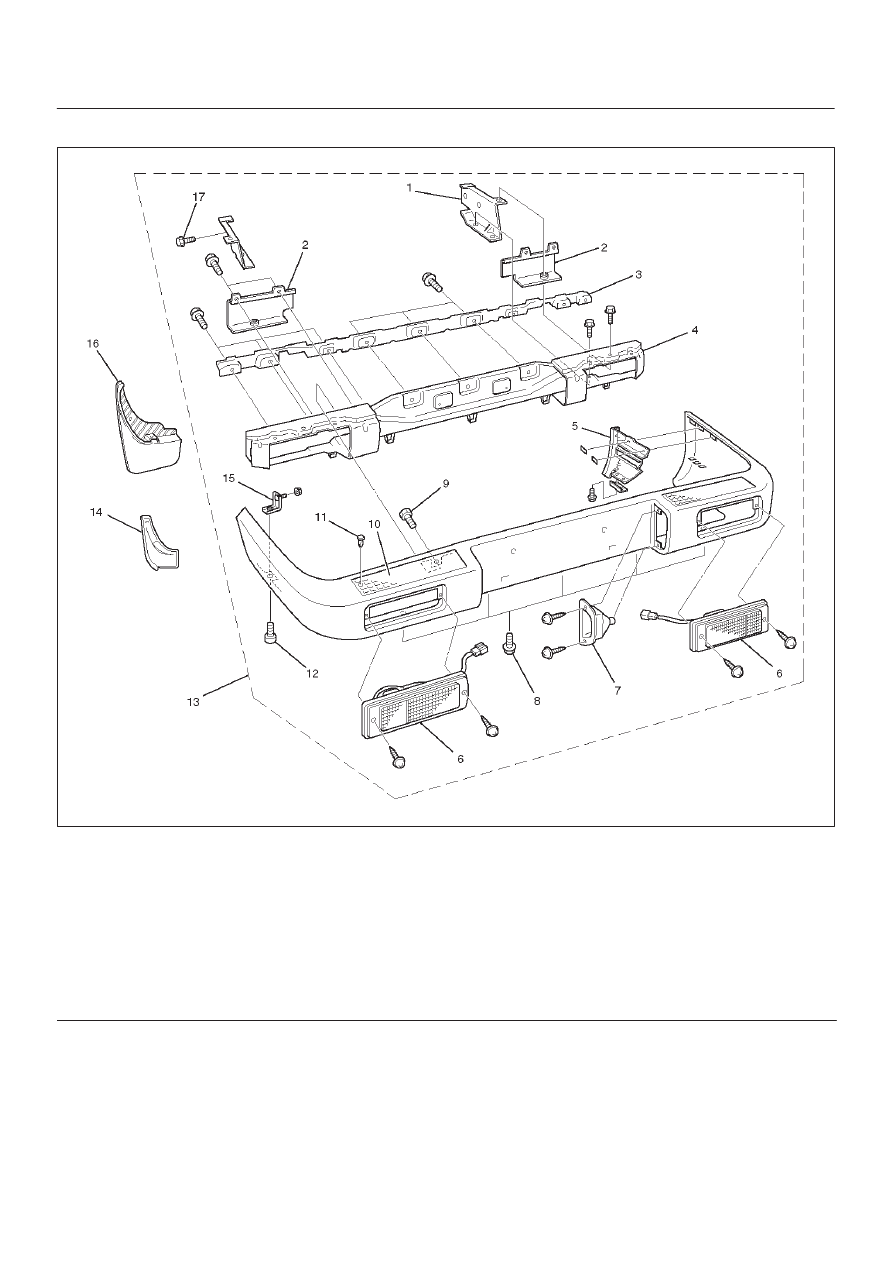

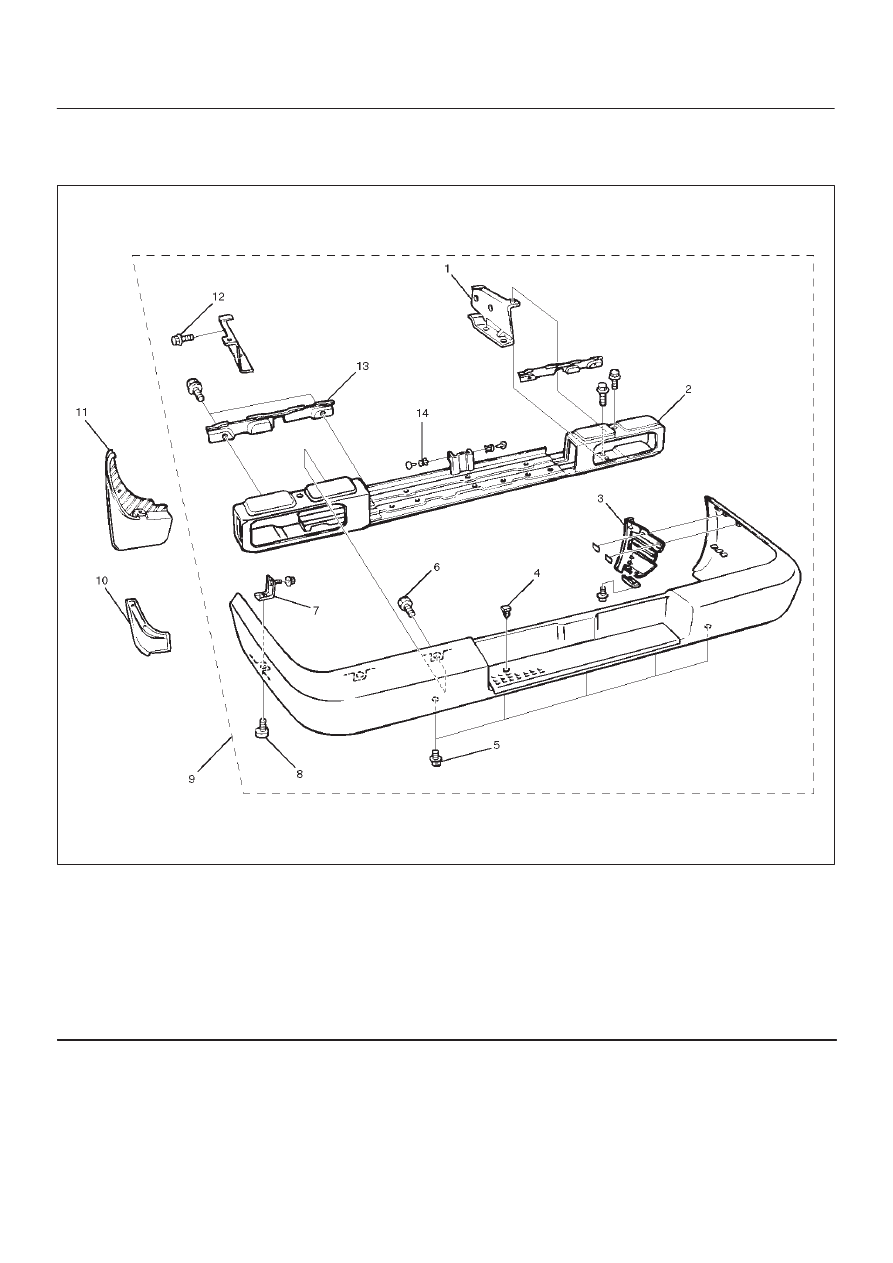

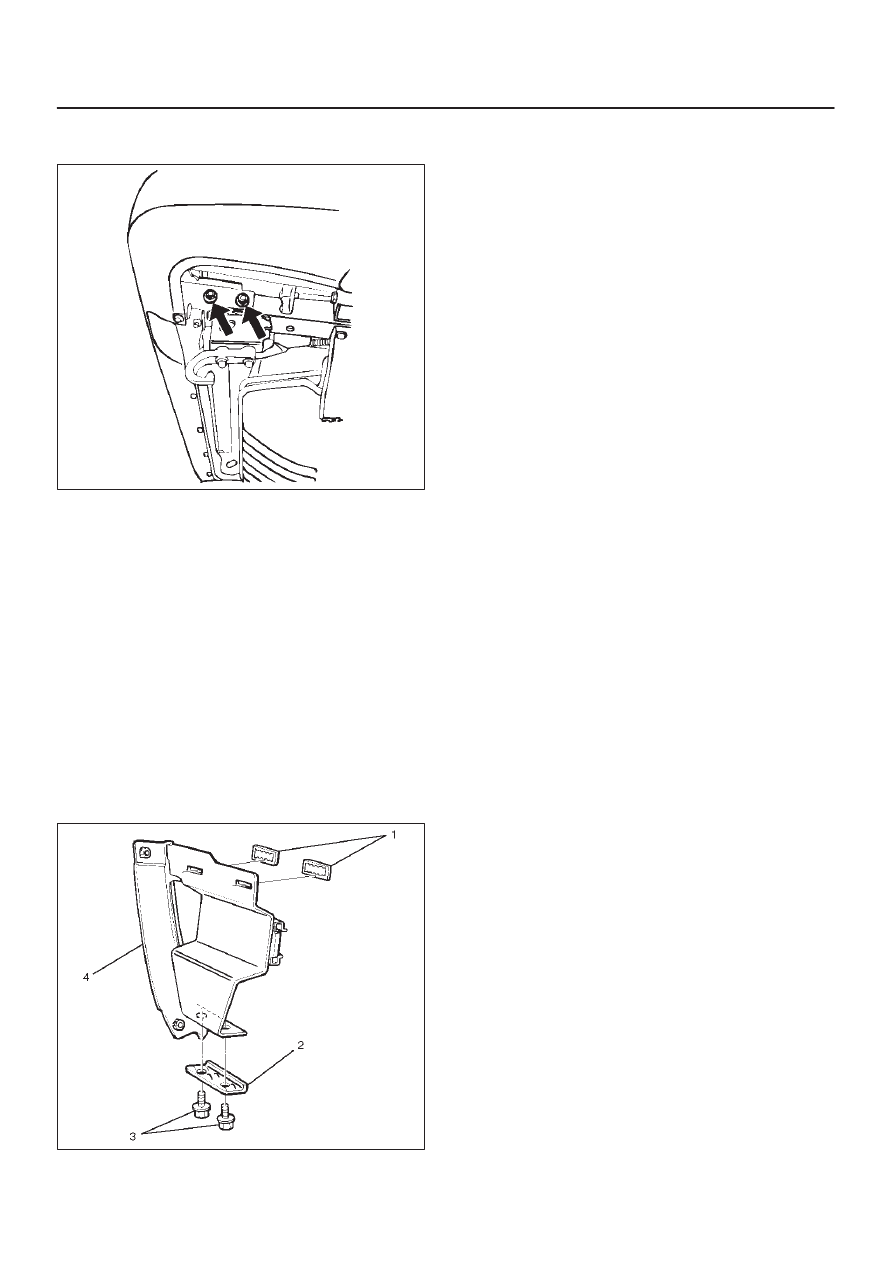

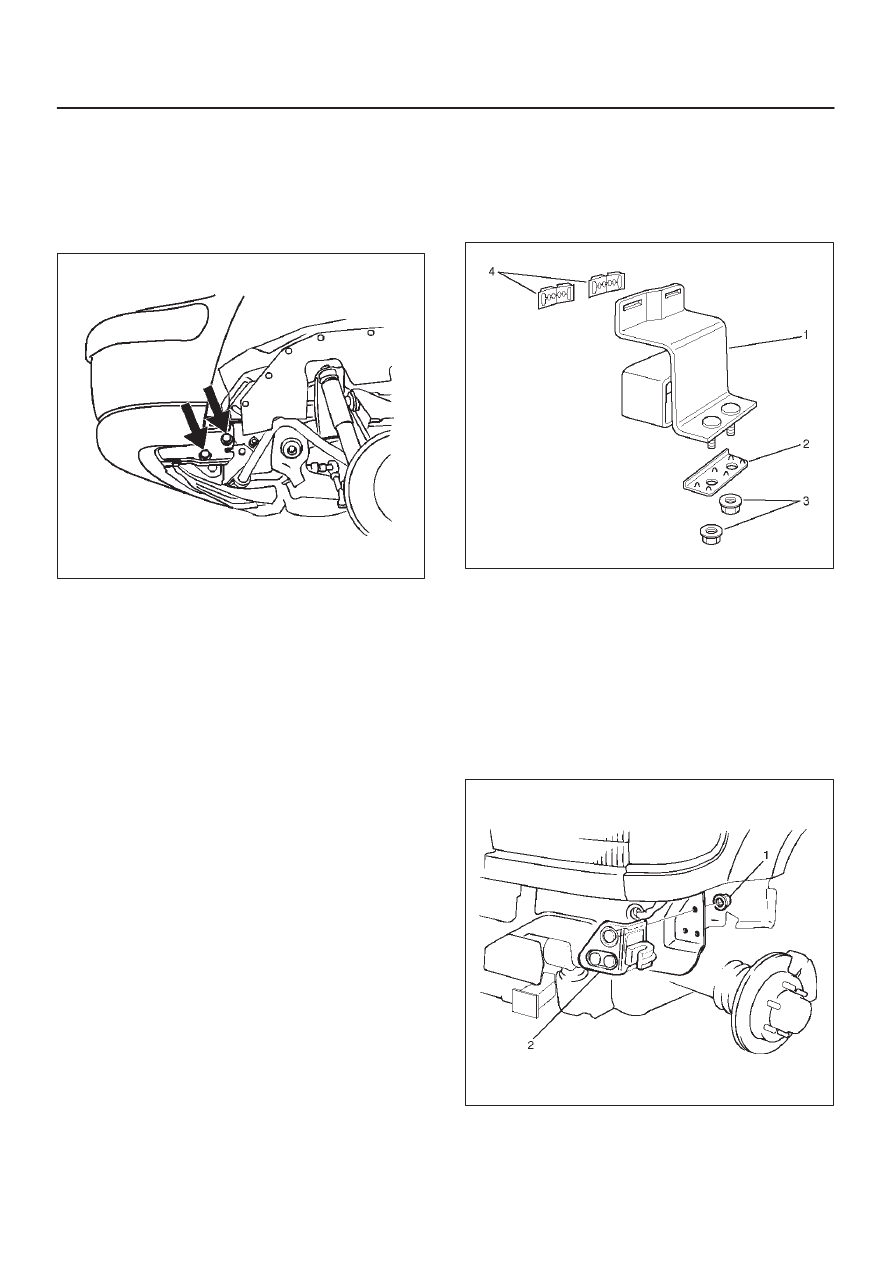

8F–7 BODY STRUCTURE Removal 1. Disconnect battery ground cable. D Remove the two bolts from both sides of the front 601RW010 4. Remove front bumper assembly. D Loosen the five bolts and release claws. 8. Remove reinforce assembly. 9. Remove backbar fixing bolts. D Remove the four bolts at each backbar. 10. Remove front fog light assembly. 11. Remove the front bumper slider(1). D Remove the two clips(4) and the two nuts(3), and 601RW009 Installation To install, follow the removal steps in reverse order noting 1. Tighten the front bumper assembly fixing bolts to the specified torque. Torque: 132 N • m (13.5kg·m/98 lb ft) Front Bumper Slider Bracket Removal 1. Disconnect battery ground cable. D Refer to Front Bumper in this section. 3. Remove the three nuts(1) and draw out the slider bracket(2). 601RW003 Installation To install, follow the removal steps in reverse order. |
