8D–414
WIRING SYSTEM
Meter and Warning/Indicator Light
General Description

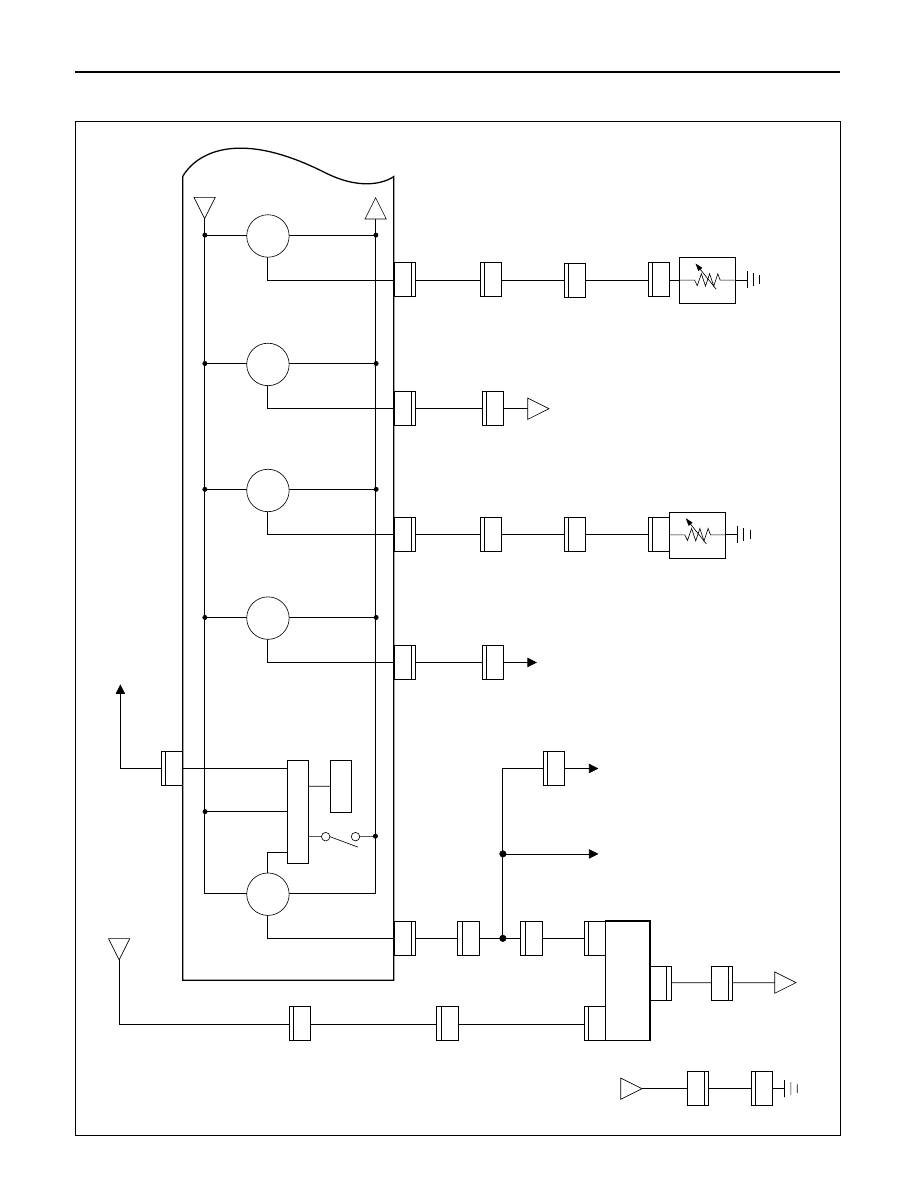

The circuit consists of meter assembly vehicle speed
sensor, engine coolant temperature sensor, seat belt
switch, oil pressure switch, brake fluid switch, park-
ing brake switch and other some switches and sen-
sors.
Meter assembly contains speedometer, tachometer,
voltmeter, engine coolant temperature gauge, oil

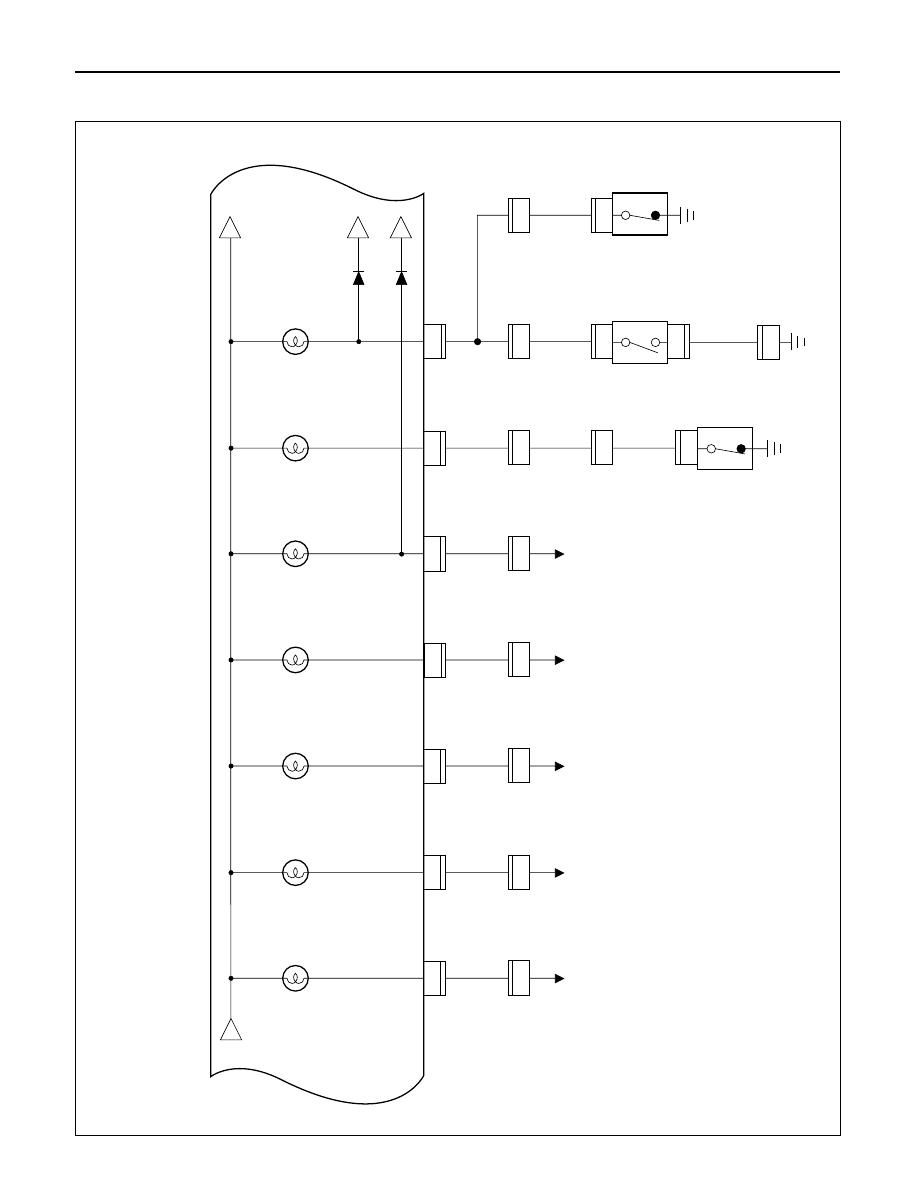

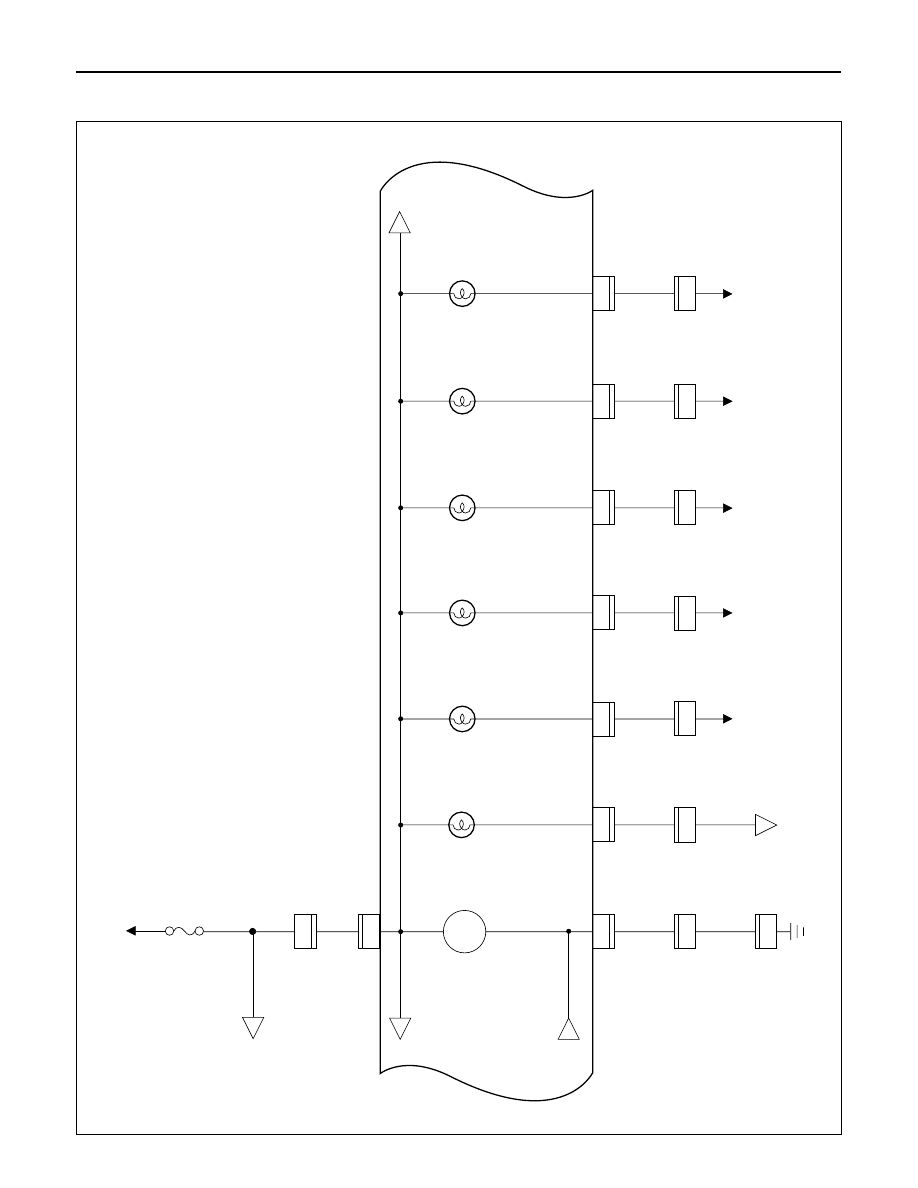

pressure gauge, fuel gauge, warning/indicator light
and illumination light.
