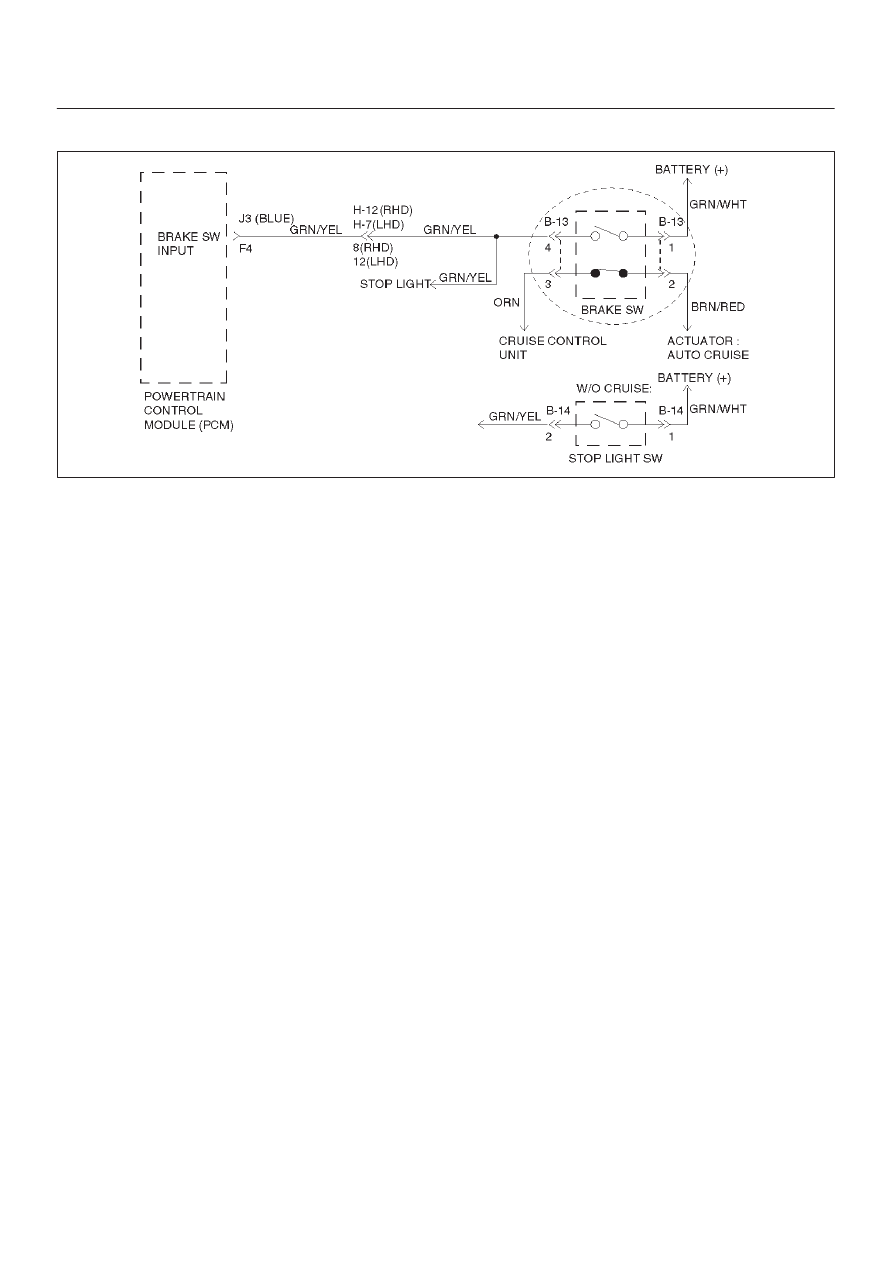

7A1–42 TRANSMISSION CONTROL SYSTEM (4L30–E) 5. This test checks the TFT sensor and internal wiring harness. Resistance Chart ° C ° F Resistance (k W ) –40 –40 672 0 32 65 20 68 25 80 176 2.5 120 248 0.78 150 304 0.37 DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input Step Action Yes No 1 Perform the transmission fluid checking procedure. Was the fluid checking procedure performed? Go to Step 2 Refer to Checking Transmission Fluid Level and Condition in Automatic Transmission (4L30–E) section 2 1. Install the scan tool. NOTE: Before clearing DTC(s), use the scan tool to record “Failure 3. Record the DTC “Failure Records”. Does the scan tool display a TFT sensor signal voltage greater Go to Step 3 Go to Diagnostic Aids 3 1. Turn the ignition “off”. engine harness. 4. Turn the ignition “on”. Does the TFT signal voltage drop to less than 0.4 volts? Go to Step 4 Go to Step 9 4 1. Turn the ignition “off”. terminals 3(C) and 5(D). Is the resistance within specifications? (See Resistance Chart.) Go to Diagnostic Aids Go to Step 5 5 1. Disconnect the transmission 5–way connector M–6. terminals 3(C) and 5(D). Is the resistance within specifications? (See Resistance Chart.) Go to Diagnostic Aids Go to Step 6 6 1. Remove the transmission oil pan. Transmission Oil Temperature Sensor (Adapter Case) in Was a problem found and corrected? Go to Step 13 Go to Step 7 7 1. Disconnect the internal wiring harness at the TFT sensor. Is the resistance within specifications? (See Resistance Chart.) Go to Diagnostic Aids Go to Step 8 |
