Opel Frontera UBS. Service manual - part 149





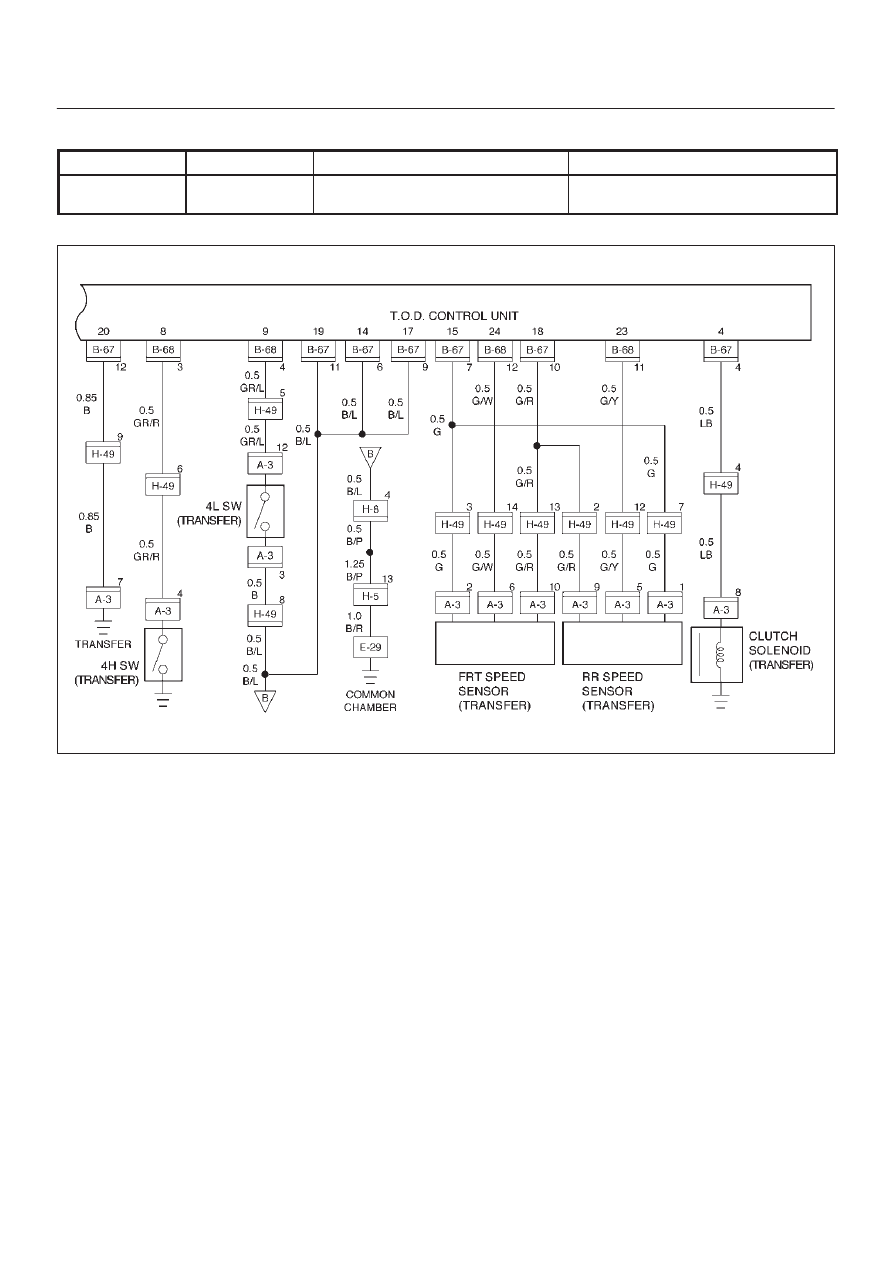

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–48

Check flow

Trouble code

Phenomenon

Standard

10

26

The electromagnetic coil GND is

short-circuited.

Resistance: 1.0 to 5.0 ohm (at ordi-

nary temperature)

D04RW060

4B2–49

DRIVE LINE CONTROL SYSTEM (TOD)

Step

Action

Yes

No

1

1. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.

Does the resistance between terminals (B–67)4 and (B–67)12?
indicate 1.0 to 5.0 ohm?

Go to Step 2

Go to Step 3

2

1. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.

When the throttle is operated between full close and full open
positions, does the voltage between terminals 4 and 20 indicate at
least 0.1 to 1.0 V?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

Go to Step 4

The ECU has

failed. Replace

the ECU.

Go to Step 4

3

Does the resistance between transfer connector terminals (A–3)8
and (A–3)7 indicate 1.0 to 5.0ohm?

The harness is
broken. Repair

the circuit.

Go to Step 4

Replace the

transfer

electromagnetic

coil.

Go to Step 4

4

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 4

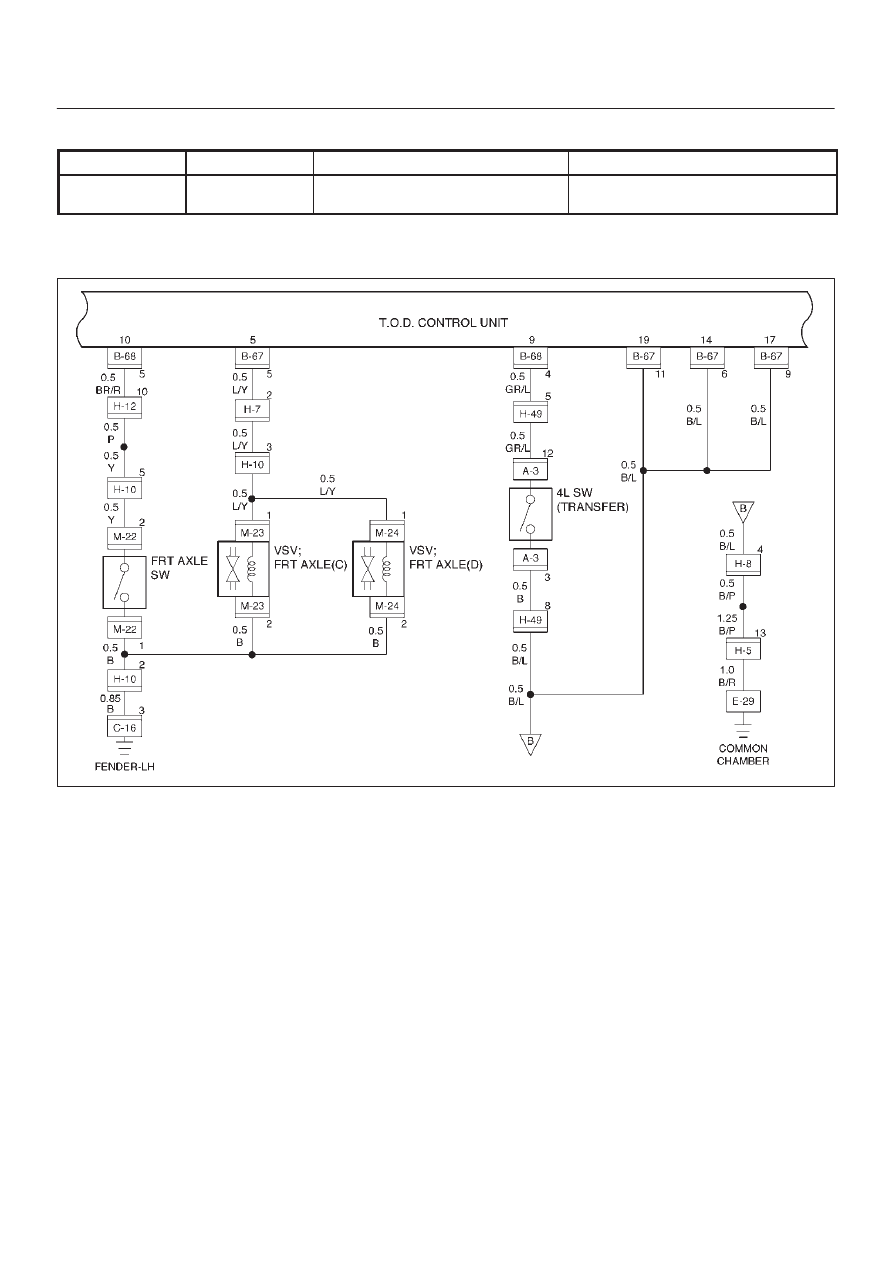

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–50

Check flow

Trouble code

Phenomenon

Standard

11

28

The shift on the fly system (front

hub) works incorrectly.

NOTE: The shift on the fly system is not changed
between 2WD and 4WD modes normally.

CAUTION: If code 32 or 33 is also observed, remove
the trouble associated with code 32 or 33 first.

D04RW058

4B2–51

DRIVE LINE CONTROL SYSTEM (TOD)

Step

Action

Yes

No

1

1. Turn on the starter switch.
2. Set the transfer to the 2H mode.

Is the battery voltage observed between terminals 5 and 19?

Go to Step 2

Go to Step 5

2

Is the battery voltage observed between terminals 10 and 19?

Go to Step 3

Go to Step 6

3

1. Set the transfer to the high (TOD) mode.

Does the voltage between terminals 5 and 19 indicate 0V?

Go to Step 4

The ECU has

failed. Replace

the ECU.

Go to Step 7

4

Does the voltage between terminals 10 and 19 indicate 0V?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

Go to Step 7

The shift on the

fly system is

failed (refer to

Section 4C “Front

Axle” of Chassis

Repair Manual).

Go to Step 7

5

Does the TOD indicator show the 2H mode?

The ECU has

failed. Replace

the ECU.

Go to Step 7

See “Trouble

Diagnosis

Depending on

The Status of

TOD Indicator”.

Go to Step 7

6

Set the transfer to the high (TOD) mode.

Does the voltage between terminals 5 and 19 indicate 0V?

The shift on the

fly system has

failed (refer to

Section 4C “Front

Axle” of Chassis

Repair Manual).

Go to Step 7

The ECU has

failed. Replace

the ECU.

Go to Step 7

7

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 7
