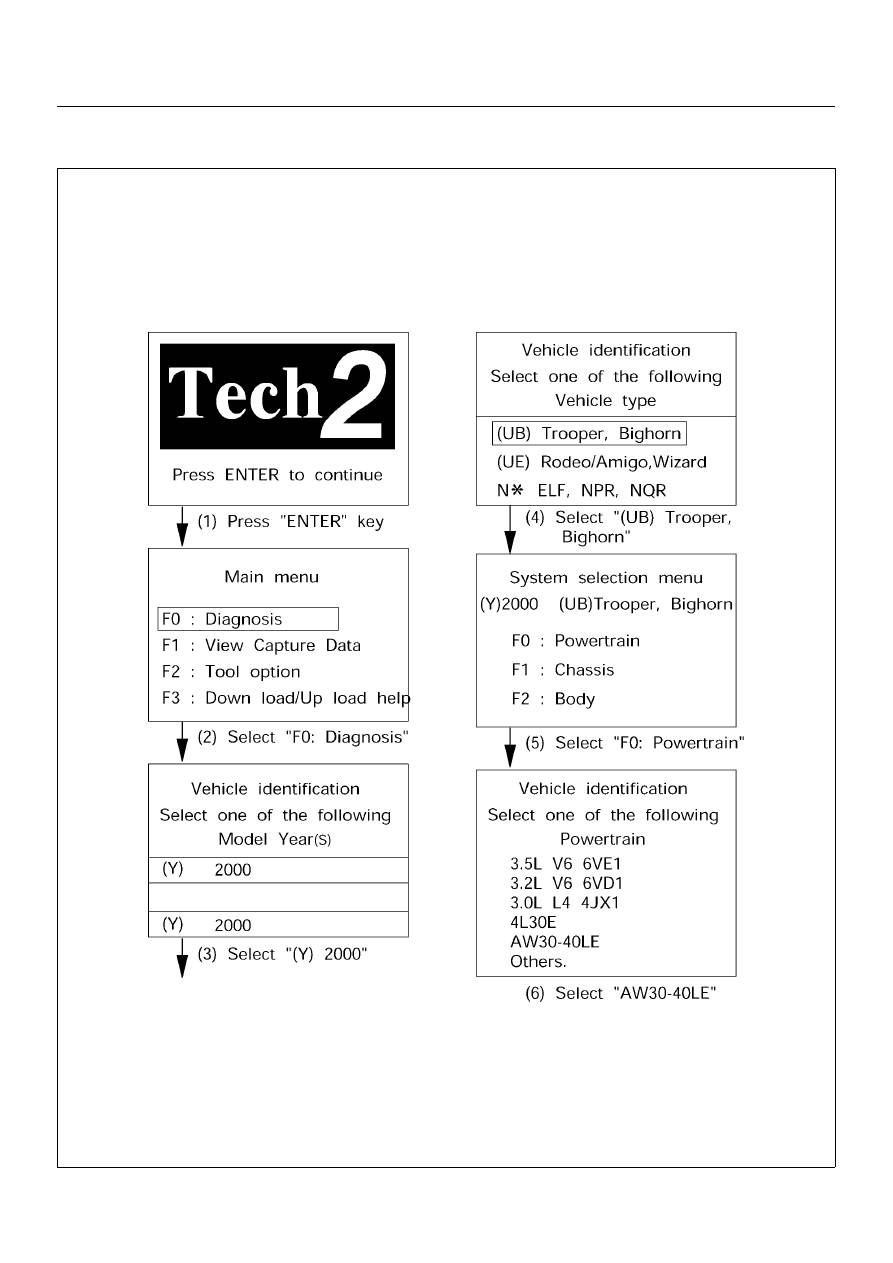

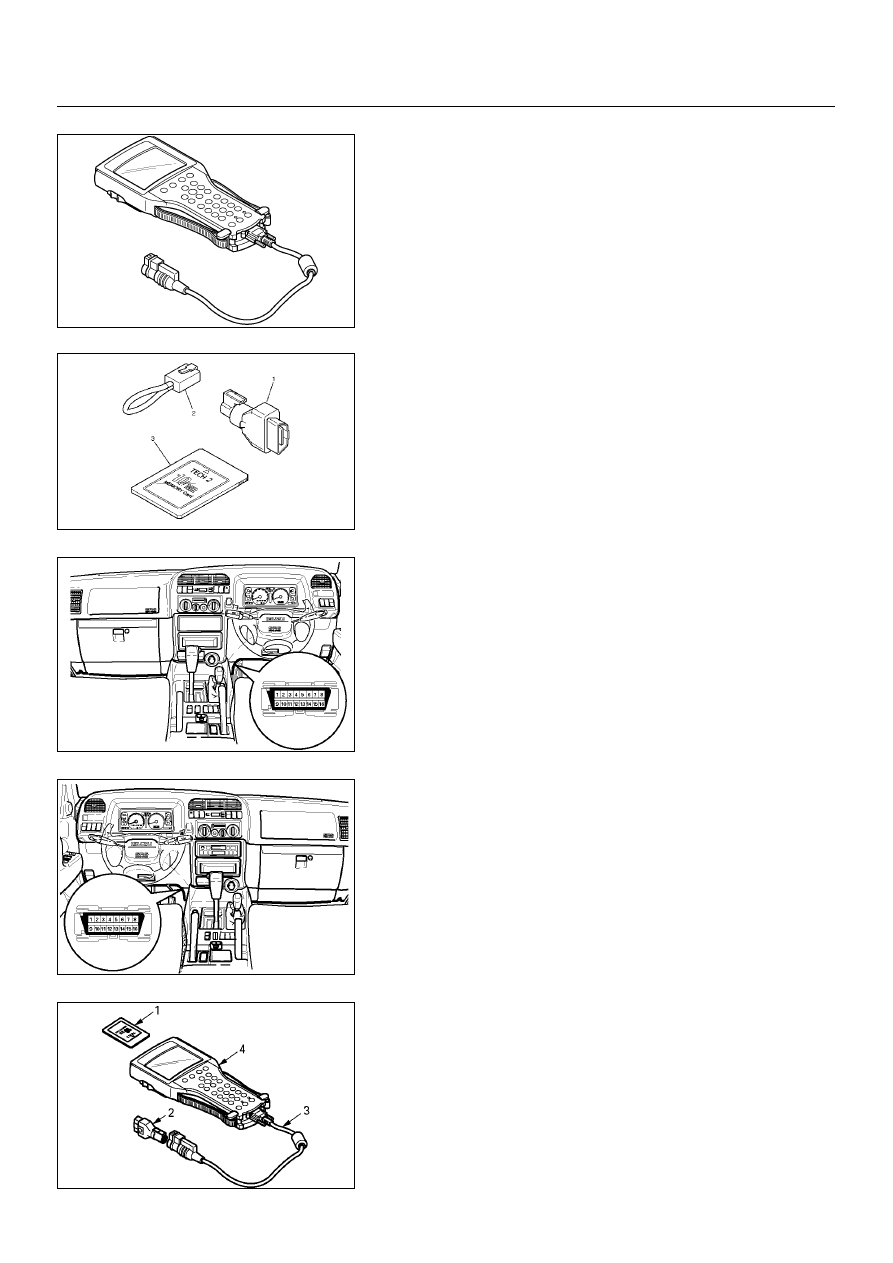

7A–18 AUTOMATIC TRANSMISSION (AW30-40LE) 901RW176 F07RW033 740RY00013 740RY00014 901RY00014 TECH2 CONNECTION The Tech2 scan tool is used to electrically diagnose the 1. Configuration of Tech2 1. Tech2 scan tool kit (No. 7000086), Tech2 scan tool (No. 7000057) and DLC cable (No. 3000095) 2. SAE16/19 adapter (No. 3000098) (1), RS232 loop back connector (No. 3000112) (2), and PCMCIA card (No. 2. Tech2 Connection •Observe the Tech2 User Guide. 1. Check the ignition is OFF. 2. Insert the ISUZU 2000 system PCMCIA card (1) into the Tech2 (4). 3. Connect the SAE16/19 adapter (2) to the DLC cable (3). 4. Connect the DLC cable (3) to the Tech2 (4). 5. Connect the SAE16/19 adapter (2) to the diagnosis connector of the vehicle. 6. Turn the ignition of the vehicle ON and press the "PWR" key of the Tech2. •Check the display of the Tech2. NOTE: |
