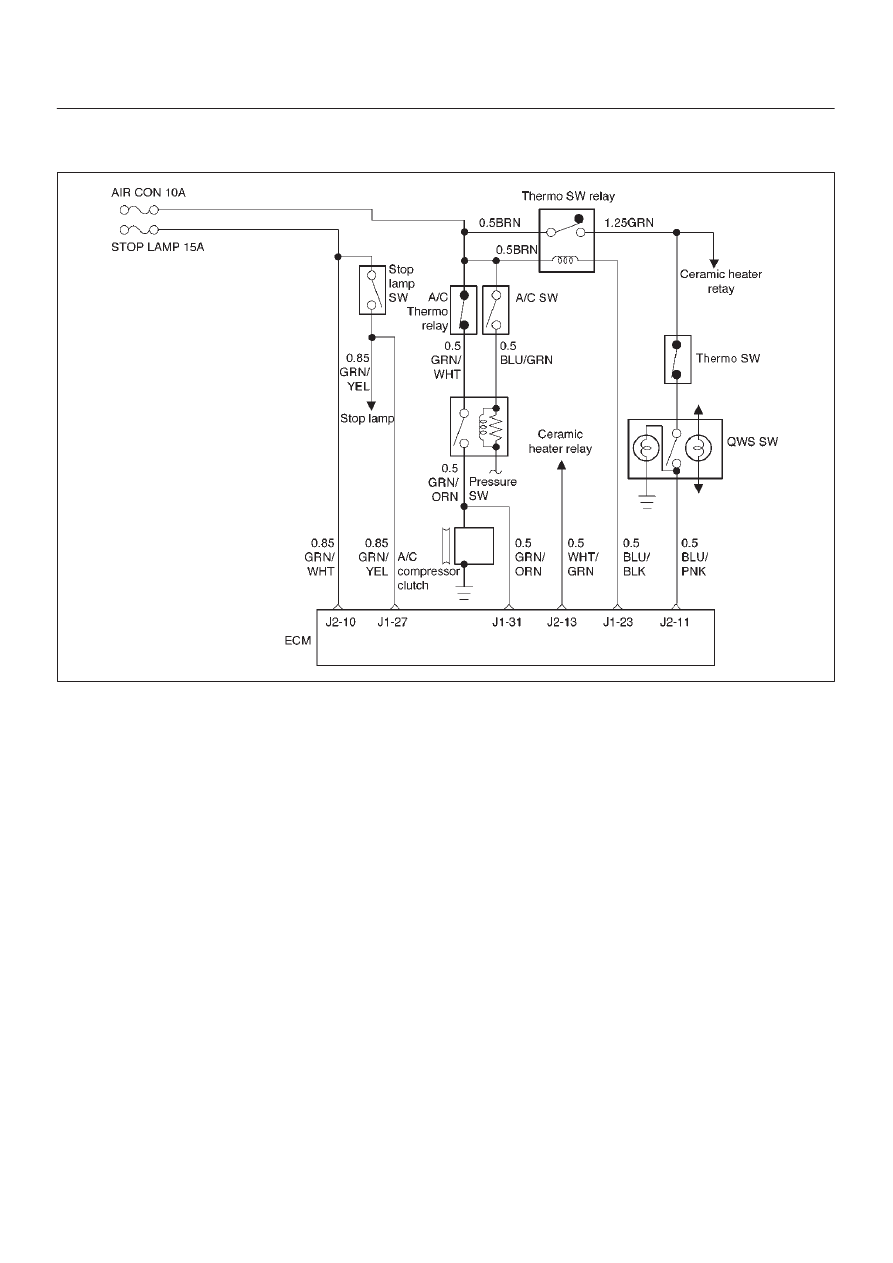

6E–170 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1655 (Flash DTC 17) Thermo Relay Circuit Open/Short 060RW130 Circuit Description The thermo relay circuit receives current through air con Action Taken When the DTC Sets D The ECM will illuminate the malfunction indicator lamp D The ECM will store conditions which were present Conditions for Clearing the MIL/DTC D DTC P1655 can be cleared by using the Tech 2 “Clear Diagnostic Aids Check for the following conditions: D Poor connection at ECM – Inspect harness connectors D Damaged harness – Inspect the wiring harness for |
