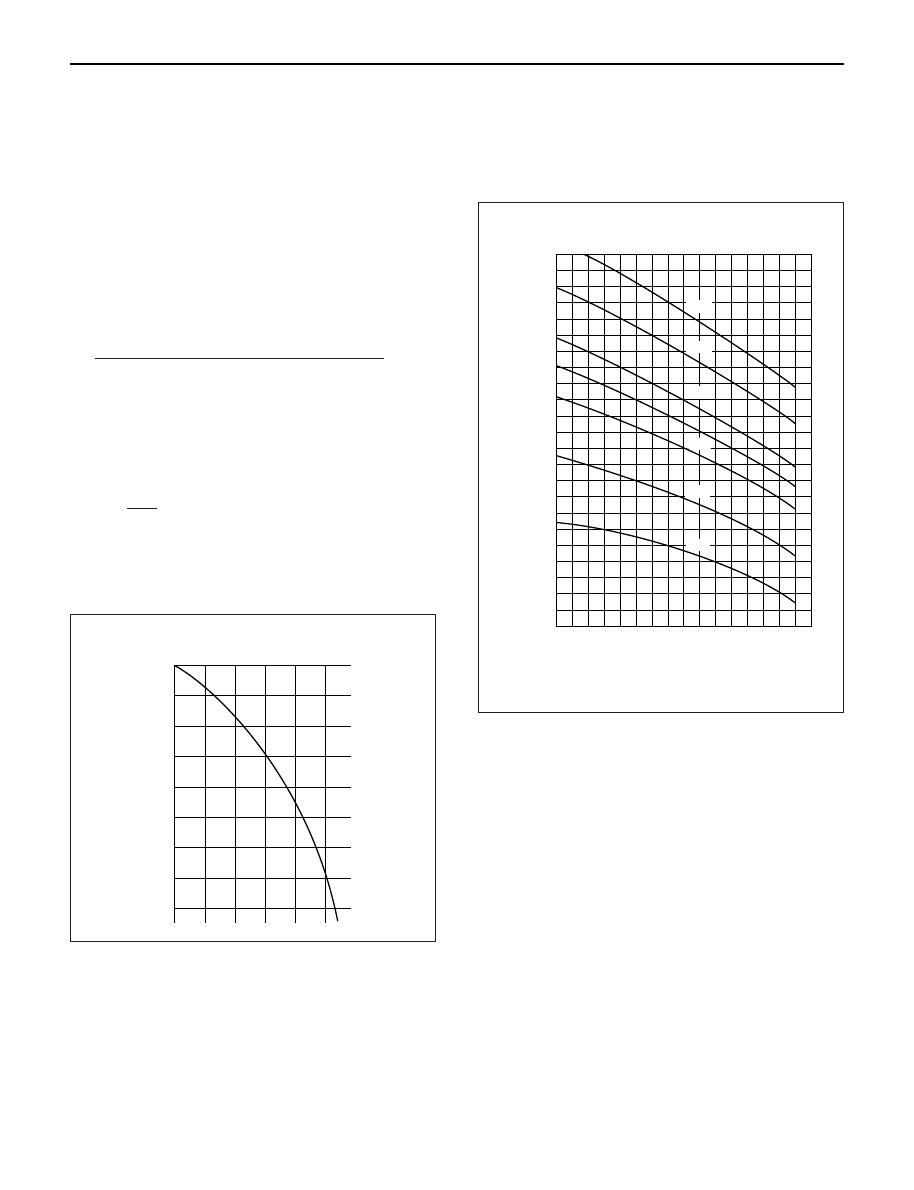

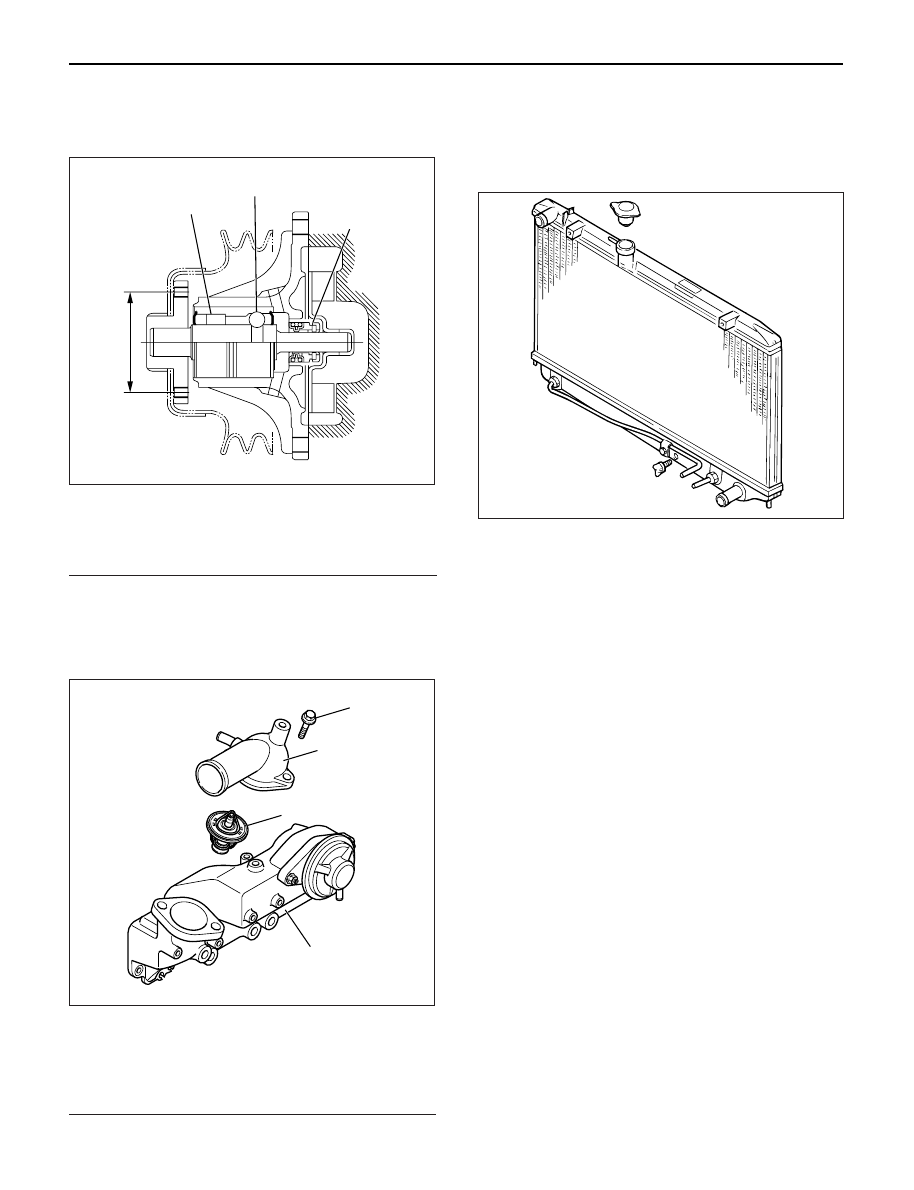

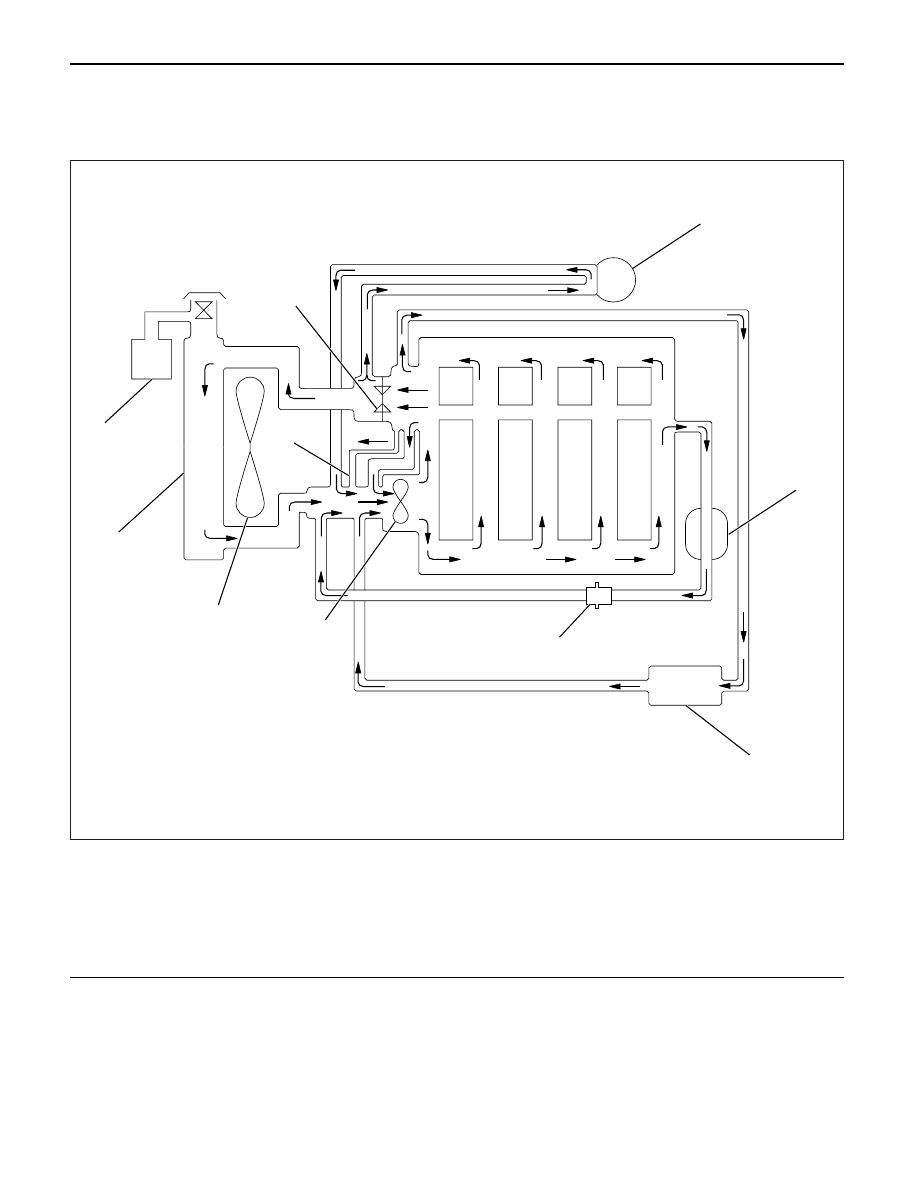

6B – 2 ENGINE COOLING Legend (1) Turbocharger (2) Thermostat (3) Reservoir Tank (4) Radiator (5) Bypass (6) Oil Cooler (7) Cooling fan (8) Water Pump (9) Thermo Valve (10) Car Heater GENERAL DESCRIPTION COOLANT FLOW 1 6 9 10 8 4 3 2 5 7 032RW001 The cooling system is a pressurized coolant forced The circulating coolant cools the lubricating oil in the oil |
