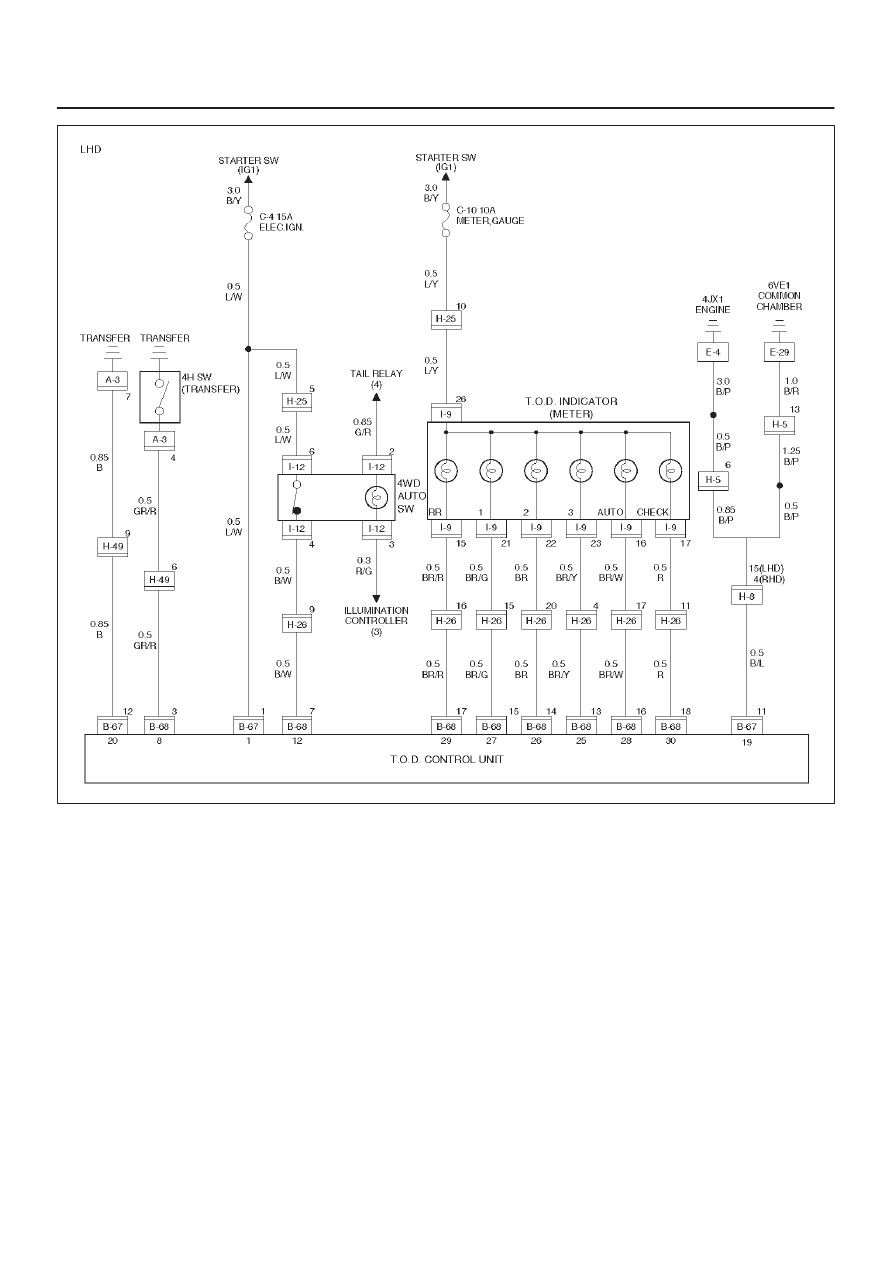

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–80 Chart B–2 The 4WD AUTO switch circuit is short to battery. Function of circuit — Fail condition Even after the transfer mode is selected from 2H to TOD, the indicator lamp status dose not change. Indicator lamp status Transfer position TOD D04RY00114 |
