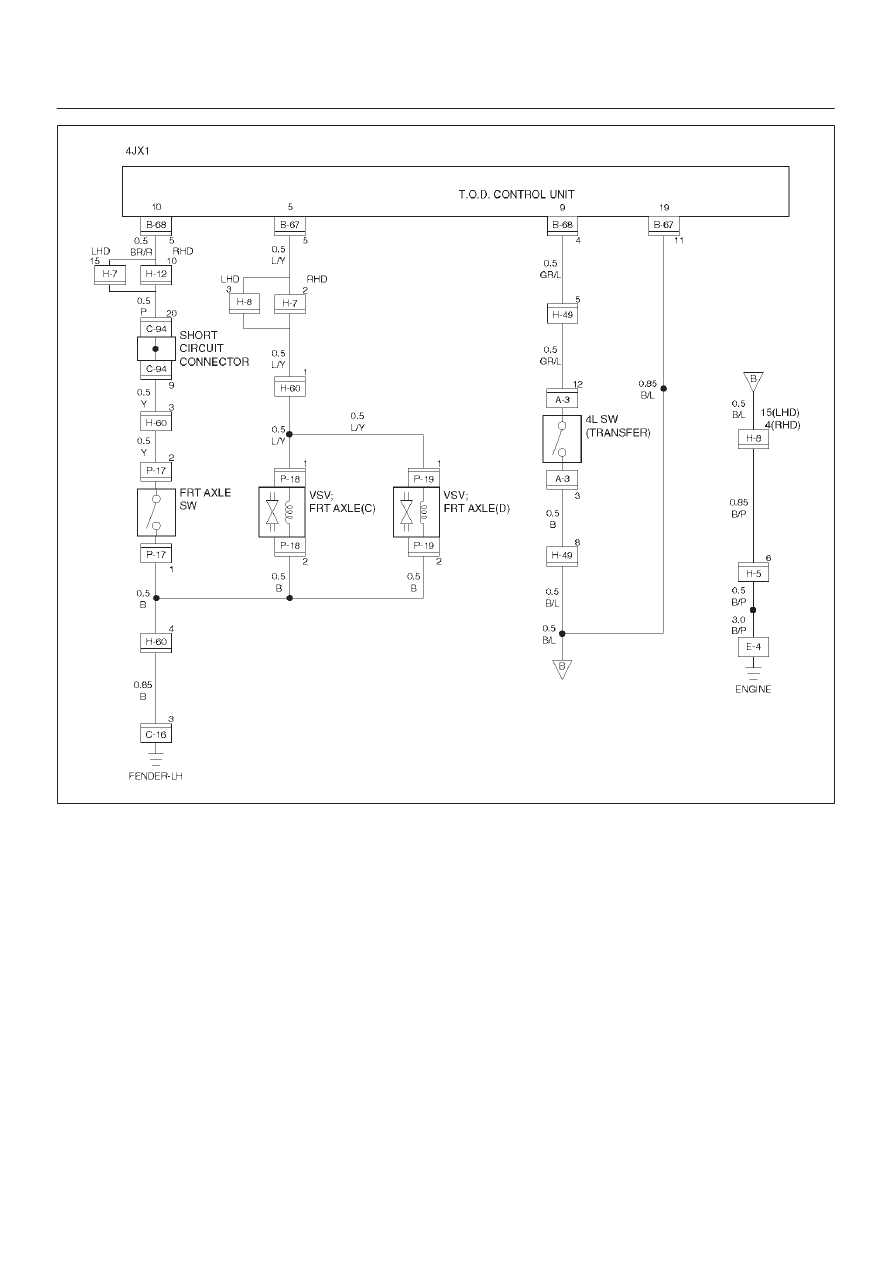

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–68 Step Action Yes No 1 1. Turn off the starter switch. Is the continuity established between terminals (B–67)5 and Go to Step 2 The harness is the circuit. Go to Step 3 2 Does the voltage between terminals (B–67) 5 and (B–67) 11 Go to Step 3 The battery is short-circuited. Repair the circuit. Go to Step 4 3 1. Turn off the starter switch. Is the battery voltage observed between terminals 5 and 19? The phenomenon is not reproduced Refer to “Troubles intermittently observed”. The ECU has failed. Replace the ECU. Go to Step 4 4 1. Check that all the parts are mounted. Is this step complete? Repeat the “Diagnosis Flow”. Return to Step 4 |
