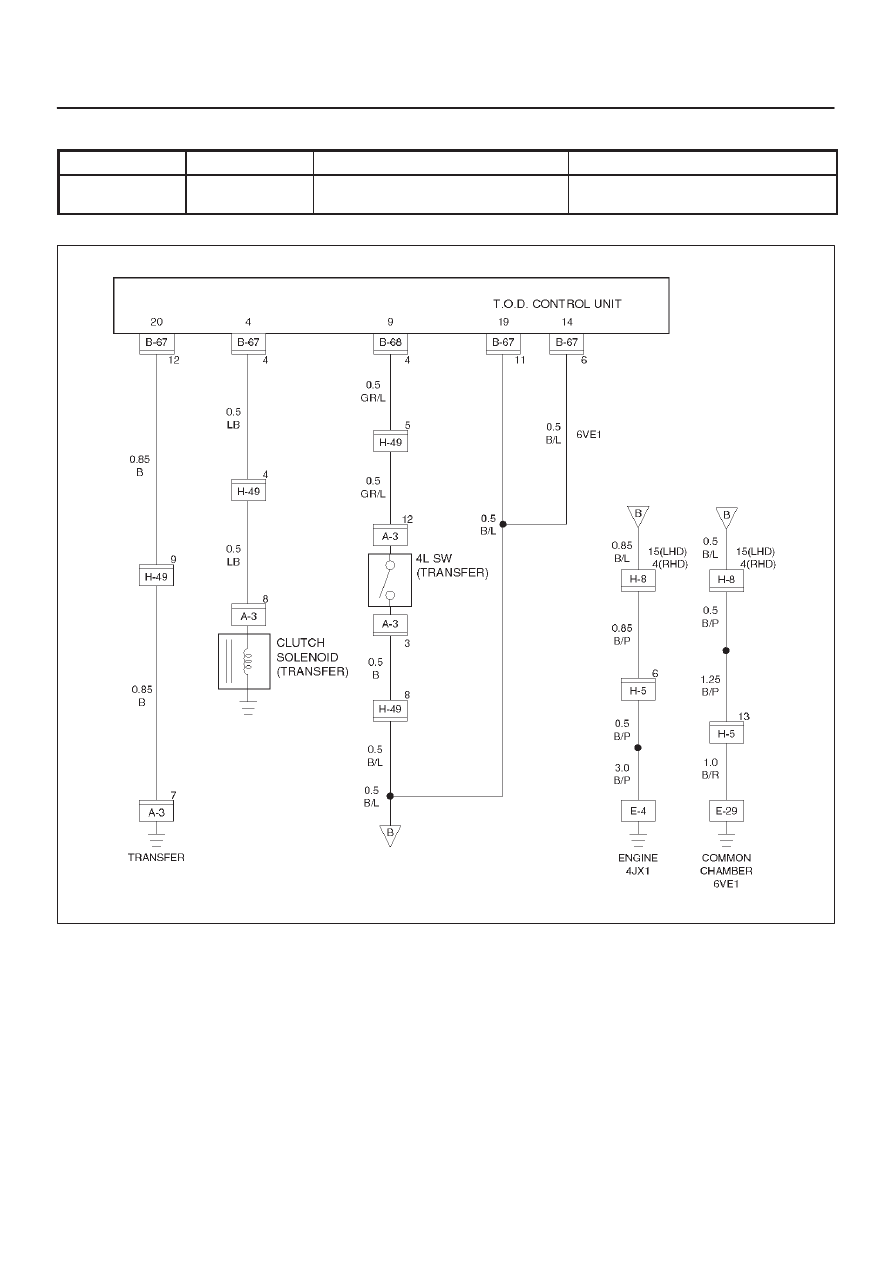

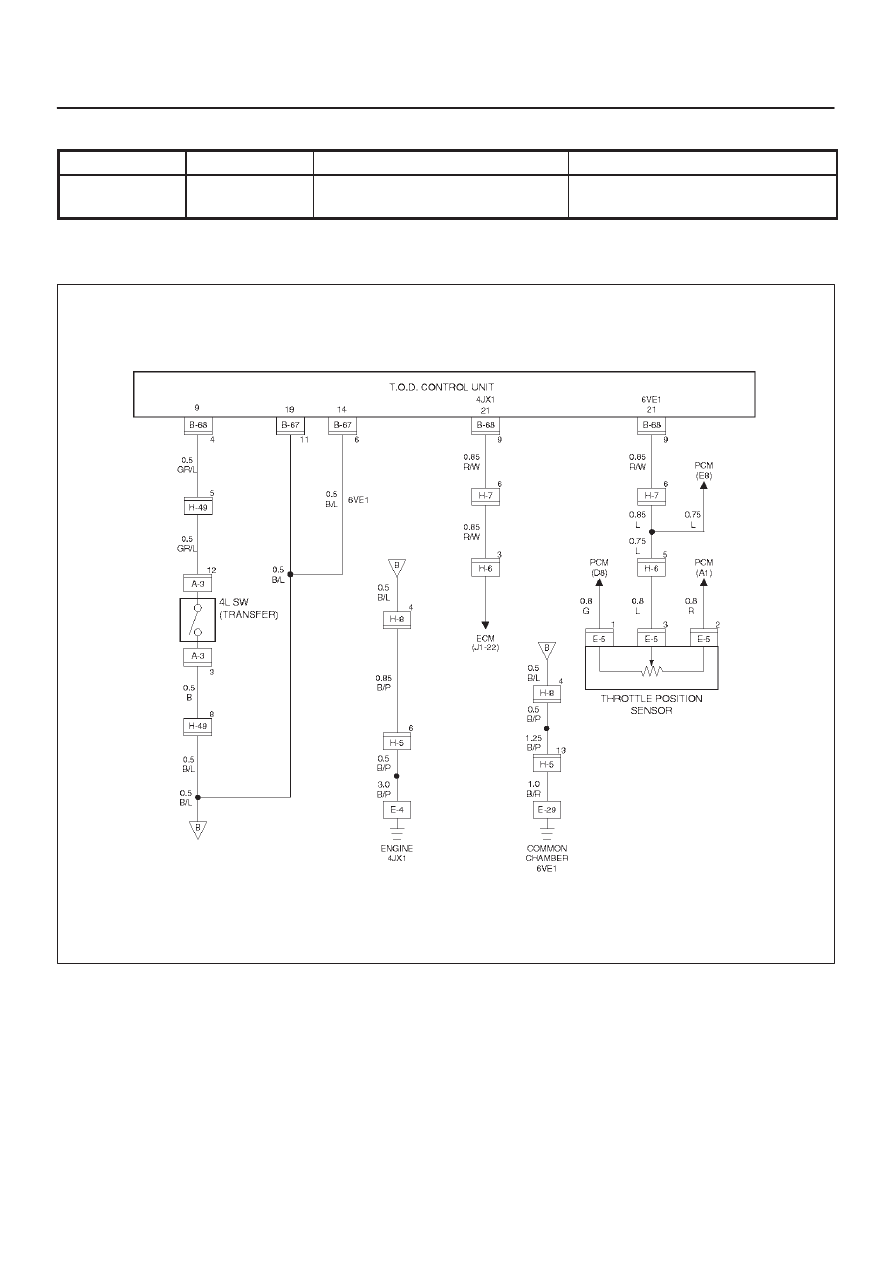

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–56 Step Action Yes No 1 1. Turn off the starter switch. Is the battery voltage normal? Go to Step 2 Charge or replace the battery. Go to Step 6 2 1. Turn on the starter switch. Does the voltage between terminals 21 and 19 fall within the Go to Step 3 Go to Step 3 3 1. Turn off the starter switch. Does the voltage between terminals (B–68)9 and (B–67)11 fall The ECU has failed. Replace the ECU. Go to Step 6 Go to Step 4 4 Is the harness healthy? Go to Step 5 Repair the harness. Go to Step 6 5 Is the TPS healthy? Go to Step 6 Replace the TPS. Go to Step 6 6 1. Check that all the parts are mounted. Is this step complete? Repeat the “Diagnosis Flow”. Go to Step 6 |
