The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.

Capacity (Approximate)

Recommended Fluids and Lubricants

US measure

Imp measure

Liter

Fuel

21-1/8 Gal

17-5/8 Gal

80 L

• For additional information, refer to “Fuel recommendation” in this section.

Engine oil

Drain and refill

• For additional information, refer to “Engine oil” in the “Maintenance and
do-it-yourself” section of this manual.

VQ40DE

With oil filter

change

5-3/8 qt

4-1/2 qt

5.1 L

• Genuine NISSAN engine oil or equivalent
• NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN
dealer
• Engine oil with API Certification Mark
• Viscosity SAE 5W-30
• For additional information, refer to “Engine oil and oil filter recommenda-
tions” in this section.

Without oil

filter change

5-1/8 qt

4-1/4 qt

4.8 L

Cooling system

With reservoir

2-3/4 gal

2-1/4 gal

10.2 L

• Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent

Manual transmission gear oil 4WD

4-3/8 qt

3-5/8 qt

4.2 L

• Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85
• API GL-4, Viscosity SAE 75W-85 may be used as a temporary replace-
ment for Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi
75W-85. However, NISSAN recommends the use of Genuine NISSAN
gear oil, available at NISSAN dealer.

Automatic transmission fluid

Refill to the proper level according to the instructions in

the “Maintenance and do-it-yourself” section.

• Genuine NISSAN Matic S ATF
• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J
ATF may also be used. Using automatic transmission fluid other than Genu-
ine NISSAN Matic S ATF or Genuine NISSAN Matic J ATF will cause dete-
rioration in driveability and automatic transmission durability, and may dam-
age the automatic transmission, which is not covered by the NISSAN new
vehicle limited warranty.

Power steering fluid (PSF)

Refill to the proper level according to the instructions in

the “Maintenance and do-it-yourself” section.

• Genuine NISSAN PSF or equivalent.
• DEXRON™ VI type ATF may also be used.

RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES

9-2

Technical and consumer information

Capacity (Approximate)

Recommended Fluids and Lubricants

Brake and clutch (if so equipped) fluid

Refill to the proper level according to the instructions in

the “Maintenance and do-it-yourself” section.

• Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent DOT 3
• Available in mainland U.S. through a NISSAN dealer.

Multi-purpose grease

—

• NLGI No. 2 (Lithium Soap base)

Air conditioning system refrigerant

—

• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner specification label” in
this section.

Air conditioning system oil

—

• Genuine NISSAN A/C System Oil Type R or equivalent
• For additional information, refer to “Air conditioner specification label” in
this section.

Transfer fluid

2-1/8 qt

1-3/4 qt

2.0 L

• Genuine NISSAN Matic D ATF recommended
• Using fluid other than Genuine NISSAN Matic D ATF will cause deteriora-
tion in driveability and transfer durability, and may damage the transfer,
which is not covered by the NISSAN new vehicle limited warranty.

Front final drive oil

1-3/4 pt

1-1/2 pt

0.85 L

• Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5, Viscosity 80W-90
• For hot climates, viscosity SAE 90 is suitable for ambient temperatures
above 0°C (32°F).

Rear final drive oil A/T models without E-
Lock

3-3/8 pt

2-7/8 pt

1.6 L

• API GL-5 synthetic gear oil, Viscosity SAE 75W-90
• See a NISSAN dealer for service for synthetic oil.

Rear final drive oil M/T or A/T models with
E-Lock

4-1/4 pt

3-1/2 pt

2.0 L

• Genuine NISSAN Differential Oil synthetic 75W-140 or API GL-5 syn-
thetic gear oil, Viscosity SAE 75W-140
• See a NISSAN dealer for service for synthetic oil.

Windshield-washer fluid

1-1/4 gal

1 gal

4.5 L

• Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
or equivalent

Technical and consumer information

9-3

FUEL RECOMMENDATION

Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91).

CAUTION

● Only vehicles with the E-85 filler door

label can operate on E-85. Fuel system
or other damage can occur if E-85 is
used in vehicles that are not designed
to run on E-85.

● Using a fuel other than that specified

could adversely affect the emission
control system, and may also affect the
warranty coverage.

● Under no circumstances should a

leaded gasoline be used, because this
will damage the three-way catalyst.

● Do not use E-15 or E-85 fuel in your

vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E-85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle. Dam-
age caused by such fuel is not covered
by the NISSAN new vehicle limited
warranty.

● U.S. government regulations require

ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.

Gasoline specifications

NISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission control system and vehicle
performance. Ask your service station manager if
the gasoline meets the WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing oxy-
genates such as ethanol, MTBE and methanol
with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-

patibility for your NISSAN cannot be readily de-
termined. If in doubt, ask your service station
manager.

If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

● The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

● If an oxygenate-blend other than

methanol blend is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

● E-15 fuel contains more than 10% oxy-

genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not covered by the NISSAN new vehicle
limited warranty.

9-4

Technical and consumer information

● If a methanol blend is used, it should

contain no more than 5% methanol
(methyl

alcohol,

wood

alcohol).

should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not avail-
able to ensure that all methanol blends
are suitable for use in NISSAN ve-
hicles.

If any driveability problems such as engine stall-
ing and difficult hot-starting are experienced after
using

oxygenate-blend

fuels,

immediately

change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.

Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.

E–15 fuel

E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-15
fuel. Do not use E-15 in your vehicle. U.S. gov-
ernment regulations require fuel ethanol dispens-
ing pumps to be identified with small, square,

orange and black label with the common abbre-
viation or the appropriate percentage for that
region.

E–85 fuel

E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.

Aftermarket fuel additives

NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you

detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have a NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.

Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

Technical and consumer information

9-5

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS

Selecting the correct oil

It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. Refer to “Recom-
mended fluids/lubricants and capacities” in this
section. NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.

Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval

Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.

Oil additives

NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.

Oil which may contain foreign matter or has been
previously used should not be used.

Oil viscosity

The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.

Selecting the correct oil filter

Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”

Change intervals

The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN new vehicle limited war-
ranty.

LTI2061

9-6

Technical and consumer information

Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.

Operation under the following conditions may
require more frequent oil and filter changes:

● repeated short distance driving at cold out-

side temperatures

● driving in dusty conditions
● extensive idling
● towing a trailer
● stop and go commuting

Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.

AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS

The air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and NISSAN A/C
system oil Type S or the exact equivalents.

CAUTION

The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment

all

air

conditioner

system

components.

The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.

Contact a NISSAN dealer when servicing your air
conditioner system.

Technical and consumer information

9-7

ENGINE

Model

VQ40DE

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

6-cylinder, V-block, Slanted at 60°

Bore x Stroke

in (mm) 3.760 x 3.622 (95.5 x 92)

Displacement

cu in (cm

) 241.30 (3,954)

Firing order

1–2–3–4–5–6

Idle speed

Refer to the “Emission Control Information label” on the
underside of the hood.

A/T (in “N” position)

Ignition timing (degree B.T.D.C. at idle speed)

CO % at idle

Spark plug

DILFR5A–11

Spark plug gap (Nominal)

in (mm) 0.043 (1.1)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

SPECIFICATIONS

9-8

Technical and consumer information

WHEELS AND TIRES

Wheels

Steel

16 x 7.0JJ

Alloy

16 x 7.0JJ

Tires

P265/70R16

P265/75R16

Spare tire

Full size

DIMENSIONS AND WEIGHTS

Overall length

in (mm)

178.7 (4,539)

Overall width

in (mm)

72.8 (1,849)

Overall height

in (mm)

74.9 (1,902)

Front track width

in (mm)

61.8 (1,570)

Rear track width

in (mm)

61.8 (1,570)

Wheelbase

in (mm)

106.3 (2,700)

Gross vehicle weight rating

lb (kg)

Refer to the “F.M.V.S.S./C.M.V.

S.S. certification label” on the

center pillar between the driv-

er’s side front and rear doors.

Gross axle weight rating

Front

lb (kg)

Rear

lb (kg)

Technical and consumer information

9-9

When planning to drive your NISSAN ve-
hicle in another country, you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.

Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline. There-
fore, avoid taking your vehicle to areas where
appropriate fuel is not available.

When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.

The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.

When any vehicle is to be taken into an-
other country, state, province or district and
registered, its modifications, transporta-
tion and registration are the responsibility
of the user. NISSAN is not responsible for
any inconvenience that may result.

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE

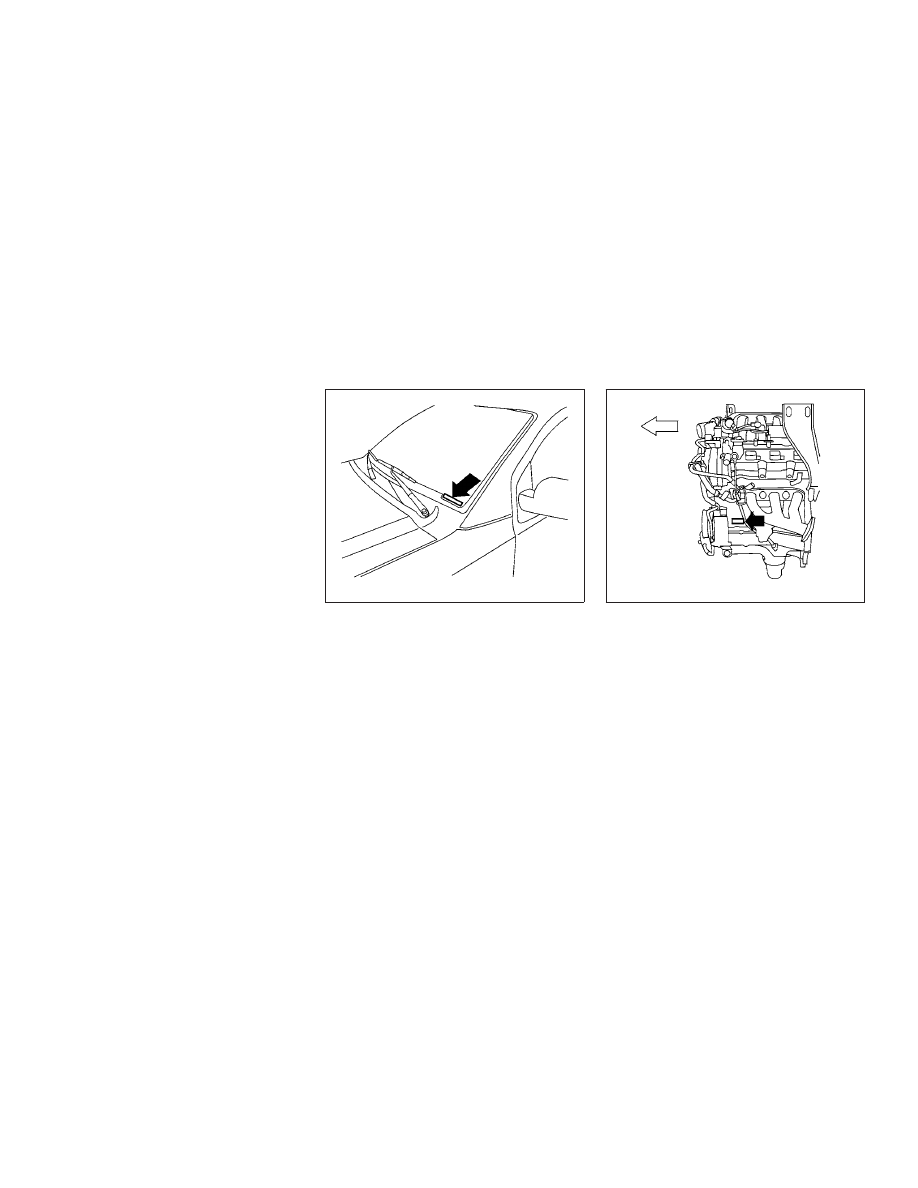

The vehicle identification number (VIN) plate is
attached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.

ENGINE SERIAL NUMBER

The number is stamped on the engine as shown.

LTI0085

LTI0127

WHEN TRAVELING OR REGISTERING
YOUR VEHICLE IN ANOTHER
COUNTRY

VEHICLE IDENTIFICATION

9-10

Technical and consumer information

F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL

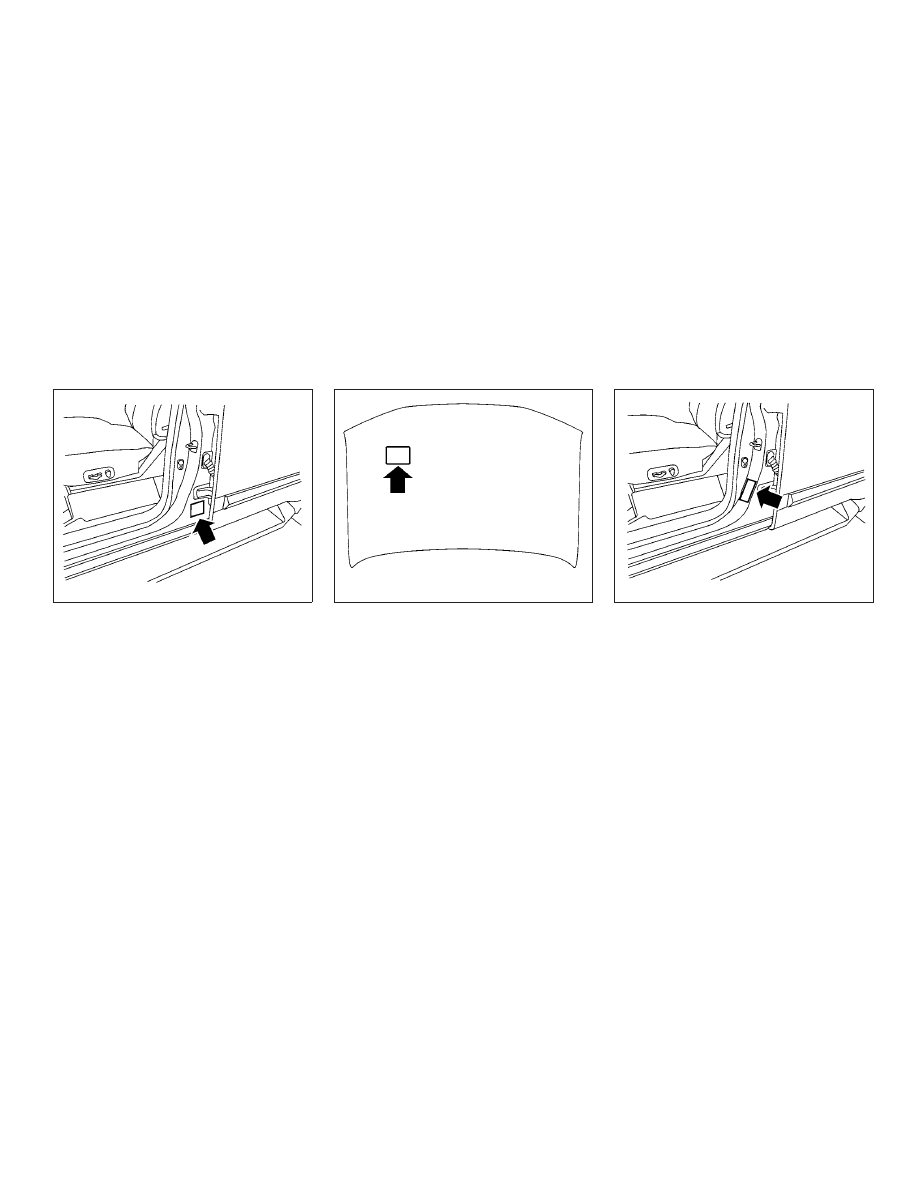

The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la-
bel is affixed as shown. This label contains valu-
able vehicle information, such as: (GVWR),
(GAWR), month and year of manufacture, (VIN),
etc. Review it carefully.

EMISSION CONTROL
INFORMATION LABEL

The emission control information label is at-
tached to the underside of the hood as shown.

TIRE AND LOADING INFORMATION
LABEL

The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.

WTI0099

WTI0189

WTI0100

Technical and consumer information

9-11

AIR CONDITIONER SPECIFICATION
LABEL

The air conditioner specification label is affixed to
the underside of the hood as shown.

Use the following step to mount the front license
plate:

● Attach the license plate bracket on the plas-

tic finisher at the location mark (small
dimple) using the two 6 mm screws pro-
vided.

WARNING

● It is extremely dangerous to ride

in a cargo area inside a vehicle. In
a collision, people riding in these
areas are more likely to be seri-
ously injured or killed.

● Do not allow people to ride in any

area of your vehicle that is not
equipped with seats and seat
belts.

● Be sure everyone in your vehicle

is in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself with
the following terms before loading your
vehicle:

● Curb Weight (actual weight of your

vehicle) - vehicle weight including:
standard and optional equipment, flu-
ids, emergency tools, and spare tire
assembly. This weight does not in-
clude passengers and cargo.

WTI0188

LTI0137

INSTALLING FRONT LICENSE PLATE

VEHICLE LOADING INFORMATION

9-12

Technical and consumer information

● GVW (Gross Vehicle Weight) - curb

weight plus the combined weight of
passengers and cargo.

● GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers,

luggage,

hitch,

trailer

tongue load and any other optional
equipment. This information is lo-
cated on the F.M.V.S.S./C.M.V.S.S.
certification label.

● GAWR (Gross Axle Weight Rating) -

maximum weight (load) limit specified
for the front or rear axle. This informa-
tion

located

the

F.M.V.S.S./C.M.V.S.S.

certification

label.

● GCWR (Gross Combined Weight

rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.

● Vehicle Capacity Weight, Load limit,

Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.

● Cargo capacity - permissible weight

of cargo, the subtracted weight of
occupants from the load limit.

VEHICLE LOAD CAPACITY

Do not exceed the load limit of your ve-
hicle shown as “The combined weight of
occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.

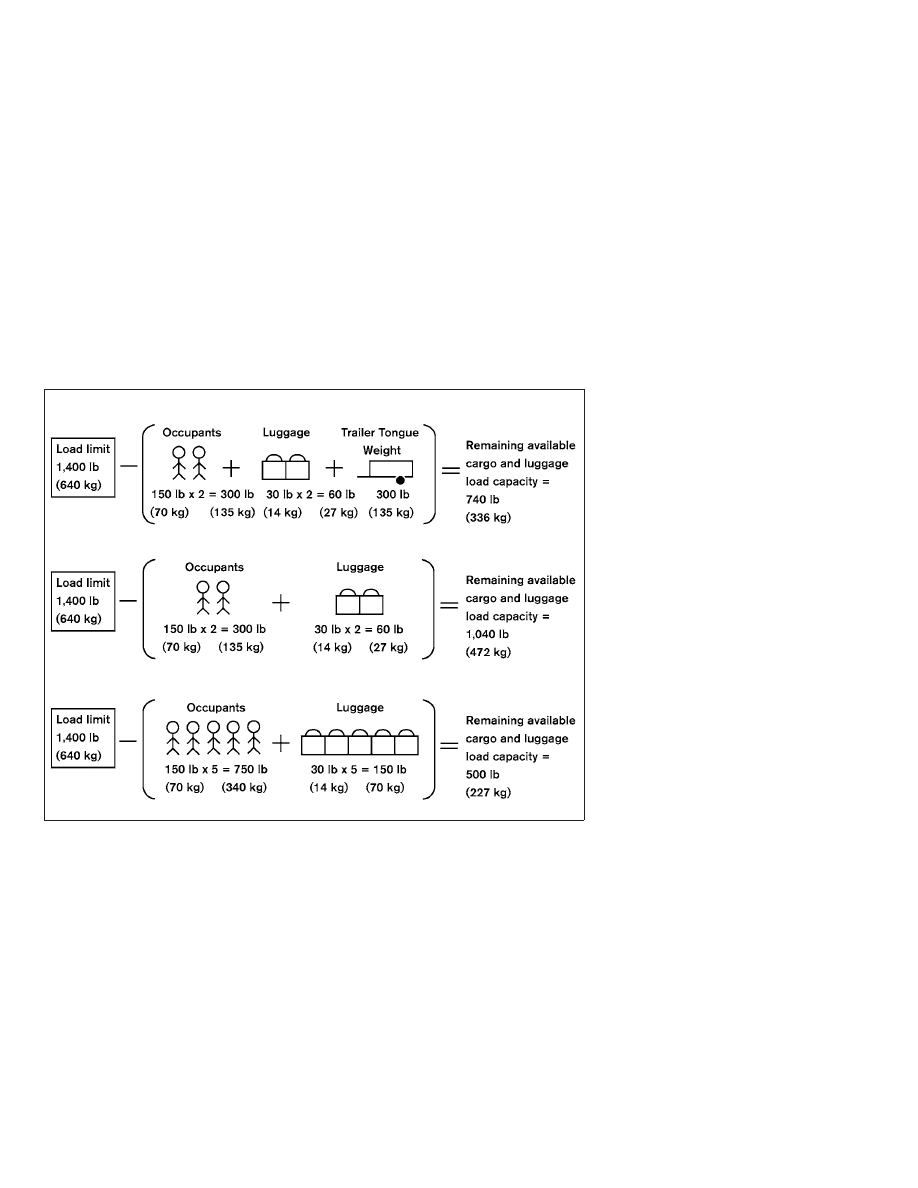

To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the follow-
ing illustration.

Technical and consumer information

9-13

Steps for determining correct load
limit

1. Locate the statement “The combined

weight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.

2. Determine the combined weight of

the driver and passengers that will be
riding in your vehicle.

3. Subtract the combined weight of the

driver and passengers from XXX lbs
or XXX kg.

4. The resulting figure equals the avail-

able amount of cargo and luggage
load capacity. For example, if the
XXX amount equals 1,400 lbs. and
there will be five 150 lb. passengers
in your vehicle, the amount of avail-
able cargo and luggage load capac-
ity is 650 lbs. (1,400-750 (5 X 150)
= 650 lbs) or (640-340 (5 X 70) =
300 kg.)

Example

LTI0152

9-14

Technical and consumer information

5. Determine the combined weight of

luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.

6. If your vehicle will be towing a trailer,

load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.

Before driving a loaded vehicle, confirm
that you do not exceed the GVWR or the
GAWR for your vehicle. Refer to “Mea-
surement of weights” in this section.

Also check tires for proper inflation pres-
sures. Refer to the “Tire and Loading In-
formation label” in the Maintenance and
do-it-yourself” section of this manual.

SECURING THE LOAD

There are tie-down hooks located in both the
ceiling and floor of the cargo area as shown. The
tie-down hooks can be used to secure cargo with
ropes or other types of straps. Refer to “Channel
tie-down hooks” in this section.

Do not apply a total load of more than
110 lbs. (490 N) to a single metal ceiling
tie-down hook when securing cargo.

Do not apply a total load of more than
110 lbs. (490 N) to a single plastic floor
tie-down hook when securing cargo.

WARNING

● Properly secure all cargo with ropes or

straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.

Cargo area ceiling tie-down hooks

LTI0140

Adjustable

cargo

area

floor

tie-down

hooks

LTI0141

Technical and consumer information

9-15

● The child restraint top tether strap may

be damaged by contact with items in
the cargo area. Secure any items in the
cargo area. Your child could be seri-
ously injured or killed in a collision if
the top tether strap is damaged.

● Do not load your vehicle any heavier

than the GVWR or the maximum front
and rear GAWRs. If you do, parts of your
vehicle can break, tire damage could
occur, or it can change the way your
vehicle handles. This could result in loss
of control and cause personal injury.

CHANNEL TIE-DOWN HOOKS (if so
equipped)

WARNING

● Properly install and tighten the tie-

down hooks into the channel system.
Also, do not install any rope or straps
directly to the channel. Failure to prop-
erly install the tie-down hooks or in-
stalling ropes or straps directly to the
channel can cause the cargo to become
unsecured. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

● Properly secure all cargo with ropes or

straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.

The adjustable channel tie-down hook system
allows you to move tie-down hooks in the cargo
area to the best location to secure a load.

The tie-down hooks must be installed so the hook
is properly fixed to the channel. If the tie-down
hook is not fixed to the channel it cannot be
properly tightened.

Check the tightness of the tie-down hooks peri-
odically during a trip to make sure they have not
become loose.

Install the tie-down hooks as follows:

1. Assemble 4 hook loops

䊊

to 4 hook plates

䊊

by screwing the hook plate onto the hook

(5 revolutions).

LTI0144

9-16

Technical and consumer information

Nissan Xterra (2015 year). Manual - part 23
