4-56

Heater, air conditioner, audio and phone systems

Audio main operation

The audio system operates when the
ignition switch is placed in the ACC or
ON position.

Head unit:

The auto loudness circuit enhances the
low and high frequency ranges automa-
tically.

Power/VOL dial:

Push the Power/VOL dial to turn on and
off the audio system.
Turn the Power/VOL dial to adjust the
volume.

Audio settings:

The settings screen will appear when
pushing the ENTER SETTING/TUNE·SC-
ROLL dial.
The following items are available in the
settings screen.
. Bluetooth

It is possible to set the Bluetooth®
settings. For details of the Bluetooth®
audio player operation, see “Blue-
tooth® audio player operation” (P.4-61).

. Bass, Treble, Balance and Fade

Controls the sound of the audio
system. Balance adjusts the sound
between the left and right speakers.
Fade adjusts the sound between the

front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the ENTER SETTING/TU-
NE·SCROLL dial and then push the
ENTER SETTING/TUNE·SCROLL dial.
Turn the ENTER SETTING/TUNE·SC-
ROLL dial to adjust the bass, treble,
balance and fade of the screen to the
preferred level. Push the ENTER
SETTING/TUNE·SCROLL dial to apply
the setting.

. Brightness and Contrast

Adjust the brightness and contrast of
the screen.
Select the “Brightness” or “Contrast”
using the ENTER SETTING/TUNE·SC-
ROLL dial and then push the ENTER
SETTING/TUNE·SCROLL dial. Turn the
ENTER SETTING/TUNE·SCROLL dial to
adjust the brightness and contrast of
the screen to the preferred level. Push
the ENTER SETTING/TUNE·SCROLL dial
to apply the setting.

. Clock Adjust

Adjust the clock according to the
following procedure.
1) Select “Clock Adjust” using the

ENTER SETTING/TUNE·SCROLL dial
a n d t h e n p u s h t h e E N T E R
SETTING/TUNE·SCROLL dial.

2) Adjust the hour with the ENTER

SETTING/TUNE·SCROLL dial and
then push the ENTER SETTING/
TUNE·SCROLL dial.

3) Adjust the minute with the ENTER

SETTING/TUNE·SCROLL dial and
then push the ENTER SETTING/
TUNE·SCROLL dial.

24 hour clock is not available.

. On-Screen Clock

When this item is turned on, a clock is
always displayed in the upper right
corner of the screen.
Select the “On-Screen Clock” using the
ENTER SETTING/TUNE·SCROLL dial
and then push the ENTER SETTING/
TUNE·SCROLL dial. You can toggle
between “ON” and “OFF” using the
ENTER SETTING/TUNE·SCROLL dial.
P u s h

t h e

E N T E R

S E T T I N G /

TUNE·FOLDER dial to apply the setting.

. RDS Display

RDS (radio data system) information
can be shown on the display. Select
“RDS Display” using the ENTER
SETTING/TUNE·SCROLL dial and then
push the ENTER SETTING/TUNE·SC-
ROLL dial. You can toggle between
“ON” and “OFF” using the ENTER
SETTING/TUNE·SCROLL dial. Push the
ENTER SETTING/TUNE·SCROLL dial to
apply the setting.

. Speed Sensitive Vol.

Select the “Speed Sensitive Vol.” using
the ENTER SETTING/TUNE·SCROLL dial
and then push the ENTER SETTING/
TUNE·SCROLL dial. To change the
Speed Sensitive Volume (Speed Sensi-
tive Vol.) level from off (0) to 5, turn the
ENTER SETTING/TUNE·SCROLL dial.
Push the ENTER SETTING/TUNE·SC-
ROLL dial to apply the setting.

. AUX Vol.

Controls the volume level of incoming
sound when an auxiliary device is
connected to the system. Select the
“AUX Vol.” using the ENTER SETTING/
TUNE·SCROLL dial and then push the
ENTER SETTING/TUNE·SCROLL dial.
Choose a setting between +1 and +3
or choose 0 to disable the feature
entirely. Push the ENTER SETTING/
TUNE·SCROLL dial to apply the setting.

. Language Select

The language settings can be chan-
ged.
Select “Language Select” using the
ENTER SETTING/TUNE·SCROLL dial
and then push the ENTER SETTING/
TUNE·SCROLL dial. Use the ENTER
SETTING/TUNE·SCROLL dial to select
the preferred language. Push the
ENTER SETTING/TUNE·SCROLL dial to
apply the setting.

DISP button:

Display of the screen can be canceled by
pushing the

button. You can still

listen to music that is being played back
even while the screen display is turned
off. If you want to display the screen
again, push the

button once more.

Pushing some of the audio source but-
tons will also turn the screen back on and
display the screens of the corresponding
sources.

MEDIA button:

Pushing the

button will switch the

audio source as follows:
CD ?USB/iPod® ? Bluetooth Audio ?
AUX ? CD

FM-AM-SAT Radio operation

radio (FM·AM) band select:

Pushing the

button will change the

band as follows:
AM ? FM1 ? FM2 ? AM
The FM stereo indicator (STEREO) is
shown on the screen during FM stereo
reception. When the stereo broadcast
signal is weak, the radio automatically
changes from stereo to monaural recep-
tion.

radio (SAT) band select:

Pushing the XM button will change the
band as follows:
XM1 ? XM2 ? XM3 ? XM1 (satellite, if so
equipped)
When the XM button is pushed while the
ignition switch is placed in the ACC or ON
position, the radio will come on at the
channel last played.
The last channel played will also come on
when the Power/VOL dial is pushed to
turn the audio system power on.
The satellite radio is not available in
Alaska, Hawaii and Guam.
If another audio source is playing when
the XM button is pushed, the audio
source will automatically be turned off
and the last radio channel played will
come on.
When the stereo broadcast signal is weak,
the radio will automatically change from
stereo to monaural reception.

TUNE (Tuning):
. For AM and FM radio

Turn the radio ENTER SETTING/TU-
NE·SCROLL dial for manual tuning.

. For SiriusXM Satellite Radio (if so

equipped)
Turn the radio ENTER SETTING/TU-

Heater, air conditioner, audio and phone systems

4-57

4-58

Heater, air conditioner, audio and phone systems

NE·SCROLL dial to seek channels from
all of the categories when any cate-
gory is not selected.

Radio Data System (RDS):

RDS stands for Radio Data System, and is
a data information service transmitted by
some radio stations on the FM band (not
AM band) encoded within a regular radio
broadcast. Currently, most RDS stations
are in large cities, but many stations are
now considering broadcasting RDS data.
The station name, such as “The Groove”, is
displayed on the display.

SEEK tuning/CAT (category):

. For AM and FM radio

Push the

button to tune

from low to high or high to low
frequencies and to stop at the next
broadcasting station.

. For SiriusXM Satellite Radio

Push the

button to tune to

the first channel of the next or pre-
vious category.

SCAN tuning:

Push the

button to tune from low to

high frequencies and stop at each broad-
casting station for several seconds. Push-
ing the

button again during this

several seconds period will stop SCAN
tuning and the radio will remain tuned to
that station.
If the

button is not pushed within five

seconds, SCAN tuning moves to the next
station.

Station memory opera-

tions:

6 stations can be set for the AM band. 12
stations can be set for the FM band (6 for
FM1, 6 for FM2). 18 channels can be set for
the satellite radio (6 for XM1, 6 for XM2, 6
for XM3).
1.

Choose the radio band using the
or XM button.

2. Tune to the desired station or chan-

nel.

3. Push and hold the desired station or

channel preset button

until

beep sounds.

4. The station or channel indicator will

then come on. Memorizing is now
complete.

5. Other buttons can be set in the same

manner.

If the battery cable is disconnected, or if
the fuse opens, the station memory will
be erased. In that case, reset the desired
stations or channels.

CD player operation

Place the ignition switch in the ACC or ON
position, and insert the Compact Disc (CD)
into the slot with the label side facing up.
The CD will be guided automatically into
the slot and start playing.
After loading the CD, the number of
tracks on the CD and the play time will
appear on the display.
If another audio source is already operat-
ing, it will automatically turn off and the
CD will play.
If the system was turned off while the CD
was playing, pushing the Power/VOL dial
will start the CD.

PLAY:

With a CD loaded, push the

button

until the CD mode is displayed on the
screen.

CD/MP3 display mode:

While listening to an MP3/WMA CD, cer-
tain text may be displayed on the screen
if the CD has been encoded with text
information. Depending on how the MP3/
WMA CD is encoded, information such as
Artist, Song and Folder will be displayed.
The track number and the total number
of tracks in the current folder or on the
current disc are displayed on the screen

as well.

SEEK/TRACK:

When the

button is pushed

and hold while the CD is being played, the
CD will play while fast forwarding or
rewinding. When the button is released,
the CD will return to normal play speed.
When the

button is pushed

while the CD is being played, the next
track or the beginning of the current
track on the CD will be played. Push the

button again to select the previous

track.

REPEAT (RPT):

When the

button is pushed while the

CD is played, the play pattern can be
changed as follows:
(CD)
(Normal) ⇔ 1 Track Repeat
(CD with compressed audio files)
(Normal) ? 1 Folder Repeat ? 1 Track
Repeat ? (Normal)

RANDOM (RDM):

When the

button is pushed while a CD

is being played, the play pattern can be
changed as follows:
(CD)
(Normal) ⇔ 1 Disc Random
(CD with compressed audio files)
(Normal) ? 1 Disc Random ? 1 Folder
Random ? (Normal)

CD eject:

When the

button is pushed with the

CD loaded, the CD will be ejected.
If the CD comes out and is not removed,
it will be pulled back into the slot to
protect it.

USB memory player operation

USB memory main operation:

The USB connection port is located on
the lower part of the instrument panel.
(See “USB (Universal Serial Bus) connec-
tion port” (P.4-74).) Connect a USB mem-
ory into the port. When the audio system
operates, the system will switch to the
USB memory mode automatically.
If the system has been turned off while
the USB memory was playing, pushing
the Power/VOL dial will start the USB

memory.

PLAY:

To change to the USB memory mode,
push the

button with a USB memory

connected until the USB memory mode is
selected.

Next/Previous File and Fast

Forward/Rewind:

When the

button is pushed

and held while a USB memory is being
played, the USB memory will play while
forwarding or rewinding. When the but-
ton is released, the USB memory will
return to normal play speed.
When the

button is pushed

while the USB memory is being played,
the next track or the beginning of the
current track on the USB memory will be
played. Push the

button again to

select the previous track.

Folder selection:

To change to another folder in the USB
memory, choose a folder displayed on the
screen using the ENTER SETTING/TU-
NE·SCROLL dial.

Heater, air conditioner, audio and phone systems

4-59

4-60

Heater, air conditioner, audio and phone systems

REPEAT (RPT):

When the

button is pushed while the

USB memory is played, the play pattern
can be change as follows.
(Normal) ? 1 Folder Repeat ? 1 Track
Repeat ? (Normal)

RANDOM (RDM):

When the

button is pushed while a

USB memory is being played, the play
pattern can be changed as follows.
(Normal) ? All Random ? 1 Folder Ran-
dom ? (Normal)

BACK button:

When the BACK button is pushed, it
returns to the previous display.

iPod® player operation

Connecting iPod®:

The USB connection port is located on
the lower part of the instrument panel.
(See “USB (Universal Serial Bus) connec-
tion port” (P.4-74).) Connect the iPod®
cable to the USB connection port. When
the audio system operates, the system
will switch to the iPod® mode automati-
cally. The battery of the iPod® is charged
while the cable is connected to the
vehicle.

Depending on the version of the iPod®,
the display on the iPod® shows a NISSAN
or Accessory Attached screen when the
connection is completed. When the iPod®
is connected to the vehicle, the iPod®
music library can only be operated by the
vehicle audio controls.

Compatibility:

The following models are compatible:
. iPod nano® 1G (Firmware version 1.3.1 -)

. iPod nano® 2G (Firmware version 1.1.3

. iPod nano® 3G (Firmware version 1.0.0

. iPod nano® 4G (Firmware version 1.0.2

. iPod nano® 5G (Firmware version 1.0.1

. iPod nano® 6G (Firmware version 1.0 -)

. iPod nano® 7G (Firmware version 1.0.0

. iPod® 5G (Firmware version 1.2.1 -)

. iPod classic® (Firmware version 1.0.0 -)

. iPod Touch® (iOS 1.1 -)

. iPod Touch® 2G (iOS 2.1.1 -)

. iPod Touch® 3G (iOS 3.1 -)

. iPod Touch® 4G (iOS 4.1 -)

. iPod Touch® 5G (iOS 6.0.0 -)

. iPhone® (iOS 1.0.0 - 2.2.1)

. iPhone® 3G (iOS 2.1 -)

. iPhone® 3GS (iOS 3.0 -)

. iPhone® 4/4S (iOS 4.0 -)

. iPhone® 5 (iOS 6.0.0 -)
Operations attributable to firmware up-
date by Apple are not guaranteed.

iPod® main operation:

The system operates when the ignition
switch is placed in the ACC or ON position.
Push the

button repeatedly or push

the

button to switch to the iPod®

mode.
If the system was turned off while the
iPod® was playing, pushing the Power/
VOL dial will start the iPod®.
If another audio source is playing and the
iPod® is connected, push the

button

repeatedly or push the

button to

switch to the iPod® mode.

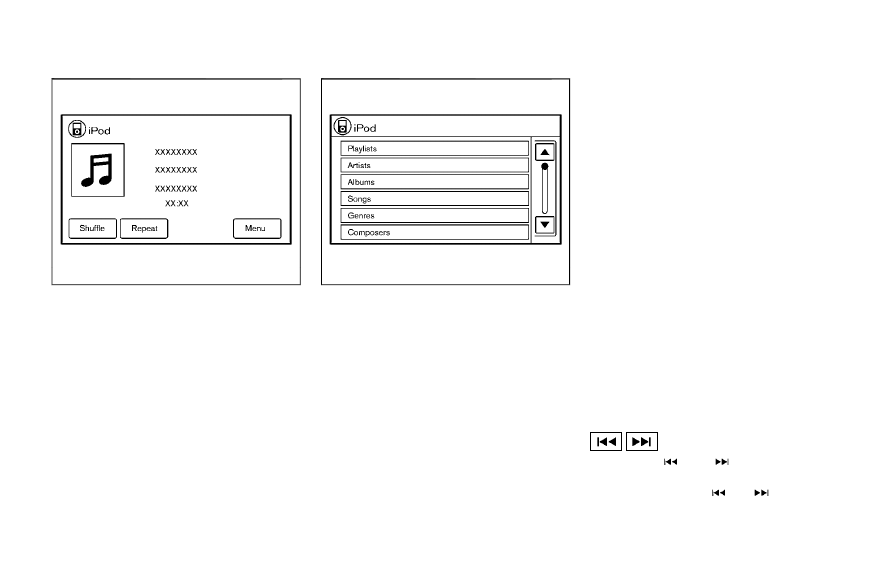

When the

button is pushed while the

iPod® is connected, the interface for iPod®
operation is shown on the display. The
items on the menu list can be scrolled by
turning the ENTER SETTING/TUNE·SC-
ROLL dial while the iPod® is operating.
To select an item, push ENTER SETTING/
TUNE·SCROLL dial. Items in the iPod®
menu appear on the display in the
following order.

. Now Playing

. Playlists

. Artists

. Albums

. Songs

. Podcasts

. Genres

. Composers

. Audiobooks

. Shuffle Songs
For more information about each item,
see the iPod® owner’s manual.

Next/Previous Track and

Fast Forward/Rewind:

When the

button is pushed

and hold while the iPod® is playing, the
iPod® will play while fast forwarding or
rewinding. When the button is released,
the iPod® will return to the normal play
speed.
When the

button is pushed

while the iPod® is playing, the next track
or the beginning of the current track on
the iPod® will be played. Push the
button again to select the previous track.

REPEAT (RPT):

When the

button is pushed while a

track is being played, the play pattern can
be changed as follows:
(Repeat Off) ? 1 Track Repeat? All Repeat

? (Repeat Off)

RANDOM (RDM):

When the

button is pushed while a

track is being played, the play pattern can
be changed as follows:
(Shuffle Off) ? Track Shuffle ? (Shuffle
Off)

BACK button:

The display will return to the previous
screen.

Bluetooth® audio player operation

If you have a compatible Bluetooth®
audio device that is capable of playing
audio files, the device can be connected
to the vehicle’s audio system so that the
audio files on the device play through the
vehicle’s speakers.

Regulatory information:

Bluetooth® trademark:

Bluetooth® is a trademark
owned by Bluetooth SIG, Inc.
and licensed to Visteon Cor-
poration.

Connecting Bluetooth® device:

To connect your Bluetooth® device to the
vehicle, follow the procedure below:
1.

Push the ENTER SETTING/TUNE·SC-
ROLL dial.

Heater, air conditioner, audio and phone systems

4-61

4-62

Heater, air conditioner, audio and phone systems

JVH0620X

2. Select “Bluetooth” .
3. Select “Add Phone” . This same screen

can be accessed to remove, replace or
select a different Bluetooth® device.

4. The system acknowledges the com-

mand and asks you to initiate a
connection from the Bluetooth® de-
vice. The procedure for connecting a
Bluetooth® device varies according to
the cellular phone model. See the
owner’s manual of the Bluetooth®
device for details.

Bluetooth® audio main operation:

To switch to the Bluetooth® audio mode,
push the

button repeatedly until the

Bluetooth® audio mode is displayed on

the screen.
The controls for the Bluetooth® audio are
displayed on the screen. Use the Preset

button to play and use the Preset

button to pause.

AUX device player operation

The AUX input jack is located on the lower
part of the instrument panel. (See “AUX
(Auxiliary) input jack” (P.4-75).) The AUX
input jack accepts any standard analog
audio input such as from a portable
cassette tape/CD player, MP3 player or
laptop computer.
Push the

button repeatedly to play a

compatible device when it is plugged into
the AUX input jack.
NISSAN strongly recommends using a
stereo mini plug cable when connecting
your music device to the audio system.
Music may not play properly when a
monaural cable is used.

JVH1591X

CD button

SXM button*

(CD eject) button

FM·AM button

AUX button

CD insert slot

APPS·i button

POWER/VOLUME dial

Touch screen

10.

(Backward seek) button/

(For-

ward seek) button

11.

ENTER AUDIO/TUNE·SCROLL dial

12.

BACK button

*No satellite radio reception is available
when the SXM button is pushed to access
satellite radio channels unless optional
satellite receiver and antenna are in-
stalled and a SiriusXM Satellite Radio
service subscription is active. Satellite
radio is not available in Alaska, Hawaii
and Guam.

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)

For all operation precautions, see “Audio
operation precautions” (P.4-38).

Audio main operation

POWER/VOLUME dial:

Place the ignition switch in the ACC or ON
position and push the POWER/VOLUME
dial while the system is off to call up the
available audio source that was playing
immediately before the system was
turned off.
To turn the system off, push the POWER/
VOLUME dial.
Turn the POWER/VOLUME dial to adjust
the volume.
This vehicle may be equipped with Speed
Sensitive Volume. When this feature is
active, the audio volume changes as the
driving speed changes.

Heater, air conditioner, audio and phone systems

4-63

4-64

Heater, air conditioner, audio and phone systems

Audio settings:

Adjust the audio settings according to the
following procedure.
1.

Push the APPS·i button.

2. Touch the “Settings” key.
3. Touch the “Audio” key.

Adjust the following items to the
desired setting.

Bass:

Adjusts the bass to the desired

level.

Treble:

Adjusts the treble to the desired

level.

Balance:

Adjusts the balance to the desired

level. Balance adjusts the sound

level between the left and right

speakers.

Fade:

Adjusts the fade to the desired

level. Fade adjusts the sound level

between the front and rear speak-

ers.

Speed Sensitive Vol.:

Adjusts the speed sensitive volume

function, which increases the vo-

lume of the audio system as the

speed of the vehicle increases. Set

to “0” to disable the feature. The

higher the setting, the more the

volume increases in relation to

vehicle speed.

AUX Volume Level:

Controls the volume level of incom-

ing sound when an auxiliary device

is connected to the system. Avail-

able options are Low (quiet), Med-

ium, and High (loud).

Bass, treble, balance and fade can also be
adjusted by pushing the ENTER AUDIO/
TUNE·SCROLL dial.

SXM settings:

View the SXM settings according to the
following procedure.
1.

Push the APPS·i button.

2. Touch the “Settings” key.
3. Touch the “SXM” key.
The signal strength, activation status and
other information are displayed on the
screen.

FM/AM/SAT radio operation

Radio (FM·AM) band select:

Push the FM·AM button to change the
band as follows:
AM ? FM1 ? FM2 ? AM
If another audio source is playing when
the FM·AM button is pushed, the audio
source playing will automatically be
turned off and the last radio station
played will begin playing.
The FM stereo indicator (ST) is shown on
the screen during FM stereo reception.
When the stereo broadcast signal is weak,
the radio automatically changes from
stereo to monaural reception.

Radio (SXM) band select:

Pushing the SXM button will change the
band as follows:
SXM1 ? SXM2 ? SXM3 ? SXM1 (satellite, if
so equipped)
When the SXM button is pushed while the
ignition switch is placed in the ACC or ON
position, the radio will come on at the last
channel played.
The last channel played will also come on
when the POWER/VOLUME dial is pushed.
If a CD is playing when the SXM button is
pushed, the CD will automatically be
turned off and the last radio channel

played will come on.
While the radio is in SXM mode, the
operation can be controlled through the
touch screen. Touch the “Channels” key to
display a list of channels. Touch a channel
displayed on the list to change to that
channel. Touch the “Categories” key to
display a list of categories. Touch a
category displayed on the list to display
options within that category.

Tuning with the touch screen:

When in AM or FM mode, the radio can be
tuned using the touch screen. To bring up
the visual tuner, touch the “Tune” key on
the lower right corner of the screen. A
screen appears with a bar running from
low frequencies on the left to high
frequencies on the right. Touch the
screen at the location of the frequency
you wish to tune and the station will
change to that frequency. To return to
the regular radio screen, touch the “OK”
key.

Tuning with the ENTER AUDIO/TU-
NE·SCROLL dial:

The radio can also be manually tuned
using the ENTER AUDIO/TUNE·SCROLL
dial. When in FM or AM mode, turn the
ENTER AUDIO/TUNE·SCROLL dial to the
left for lower frequencies or to the right
for higher frequencies. When in SXM

mode, turn the ENTER AUDIO/TUNE·SC-
ROLL dial to change the channel.

SEEK tuning:

When in FM or AM mode, push the

button to tune from low to high or

high to low frequencies and to stop at the
next broadcasting station.
When in SXM mode, push the

button to change the category.

JVH0741X

1 to 6 station or channel memory
operations:

Twelve stations can be set for the FM
band (6 for FM1, 6 for FM2) and six stations
can be set for the AM band. Eighteen
channels can be set for the SXM band (6
for SXM1, 6 for SXM2, 6 for SXM3).
1.

Choose the radio band AM, FM1 or FM2
using the FM·AM button or choose the
radio band SXM1, SXM2, SXM3 using
the SXM button.

2. Tune to the desired station or channel

using manual or seek tuning. Touch
and hold any of the desired station or
channel memory keys (1 – 6) until a
beep sound is heard. The station or

Heater, air conditioner, audio and phone systems

4-65

4-66

Heater, air conditioner, audio and phone systems

channel indicator will then come on.

3. Other keys can be set in the same

manner.

If the battery cable is disconnected or if
the fuse opens, the radio memory will be
erased. In that case, reset the desired
stations or channels.

JVH1618X

Smart Favorites preset setup (if so
equipped):

The Smart Favorites feature allows the
user to designate presets, within the
SXM1, SXM2 and SXM3 bands, as their
Smart Favorites. When any of the Smart
Favorite presets are selected, the current
track on that channel will play from the
beginning of the song.
To program a Smart Favorite preset:
1.

Push the SXM button.

2. Touch the “Setup” key.
3. Touch the “Tune Start” key to activate

(ON) or deactivate (OFF) Smart Favor-
ites.

4. Touch the “Add Preset” key to select

an available preset.

For additional information, refer to “1 to 6
station or channel memory operations”
(P.4-65) in this section regarding preset
memory operations.
NOTE:

. Smart Favorites will start function-

ing only after the audio unit is
turned on for a few minutes.

. Tune Start is supported for music

channels only.

JVH1619X

Replay screen

The Replay Screen gives the user the
ability to replay, skip, pause or rewind
the currently aired broadcast.
When the “Replay” key is touched, the
Replay Screen is prompted.
To replay a track from the beginning,
touch the “

” key. The user can con-

tinue to touch the “

” key to replay

previous songs, but can only go back as
far as the system permits. The system will
warn the user when they cannot skip any
further back by displaying “At the End” in
the bottom left corner of the screen.
To skip a track, touch the “

” key. “Live”

will appear in the bottom left corner of

the screen indicating the difference from
play time to live audio.
To rewind/fast forward a track, touch and
hold the “

” or “

” key.

To pause a track, touch the “

” key.

Compact Disc (CD) player operation

Insert a CD into the slot with the label side
facing up. The CD will be guided auto-
matically into the slot and will start
playing. If the radio is already operating,
it automatically turns off and the Com-
pact Disc (CD) begins to play.

PLAY:

When the CD button is pushed with the
system off and the CD loaded, the system
will turn on and the CD will start to play.
When the CD button is pushed with a CD
loaded and the radio playing, the radio
will automatically be turned off and the
CD will start to play.

Heater, air conditioner, audio and phone systems

4-67

4-68

Heater, air conditioner, audio and phone systems

CD/MP3/WMA display mode:

While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a CD
encoded with text is being used). Depending on how the CD or MP3/WMA CD is
encoded, the text is displayed listing the artist, album and song title. There are other
keys displayed on the screen when a CD is playing.

Menu item

CD/MP3
display
mode

Random

Touch the “Random” key to apply a random play pattern to the CD. If
an MP3 CD is playing, touching “Random” or alternates between
Random Folder, and Random All. This text will appear on the display.
To cancel Random mode, touch the “Random” key until the key is no
longer highlighted.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the CD. If an
MP3 CD is playing, touching “Repeat” alternates between repeating the
current song and repeating the current folder. This text will appear on
the display. To cancel Repeat mode, touch the “Repeat” key until the
key is no longer highlighted.

Browse

Touch the “Browse” key to display the titles on the CD in list format.
Touch the title of a song in the list to begin playing that song. If an MP3
CD is playing, touching the “Browse” key will also list the folders on the
disc. Follow the procedure for selecting a song with the screen to
choose a folder.

SEEK TRACK:

Push and hold the

button

while the CD is playing to rewind or fast
forward the track being played.
Push the

button while a CD or MP3/

WMA CD is playing to return to the
beginning of the current track. Push the

button several times to skip back-

ward several tracks. Push the

button

while a CD or MP3/WMA CD is playing to
advance one track. Push the

button

several times to skip forward several
tracks. If the last track on a CD is skipped,
the first track on the disc is played. If the
last track in a folder of an MP3/WMA CD is
skipped, the first track of the next folder is
played.

CD eject:

When the

button is pushed with a CD

loaded, the CD will eject and the last
source will be played.
If the disc is not removed within 10
seconds, the disc will reload.

USB memory player operation

Connecting a device to the USB con-
nection port:

The USB connection port is located on
the lower part of the instrument panel.
Insert the USB memory into the port. (See
“USB (Universal Serial Bus) connection
port” (P.4-74).)
When a compatible storage device is
plugged into the port, compatible audio
files on the storage device can be played
through the vehicle’s audio system.

Audio file operation:

AUX button:

Place the ignition switch in the ACC or ON
position and push the AUX button to
switch to the USB memory input mode.
If another audio source is playing and a
USB memory is inserted, pushing the AUX
button repeatedly will change the system
to the USB memory mode.
If the system has been turned off while
the USB memory was playing, push the
POWER/VOLUME dial to restart the USB
memory.

JVH1685X

Play information:

Information about the audio files being
played is shown on the screen of the
vehicle’s audio system. Touch “Browse” to
display the list of categories that can be
used to narrow the search. Touch the
name of a song on the screen to begin
playing that song.

Seek button:

Push the

button while an audio file on

the USB memory is playing to return to
the beginning of the current track. Push
the

button several times to skip

backward several tracks.
Push the

button while an audio file on

the USB memory is playing to advance
one track. Push the

button several

times to skip forward several tracks. If the
last track in a folder on the USB memory
is skipped, the first track of the next folder
is played.
Random and repeat play mode:

While files on a USB memory are playing,
the play pattern can be altered so that
songs are repeated or played randomly.
. Random:

Touch the “Random” key to apply a
random play pattern to the USB
memory. To cancel Random mode,
touch the “Random” key again.

. Repeat:

Touch the “Repeat” key to apply a
repeat play pattern to the USB mem-
ory. To cancel Repeat mode, touch the
“Repeat” key again.

Heater, air conditioner, audio and phone systems

4-69

4-70

Heater, air conditioner, audio and phone systems

iPod® player operation

Connecting iPod®:

To connect an iPod® to the vehicle so that
the iPod® can be controlled with the
audio system controls and touch screen,
use the USB connection port located on
the lower part of the instrument panel.
(See “USB (Universal Serial Bus) connec-
tion port” (P.4-74).) Connect the iPod®-
specific end of the cable to the iPod® and
the USB end of the cable to the USB
connection port on the vehicle. If your
iPod® supports charging via a USB con-
nection, its battery will be charged while
connected to the vehicle with the ignition
switch placed in the ACC or ON position.
While connected to the vehicle, the iPod®
may only be able to be operated by the
vehicle audio controls.
To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.

Compatibility:

The following models are compatible:
. iPod Classic® 5th generation (firmware

version 1.3.0 or later)

. iPod Classic® 6th generation (firmware

version 2.0.1 or later)

. iPod Classic® 6th (6.1) generation (firm-

ware version 2.0.1 or later)

. iPod Classic® 6th (6.2) generation

(firmware version 2.0.4 or later)

. iPod Touch® 2nd generation (firmware

version 4.2.1 or later)*

. iPod Touch® 3rd generation (firmware

version 5.1.1 or later)

. iPod Touch® 4th generation (firmware

version 6.1.3 or later)

. iPod Touch® 5th generation (firmware

version 6.1.3 or later)

. iPod nano® - 2nd generation (firm-

ware version 1.1.3 or later)

. iPod nano® - 3rd generation (firmware

version 1.1.3 or later)

. iPod nano® - 4th generation (firmware

version 1.0.4 or later)

. iPod nano® - 5th generation (firmware

version 1.0.2 or later)

. iPod nano® - 6th generation (firmware

version 1.2 or later)

. iPod nano® - 7th generation (firmware

version 1.2 or later)

. iPhone® 3G (firmware version 4.2.1 or

later)

. iPhone® 3GS (firmware version 5.1.1or

later)

. iPhone® 4 (firmware version 6.1.3 or

later)

. iPhone® 4S (firmware version 6.1.3 or

later)

. iPhone® 5 (firmware version 6.1.3 or

later)

* Some features of this iPod® may not be
fully functional.
Make sure that your iPod® firmware is
updated to the version indicated above.

JVH1686X

Audio main operation:

Place the ignition switch in the ACC or ON
position. Push the AUX button repeatedly
to switch to the iPod® mode.
If the system has been turned off while
the iPod® was playing, pushing the
POWER/VOLUME dial will start the iPod®.
AUX button:

When the AUX button is pushed with the
system off and the iPod® connected, the
system will turn on. If another audio
source is playing and the iPod® is con-
nected, pushing the AUX button repeat-
edly will change the system to the iPod®
mode.

JVH1704X

Interface:

The interface for iPod® operation shown
on the vehicle’s audio system screen is
similar to the iPod® interface. Use the
touch screen, BACK button or the ENTER
AUDIO/TUNE·SCROLL dial to navigate the
menus on the screen.
When the iPod® is playing, touch the
“Menu” key to bring up the iPod® inter-
face.
Depending on the iPod® model, the fol-
lowing items may be available on the
menu list screen. For further information
about each item, see the iPod® owner’s
manual.

. Playlists

. Artists

. Albums

. Songs

. Genres

. Composers

. Audiobooks

. Podcasts

. Update Music Library
Shuffle and repeat play mode:

While the iPod® is playing, the play pattern
can be altered so that songs are repeated
or played randomly.
. Shuffle:

Touch the “Shuffle” key to apply a
random play pattern to the iPod®. To
cancel the Shuffle mode, touch the
“Shuffle” key again.

. Repeat:

Touch the “Repeat” key to apply a
repeat play pattern to the iPod®. To
cancel Repeat mode, touch the “Re-
peat” key again.

Seek button:

Push the

button to skip

backward or forward one track.
Push and hold the

button for

1.5 seconds while a track is playing to
rewind or fast forward the track being

Heater, air conditioner, audio and phone systems

4-71

Nissan Qashqai (2018 year). Manual - part 15
