∙ Tampering with the side air bag sys-

tem may result in serious personal in-
jury. For example, do not change the
front seats by placing material near
the seatbacks or by installing addi-
tional trim material, such as seat cov-
ers, around the side air bag.

∙ It is recommended that you visit a

NISSAN dealer for work on and around
the side air bag and curtain air bag. It
is also recommended that you visit a
NISSAN dealer for installation of elec-
trical equipment. The SRS wiring har-
nesses* should not be modified or dis-
connected. Unauthorized electrical
test equipment and probing devices
should not be used on the side air bag
or curtain air bag system.

*The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner’s Manual.

Seat belt with pretensioner(s)
(front seats)

WARNING

∙ The pretensioner(s) cannot be reused

after activation. They must be re-
placed together with the retractor
and buckle as a unit.

∙ If the vehicle becomes involved in a

collision but pretensioner(s) are not
activated, be sure to have the preten-
sioner system checked and, if neces-
sary, replaced. It is recommended that
you visit a NISSAN dealer for this
service.

∙ No unauthorized changes should be

made to any components or wiring of
the pretensioner system. This is to
prevent damage to or accidental acti-
vation of the pretensioner(s). Tamper-
ing with the pretensioner system may
result in serious personal injury.

∙ It is recommended that you visit a

NISSAN dealer for work on and around
the pretensioner system. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. Unauthorized electrical
test equipment and probing devices
should not be used on the preten-
sioner system.

∙ If you need to dispose of the preten-

sioner(s) or scrap the vehicle, it is rec-
ommended that you visit a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury.

The pretensioner system may activate
with the supplemental air bag system in
certain types of collisions. Working with the
seat belt retractor, the pretensioner(s) help
tighten the seat belt when the vehicle be-
comes involved in certain types of colli-
sions, helping to restrain front seat occu-
pants.

The pretensioner(s) are encased within the
seat belt retractor and to the seat belt an-
chor affixed to the floor of the vehicle.
These seat belts are used the same way as
conventional seat belts.

1-48

Safety—Seats, seat belts and supplemental restraint system

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
After the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.

The

supplemental

air

bag

warning

light

is used to indicate malfunctions

in the pretensioner system. For additional
information, refer to "Supplemental air bag
warning light" in this section. If the opera-
tion of the supplemental air bag warning
light indicates there is a malfunction, have
the system checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.
When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate

sections

this

Owner’s

Manual.

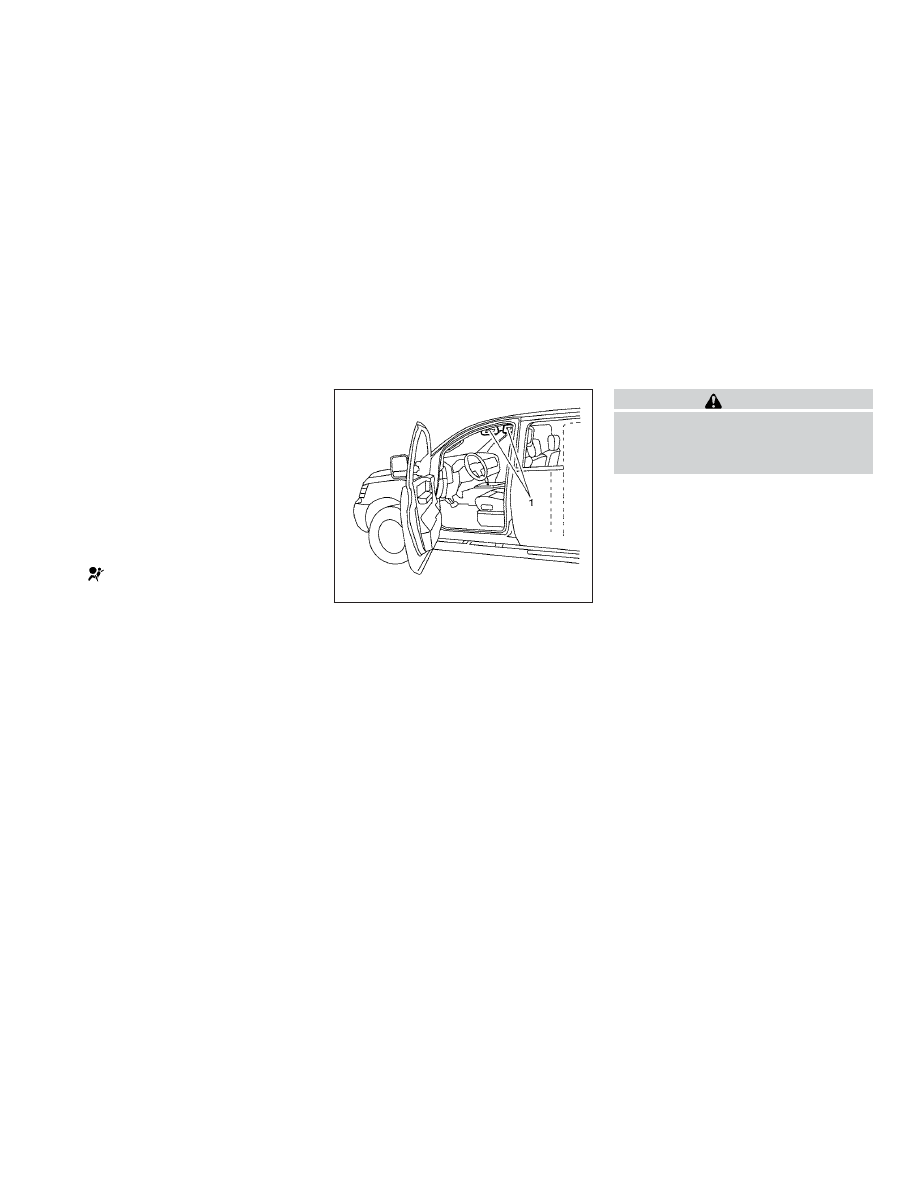

1. SRS Air bag warning labels

The warning labels are located on the
surface of the sun visor.

SUPPLEMENTAL AIR BAG WARNING
LABELS

Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.

WARNING

Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.

WRS0885

Safety—Seats, seat belts and supplemental restraint system

1-49

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

∙ The supplemental air bag warning light

flashes intermittently.

∙ The supplemental air bag warning light

does not come on at all.

Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

Repair and replacement
procedure

The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
inflate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light remains illu-
minated after inflation has occurred. These
systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioner(s) and re-
lated parts should be pointed out to the
person performing the maintenance. The
ignition switch should always be placed in
the LOCK position when working under the
hood or inside the vehicle.

LRS0100

1-50

Safety—Seats, seat belts and supplemental restraint system

WARNING

∙ Once a front air bag, side air bag, or

curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.

∙ The front air bag, side air bag, curtain

air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.

∙ If you need to dispose of the supple-

mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.

∙ If there is an impact to your vehicle

from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verify it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verify proper OCS
function may result in an improper air
bag deployment resulting in injury or
death.

Safety—Seats, seat belts and supplemental restraint system

1-51

MEMO

1-52

Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls

Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Meters and gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Speedometer and odometer . . . . . . . . . . . . . . . . . 2-4
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Outside temperature display
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Warning lights, indicator lights and audible
reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Checking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Security systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Vehicle security system . . . . . . . . . . . . . . . . . . . . . 2-17
NISSAN Vehicle Immobilizer System . . . . . . . . . 2-19

Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . 2-20

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Rear window and/or outside mirror defroster
switch (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Headlight and turn signal switch . . . . . . . . . . . . . . . 2-21

Headlight control switch. . . . . . . . . . . . . . . . . . . . . 2-21
Daytime Running Lights (DRL) system . . . . . . . 2-22
Instrument brightness control. . . . . . . . . . . . . . . 2-23
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Vehicle Dynamic Control (VDC) OFF switch. . . . . . 2-24
Rear Sonar System (RSS) OFF switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Power outlet(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Front-door pockets. . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Under-seat storage bin. . . . . . . . . . . . . . . . . . . . . . 2-27
Storage trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Glove box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
D-Rings (if so equipped) . . . . . . . . . . . . . . . . . . . . . 2-29

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-32

Map lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
Cargo light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34

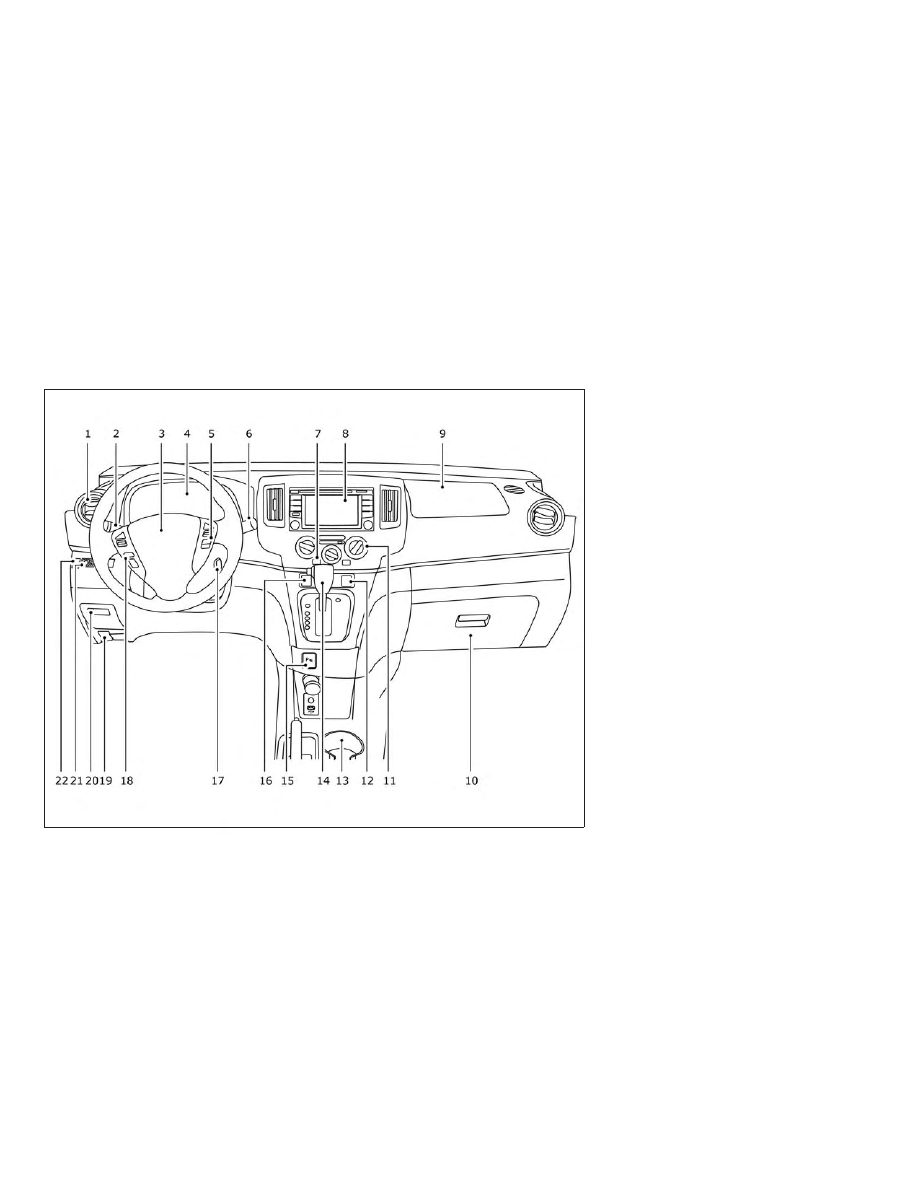

Vents (P. 4-18)

Headlight/turn signal switch
(P. 2-21)

Driver’s supplemental air bag
(P. 1-32)
Horn (P. 2-24)

Meters and gauges (P. 2-3)
Warning and indicator lights (P. 2-9)

Cruise control switches
(if so equipped) (P. 5-18)

Wiper and washer switch (P. 2-20)

Rear window and/or outside
mirror defroster switch
(if so equipped) (P. 2-21)

Audio system (P. 4-27)
Navigation (if so equipped) (P. 4-4)

Passenger’s supplemental air bag
(P. 1-32)

10.

Glove box (P. 2-27)

11.

Climate controls (P. 4-19)

12.

Front passenger air bag status
light (P. 2-15)

13.

Cup holders (P. 2-27)

14.

Shift lever (P. 5-14)

15.

Rear Sonar System (RSS) OFF
switch (if so equipped) (P. 5-29)

16.

Hazard warning flasher switch
(P. 6-2)

17.

Ignition switch (P. 5-8)

LIC3760

INSTRUMENT PANEL

2-2

Instruments and controls

18.

Audio control switches (P. 4-27)
Bluetooth® Hands-Free Phone
System (P. 4-65)

19.

Fuel-filler door release lever (P. 3-15)
Hood release lever (P. 3-14)

20.

Fuse box (P. 8-19)

21.

Electronic outside rearview mirror
control switch (if so equipped)
(P. 3-20)

22.

Vehicle Dynamic Control (VDC) OFF
switch (P. 2-24)

Refer to the page number indicated in
parentheses for operating details.

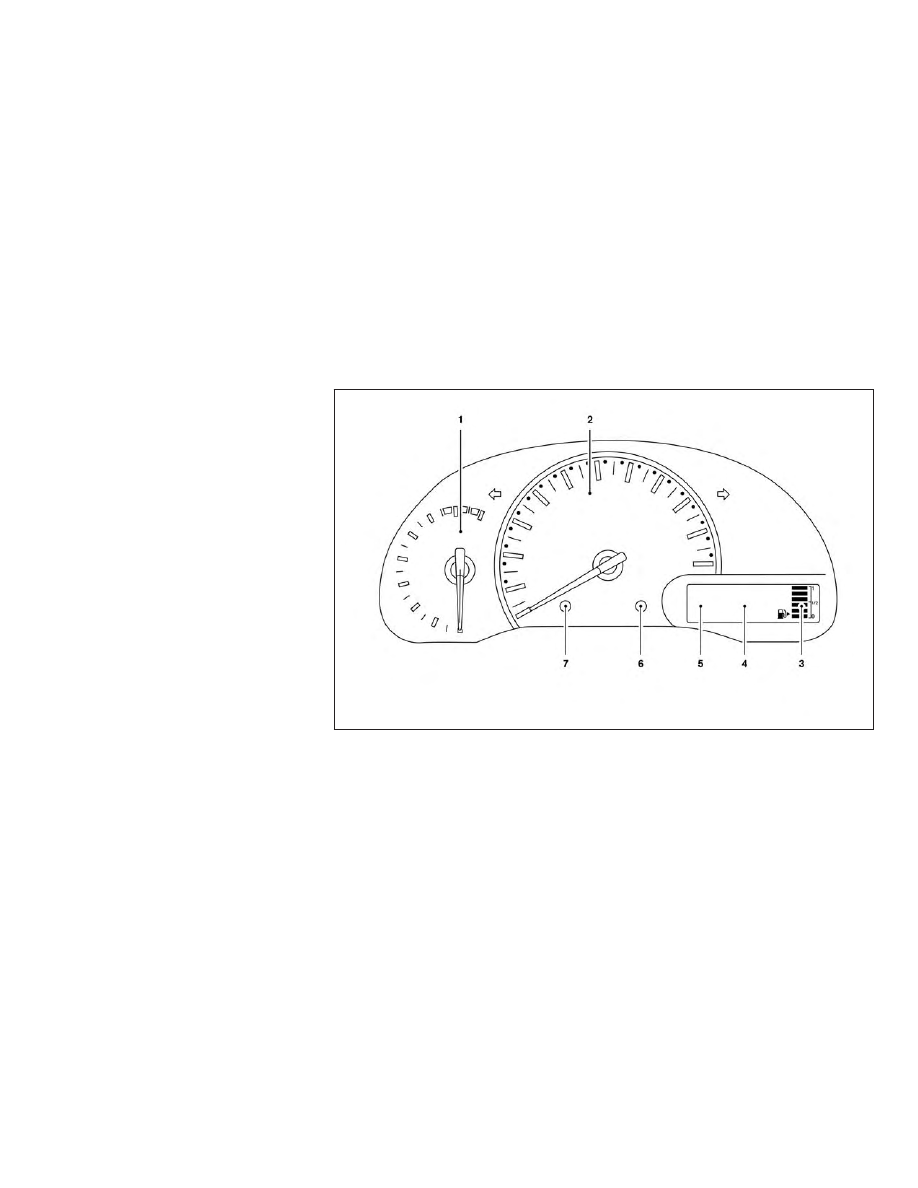

Tachometer

Speedometer

Fuel gauge

Odometer
Twin trip odometer
Trip computer

Continuously Variable Transmission
(CVT) position indicator

Instrument brightness control
knob

Change/reset button

LIC3131

METERS AND GAUGES

Instruments and controls

2-3

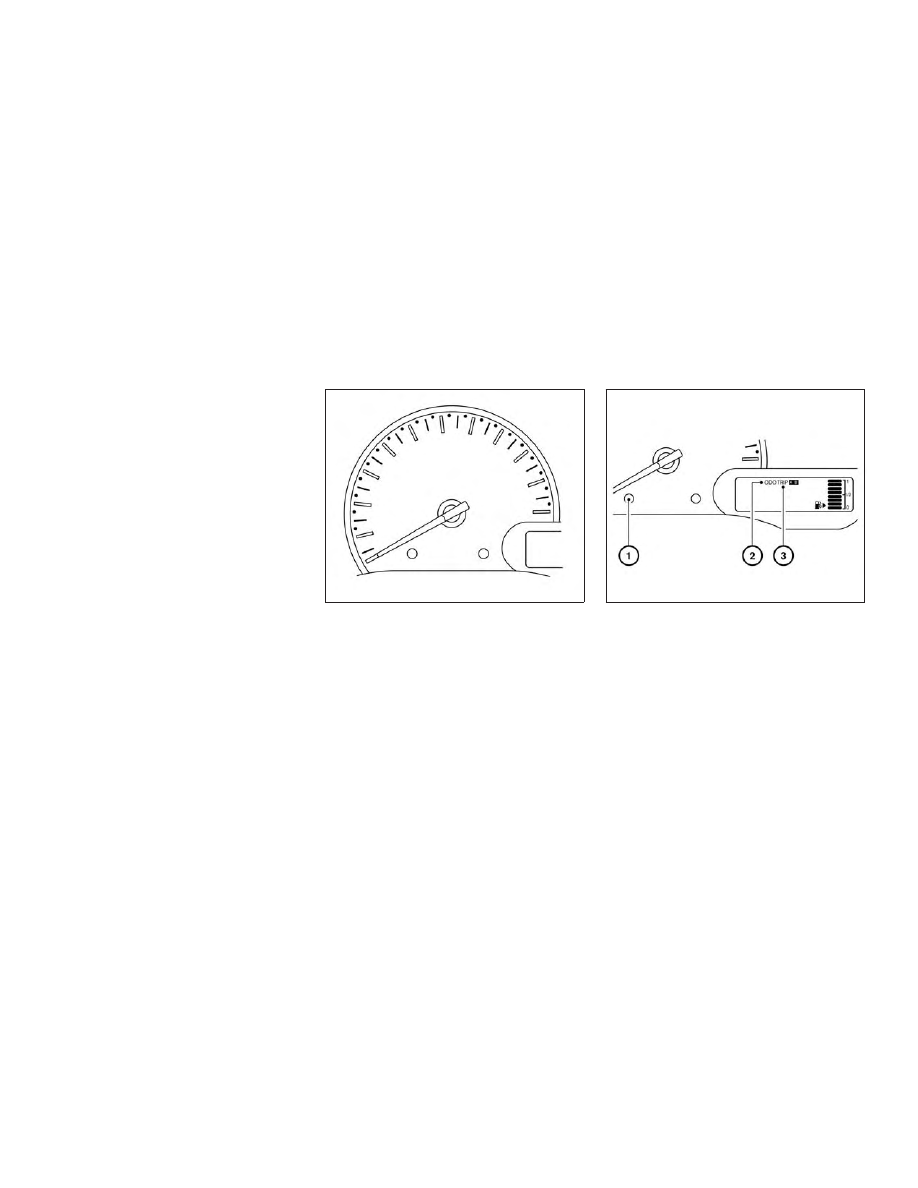

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located in the center of the meter cluster.
The odometer is located within the trip
computer.

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.

The odometer

䊊

records the total dis-

tance the vehicle has been driven.

The twin trip odometer

䊊

records the dis-

tance of individual trips.

LIC3419

LIC3523

2-4

Instruments and controls

Changing the display

Press the change/reset button

䊊

change the display as follows:

Odometer (ODO)

→ Trip

→ Instant fuel consumption → Average fuel
consumption

→ DTE (cruising range) →

Outside air temperature (if so equipped)

→

Odometer (ODO)

Resetting the trip odometer
Press the change/reset button

䊊

for more

than 1 second to reset the currently dis-
played trip odometer to zero.

Loose fuel cap warning message

Press the change/reset button

䊊

for more

than 1 second to reset the LOOSE FUEL CAP
warning message after the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.

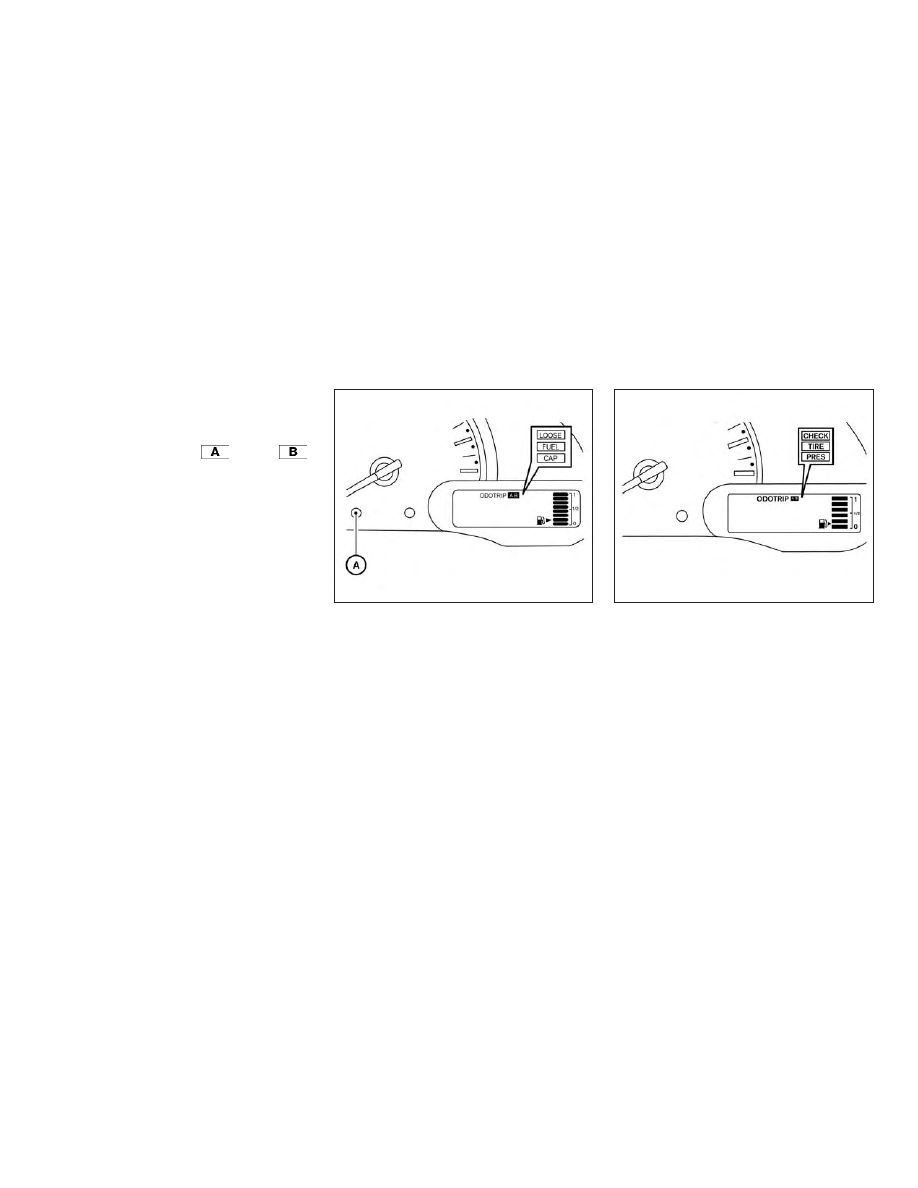

Check tire pressure warning
message

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. The
CHECK TIRE PRES (pressure) warning mes-
sage turns off when the low tire pressure
warning light turns off.

LIC3498

LIC3134

Instruments and controls

2-5

The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The
CHECK TIRE PRES (pressure) warning mes-
sage is displayed each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated.

For additional information, refer to “Low tire
pressure warning light” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section, and “Wheels
and tires” in the “Do-it-yourself ” section of
this manual.

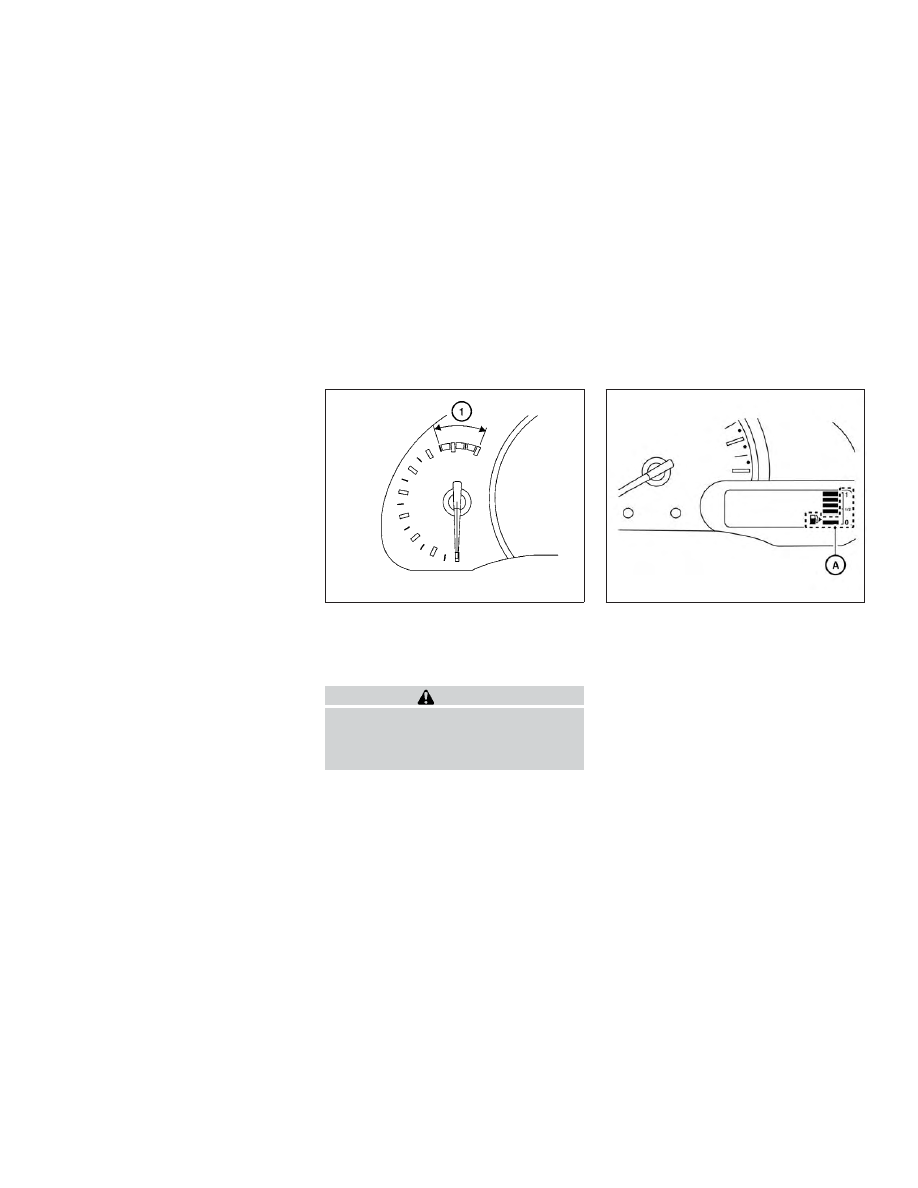

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.

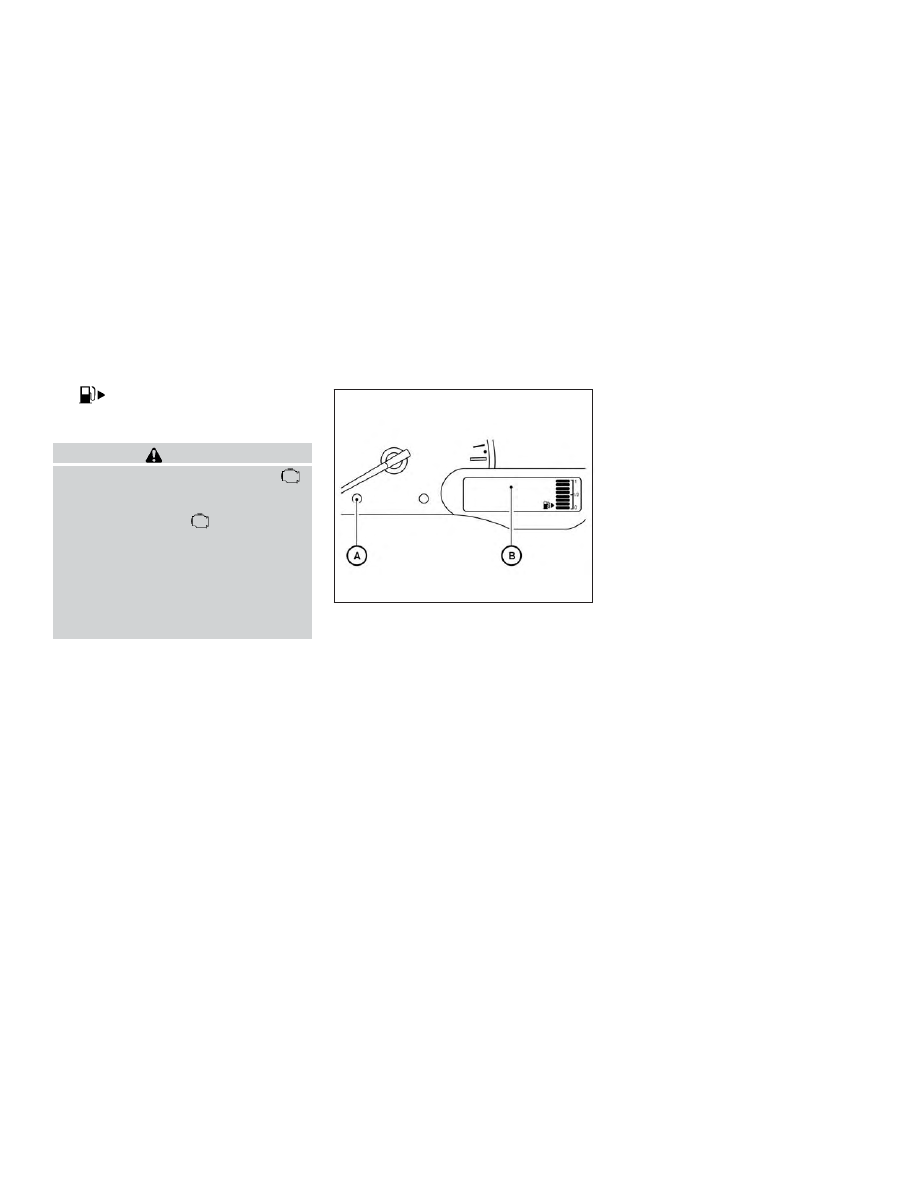

FUEL GAUGE

The gauge indicates

䊊

the approximate

fuel level in the tank when the ignition
switch is placed in the ON position.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

The low fuel warning light will turn on when
the amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge reg-
isters E (Empty).

LIC2107

LIC3135

2-6

Instruments and controls

The

indicates that the fuel-filler door

is located on the passenger’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

check engine light may come on. Re-
fuel as soon as possible. After a few
driving trips, the

light should

turn off. If the light remains on after a
few driving trips, have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

TRIP COMPUTER

When the ignition switch is placed in the ON
position, modes of the trip computer can
be selected by pressing the change/reset
button

䊊

on the instrument panel located

near

the

speedometer. The

following

modes can be selected in the display

䊊

∙ Trip A

∙ Trip B

∙ Instant fuel economy

∙ Average fuel consumption

∙ Distance to empty

Trip A

Measures the distance of one specific trip.

Trip B

Measures the distance of a second specific
trip.

Instant fuel consumption

The instant fuel consumption mode shows
the instant fuel economy. The display up-
dates instantly when driving.

Average fuel consumption

The average fuel consumption mode
shows the average fuel consumption since
the last reset. Resetting is done by pressing
the change/reset button

䊊

for more than

approximately 1 second.

Distance to empty

The distance to empty mode provides you
with an estimation of the distance that can
be driven before refueling. The range is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.

LIC3500

Instruments and controls

2-7

The distance to empty includes a low
range warning feature: when the fuel level
is low, the distance to empty is automati-
cally selected and the digits blink in order
to draw the driver’s attention. Press the trip
computer change/reset button

䊊

if you

wish to return to the mode that was se-
lected before the warning occurred.

When the fuel level drops even lower, the
distance to empty will display (----).

Trip computer reset

Pressing the change/reset button for
more than 3 seconds will reset all modes
except Trip A and distance to empty.

OUTSIDE TEMPERATURE DISPLAY
(if so equipped)

The outside temperature function pro-
vides a display of the outside temperature
when the ignition switch is placed in the ON
position.

The display of positive temperatures is un-
signed (blank); negative temperatures are
prefixed with a minus sign.

2-8

Instruments and controls

Anti-lock Braking System
(ABS) warning light

Low windshield-washer fluid warning
light (if so equipped)

Malfunction Indicator Light (MIL)

Brake warning light

Power steering warning light

Overdrive OFF indicator light

Charge warning light

Seat belt warning light and chime

Security indicator light

Door open warning light

Supplemental air bag warning light

Slip indicator light

Engine oil pressure warning light

Continuously Variable Transmission (CVT)
position indicator light

Turn signal/hazard indicator lights

High temperature warning light (red)

Cruise main switch indicator light
(if so equipped)

Vehicle Dynamic Control (VDC) OFF indica-
tor light

Low fuel warning light

Front passenger air bag status light

Low tire pressure warning light

High beam indicator light (blue)

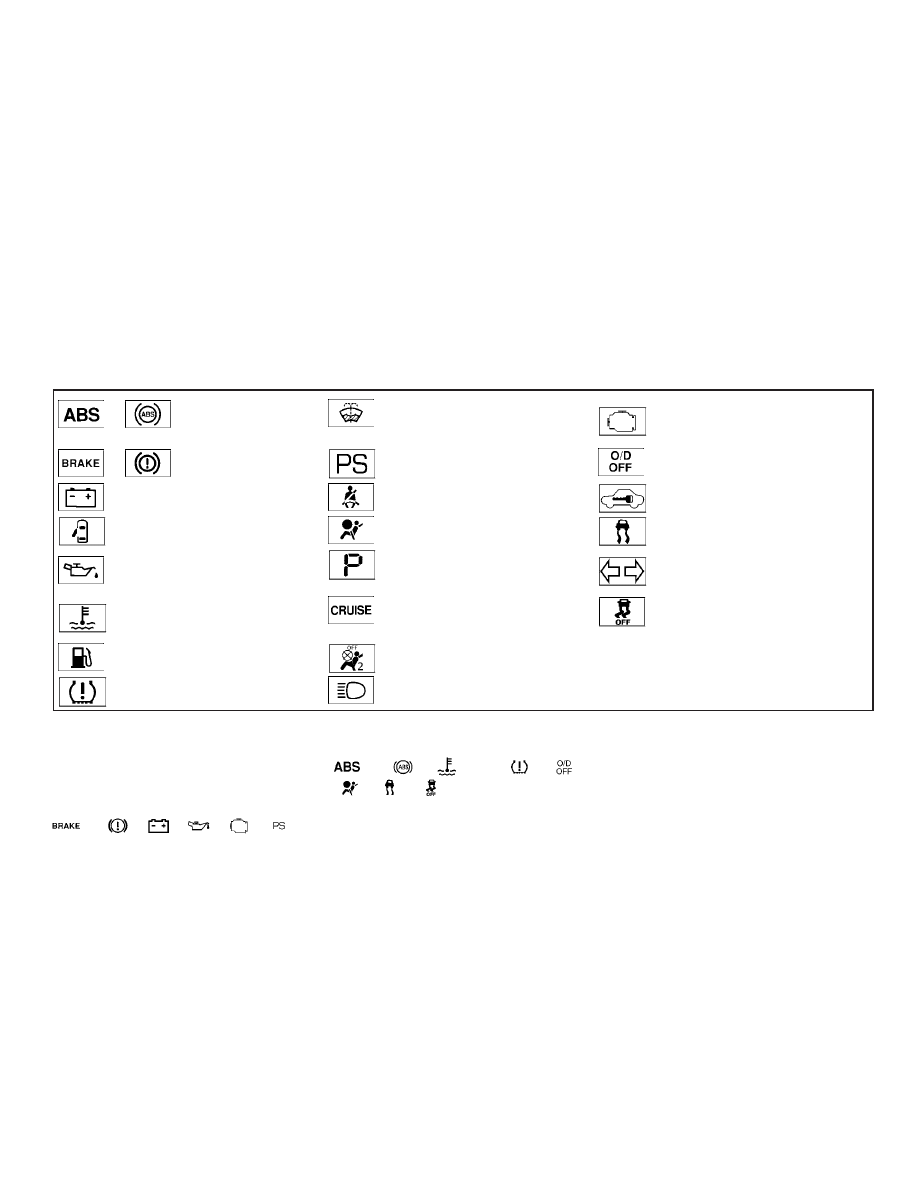

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) come
on briefly and then go off:

(red) ,

If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

Instruments and controls

2-9

WARNING LIGHTS

This vehicle has various warning lights that
may illuminate to indicate a potential prob-
lem. For additional information, refer to the
specific light in this section.

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Brake warning

light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.

2. If the brake fluid level is correct, have

the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.

WARNING

∙ Your brake system may not be work-

ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for repairs.
Otherwise, have your vehicle towed
because

driving

could

dangerous.

∙ Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

∙ If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the ABS warning
light illuminate, it may indicate the ABS is
not functioning properly. Have the brake
system checked and, if necessary, repaired.

2-10

Instruments and controls

It is recommended that you visit a NISSAN
dealer for this service. Avoid high-speed
driving and abrupt braking. For additional
information, refer to “Anti-lock Braking Sys-
tem (ABS) warning light” in this section.

Charge warning light

If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the generator belt. If
the belt is loose, broken, missing, or if the
light remains on, have the system checked.
It is recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ Do not ground electrical accessories

directly to the battery terminal. Doing
so will bypass the variable voltage
control system and the vehicle bat-
tery may not charge completely. For
additional information, refer to “Vari-
able voltage control system” in the
“Do-it-yourself ”

section

this

manual.

∙ Do not continue driving if the genera-

tor belt is loose, broken or missing.

Door open warning light

This light comes on when any of the doors
are not closed securely while the ignition
switch is placed in the ON position.

Engine oil pressure

warning light

This light warns of low engine oil pressure. If
the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine immediately and call a
NISSAN dealer or other authorized repair
shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. For
additional information, refer to “Engine oil”
in the “Do-it-yourself ” section of this
manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by the NISSAN New Vehicle Limited
Warranty. Turn off the engine as soon as
it is safe to do so.

High temperature warning

light (red)

When the ignition switch is placed in the ON
position, the high temperature warning
light illuminates and then turns off. This in-
dicates that the high temperature sensor
in the engine coolant system is opera-
tional.

CAUTION

If the high temperature warning light
illuminates while the engine is running,
it may indicate the engine temperature
is extremely high. Stop the vehicle
safely as soon as possible. If the vehicle
is overheated, continuing vehicle op-
eration may seriously damage the en-
gine. For additional information, refer
to “If your vehicle overheats” in the “In
case of emergency” section of this
manual.

Low fuel warning light

This light comes on when the fuel level in
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
fuel gauge reaches 0 (Empty). There will be
a small reserve of fuel in the tank when
the fuel gauge reaches 0 (Empty).

Instruments and controls

2-11

Content .. 3 4 5 6 ..
