Nissan Murano Hybrid (2016 year). Manual

Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.

1. Use Smooth Accelerator and Brake

Pedal Application

● Avoid rapid starts and stops.
● Use smooth, gentle accelerator and

brake application whenever possible.

● Maintain constant speed while commut-

ing and coast whenever possible.

2. Maintain Constant Speed

● Look ahead to try and anticipate and mini-

mize stops.

● Synchronizing your speed with traffic

lights allows you to reduce your number
of stops.

● Maintaining a steady speed can minimize

red light stops and improve fuel effi-
ciency.

3. Use Air Conditioning (A/C) at Higher

Vehicle Speeds

● Below 40 mph (64 km/h), it is more effi-

cient to open windows to cool the vehicle
due to reduced engine load.

● Above 40 mph (64 km/h), it is more effi-

cient to use A/C to cool the vehicle due to
increased aerodynamic drag.

● Recirculating the cool air in the cabin

when the A/C is on reduces cooling load.

4. Drive at Economical Speeds and Dis-

tances

● Observing the speed limit and not ex-

ceeding 60 mph (97 km/h) (where legally
allowed) can improve fuel efficiency due
to reduced aerodynamic drag.

● Maintaining a safe following distance be-

hind other vehicles reduces unnecessary
braking.

● Safely monitoring traffic to anticipate

changes in speed permits reduced brak-
ing and smooth acceleration changes.

● Select a gear range suitable to road con-

ditions.

5. Use Cruise Control

● Using cruise control during highway driv-

ing helps maintain a steady speed.

● Cruise control is particularly effective in

providing fuel savings when driving on flat
terrains.

6. Plan for the Shortest Route

● Utilize a map or navigation system to de-

termine the best route to save time.

7. Avoid Idling

● Shutting off your engine when safe for

stops exceeding 30–60 seconds saves
fuel and reduces emissions.

8. Buy an Automated Pass for Toll Roads

● Automated passes permit drivers to use

special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.

9. Winter Warm Up

● Limit idling time to minimize impact to fuel

economy.

● Vehicles typically need no more than

30 seconds of idling at start-up to effec-
tively circulate the engine oil before driv-
ing.

● Your vehicle will reach its ideal operating

temperature more quickly while driving
versus idling.

FUEL EFFICIENT DRIVING TIPS

5-78

Starting and driving

10. Keeping your Vehicle Cool

● Park your vehicle in a covered parking

area or in the shade whenever possible.

● When entering a hot vehicle, opening the

windows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system.

● Keep your engine tuned up.
● Follow the recommended scheduled main-

tenance.

● Keep the tires inflated to the correct pres-

sure. Low tire pressure increases tire wear
and lowers fuel economy.

● Keep all the wheels in correct alignment.

Improper alignment increases tire wear and
lowers fuel economy.

● Use the recommended viscosity engine oil.

For additional information, refer to “Engine
oil and oil filter recommendations” in the
“Technical and consumer information” sec-
tion of this manual.

If any malfunction occurs in the AWD system
while the engine is running, messages are dis-
played in the meter.

INCREASING FUEL ECONOMY

ALL-WHEEL DRIVE (AWD) (if so
equipped)

Starting and driving

5-79

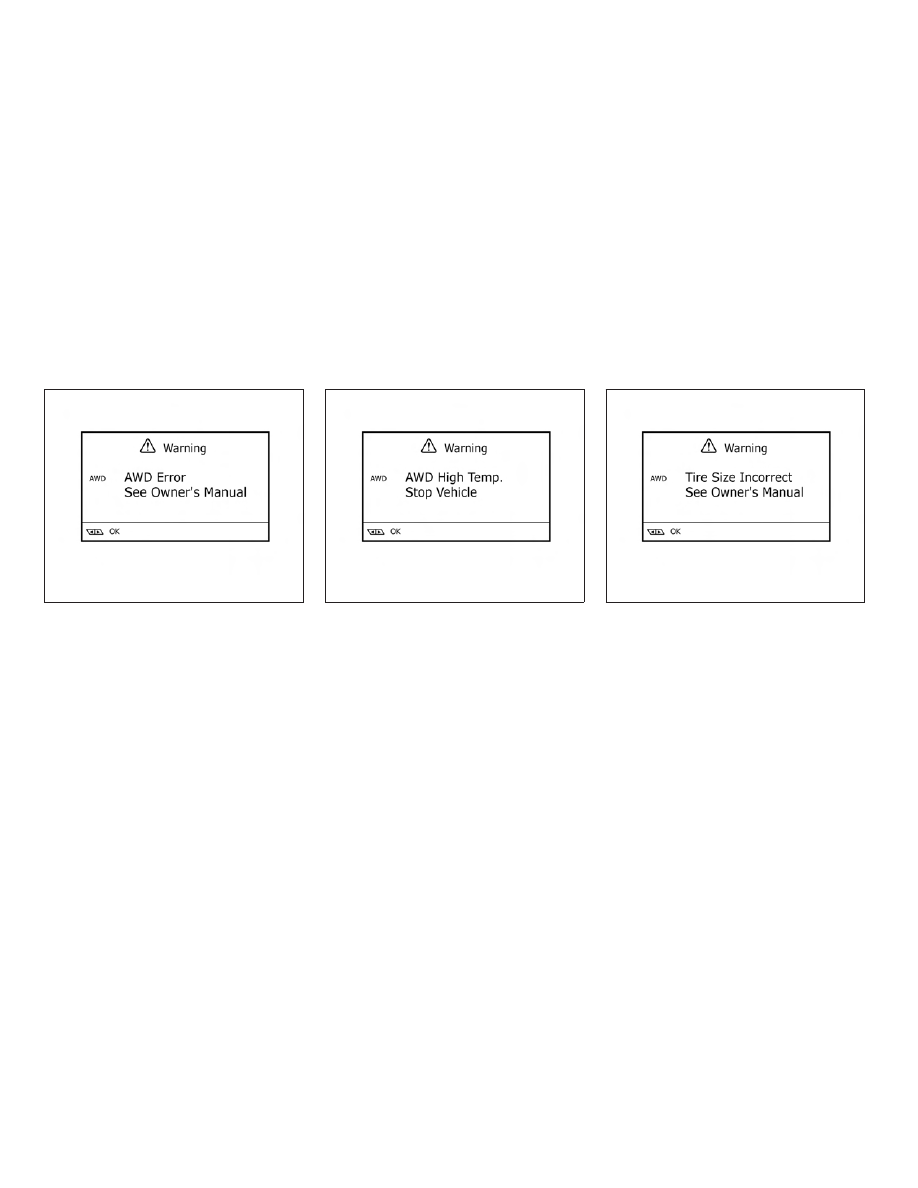

If the AWD error warning message is displayed,
there may be a malfunction in the AWD system.
Reduce vehicle speed and have your vehicle
checked. It is recommended that you visit a
NISSAN dealer as soon as possible.

The AWD high temperature message may be
displayed while trying to free a stuck vehicle due
to increased oil temperature. The driving mode
may change to 2-wheel drive. If this message is
displayed, stop the vehicle with the engine idling,
as soon as it is safe to do so. Then if the message
turns off, you can continue driving.

The tire size message may be displayed if there is
a large difference between the diameters of front
and rear wheels. Pull off the road in a safe area,
with the engine idling. Check that all tire sizes are
the same, that the tire pressure is correct and that
the tires are not excessively worn.

If any warning messages continue to be dis-
played, have your vehicle checked. It is recom-
mended that you visit a NISSAN dealer as soon
as possible.

LSD2528

LSD2529

LSD2530

5-80

Starting and driving

WARNING

● Do not drive beyond the performance

capability of the tires. Accelerating
quickly, sharp steering maneuvers or
sudden braking may cause loss of con-
trol, even with AWD engaged.

● For AWD equipped vehicles, do not at-

tempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result in
drivetrain damage or unexpected ve-
hicle movement which could result in
serious

personal

injury

vehicle

damage.

● Do not attempt to test an AWD equipped

vehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing) or similar
equipment even if the other two wheels
are raised off the ground. Make sure that
you inform the test facility personnel that
your vehicle is equipped with AWD be-
fore it is placed on a dynamometer. Using
the wrong test equipment may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
personal injury or vehicle damage.

CAUTION

● Do not operate the engine on a free

roller when any of the wheels are
raised.

● If you use the free roller, rotate four

wheels with the same speed without
raising any wheels.

● If an AWD warning message is dis-

played while driving there may be a
malfunction in the AWD system. Reduce
the vehicle speed immediately and have
your vehicle checked. It is recom-
mended that you visit a NISSAN dealer
as soon as possible.

● The powertrain may be damaged if you

continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed

● If the AWD high temperature message

is displayed while you are driving, pull
off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again.

● If the tire size incorrect message is dis-

played while you are driving, pull off the
road in a safe area with the engine
idling. Check that all tire sizes are the
same, that the tire pressure is correct
and that the tires are not excessively
worn.

● If a warning message continues to be

displayed after the above operations,
have your vehicle checked as soon as
possible. It is recommended that you
visit a NISSAN dealer for this service.

Starting and driving

5-81

WARNING

● Do not stop or park the vehicle over

flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.

● Safe parking procedures require that

both the parking brake be set and the
transmission placed into P (Park). Fail-
ure to do so could cause the vehicle to
move unexpectedly or roll away and re-
sult in an accident. Make sure the shift
lever has been pushed as far forward as
it can go and cannot be moved without
depressing the foot brake pedal.

● Never leave the engine running while

the vehicle is unattended.

● To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.

1. Firmly apply the parking brake.

2. Move the shift lever to the P (Park) position.

3. To help prevent the vehicle from rolling into

traffic when parked on an incline, it is a good
practice to turn the wheels as illustrated.

● HEADED DOWNHILL WITH CURB:

䊊

Turn the wheels into the curb and move the
vehicle forward until the curb side wheel
gently touches the curb.

● HEADED UPHILL WITH CURB:

䊊

Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.

● HEADED UPHILL OR DOWNHILL, NO

CURB:

䊊

Turn the wheels toward the side of the road
so the vehicle will move away from the cen-
ter of the road if it moves.

4. Place the ignition switch in the LOCK posi-

tion.

WSD0050

PARKING/PARKING ON HILLS

5-82

Starting and driving

WARNING

● If the hybrid system is not running or is

turned off while driving, the power as-
sist for the steering will not work. Steer-
ing will be harder to operate

● When the power steering warning light

illuminates with the hybrid system run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

The power steering system is designed to pro-
vide power assist while driving to operate the
steering wheel with light force.

When the steering wheel is operated repeatedly
or continuously while parking or driving at a very
low speed, the power assist for the steering
wheel will be reduced. This is to prevent over-
heating of the power steering system and protect
it from getting damaged. While the power assist
is reduced, steering wheel operation will become
heavy. If the steering wheel operation is still per-
formed, the power steering may stop and the
power steering warning light will illuminate. In a
safe location, stop the hybrid system and push

the ignition switch to the OFF position. The tem-
perature of the power steering system will go
down after a period of time and the power assist
level will return to normal after starting the hybrid
system. The power steering warning light will go
off. Avoid repeating such steering wheel opera-
tions that could cause the power steering system
to overheat.

You may hear a noise from the front of the vehicle
when the steering wheel is operated. This is a
normal operational noise and is not a malfunction.

If the electric power steering warning light PS
illuminates while the hybrid system is running, it
may indicate the power steering system is not
functioning properly and may need servicing.
Have the power steering system checked. It is
recommended that you visit a NISSAN dealer for
this service.

When the electric power steering warning light
illuminates with the hybrid system running, there
will be no power assist for the steering but you
will still have control of the vehicle. At this time,
greater steering effort is required to operate the
steering wheel, especially in sharp turns and at
low speeds.

For additional information, refer to “Power steer-
ing warning light” in the “Instruments and con-
trols” section of this manual.

The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.

BRAKE PRECAUTIONS

Vacuum assisted brakes

The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and stopping dis-
tance will be longer.

Using the brakes

Avoid resting your foot on the brake pedal while
driving. This will overheat the brakes, wear out the
brake pads faster, and reduce gas mileage.

To help reduce brake wear and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.

POWER STEERING

BRAKE SYSTEM

Starting and driving

5-83

WARNING

● While driving on a slippery surface, be

careful when braking, accelerating or
downshifting. Abrupt braking or accel-
erating could cause the wheels to skid
and result in an accident.

● If the engine is not running or is turned

off while driving, the power assist for
the brakes will not work. Braking will be
harder.

Wet brakes

When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.

To dry the brakes, drive the vehicle at a safe
speed while lightly pressing the brake pedal to
heat up the brakes. Do this until the brakes return
to normal. Avoid driving the vehicle at high
speeds until the brakes function correctly.

Parking brake break-in

Break-in the parking brake shoes whenever the
effect of the parking brake is weakened or when-
ever

the

parking

brake

shoes

and/or

drums/rotors are replaced, in order to assure the
best braking performance.

This procedure is described in the vehicle service
manual. It is recommended that you visit a
NISSAN dealer for this service.

ANTI-LOCK BRAKING SYSTEM
(ABS)

WARNING

● The ABS is a sophisticated device, but it

cannot prevent accidents resulting from
careless or dangerous driving tech-
niques. It can help maintain vehicle con-
trol during braking on slippery surfaces.
Remember that stopping distances on
slippery surfaces will be longer than on
normal surfaces even with ABS. Stop-
ping distances may also be longer on
rough, gravel or snow covered roads, or
if you are using tire chains. Always
maintain a safe distance from the ve-
hicle in front of you. Ultimately, the
driver is responsible for safety.

● Tire type and condition may also affect

braking effectiveness.

– When

replacing

tires, install

the

specified size of tires on all four
wheels.

– When installing a spare tire, make

sure that it is the proper size and type
as specified on the Tire and Loading
Information label. For additional in-
formation, refer to “Tire and loading
information label” in the “Technical
and consumer information” section
of this manual.

– For additional information, refer to

“Wheels and tires” in the “Mainte-
nance and do-it-yourself” section of
this manual.

The ABS controls the brakes so the wheels do
not lock during hard braking or when braking on
slippery surfaces. The system detects the rota-
tion speed at each wheel and varies the brake
fluid pressure to prevent each wheel from locking
and sliding. By preventing each wheel from lock-
ing, the system helps the driver maintain steering
control and helps to minimize swerving and spin-
ning on slippery surfaces.

Using the system

Depress the brake pedal and hold it down. De-
press the brake pedal with firm steady pressure,
but do not pump the brakes. The ABS will oper-
ate to prevent the wheels from locking up. Steer
the vehicle to avoid obstacles.

5-84

Starting and driving

WARNING

Do not pump the brake pedal. Doing so
may

result

increased

stopping

distances.

Self-test feature

The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer. The
computer has a built-in diagnostic feature that
tests the system each time you start the hybrid
system and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a pulsa-
tion in the brake pedal. This is normal and does
not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off and
illuminates the ABS warning light on the instru-
ment panel. The brake system then operates
normally, but without anti-lock assistance.

If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended that you visit a
NISSAN dealer for this service.

Normal operation

The ABS operates at speeds above 3 - 6 mph (5
- 10 km/h). The speed varies according to road
conditions.

When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly ap-
plies and releases hydraulic pressure. This action
is similar to pumping the brakes very quickly. You
may feel a pulsation in the brake pedal and hear a
noise from under the hood or feel a vibration from
the actuator when it is operating. This is normal
and indicates that the ABS is operating properly.
However, the pulsation may indicate that road
conditions are hazardous and extra care is re-
quired while driving.

BRAKE ASSIST

When the force applied to the brake pedal ex-
ceeds a certain level, the brake assist is activated
generating greater braking force than a conven-
tional brake booster even with light pedal force.

WARNING

The brake assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. it is the driv-
ers responsibility to stay alert, drive safely
and be in control of the vehicle at all times.

The VDC system uses various sensors to monitor
driver inputs and vehicle motion. Under certain
driving conditions, the VDC system helps to per-
form the following functions:

● Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.

● Controls brake pressure and engine output

to reduce drive wheel slip based on vehicle
speed (traction control function).

● Controls brake pressure at individual wheels

and engine output to help the driver maintain
control of the vehicle in the following condi-
tions:

– understeer (vehicle tends to not follow

the steered path despite increased steer-
ing input)

– oversteer (vehicle tends to spin due to

certain road or driving conditions)

The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss of
vehicle control in all driving situations.

VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM

Starting and driving

5-85

When the VDC system operates, the

indi-

cator in the instrument panel flashes so note the
following:

● The road may be slippery or the system may

determine some action is required to help
keep the vehicle on the steered path.

● You may feel a pulsation in the brake pedal

and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.

● Adjust your speed and driving to the road

conditions.

For additional information, refer to “Slip indicator
light” and “Vehicle Dynamic Control (VDC) OFF
indicator light” in the “Instruments and controls”
section of this manual.

If a malfunction occurs in the system, the
and

indicator lights come on in the instru-

ment panel. The VDC system automatically turns
off when these indicator lights are on.
The VDC OFF switch is used to turn off the VDC
system. The

indicator illuminates to indi-

cate the VDC system is off.
When the VDC switch is used to turn off the
system, the VDC system still operates to prevent
one drive wheel from slipping by transferring
power to a non slipping drive wheel. The

indicator flashes if this occurs. All other VDC
functions are off and the

indicator will not

flash.
The VDC system is automatically reset to on
when the ignition switch is placed in the OFF
position then back to the ON position.

The computer has a built in diagnostic feature
that tests the system each time you start the
hybrid system and move the vehicle forward or in
reverse at a slow speed. When the self-test oc-
curs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and is
not an indication of a malfunction.

WARNING

● The VDC system is designed to help the

driver maintain stability but does not
prevent accidents due to abrupt steer-
ing operation at high speeds or by care-
less or dangerous driving techniques.
Reduce vehicle speed and be especially
careful when driving and cornering on
slippery

surfaces

and

always

drive

carefully.

● Do not modify the vehicle’s suspension.

If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not NISSAN
recommended for your vehicle or are
extremely deteriorated, the VDC system
may not operate properly. This could
adversely affect vehicle handling per-
formance, and the

indicator may

flash or both the

and

indica-

tor lights may illuminate.

● If brake related parts such as brake

pads,

rotors

and

calipers

are

not

NISSAN recommended or are extremely
deteriorated, the VDC system may not
operate properly and both the
and

the

indicator

lights

may

illuminate.

● If engine control related parts are not

NISSAN recommended or are extremely

deteriorated, both the

and

indicator lights may illuminate.

5-86

Starting and driving

● When driving on extremely inclined sur-

faces such as higher banked corners,
the VDC system may not operate prop-
erly and the

indicator may flash or

both

the

and

indicator

lights may illuminate. Do not drive on
these types of roads.

● When driving on an unstable surface

such as a turntable, ferry, elevator or
ramp, the

indicator may flash or

both

the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the hybrid system af-
ter driving onto a stable surface.

● If wheels or tires other than the NISSAN

recommended ones are used, the VDC
system may not operate properly and
the

indicator may flash or both

the

and

indicator lights may

illuminate.

● The VDC system is not a substitute for

winter tires or tire chains on a snow
covered road.

RISE-UP AND BUILD-UP

The system gradually adjusts braking power dur-
ing normal braking to help provide an enhanced
brake feel.

BRAKE FORCE DISTRIBUTION

During braking while driving through turns, the
system optimizes the distribution of force to each
of the four wheels depending on the radius of the
turn.

WARNING

● The VDC system is designed to help the

surfaces

and

always

drive

carefully.

● Do not modify the vehicle’s suspension.

indicator may

flash or both the

and

indica-

tor lights may illuminate.

● If brake related parts such as brake

pads,

rotors

and

calipers

are

not

NISSAN recommended or are extremely
deteriorated, the VDC system may not
operate properly and both the
and

the

indicator

lights

may

illuminate.

● If engine control related parts are not

NISSAN recommended or are extremely

deteriorated, both the

and

indicator lights may illuminate.

Starting and driving

5-87

● When driving on extremely inclined sur-

faces such as higher banked corners,
the VDC system may not operate prop-
erly and the

indicator may flash or

both

the

and

indicator

lights may illuminate. Do not drive on
these types of roads.

● When driving on an unstable surface

such as a turntable, ferry, elevator or
ramp, the

indicator may flash or

both

the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the hybrid system af-
ter driving onto a stable surface.

● If wheels or tires other than the NISSAN

recommended ones are used, the VDC
system may not operate properly and
the

indicator may flash or both

the

and

indicator lights may

illuminate.

● The VDC system is not a substitute for

winter tires or tire chains on a snow
covered road.

WARNING

● Never rely solely on the Hill Start Assist

system to prevent the vehicle from mov-
ing backward on a hill. Always drive
carefully and attentively. Depress the
brake pedal when the vehicle is stopped
on a steep hill. Be especially careful
when stopped on a hill on frozen or
muddy roads. Failure to prevent the ve-
hicle from rolling backwards may result
in a loss of control of the vehicle and
possible serious injury or death.

● The Hill Start Assist system is not de-

signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Failure to do so may cause the vehicle
to roll backwards and may result in a
collision or serious personal injury.

● The Hill Start Assist may not prevent the

vehicle from rolling backwards on a hill
under all load or road conditions. Al-
ways be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result
in a collision or serious personal injury.

When the vehicle is stopped on a hill, the Hill
Start Assist system automatically keeps the
brakes applied. This helps prevent the vehicle
from rolling backward in the time it takes the
driver to release the brake pedal and apply the
accelerator.
Hill Start Assist will operate automatically under
the following conditions:

● The shift lever is shifted to a forward or

reverse gear.

● The vehicle is stopped completely on a hill

by applying the brake.

● The hill grade is above 10%.

The maximum holding time is two seconds. After
two seconds the vehicle will begin to roll back
and Hill Start Assist will stop operating com-
pletely.

Hill Start Assist will not operate when the shift
lever is shifted into N (Neutral) or P (Park) or on a
flat and level road.

HILL START ASSIST SYSTEM

5-88

Starting and driving

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply de-
icer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the key
hole, or use the NISSAN Intelligent Key®.

ANTIFREEZE

In the winter when it is anticipated that the tem-
perature will drop below 32°F (0°C), check the
antifreeze to assure proper winter protection. For
additional information, refer to “Engine cooling
system” in the “Maintenance and do-it-yourself”
section of this manual.

BATTERY

If the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain maxi-
mum efficiency, the battery should be checked
regularly. For additional information, refer to “Bat-
tery” in the “Maintenance and do-it-yourself” sec-
tion of this manual.

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For additional information, refer to “Changing

engine coolant” in the “Maintenance and do-it-
yourself” section of this manual.

TIRE EQUIPMENT

1. SUMMER tires have a tread designed to

provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve-
hicle on snowy or icy roads, NISSAN recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. It is
recommended you consult a NISSAN dealer
for the tire type, size, speed rating and avail-
ability information.

2. For additional traction on icy roads, studded

tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.

Skid and traction capabilities of stud-
ded snow tires on wet or dry surfaces
may be poorer than that of non-
studded snow tires.

3. Tire chains may be used. For additional in-

formation, refer to “Tire chains” in the “Main-
tenance and do-it-yourself” section of this
manual.

SPECIAL WINTER EQUIPMENT

It is recommended that the following items be
carried in the vehicle during winter:

● A scraper and stiff-bristled brush to remove

ice and snow from the windows and wiper
blades.

● A sturdy, flat board to be placed under the

jack to give it firm support.

● A shovel to dig the vehicle out of snowdrifts.
● Extra washer fluid to refill the windshield-

washer fluid reservoir.

DRIVING ON SNOW OR ICE

WARNING

● Wet ice (32°F, 0°C and freezing rain),

very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded.

● Whatever the condition, drive with cau-

tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even
more traction.

COLD WEATHER DRIVING

Starting and driving

5-89

● Allow more stopping distance under

these conditions. Braking should be
started sooner than on dry pavement.

● Allow greater following distances on

slippery roads.

● Watch for slippery spots (glare ice).

These may appear on an otherwise
clear road in shaded areas. If a patch of
ice is seen ahead, brake before reach-
ing it. Try not to brake while on the ice,
and

avoid

any

sudden

steering

maneuvers.

● Do not use the cruise control on slip-

pery roads.

● Snow can trap dangerous exhaust

gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.

This system uses microphones

䊊

located inside

the vehicle to detect engine booming noise. The
system then automatically generates a noise can-
celling sound through the speakers and woofer (if
so equipped) to reduce engine booming noise.

NOTE:

To operate the active noise cancellation
system properly:

● Do not cover the speakers or woofer (if so

equipped).

● Do not cover the microphones.

Front Microphone

LSD2157

Rear Microphone

LSD2602

ACTIVE NOISE CANCELLATION

5-90

Starting and driving

Nissan Murano Hybrid (2016 year). Manual - part 20
