Nissan Micra (2018 year). Manual

䊊

Low (LO) — continuous low speed op-
eration

䊊

High (HI) — continuous high speed op-
eration

Push the lever up

䊊

to have one sweep

operation (MIST) of the wiper.

Pull the lever toward you

䊊

to operate the

washer. The wiper will also operate several
times.

REAR SWITCH OPERATION

The rear window wiper and washer oper-
ate when the ignition switch is placed in the
ON position.

Turn the switch clockwise from the OFF
position to operate the wiper.

䊊

Intermittent (INT) – intermittent opera-
tion (not adjustable)

䊊

ON – continuous low speed operation

Push the switch forward

䊊

to operate the

washer. The wiper will also operate several
times.

WARNING

In freezing temperatures the washer
solution may freeze on the window and
obscure your vision. Warm the rear win-
dow with the defroster before you wash
the rear window.

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

LIC3101

Instruments and controls

2-17

∙ Pre-mix windshield-washer fluid con-

centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

To defrost the rear window glass and out-
side mirrors (if so equipped), start the en-
gine and push the rear window defroster
switch on. The rear window defroster indi-
cator light on the switch comes on. Push
the switch again to turn the defroster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come
on.

䊊

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

LIC2116

LIC3237

REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

2-18

Instruments and controls

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Headlight beam select

䊊

To select the high beam function, en-
gage the low beams, then push the
lever forward. The high beam lights
come on and the

indicator light

illuminates (blue). For additional infor-
mation, refer to “Headlight control
switch” in this section.

䊊

Pull the lever back to return to the low
beams.

䊊

Pulling and releasing the lever flashes
the headlight high beams on and off.
The low beams need not be on for this
function.

Battery saver system

If the ignition switch is placed in the OFF
position while the headlight switch is in

the

position, the headlights

will turn off after a period of time.

CAUTION

Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.

DAYTIME RUNNING LIGHTS (DRL)
SYSTEM

The headlights automatically illuminate at
a reduced intensity when the engine is
started with the parking brake released.
The Daytime Running Lights (DRL) operate
with the headlight switch in the OFF posi-
tion. Turn the headlight switch to the
or

position for full illumination when

driving at night.

LIC3245

Instruments and controls

2-19

If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate when the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.

WARNING

When the DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

INSTRUMENT BRIGHTNESS
CONTROL

The instrument brightness control oper-
ates when the headlight control switch is in

the

position.

Push the control

䊊

to adjust the bright-

ness of instrument panel lights when driv-
ing at night.

When the ignition is on and the knob is
pushed, the illumination decreases. The
brightness will return to the maximum
level when the brightness is at its minimum
and the knob is pushed.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.

LIC3430

LIC3254

2-20

Instruments and controls

NOTE:

In case of a turn signal light malfunction,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.

Lane change signal

䊊

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

FRONT FOG LIGHTS (if so
equipped)

To turn the front fog lights on, rotate the

headlight switch to the

posi-

tion, then rotate the fog light switch to
the

position.

To turn them off, rotate the fog light switch
to the OFF position.

To sound the horn, push near the horn icon
on the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

LIC3262

LIC2419

HORN

Instruments and controls

2-21

The vehicle should be driven with the VDC
system on for most driving conditions.

If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.

To turn off the VDC system, push the VDC
OFF switch. The

indicator will come

on.

Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in the “Start-
ing and driving” section of this manual.

The power outlet is for powering electrical
accessories such as cellular telephones.
The outlet is rated at 12 volt, 120W (10A)
maximum.

CAUTION

∙ The outlet and plug may be hot during

or immediately after use.

∙ Only certain power outlets are de-

signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. For addi-
tional information, it is recommended
that you visit a NISSAN dealer.

LIC3344

LIC2715

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

POWER OUTLET

2-22

Instruments and controls

∙ Do not use with accessories that ex-

ceed a 12 volt, 120W (10A) power draw.

∙ Do not use double adapters or more

than one electrical accessory.

∙ Use power outlets with the engine

running to avoid discharging the ve-
hicle battery.

∙ Avoid using power outlets when the

air conditioner (if so equipped), head-
lights or rear window defroster (if so
equipped) is on.

∙ Before inserting or disconnecting a

plug, be sure the electrical accessory
being used is turned OFF.

∙ Push the plug in as far as it will go. If

good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

∙ When not in use, be sure to close the

cap. Do not allow water or any other
liquid to contact the outlet.

FRONT-DOOR POCKETS

STORAGE TRAY (if so equipped)

WARNING

Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.

LIC2426

Storage compartment

LIC2113

STORAGE

Instruments and controls

2-23

GLOVE BOX

Open the glove box by pulling the handle.

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

CUP HOLDERS

WARNING

Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.

CAUTION

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

LIC2160

Front

LIC2743

Rear

LIC3431

2-24

Instruments and controls

Soft bottle holder

CAUTION

∙ Do not use bottle holder for any other

objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.

∙ Do not use bottle holder for open liq-

uid containers.

CARGO COVER (if so equipped)

WARNING

∙ Never put anything on the cargo

cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or a sudden stop.

∙ Do not put objects heavier than 20 kg

(44 lbs) on the cargo cover for long
periods of time.

∙ Do not leave the cargo cover in the

vehicle with it disengaged from the
holder.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ Properly secure cargo and do not al-

low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.

The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.

Front

LIC2788

Instruments and controls

2-25

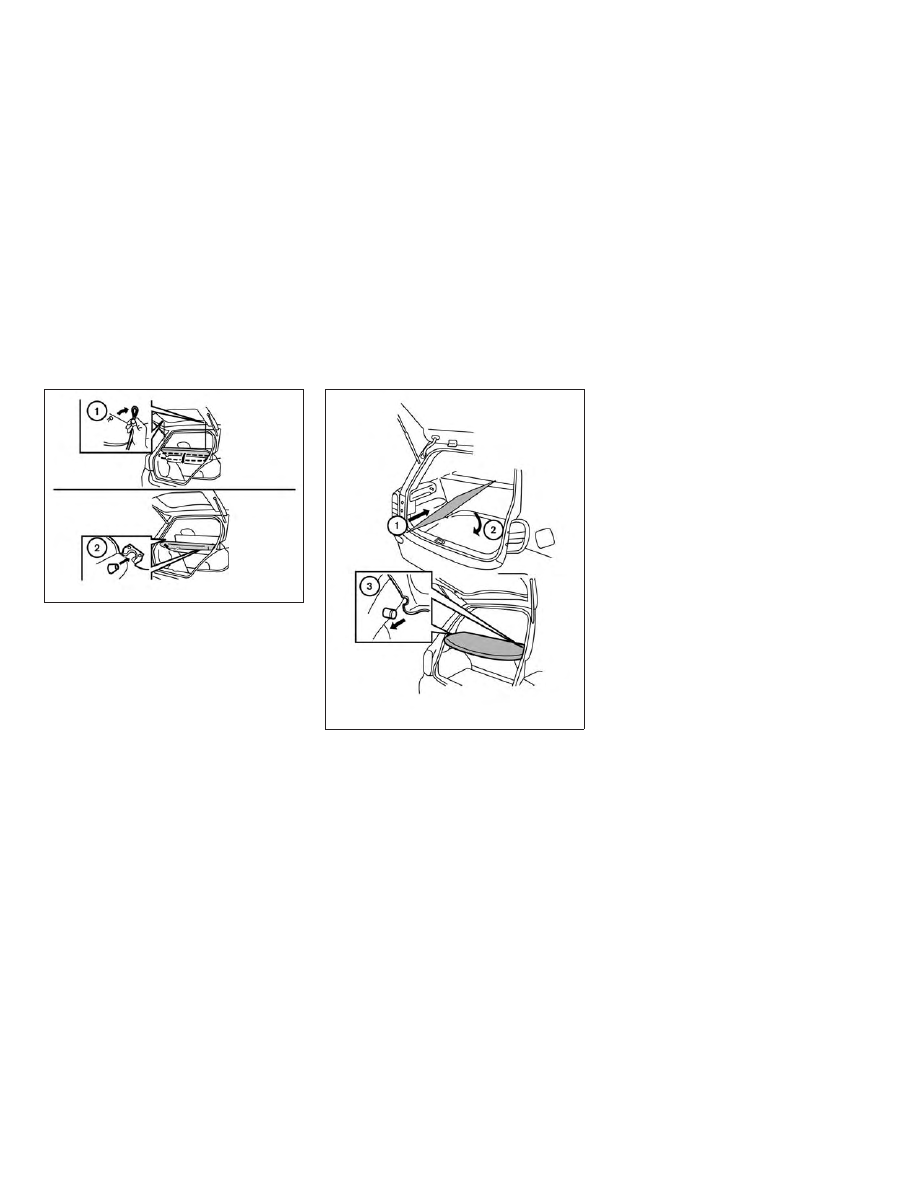

To remove the cargo cover:

䊊

Remove the straps from the rear
hatch.

䊊

Remove the cargo cover holders from
the rear pillar.

Rotate and remove the cargo cover with-
out touching surrounding parts.

To insert the cargo cover:

1. Insert cargo cover

䊊

rotating it so it

doesn’t touch surrounding parts.

2. Rotate the cargo cover

䊊

parallel over

the cargo area.

3. Insert cargo cover

䊊

on the rear pillars.

4. Reattach the straps to the rear hatch.

LIC3349

LIC2774

2-26

Instruments and controls

MANUAL WINDOWS (if so
equipped)

The side windows can be opened or closed
by turning the hand crank on each door.

POWER WINDOWS (if so equipped)

WARNING

∙ Make sure that all passengers have

their hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

The power windows operate when the ig-
nition switch is placed in the ON position, or
for a period of time after the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.

Window lock button

Power door lock switch

Front passenger’s side window
switch

Right rear passenger’s window
switch

Left rear passenger’s window
switch

Driver’s side automatic switch

Driver’s side power window
switch

The driver’s side control panel is equipped
with switches to open or close the front
and rear passenger windows.

LIC3352

WIC1100

WINDOWS

Instruments and controls

2-27

To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.

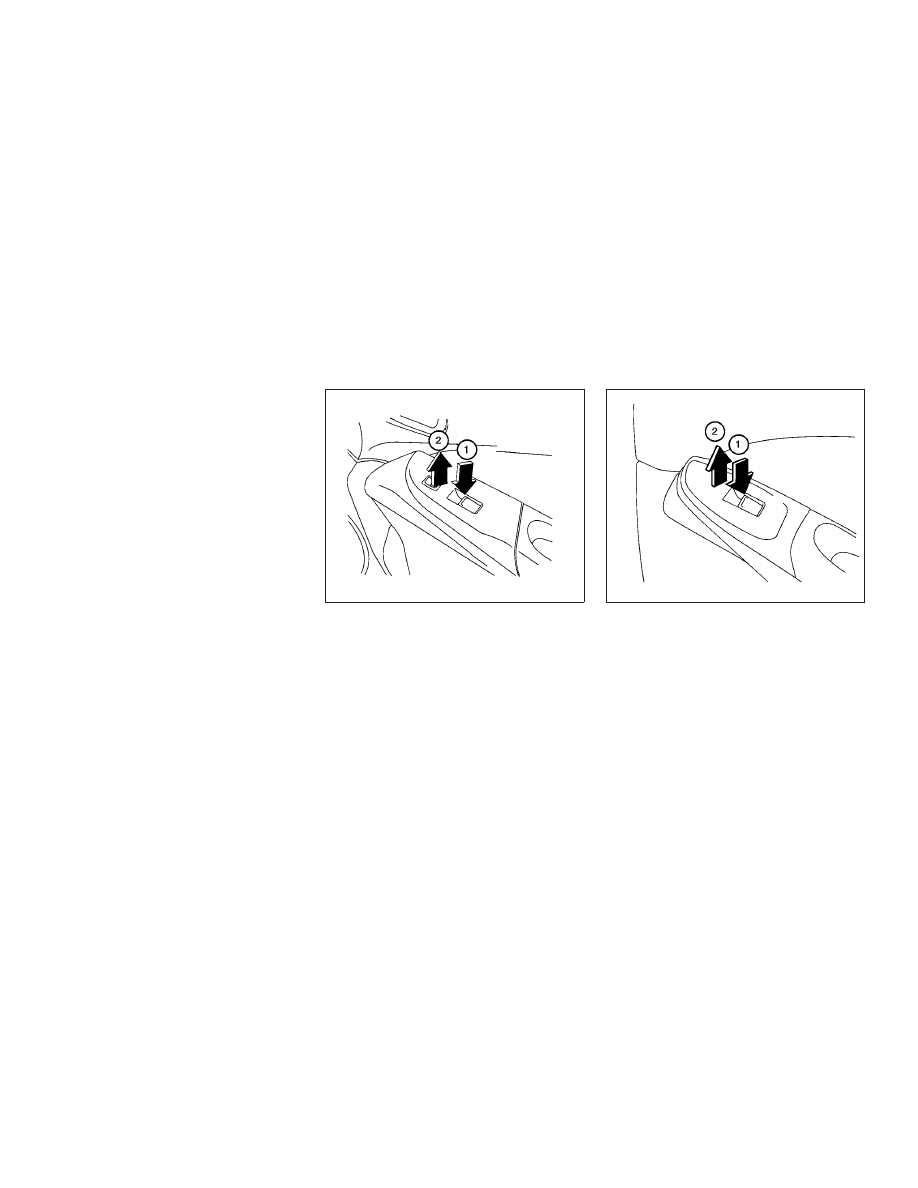

Front passenger’s power window
switch

The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down

䊊

. To close the window,

pull the switch up

䊊

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

䊊

. To close the window, pull the

switch up

䊊

Locking passengers’ windows

When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.

WIC0260

WIC0261

2-28

Instruments and controls

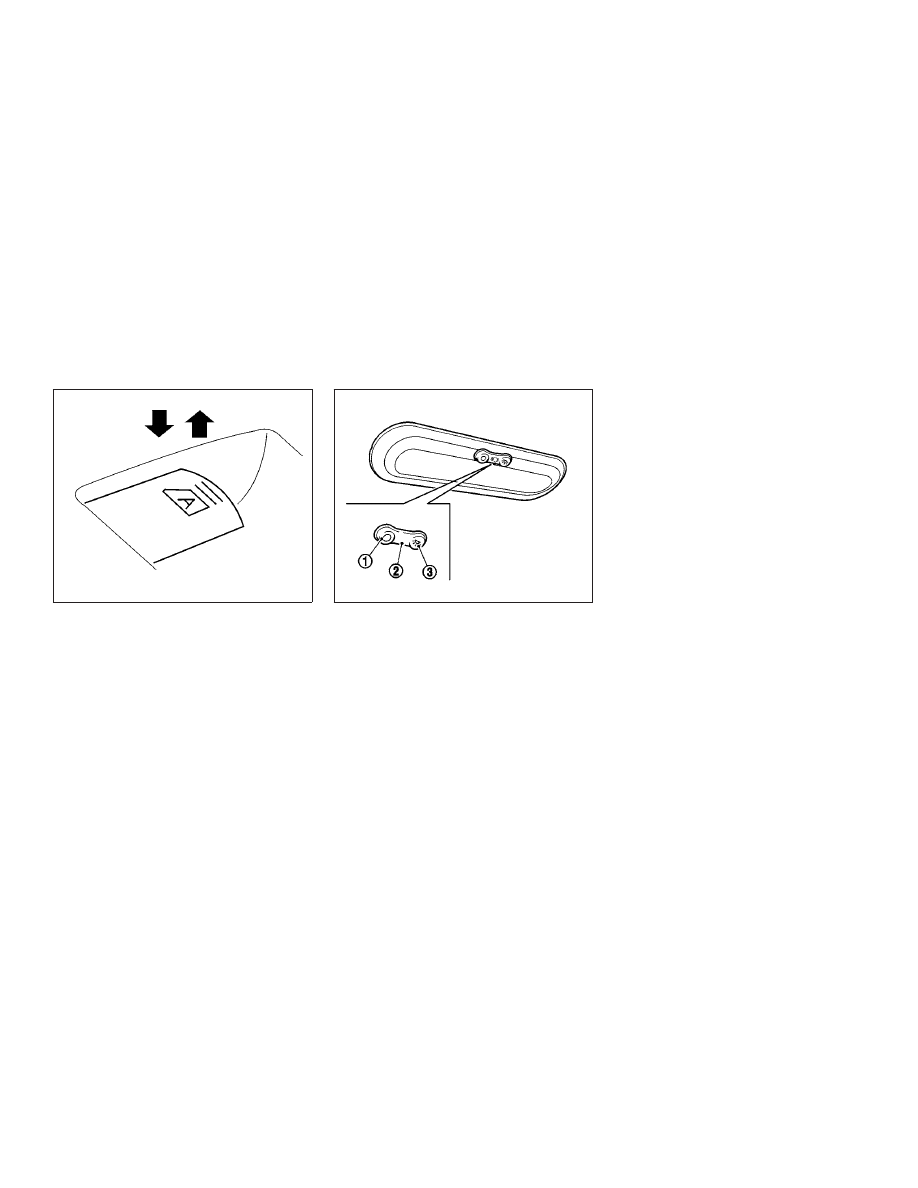

Automatic operation

To fully open a window equipped with au-
tomatic

operation,

push

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

The interior light has a three-position
switch and operates regardless of ignition
switch position.

When the switch is in the ON position

䊊

the interior lights illuminate, regardless of
door position. The lights will go off after a
period of time unless the ignition switch is
placed in the ACC or ON position (if so
equipped).

When the switch is in the DOOR position

䊊

the interior lights will stay on for a period of
time when:

∙ The doors are unlocked by the key fob, a

key or the power door lock switch while
all doors are closed and the ignition
switch is placed in the OFF position.

∙ The driver’s door is opened and then

closed while the key is removed from
the ignition switch.

∙ The key is removed from the ignition

switch while all doors are closed.

The lights will turn off while the timer is
activated when:

∙ The driver’s door is locked by the key

fob, a key, or the power door lock switch.

∙ The ignition switch is placed in the ON

position.

When the switch is in the OFF position

䊊

the interior lights do not illuminate, regard-
less of door position.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

LIC0410

LIC2126

INTERIOR LIGHT

Instruments and controls

2-29

Master key

Transponder chip

Key number plate

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all your keys. If you still have a key,
it can be duplicated without knowing the
key number.

Integrated door lock key fob

Key number plate

CAUTION

Do not leave the ignition key inside the
vehicle when you leave the vehicle.

Type A (if so equipped)

LPD2761

Type B—Remote keyless entry key fob

(if so equipped)

LPD2045

KEYS

3-2

Pre-driving checks and adjustments

Nissan Micra (2018 year). Manual - part 7
