Nissan Cube (2014 year). Manual

8-30

Maintenance and do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-3).

TIRE PRESSURE

Tire Pressure Monitoring System (TPMS)

This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
CHECK TIRE PRES (pressure) warning mes-
sage is displayed in the vehicle information
display, one or more of your tires is significantly
under-inflated.

The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving).

For more details, see “Low tire pressure warning
light” (P.2-14), “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3).

Tire inflation pressure

Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tire

and Loading Information label is affixed to
the driver side center pillar. Tire pressures
should be checked regularly because:
. Most tires naturally lose air over time.
. Tires can lose air suddenly when driven

over potholes or other objects or if the
vehicle strikes a curb while parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.

Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.

WARNING

. Improperly inflated tires can fail

suddenly and cause an accident.

. The Gross Vehicle Weight rating

(GVWR) is located on the F.M.V.
S.S. certification label. The ve-
hicle weight capacity is indi-
cated on the Tire and Loading

Information label. Do not load
your vehicle beyond this capa-
city. Overloading your vehicle
may result in reduced tire life,
unsafe operating conditions due
to premature tire failure, or un-
favorable handling characteris-
tics and could also lead to a
serious accident. Loading be-
yond the specified capacity may
also result in failure of other
vehicle components.

. Before taking a long trip, or

whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

WHEELS AND TIRES

8-30

Maintenance and do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-3).

TIRE PRESSURE

Tire Pressure Monitoring System (TPMS)

The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving).

For more details, see “Low tire pressure warning
light” (P.2-14), “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3).

Tire inflation pressure

over potholes or other objects or if the
vehicle strikes a curb while parking.

Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.

WARNING

. Improperly inflated tires can fail

suddenly and cause an accident.

. The Gross Vehicle Weight rating

(GVWR) is located on the F.M.V.
S.S. certification label. The ve-
hicle weight capacity is indi-
cated on the Tire and Loading

. Before taking a long trip, or

whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

WHEELS AND TIRES

SDI2503

Tire and Loading Information label

Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.

Vehicle load limit: See “Vehicle load-
ing information” (P.9-13).

Original size: The size of the tires
originally installed on the vehicle at the
factory.

Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more

hours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best
balance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.

Tire size — see “Tire labeling” (P.8-
33).

Spare tire size or compact spare tire
size (if so equipped)

Maintenance and do-it-yourself

8-31

SDI2503

Tire and Loading Information label

Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.

Vehicle load limit: See “Vehicle load-
ing information” (P.9-13).

Original size: The size of the tires
originally installed on the vehicle at the
factory.

Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more

Tire size — see “Tire labeling” (P.8-
33).

Spare tire size or compact spare tire
size (if so equipped)

Maintenance and do-it-yourself

8-31

8-32

Maintenance and do-it-yourself

SDI1949

Checking the tire pressure

1. Remove the valve stem cap from the

tire.

2. Press the pressure gauge squarely onto

the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the gauge

stem and compare it to the specifica-

tion shown on the Tire and Loading
Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other tires,

including the spare.

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGI-

NAL TIRE

P195/60R15
87H

230 kPa,
33 PSI

P195/55R16
86V

230 kPa,
33 PSI

REAR

ORIGI-

NAL TIRE

P195/60R15
87H

230 kPa,
33 PSI

P195/55R16
86V

230 kPa,
33 PSI

SPARE

TIRE

T125/70D15

420 kPa,
60 PSI

8-32

Maintenance and do-it-yourself

SDI1949

Checking the tire pressure

1. Remove the valve stem cap from the

tire.

2. Press the pressure gauge squarely onto

3. Remove the gauge.

4. Read the tire pressure on the gauge

stem and compare it to the specifica-

tion shown on the Tire and Loading
Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other tires,

including the spare.

SIZE

COLD

TIRE IN-

FLATION

PRES-

SURE

FRONT

ORIGI-

NAL TIRE

P195/60R15
87H

230 kPa,
33 PSI

P195/55R16
86V

230 kPa,
33 PSI

REAR

ORIGI-

NAL TIRE

P195/60R15
87H

230 kPa,
33 PSI

P195/55R16
86V

230 kPa,
33 PSI

SPARE

TIRE

T125/70D15

420 kPa,
60 PSI

SDI1575

Example

TIRE LABELING

Federal law requires tire manufacturers to
place standardized information on the side-
wall of all tires. This information identifies
and describes the fundamental character-
istics of the tire and also provides the tire
identification number (TIN) for safety stan-
dard certification. The TIN can be used to
identify the tire in case of a recall.

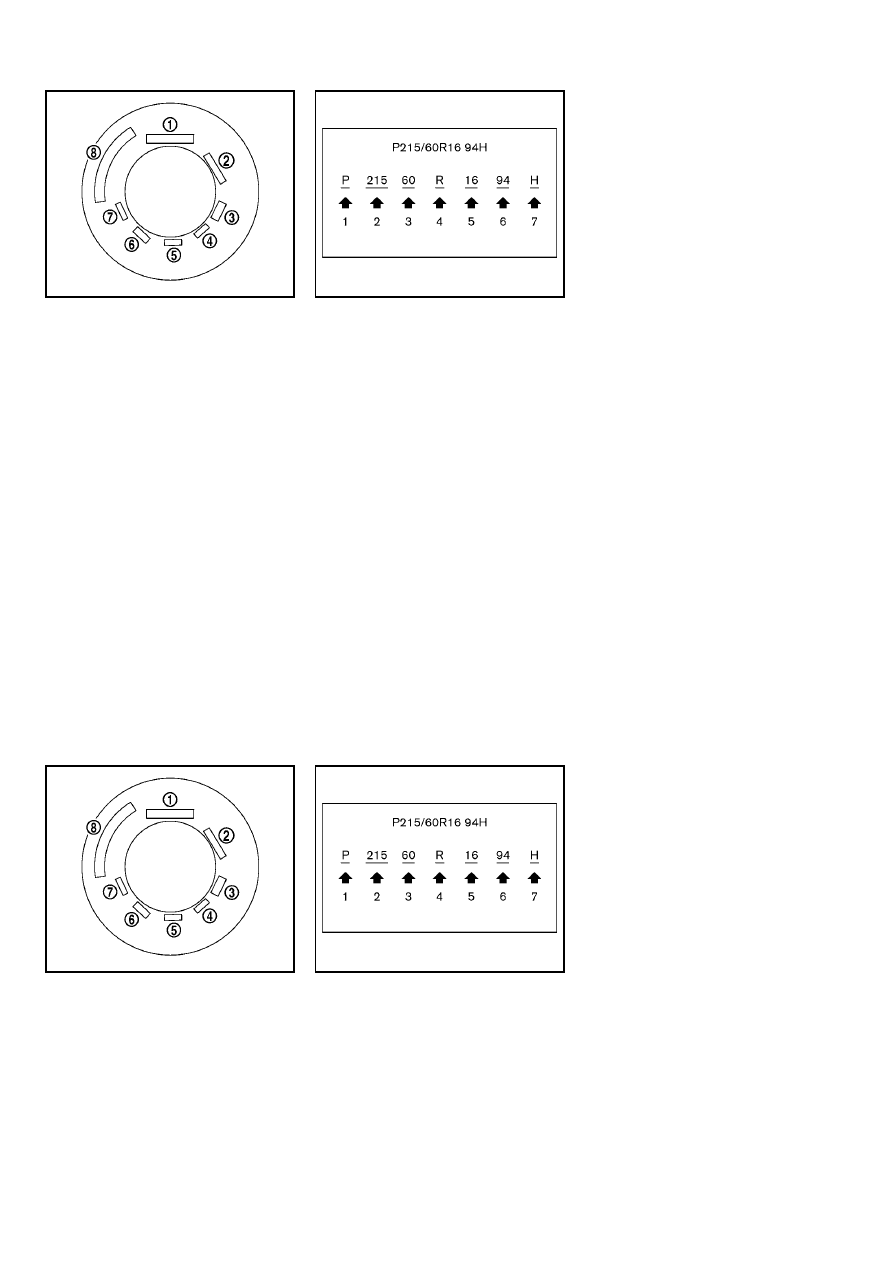

SDI1606

Example

Tire size (example: P215/60R16 94H)

1. P: The “P” indicates the tire is designed

for passenger vehicles. (Not all tires
have this information.)

2. Three-digit number (215): This number

gives the width in millimeters of the tire
from sidewall edge to sidewall edge.

3. Two-digit number (60): This number,

known as the aspect ratio, gives the
tire’s ratio of height to width.

4. R: The “R” stands for radial.

5. Two-digit number (16): This number is

the wheel or rim diameter in inches.

6. Two- or three-digit number (94): This

number is the tire’s load index. It is a
measurement of how much weight each
tire can support. You may not find this
information on all tires because it is not
required by law.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

Maintenance and do-it-yourself

8-33

SDI1575

Example

TIRE LABELING

SDI1606

Example

Tire size (example: P215/60R16 94H)

1. P: The “P” indicates the tire is designed

for passenger vehicles. (Not all tires
have this information.)

2. Three-digit number (215): This number

gives the width in millimeters of the tire
from sidewall edge to sidewall edge.

3. Two-digit number (60): This number,

known as the aspect ratio, gives the
tire’s ratio of height to width.

4. R: The “R” stands for radial.

5. Two-digit number (16): This number is

the wheel or rim diameter in inches.

6. Two- or three-digit number (94): This

number is the tire’s load index. It is a
measurement of how much weight each
tire can support. You may not find this
information on all tires because it is not
required by law.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

Maintenance and do-it-yourself

8-33

8-34

Maintenance and do-it-yourself

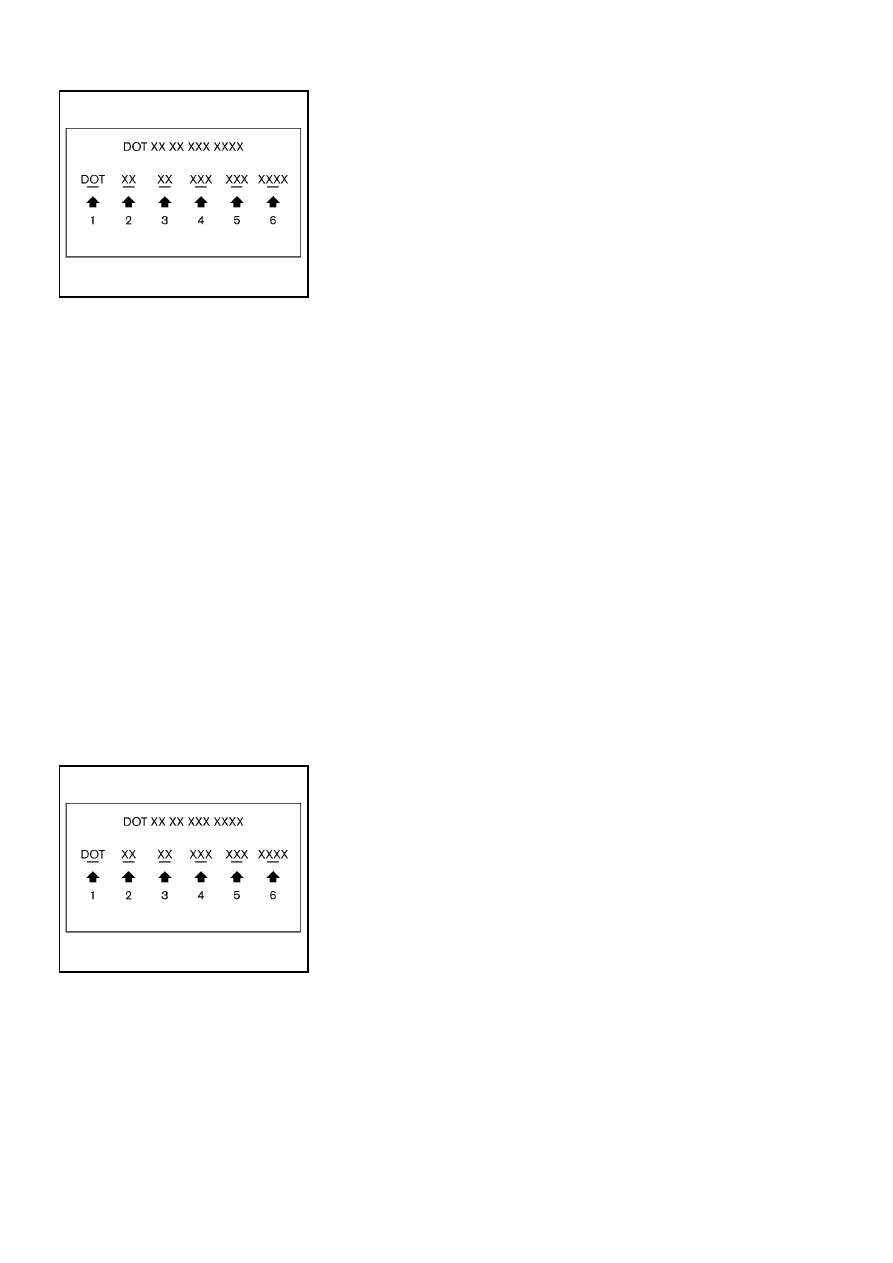

SDI1607

Example

TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)

1. DOT: Abbreviation for the “Department

of Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.

2. Two-digit code: Manufacturer’s identifi-

cation mark

3. Two-digit code: Tire size

4. Three-digit code: Tire type code (Op-

tional)

5. Three-digit code: Date of Manufacture

6. Four numbers represent the week and

year the tire was built. For example, the
numbers 3103 means the 31st week of
2003. If these numbers are missing,
then look on the other sidewall of the
tire.

Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indicate
the materials in the tire, which include
steel, nylon, polyester, and others.

Maximum permissible inflation pres-
sure
This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum
permissible inflation pressure.

Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.

Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not (“tube-
less”).

The word “radial”
The word “radial” is shown, if the tire
has radial structure.

Manufacturer or brand name
Manufacturer or brand name is shown.

Other tire-related terminology:

In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall that
contains a whitewall, bears white lettering
or bears manufacturer, brand and/or model
name molding that is higher or deeper than
the same molding on the other sidewall of
the tire, or (2) the outward facing sidewall
of an asymmetrical tire that has a particular
side that must always face outward when
mounted on a vehicle.

8-34

Maintenance and do-it-yourself

SDI1607

Example

TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)

1. DOT: Abbreviation for the “Department

of Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.

2. Two-digit code: Manufacturer’s identifi-

cation mark

3. Two-digit code: Tire size

4. Three-digit code: Tire type code (Op-

tional)

5. Three-digit code: Date of Manufacture

6. Four numbers represent the week and

year the tire was built. For example, the
numbers 3103 means the 31st week of
2003. If these numbers are missing,
then look on the other sidewall of the
tire.

Maximum permissible inflation pres-
sure
This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum
permissible inflation pressure.

Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not (“tube-
less”).

The word “radial”
The word “radial” is shown, if the tire
has radial structure.

Manufacturer or brand name
Manufacturer or brand name is shown.

Other tire-related terminology:

TYPES OF TIRES

WARNING

. When changing or replacing tires,

be sure all four tires are of the same
type (Example: Summer, All Season
or Snow) and construction. A
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.

. Replacement tires may have a lower

speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

. For additional information regard-

ing tires, refer to “Important Tire
Safety Information” in the Warranty
Information Booklet.

All season tires

NISSAN specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire
sidewall. Snow tires have better snow traction
than All Season tires and may be more appro-
priate in some areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance on dry
roads. Summer tire performance is substantially
reduced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.

If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.

Snow tires

If snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.

Generally, snow tires will have lower speed
ratings than factory equipped tires and may not

match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.

If you install snow tires, they must be the same
size, brand, construction and tread pattern on all
four wheels.

For additional traction on icy roads, studded
tires may be used. However, some U.S. states
prohibit their use. Check local and state laws
before installing studded tires. Skid and traction
capabilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited according
to location. Check the local laws before instal-
ling tire chains. When installing tire chains, make
sure they are the proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions. Use only SAE
Class S chains. Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory

Maintenance and do-it-yourself

8-35

TYPES OF TIRES

WARNING

. When changing or replacing tires,

. Replacement tires may have a lower

speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

. For additional information regard-

ing tires, refer to “Important Tire
Safety Information” in the Warranty
Information Booklet.

All season tires

Summer tires

If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.

Snow tires

Generally, snow tires will have lower speed
ratings than factory equipped tires and may not

match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.

If you install snow tires, they must be the same
size, brand, construction and tread pattern on all
four wheels.

TIRE CHAINS

Maintenance and do-it-yourself

8-35

8-36

Maintenance and do-it-yourself

equipped tire size. Other types may damage
your vehicle. Use chain tensioners when re-
commended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to the
fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains. In
addition, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.

Tire chains must be installed only on the
front wheels and not on the rear wheels.

Never install tire chains on a TEMPORARY USE
ONLY spare tire.

Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.

SDI1662

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the tires
every 5,000 miles (8,000 km). (See “Flat
tire” (P.6-3) for tire replacing procedures.)

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tigh-
tened to the specification at all times.

It is recommended that wheel nuts be
tightened to the specification at each
tire rotation interval.

WARNING

. After rotating the tires, check

and adjust the tire pressure.

. Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

. Do not include the spare tire or

any other small size spare tire in
the tire rotation.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

8-36

Maintenance and do-it-yourself

Tire chains must be installed only on the
front wheels and not on the rear wheels.

Never install tire chains on a TEMPORARY USE
ONLY spare tire.

Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.

SDI1662

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the tires
every 5,000 miles (8,000 km). (See “Flat
tire” (P.6-3) for tire replacing procedures.)

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tigh-
tened to the specification at all times.

It is recommended that wheel nuts be
tightened to the specification at each
tire rotation interval.

WARNING

. After rotating the tires, check

and adjust the tire pressure.

. Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

. Do not include the spare tire or

any other small size spare tire in
the tire rotation.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

SDI1663

Wear indicator

Wear indicator location mark

Tire wear and damage

WARNING

. Tires should be periodically in-

spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

. The original tires have built-in

tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.

. Tires degrade with age and use.

Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

. Improper service of the spare

tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

Replacing wheels and tires

When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications”
(P.9-8) for recommended types and sizes of
tires and wheels.)

WARNING

. The use of tires other than those

recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial), or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.

. If your vehicle was originally

equipped with 4 tires that were the
same size and you are only repla-
cing 2 of the 4 tires, install the new
tires on the rear axle. Placing new
tires on the front axle may cause
loss of vehicle control in some
driving conditions and cause an

Maintenance and do-it-yourself

8-37

SDI1663

Wear indicator

Wear indicator location mark

Tire wear and damage

WARNING

. Tires should be periodically in-

spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

. The original tires have built-in

tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.

. Tires degrade with age and use.

. Improper service of the spare

tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.

. For additional information re-

garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.

Replacing wheels and tires

WARNING

. The use of tires other than those

. If your vehicle was originally

Maintenance and do-it-yourself

8-37

8-38

Maintenance and do-it-yourself

accident and personal injury.

. If the wheels are changed for any

reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “Wheels and tires”
(P.9-8) of this manual for wheel off-
set dimensions.

. When a spare tire is mounted or a

wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

. Do not install a damaged or de-

formed wheel or tire even if it has

been repaired. Such wheels or tires
could have structural damage and
could fail without warning.

. The use of retread tire is not re-

commended.

. For additional information regard-

ing tires, refer to “Important Tire
Safety Information” in the Warranty
Information Booklet.

Wheel balance

Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

For additional information regarding tires, refer
to “Important Tire Safety Information” in the
Warranty Information Booklet.

Care of wheels

See “Cleaning exterior” (P.7-2) for details about
care of the wheels.

Spare tire

When a spare tire is mounted (TEMPORARY
USE ONLY), the TPMS will not function.

Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.

WARNING

. The TEMPORARY USE ONLY spare

tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.

. Drive carefully while the TEMPOR-

ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.

. Periodically check spare tire infla-

tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar).

8-38

Maintenance and do-it-yourself

accident and personal injury.

. If the wheels are changed for any

. When a spare tire is mounted or a

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

. Do not install a damaged or de-

formed wheel or tire even if it has

been repaired. Such wheels or tires
could have structural damage and
could fail without warning.

. The use of retread tire is not re-

commended.

. For additional information regard-

ing tires, refer to “Important Tire
Safety Information” in the Warranty
Information Booklet.

Wheel balance

Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

For additional information regarding tires, refer
to “Important Tire Safety Information” in the
Warranty Information Booklet.

Care of wheels

See “Cleaning exterior” (P.7-2) for details about
care of the wheels.

Spare tire

When a spare tire is mounted (TEMPORARY
USE ONLY), the TPMS will not function.

Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.

WARNING

. The TEMPORARY USE ONLY spare

tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.

. Drive carefully while the TEMPOR-

ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.

. Periodically check spare tire infla-

tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar).

. With the TEMPORARY USE ONLY

spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h).

. When driving on roads covered with

snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the rear wheels and original tire
used on the front wheels (drive
wheels). Use tire chains only on
the front (original) tires.

. Tire tread of the TEMPORARY USE

ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.

. Do not use the spare tire on other

vehicles.

. Do not use more than one spare tire

at the same time.

CAUTION

. Do not use tire chains on a TEM-

PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.

. Because the TEMPORARY USE

ONLY spare tire is smaller than the
original tire, ground clearance is
reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.

Maintenance and do-it-yourself

8-39

. With the TEMPORARY USE ONLY

spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h).

. When driving on roads covered with

snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the rear wheels and original tire
used on the front wheels (drive
wheels). Use tire chains only on
the front (original) tires.

. Tire tread of the TEMPORARY USE

ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.

. Do not use the spare tire on other

vehicles.

. Do not use more than one spare tire

at the same time.

CAUTION

. Do not use tire chains on a TEM-

PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.

. Because the TEMPORARY USE

Maintenance and do-it-yourself

8-39

9 Technical and consumer information

Capacities and recommended fuel/lubricants ................... 9-2

Fuel recommendation ......................................................... 9-4
Engine oil and oil filter recommendation ....................... 9-6
Air conditioning system refrigerant and
lubricant recommendations ............................................... 9-7

Specifications ............................................................................. 9-8

Engine .................................................................................... 9-8
Wheels and tires ................................................................. 9-8
Dimensions and weights ................................................... 9-9

When traveling or registering your vehicle in
another country .......................................................................... 9-9
Vehicle identification ................................................................. 9-9

Vehicle Identification Number (VIN) plate ..................... 9-9
Vehicle identification number (chassis number) ....... 9-10
Engine serial number ....................................................... 9-10
F.M.V.S.S. certification label .......................................... 9-10
Emission control information label ............................... 9-11
Tire and loading information label ................................ 9-11
Air conditioner specification label (if
so equipped) ..................................................................... 9-11

Installing front license plate ................................................ 9-12
Vehicle loading information ................................................. 9-13

Terms ................................................................................. 9-13
Vehicle load capacity .................................................... 9-14
Securing the load .......................................................... 9-15
Loading tips ..................................................................... 9-15
Measurement of weights .............................................. 9-16

Towing a trailer ....................................................................... 9-16
Flat towing ............................................................................... 9-17

Continuously Variable Transmission (CVT) ............. 9-17
Manual Transmission ..................................................... 9-17

Uniform tire quality grading ................................................. 9-17

Treadwear ........................................................................ 9-17
Traction AA, A, B and C .............................................. 9-17
Temperature A, B and C .............................................. 9-18

Emission control system warranty ..................................... 9-18
Reporting safety defects ..................................................... 9-19
Readiness for Inspection/Maintenance (I/M) test ......... 9-19
Event Data Recorders (EDR) ............................................. 9-19
Owner’s Manual/Service Manual order information ..... 9-20

9 Technical and consumer information

Capacities and recommended fuel/lubricants ................... 9-2

Specifications ............................................................................. 9-8

Installing front license plate ................................................ 9-12
Vehicle loading information ................................................. 9-13

Towing a trailer ....................................................................... 9-16
Flat towing ............................................................................... 9-17

Continuously Variable Transmission (CVT) ............. 9-17
Manual Transmission ..................................................... 9-17

Uniform tire quality grading ................................................. 9-17

9-2

Technical and consumer information

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.

Capacity (Approximate)

Recommended specifications

US measure

Imp measure

Liter

Fuel

13-1/4 gal

11 gal

See “Fuel recommendation” (P.9-4).

Engine oil

Drain and refill

With oil filter change

4-7/8 qt

4 qt

4.6

For additional information, see “Engine oil” (P.8-9) for changing engine oil.

Engine oil with API Certification Mark

For additional information, see “Engine oil and oil filter recommendation”
(P.9-6).

Genuine NISSAN engine oil or equivalent

Viscosity SAE 5W-30

Without oil filter change

4-5/8 qt

3-7/8 qt

4.4

Cooling sys-
tem

With reservoir

CVT model

7-1/2 qt

6-1/4 qt

7.1

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (Blue) or equivalent

MT model

7-1/4 qt

6 qt

6.8

Reservoir

3/4 qt

5/8 qt

0.7

Continuously Variable Transmission (CVT) fluid

—

Genuine NISSAN CVT Fluid NS-2

Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid
other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT,
which is not covered by the NISSAN new vehicle limited warranty.

Manual Transmission (MT) gear oil

—

Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type 75W-80 or
equivalent

If Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type is not
available, API GL-4+, Viscosity SAE 75W-80 may be used as a temporary
replacement. However, use Genuine NISSAN Manual Transmission Fluid
(MTF) TL/JR Type as soon as it is available.

Brake and clutch fluid

Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section.

Genuine NISSAN Super Heavy Duty Brake Fluid* or equivalent DOT 3
*: Available in mainland U.S.A. through a NISSAN dealer.

Multi-purpose grease

—

NLGI No. 2 (Lithium soap base)

Air conditioning system refrigerant

—

HFC-134a (R-134a)

For additional information, see “Vehicle identification” (P.9-9) for air
conditioner specification label.

Air conditioning system lubricants

—

NISSAN A/C System Oil Type R or exact equivalent

CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS

9-2

Technical and consumer information

Capacity (Approximate)

Recommended specifications

US measure

Imp measure

Liter

Fuel

13-1/4 gal

11 gal

See “Fuel recommendation” (P.9-4).

Engine oil

Drain and refill

With oil filter change

4-7/8 qt

4 qt

4.6

For additional information, see “Engine oil” (P.8-9) for changing engine oil.

Engine oil with API Certification Mark

For additional information, see “Engine oil and oil filter recommendation”
(P.9-6).

Genuine NISSAN engine oil or equivalent

Viscosity SAE 5W-30

Without oil filter change

4-5/8 qt

3-7/8 qt

4.4

Cooling sys-
tem

With reservoir

CVT model

7-1/2 qt

6-1/4 qt

7.1

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (Blue) or equivalent

MT model

7-1/4 qt

6 qt

6.8

Reservoir

3/4 qt

5/8 qt

0.7

Continuously Variable Transmission (CVT) fluid

—

Genuine NISSAN CVT Fluid NS-2

Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid
other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT,
which is not covered by the NISSAN new vehicle limited warranty.

Manual Transmission (MT) gear oil

—

Genuine NISSAN Manual Transmission Fluid (MTF) TL/JR Type 75W-80 or
equivalent

Brake and clutch fluid

Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section.

Genuine NISSAN Super Heavy Duty Brake Fluid* or equivalent DOT 3
*: Available in mainland U.S.A. through a NISSAN dealer.

Multi-purpose grease

—

NLGI No. 2 (Lithium soap base)

Air conditioning system refrigerant

—

HFC-134a (R-134a)

For additional information, see “Vehicle identification” (P.9-9) for air
conditioner specification label.

Air conditioning system lubricants

—

NISSAN A/C System Oil Type R or exact equivalent

CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS

9-4

Technical and consumer information

FUEL RECOMMENDATION

Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number 91).

CAUTION

. Using a fuel other than that speci-

fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.

. Under no circumstances should a

leaded gasoline be used, because
this will damage the three-way cat-
alyst.

. Do not use E-15 or E-85 fuel in your

vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.

. U.S. government regulations require

ethanol dispensing pumps to be

identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.

Gasoline specifications

NISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission control system
and vehicle performance. Ask your service
station manager if the gasoline meets the
WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily

determined. If in doubt, ask your service station
manager.

If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
. The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

. If an oxygenate-blend, other than

methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

. E-15 fuel contains more than 10%

oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN new
vehicle limited warranty.

. If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol

9-4

Technical and consumer information

FUEL RECOMMENDATION

Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number 91).

CAUTION

. Using a fuel other than that speci-

fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.

. Under no circumstances should a

leaded gasoline be used, because
this will damage the three-way cat-
alyst.

. Do not use E-15 or E-85 fuel in your

. U.S. government regulations require

ethanol dispensing pumps to be

identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.

Gasoline specifications

Reformulated gasoline

Gasoline containing oxygenates

determined. If in doubt, ask your service station
manager.

an octane rating no lower than that
recommended for unleaded gasoline.

. If an oxygenate-blend, other than

methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

. E-15 fuel contains more than 10%

. If a methanol blend is used, it should

blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.

If any driveability problems such as engine
stalling and difficult hot-starting are experienced
after using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.

Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.

E-15 fuel

E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.

E-85 fuel

E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.

Aftermarket fuel additives

NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock”. (Spark
knock is a metallic rapping noise.) If
severe, this can lead to engine damage. If
you detect a persistent heavy spark knock
even when using gasoline of the stated
octane rating, or if you hear steady spark

knock while holding a steady speed on
level roads, have a NISSAN dealer correct
the condition. Failure to correct the condi-
tion is misuse of the vehicle, for which
NISSAN is not responsible.

Incorrect ignition timing will result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

Technical and consumer information

9-5

blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.

Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.

E-15 fuel

E-85 fuel

Aftermarket fuel additives

Octane rating tips

knock while holding a steady speed on
level roads, have a NISSAN dealer correct
the condition. Failure to correct the condi-
tion is misuse of the vehicle, for which
NISSAN is not responsible.

Technical and consumer information

9-5

Nissan Cube (2014 year). Manual - part 19
