electrical equipment. Unauthor-
ized electrical test equipment
and probing devices should not
be used on the pretensioner sys-
tem.

. If you need to dispose of a pre-

tensioner or scrap the vehicle, it is
recommended you visit a NISSAN
dealer for this service. Correct
pretensioner disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.

The pretensioner system may activate
with the supplemental air bag system in
certain types of collisions. Working with
the seat belt retractor, it helps tighten the
seat belt when the vehicle becomes
involved in certain types of collisions,
helping to restrain front seat occupants.

The pretensioner is encased with the seat
belt retractor and buckle anchor. These
seat belts are used the same way as
conventional seat belts.

When a pretensioner activates, smoke is
released and a loud noise may be heard.
The smoke is not harmful, and it does not
indicate a fire. Care should be taken not
to inhale it as it may cause irritation and
choking. Those with a history of a breath-

ing condition should get fresh air
promptly.

After pretensioner activation, load limiters
allow the seat belt to release webbing (if
necessary) to reduce forces against the
chest.

The supplemental air bag warning light

is used to indicate malfunctions in

the pretensioner system. (See “Supple-
mental air bag warning light” (P.1-72) for
more details.) If the operation of the
supplemental air bag warning light indi-
cates there is a malfunction, have the
system checked. It is recommended you
visit a NISSAN dealer for this service.

When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate sections in this Owner’s Man-
ual.

SSS1016

SUPPLEMENTAL AIR BAG WARNING
LABELS

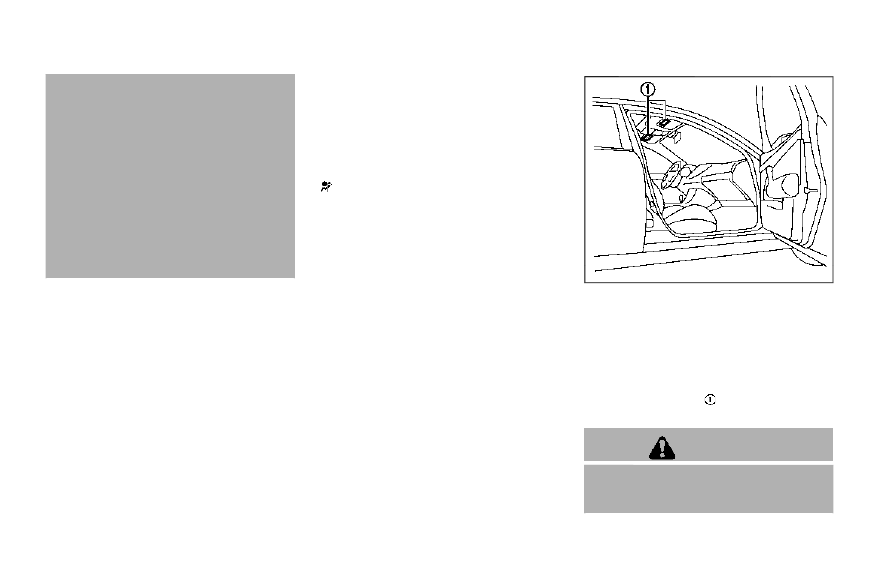

Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.

SRS air bag

The warning labels

are located on the

surface of the sun visors.

WARNING

Do not use a rear-facing child re-
straint on a seat protected by an air
bag in front of it. If the air bag

Safety — seats, seat belts and supplemental restraint system

1-71

1-72

Safety — seats, seat belts and supplemental restraint system

deploys, it may cause serious injury
or death.

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag
systems, pretensioners and all related
wiring.

When the ignition switch is in the ON
position, the supplemental air bag warn-
ing light illuminates for about 7 seconds
and then turns off. This means the system
is operational.

If any of the following conditions occur,
the air bag and/or pretensioner systems
need servicing:

. The supplemental air bag warning

light remains on after approximately
7 seconds.

. The supplemental air bag warning

light flashes intermittently.

. The supplemental air bag warning

light does not come on at all.

Under these conditions, the air bag and/
or pretensioner systems may not operate
properly. They must be checked and
repaired. It is recommended you visit a
NISSAN dealer for this service.

WARNING

If the supplemental air bag warning
light is on, it could mean that the
front air bag, side air bag, curtain air
bag and/or pretensioner systems
will not operate in an accident. To
help avoid injury to yourself or
others, have your vehicle checked
as soon as possible. It is recom-
mended you visit a NISSAN dealer
for this service.

REPAIR AND REPLACEMENT PRO-
CEDURE

The front air bags, side air bags, curtain
air bags and pretensioners are designed
to activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will re-
main illuminated after inflation has
occurred. These systems should be re-
paired and/or replaced as soon as possi-
ble. It is recommended you visit a NISSAN
dealer for this service.

When maintenance work is required on
the vehicle, the front air bags, side air
bags, curtain air bags, pretensioners and
related parts should be pointed out to the
person conducting the maintenance. The
ignition switch should always be in the
LOCK position when working under the
hood or inside the vehicle.

WARNING

. Once a front air bag, side air bag

or curtain air bag has inflated, the
air bag module will not function
again and must be replaced. Ad-
ditionally, the activated preten-
sioner must also be replaced. The
air bag module and pretensioner
should be replaced. It is recom-

mended you visit a NISSAN dealer
for this service. However, the air
bag module and pretensioner
system cannot be repaired.

. The front air bag, side air bag,

curtain air bag and the preten-
sioner should be inspected if
there is any damage to the front
end or side portion of the vehicle.
It is recommended you visit a
NISSAN dealer for this service.

. If you need to dispose of a sup-

plemental air bag or pretensioner
or scrap the vehicle, it is recom-
mended you visit a NISSAN deal-
er. Correct supplemental air bag
and pretensioner system dispo-
sal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.

. If there is an impact to your

vehicle from any direction, your
Occupant Classification Sensor
(OCS) should be checked to verify
it is still functioning correctly. It is
recommended that you visit a
NISSAN dealer for this service.
The OCS should be checked even
if no air bags deploy as a result of
the impact. Failure to verify prop-
er OCS function may result in an

improper air bag deployment re-
sulting in injury or death.

Safety — seats, seat belts and supplemental restraint system

1-73

1-74

Safety — seats, seat belts and supplemental restraint system

MEMO

2 Instruments and controls

Cockpit .................................................................................................. 2-3
Instrument panel .......................................................................... 2-4
Meters and gauges ..................................................................... 2-5

Warning lights, indicator lights and

audible reminders ..................................................................... 2-10

Checking lights ..................................................................... 2-11
Warning lights ........................................................................ 2-11
Indicator lights ...................................................................... 2-17
Audible reminders .............................................................. 2-20

Vehicle information display ............................................... 2-20

Operational indicators .................................................... 2-23
Maintenance indicators ................................................. 2-26
Trip computer ........................................................................ 2-28

Security systems ........................................................................ 2-30

Vehicle Security System ................................................ 2-30
NISSAN Vehicle Immobilizer System .................... 2-32

Wiper and washer switch ................................................... 2-33

Windshield wiper and washer operation ...... 2-34
Rain-sensing auto wiper system (if

so equipped)......................................................................... 2-34
Rear window wiper and

washer operation ............................................................. 2-36

Rear window and outside mirror

(if so equipped) defroster switch ................................. 2-36
Windshield deicer switch (if so equipped)............. 2-36
Headlight and turn signal switch ................................ 2-37

Headlight switch ............................................................... 2-37
Instrument brightness control .............................. 2-41
Turn signal switch ........................................................... 2-41
Fog light switch (if so equipped) ......................... 2-42

Heated steering wheel (if so equipped) .................. 2-42
Horn ..................................................................................................... 2-43
Heated seats................................................................................. 2-43

Front (if so equipped).................................................... 2-44
Rear (if so equipped) ...................................................... 2-45

Climate controlled seats (if so equipped) ............. 2-45
Warning systems switch (if so equipped) ............. 2-46
SNOW mode switch ................................................................ 2-47
TOW mode switch .................................................................... 2-47
Vehicle Dynamic Control (VDC) OFF switch ........ 2-48

Rear door alert ............................................................................ 2-49

Turning the rear door alert

system ON/OFF .................................................................... 2-50
System operation ............................................................... 2-50
How to temporarily disable the rear door

alert system............................................................................. 2-51

Power outlet .................................................................................. 2-52

USB (Universal Serial Bus)

charging connector .......................................................... 2-54

Storage .............................................................................................. 2-54

Windows ............................................................................................ 2-64

Power windows .................................................................... 2-64

Moonroof (if so equipped) .................................................. 2-66

Power moonroof ................................................................. 2-66

Welcome light (if so equipped) ....................................... 2-68

Battery saver system ..................................................... 2-68

Interior lights ................................................................................. 2-69

Interior light switch ........................................................... 2-69
Console light ........................................................................... 2-70

Map lights ............................................................................... 2-70
Rear personal lights ....................................................... 2-70

Vanity mirror lights ................................................................. 2-71
Cargo light ..................................................................................... 2-71
HomeLink® Universal Transceiver (Type A) (if

so equipped) ................................................................................. 2-71

Programming HomeLink® ......................................... 2-72
Programming HomeLink® for Canadian

customers and gate openers ................................. 2-73
Operating the HomeLink®

Universal Transceiver .................................................... 2-74
Programming troubleshooting ............................. 2-74
Clearing the programmed information .......... 2-74
Reprogramming a single

HomeLink® button ........................................................... 2-74
If your vehicle is stolen ................................................ 2-75

HomeLink® Universal Transceiver (Type B) (if

so equipped) ................................................................................. 2-75

Programming HomeLink® ......................................... 2-76
Programming HomeLink® for Canadian

customers and gate openers ................................. 2-78
Operating the HomeLink®

Universal Transceiver .................................................... 2-78
Programming troubleshooting ............................. 2-78
Clearing the programmed information .......... 2-78
Reprogramming a single

HomeLink® button ........................................................... 2-79
Using the garage door

two-way communication........................................... 2-79
If your vehicle is stolen ................................................ 2-80

JVC1234X

Power liftgate switch (if so equipped)

Heated steering wheel switch (if so
equipped)

Instrument brightness control switch

TRIP/RESET switch for twin trip odometer

Headlight, fog light and turn signal switch

— Headlight

— Turn signal

— Fog light (if so equipped)

Steering-wheel-mounted controls (left
side)

— Audio control steering switch

— Hands-Free Phone System switch

Trip computer switch

Wiper and washer switch

Steering-wheel-mounted controls (right
side)

— Intelligent Cruise Control (ICC) system

10.

Dynamic driver assistance switch (if so
equipped)

— Intelligent Lane Intervention (I-LI) sys-
tem (if so equipped)

— Intelligent Distance Control (I-DC) sys-
tem (if so equipped)

— Intelligent Blind Spot Intervention (I-
BSI) system (if so equipped)

11.

Shift lever

12.

Four-Wheel Drive (4WD) shift switch (if so
equipped)/SNOW mode switch/TOW
MODE switch/Vehicle Dynamic Control
(VDC) OFF switch

13.

Headlight aiming control

14.

P o w e r l i f t g a t e m a i n s w i t c h ( i f s o
equipped)

15.

Warning systems switch (if so equipped)

— Lane Departure Warning (LDW) (if so
equipped)

— Blind Spot Warning (BSW) (if so
equipped)

16.

Rear door alert switch

17.

Electric tilting/telescopic steering wheel
switch

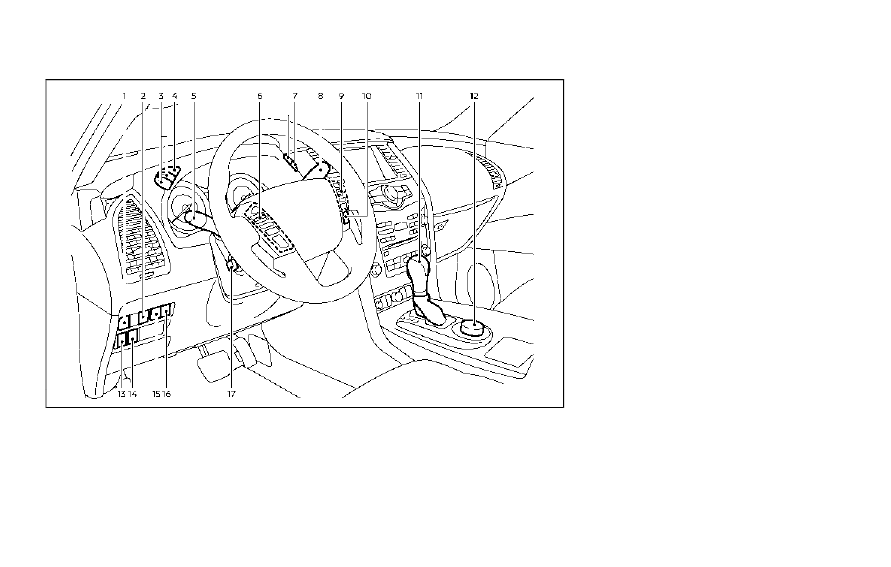

Instruments and controls

2-3

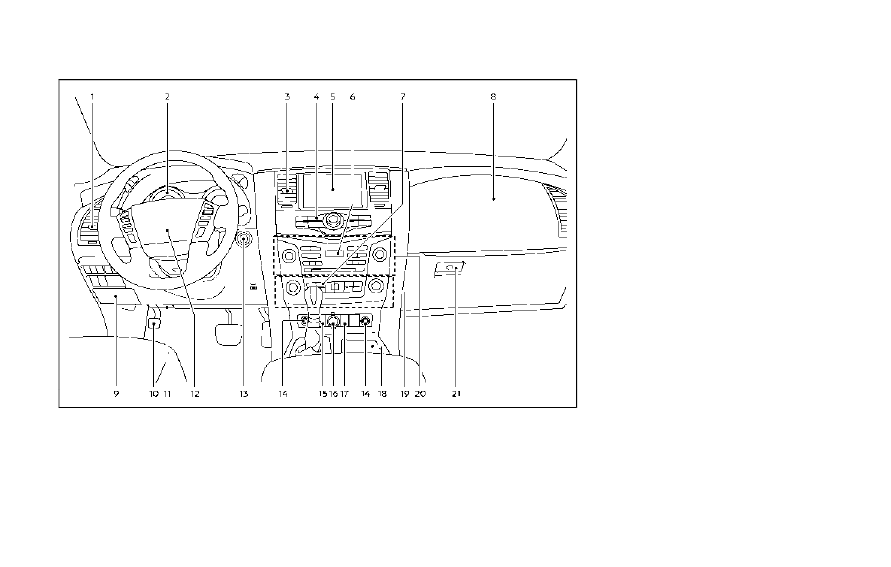

COCKPIT

2-4

Instruments and controls

JVC1093X

Side ventilator

Meters and gauges

Center ventilator

Center multi-function control panel

Center display

— Intelligent Around View Monitor (if so
equipped)

— RearView Monitor (if so equipped)

— Navigation system (if so equipped)

Hazard warning flasher switch

Defroster switch/Deicer switch (if so
equipped)

Front passenger supplemental air bag

Fuse box

10.

Parking brake

11.

Hood release handle

12.

Steering wheel

— Horn

— Driver supplemental air bag

— Power steering

13.

Push-button ignition switch

14.

Climate controlled seat switch (if so
equipped)/Heated seat switch (if so
equipped)

15.

Front passenger air bag status light

16.

Power outlet

17.

USB connection port

18.

Cup holder/Tray

19.

Heater and air conditioner

20.

Audio system

21.

Glove box

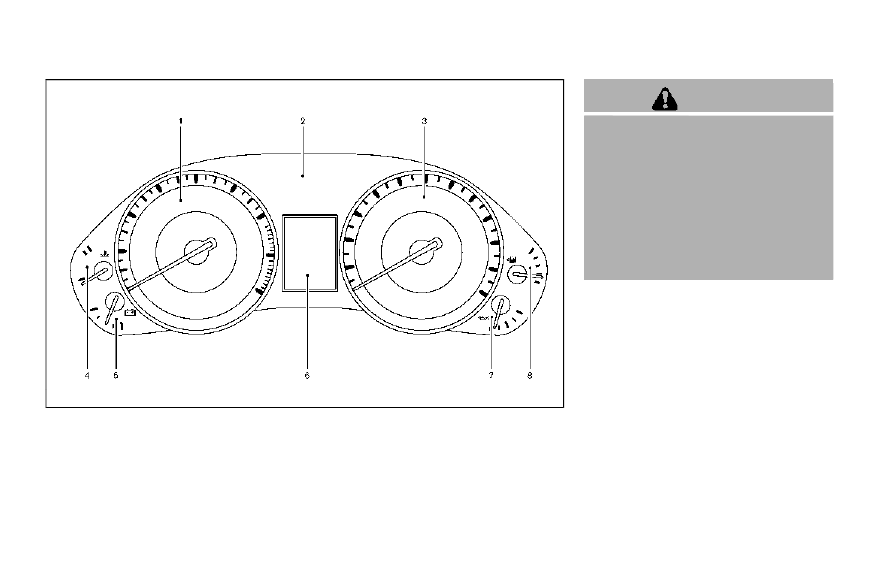

INSTRUMENT PANEL

SIC4368

Tachometer*

Warning and indicator lights

Speedometer*

Engine coolant temperature gauge*

Voltmeter*

Vehicle information display/Odometer/
twin trip odometer

Engine oil pressure gauge*

Fuel gauge*

*: The needle indicators may move
slightly after the ignition switch is
placed in the OFF position. This is not
a malfunction.

CAUTION

. For cleaning, use a soft cloth,

dampened with water. Never use
a rough cloth, alcohol, benzine,
thinner or any kind of solvent or
paper towel with a chemical
cleaning agent. They will scratch
or cause discoloration to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

Instruments and controls

2-5

METERS AND GAUGES

2-6

Instruments and controls

SIC4369

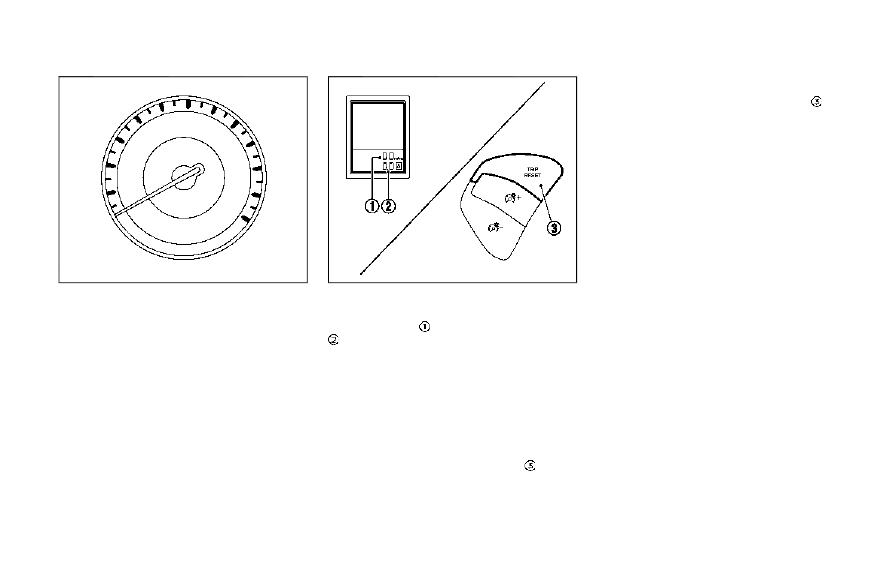

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers
per hour (km/h).

JVI0543X

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed on the vehicle informa-

tion display when the ignition switch is in
the ON position.

The odometer records the total distance
the vehicle has been driven.

The twin trip odometer records the dis-
tance of individual trips.

Changing the display:

Pushing the TRIP RESET switch

at the

bottom left of the combination meter
panel changes the display as follows:

TRIP A

? TRIP B ? TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

for

more than 1 second resets the trip
odometer to zero.

Average fuel economy and distance to
empty information is also available. (See
“Vehicle information display” (P.2-20).)

SIC4371

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev
the engine into the red zone

CAUTION

When engine speed approaches the
red zone, shift to a higher gear or
reduce engine speed. Operating the
engine in the red zone may cause
serious engine damage.

SIC4372

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant
temperature.

The engine coolant temperature is within
the normal range when the gauge needle
points within the zone

shown in the

illustration.

The engine coolant temperature varies
with the outside air temperature and
driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of
the normal range, reduce vehicle
speed to decrease temperature. If
gauge is over the normal range, stop
the vehicle as soon as safely possi-
ble. If the engine is overheated,
continued operation of the vehicle
may seriously damage the engine.
See “If your vehicle overheats” (P.6-
14) for immediate action required.

Instruments and controls

2-7

2-8

Instruments and controls

SIC4374

FUEL GAUGE

The gauge indicates the approximate
fuel level in the tank.

The gauge may move slightly during
braking, turning, acceleration, or going
up or down hills.

The gauge needle returns to 0 (Empty)
after the ignition switch is placed in the
OFF position.

Refill the fuel tank before the gauge
registers “0” (Empty).

The low fuel warning

appears on the

vehicle information display when the fuel
tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge

reaches “0”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “0”.

The

indicates that the fuel-filler door

is located on the driver’s side of the
vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light

(MIL) may come on. Refuel as
soon as possible. After a few
driving trips, the

light should

turn off. If the light remains on
after a few driving trips, have the
vehicle inspected. It is recom-
mended you visit a NISSAN dealer
for this service.

. For additional information, see

“Malfunction Indicator Light
(MIL)” (P.2-18).

SIC4375

ENGINE OIL PRESSURE GAUGE

The gauge indicates the engine lubrica-
tion system oil pressure while the engine
is running. When the engine speed is high,
the engine oil pressure is also high. When
it is low, the gauge indicates the low (L) oil
pressure.

The engine oil pressure is normal when
the gauge needle points within the zone

shown in the illustration.

CAUTION

. This gauge is not designed to

indicate low engine oil level. Use

the dipstick to check the oil level.
(See “Engine oil” (P.8-6).)

. If the gauge needle does not

move with the proper amount of
engine oil, have the vehicle
checked. It is recommended you
visit a NISSAN dealer for this
service. Continued vehicle opera-
tion in such a condition could
cause serious damage to the en-
gine.

SIC4376

VOLTMETER

When the ignition switch is placed in the
ON position, the volt meter indicates the
battery voltage. When the engine is run-
ning, it indicates the generator voltage.

While cranking the engine, the volt drop
below the normal range. If the needle is
not in the normal range (10.5 to 15.5 volt)
while the engine is running, it may
indicate that the charging system is not
functioning properly. Have the system
checked. It is recommended you visit a
NISSAN dealer for this service.

METER/RING ILLUMINATION AND
NEEDLE SWEEP

The ring illumination surrounding meters
and gauges illuminates when the driver’s
door is closed after getting into the
vehicle with the Intelligent Key carried in.

When the engine is started, the indicator
needles will sweep in the speedometer
and tachometer and the ring illumination
will be brightened gradually. This function
can be turned off. (See “Trip computer”
(P.2-28).)

Instruments and controls

2-9

2-10

Instruments and controls

Anti-lock Braking System (ABS) warn-
ing light

Four-Wheel Drive (4WD) warning light
(4WD models)

Exterior light indicator

Intelligent Cruise Control (ICC) system
warning light (orange)

Front fog light indicator light (if so
equipped)

Automatic Emergency Braking (AEB)
system warning light

Intelligent Key warning light

Front passenger air bag status light

Automatic transmission check warn-
ing light

Lane Departure Warning (LDW) indica-
tor light (orange; if so equipped)

High beam indicator light

Automatic Transmission (AT) oil tem-
perature warning light

Low tire pressure warning light

Intelligent Lane Intervention (I-LI) ON
indicator light (green; if so equipped)

Automatic Transmission (AT) park
warning light

Master warning light

Malfunction Indicator Light (MIL)

Blind Spot Warning (BSW)/Intelligent
Blind Spot Intervention (I-BSI) system
warning light (orange; if so equipped)

Seat belt warning light

Security indicator light

Brake warning light

Supplemental air bag warning light

SNOW mode indicator light

Vehicle Dynamic Control (VDC) warn-
ing light

TOW mode indicator light

Charge warning light

Automatic transmission position indi-
cator light

Turn signal/hazard indicator lights

Intelligent Distance Control (I-DC)
system warning light (orange; if so
equipped)

Intelligent Blind Spot Intervention (I-
BSI) ON indicator light (green; if so
equipped)

Vehicle Dynamic Control (VDC) off
indicator light

Engine oil pressure warning light

Check suspension indicator light

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) will
come on briefly and then go off:

If any light does not come on or operates
in a way other than described, it may
indicate a burned-out bulb and/or a
system malfunction. It is recommended
you have the system checked by a
NISSAN dealer.

Some indicators and warnings are also
displayed on the vehicle information dis-
play between the speedometer and tach-
ometer. (See “Vehicle information display”
(P.2-20).)

WARNING LIGHTS

Anti-lock Braking Sys-

tem (ABS) warning light

When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.

If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended you visit a NISSAN dealer
for this service.

If an ABS malfunction occurs, the anti-
lock function is turned off. The brake
system then operates normally, but with-
out anti-lock assistance. (See “Brake sys-
tem” (P.5-135).)

Automatic Emergency Braking

(AEB) system warning light

This light comes on when the ignition
switch is placed in the ON position. It
turns off after the engine is started.

This light illuminates when the Automatic
Emergency Braking (AEB) system is set to
OFF on the center display.

If the light illuminates when the AEB

system is ON, it may indicate that the
system is unavailable. See “Automatic
Emergency Braking (AEB)” (P.5-102) for
more details.

Automatic Transmission (AT)

check warning light

When the ignition switch is placed in the
ON position, the light comes on for 2
seconds. If the light comes on at any
other time, it may indicate the transmis-
sion is not functioning properly. It is
recommended you visit a NISSAN dealer
to check and repair the transmission.

Automatic Transmission (AT)

oil temperature warning light

This light illuminates when the Automatic
Transmission (AT) oil temperature is too
high. If the light illuminates while driving,
reduce the vehicle speed as soon as
safely possible until the light turns off.

CAUTION

Continued vehicle operation when
the AT oil temperature warning light
is on may damage the AT.

Instruments and controls

2-11

2-12

Instruments and controls

Automatic Transmission (AT)

park warning light (4WD models)

This light indicates that the Automatic
Transmission (AT) parking function is not
engaged. If the transfer control is not
secured in any driving position while the
AT shift lever is in the “P” (Park) position,
the transmission will disengage and the
wheels will not lock.

If the AT park warning light illuminates
with the shift lever in the P (Park)
position, shift the Four-Wheel Drive
(4WD) shift switch to the AUTO, 4H or
4L position again with the shift lever in
the N (Neutral) position. (See “NISSAN all-
mode 4WD®” (P.5-121).)

Blind Spot Warning (BSW)/

Intelligent Blind Spot Intervention
(I-BSI) system warning light (or-
ange; if so equipped)

When the ignition switch is placed in the
ON position, the indicator light will first
illuminate in orange and turn green
before turning off. This indicates that
the Blind Spot Warning (BSW) and Intelli-
gent Blind Spot Intervention (I-BSI) sys-
tems are operational.

If the light comes on in orange and
remains on, it may indicate that the BSW

and I-BSI systems are not functioning
properly. Although the vehicle is still
driveable, have the systems checked. It
is recommended you visit a NISSAN dealer
for this service. See “Blind Spot Warning
(BSW)” (P.5-33) and “Intelligent Blind Spot
Intervention (I-BSI)” (P.5-43).

Brake warning light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.

Low brake fluid warning light:

When the ignition switch is in the ON
position, the light warns of a low brake
fluid level. If the light comes on while the
engine is running with the parking brake
not applied, stop the vehicle and perform
the following:

Check the brake fluid level. If brake
fluid is low, add fluid and have the
system checked. It is recommended
you have this service performed by a
NISSAN dealer. (See “Brake fluid” (P.8-
9).)

If the brake fluid level is correct, have
the warning system checked. It is

recommended you have this service
performed by a NISSAN dealer.

Low hydraulic pressure warning indica-
tor:

If the brake warning light illuminates
when the engine is running, or while
driving with the parking brake is released,
check the brake fluid level. If the brake
fluid level is sufficient, it may indicate low
hydraulic pressure in the brake booster. It
is recommended that you have the brake
system checked by a NISSAN dealer
promptly.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and
the brake fluid level is sufficient, if both
the brake warning light and the Anti-lock
Braking System (ABS) warning light illu-
minate, it may indicate the ABS is not
functioning properly. Have the brake
system checked, and if necessary re-
paired. It is recommended you visit a
NISSAN dealer for this service. (See “Anti-
lock Braking System (ABS) warning light”
(P.2-11).)

Content .. 4 5 6 7 ..
