4. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch (25
mm), from side to side. Try to tug it forward
and check to see if the LATCH attachment
holds the restraint in place. If the restraint is
not secure, tighten the LATCH attachment
as necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint or try installing by
using the vehicle seat belt (if applicable).
Not all child restraints fit in all types of ve-
hicles.

5. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

Rear-facing – step 4

LRS0674

WRS0256

Safety—Seats, seat belts and supplemental restraint system

1-23

WARNING

The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the opera-
tion of the front passenger air bag. See
“Front passenger air bag and status light”
later in this section.

Refer to all Warnings and Cautions in the “Child
Safety” and “Child Restraint” sections before in-
stalling a child restraint.

Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the seat.
Always follow the restraint manufacturer’s
instructions.

2. Route the seat belt tongue through the child

restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.

Rear-facing – step 1

WRS0256

Rear-facing – step 2

WRS0761

1-24

Safety—Seats, seat belts and supplemental restraint system

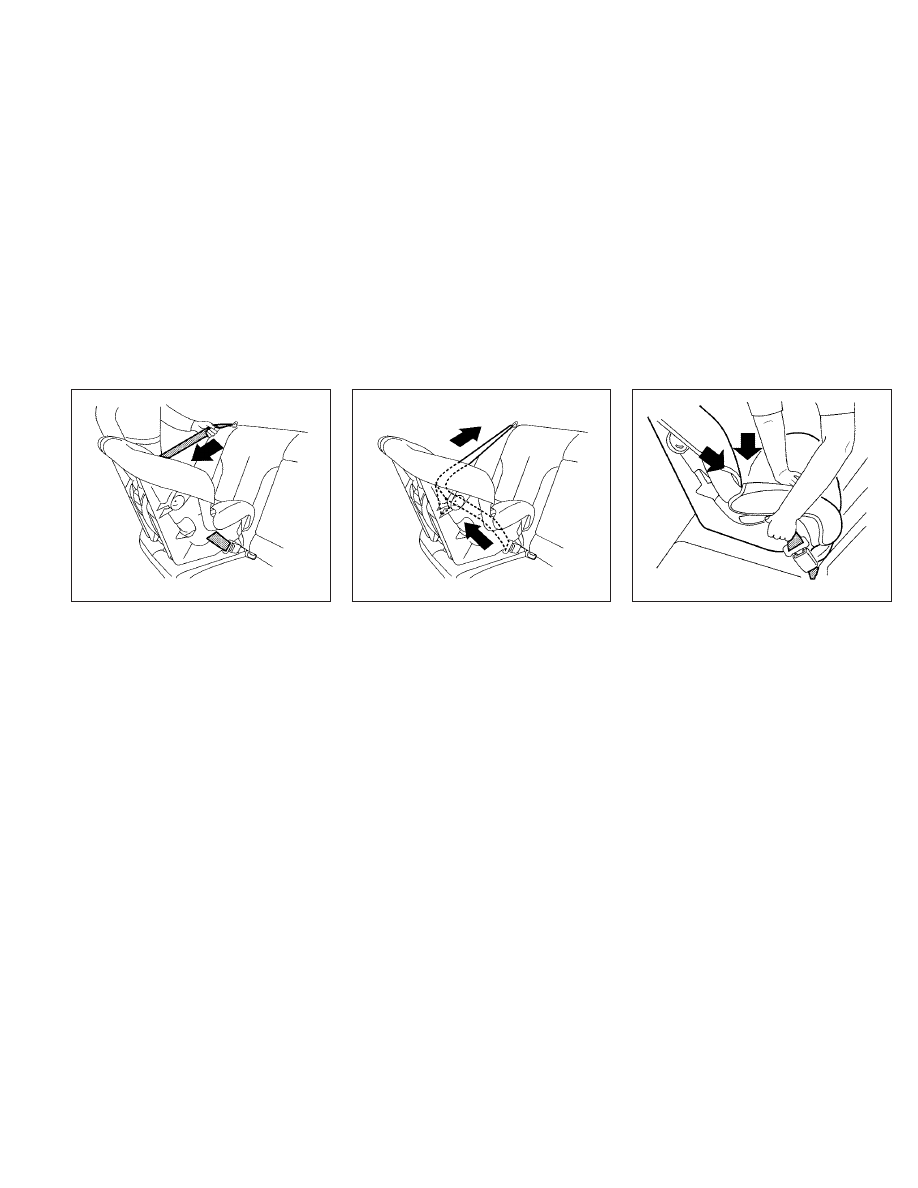

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

4. Allow the seat belt to retract. Pull up on the

shoulder belt to remove any slack in the belt.

5. Remove any additional slack from the seat

belt; press downward and rearward firmly in
the center of the child restraint to compress
the vehicle seat cushion and seatback while
pulling up on the seat belt.

Rear-facing – step 3

LRS0669

Rear-facing – step 4

LRS0670

Rear-facing – step 5

WRS0762

Safety—Seats, seat belts and supplemental restraint system

1-25

6. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm), from
side to side. Try to tug it forward and check
to see if the belt holds the restraint in place.
If the restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may need
to try a different child restraint. Not all child
restraints fit in all types of vehicles.

7. Check to make sure that the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.

After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

Refer to all Warnings and Cautions in the “Child
Safety” and “Child Restraint” sections before in-
stalling a child restraint.

Follow these steps to install a forward-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is prop-
erly attached to the lower anchors.

If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap” in this
section. Do not install child restraints that
require the use of a top tether strap in seat-
ing positions that do not have a top tether
anchor.

Rear-facing – step 6

WRS0763

Forward-facing web-mounted – step 2

WRS0799

1-26

Safety—Seats, seat belts and supplemental restraint system

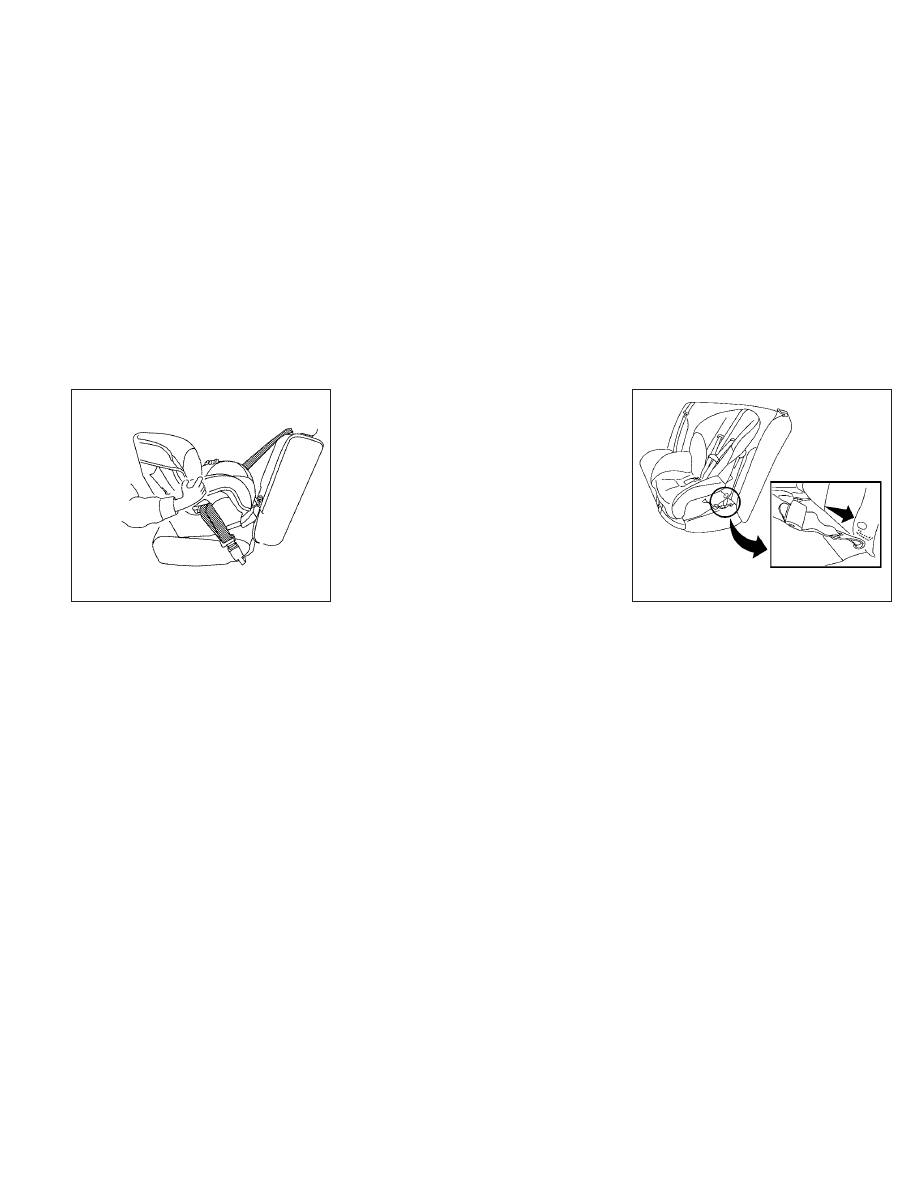

3. The back of the child restraint should be

secured against the vehicle seatback.

If the seating position does not have an
adjustable headrest and it is interfering with
the proper child restraint fit, try another seat-
ing position or a different child restraint.

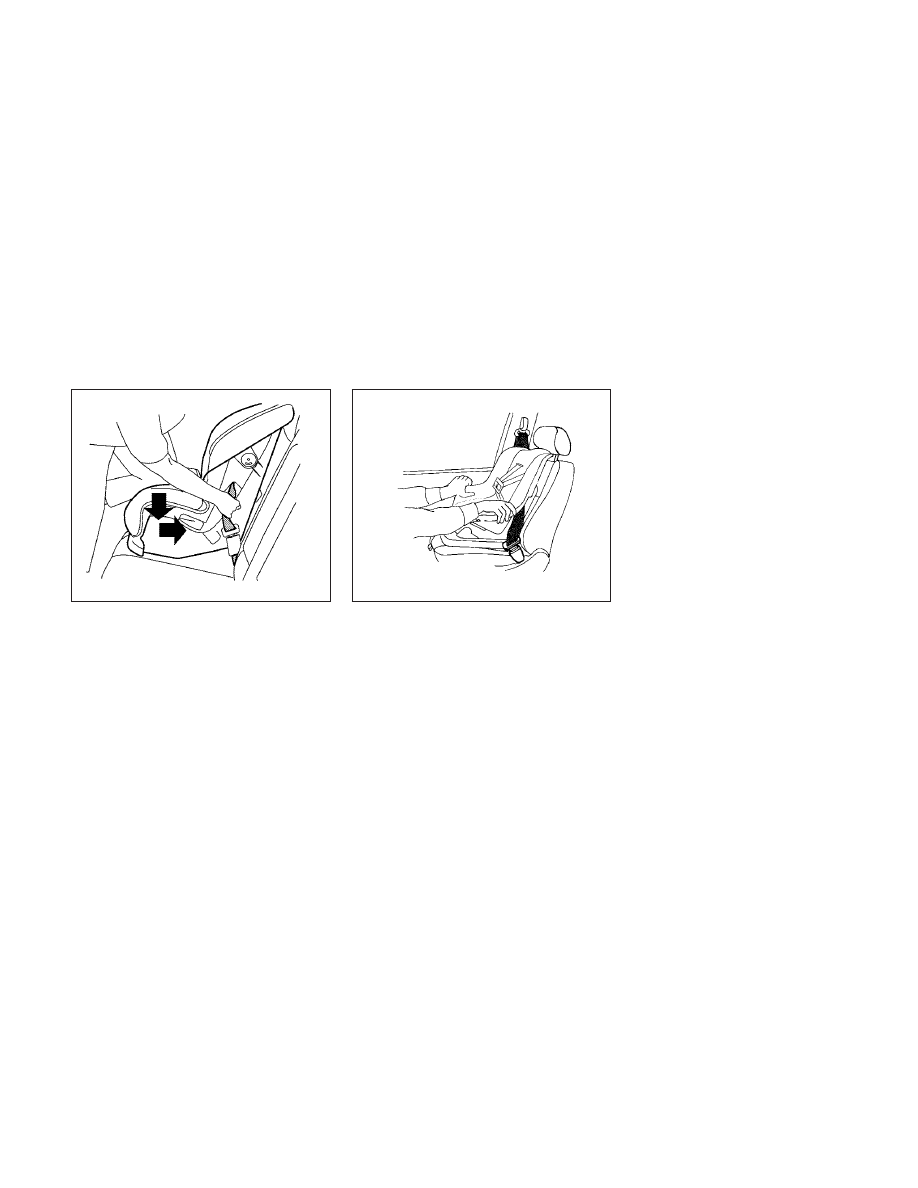

4. For child restraints that are equipped with

webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

5. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch (25
mm), from side to side. Try to tug it forward
and check to see if the LATCH attachment
holds the restraint in place. If the restraint is
not secure, tighten the LATCH attachment
as necessary, or put the restraint in another
seat and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

Forward-facing rigid-mounted – step 2

WRS0800

Forward-facing – step 4

LRS0671

Forward-facing – step 5

WRS0697

Safety—Seats, seat belts and supplemental restraint system

1-27

6. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

Refer to all Warnings and Cautions in the “Child
Safety” and “Child Restraint” sections before in-
stalling a child restraint.

Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat.

2. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

The back of the child restraint should be
secured against the vehicle seatback.

If necessary, adjust or remove the head re-
straint to obtain the correct child restraint fit.
If the head restraint is removed, store it in a
secure place. Be sure to reinstall the
head restraint when the child restraint
is removed. See “Head restraints” in this
section for head restraint adjustment, re-
moval and installation information.

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.

Forward-facing (front passenger seat) –

step 1

WRS0699

1-28

Safety—Seats, seat belts and supplemental restraint system

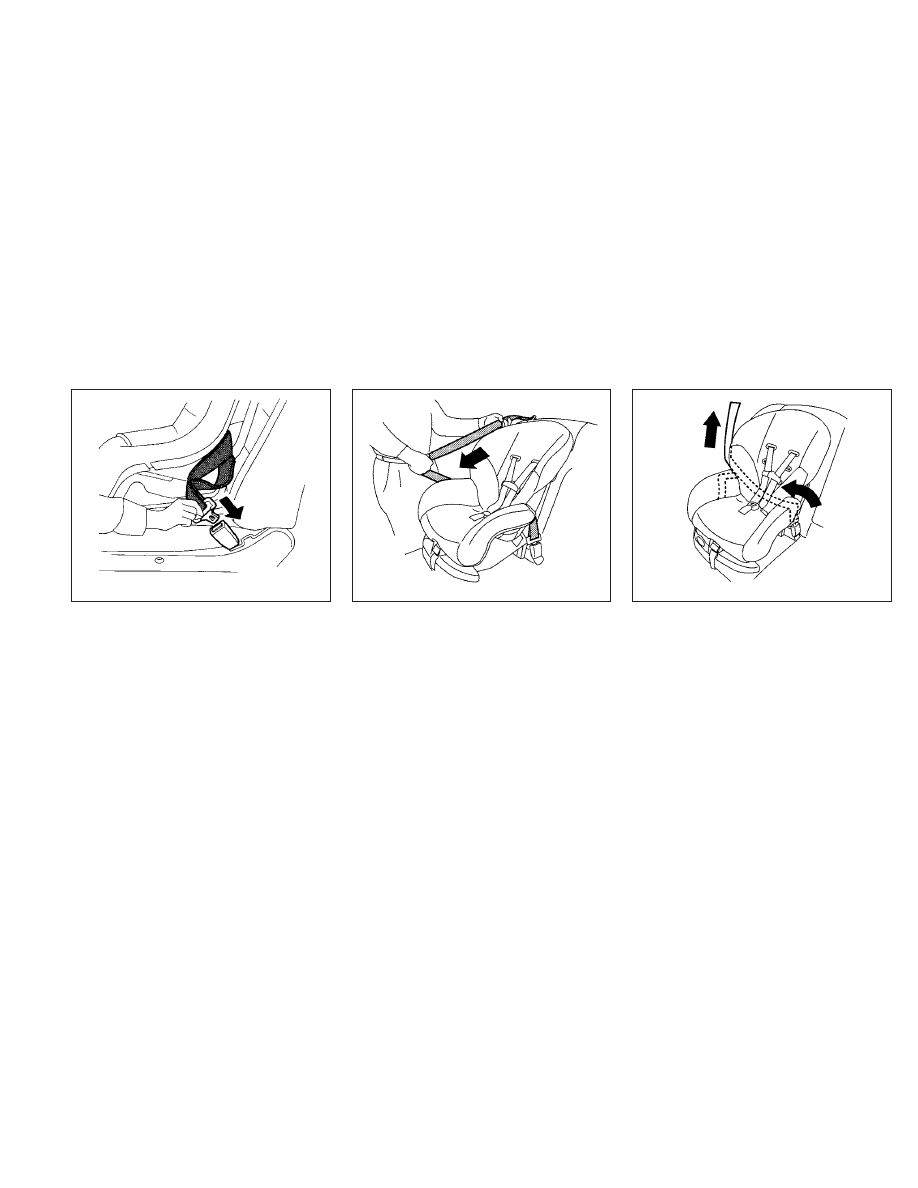

3. Route the seat belt tongue through the child

restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.

If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only). See “In-
stalling top tether strap” in this section. Do
not install child restraints that require the use
of a top tether strap in seating positions that
do not have a top tether anchor.

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

5. Allow the seat belt to retract. Pull up on the

shoulder belt to remove any slack in the belt.

Forward-facing – step 3

WRS0680

Forward-facing – step 4

LRS0667

Forward-facing – step 5

LRS0668

Safety—Seats, seat belts and supplemental restraint system

1-29

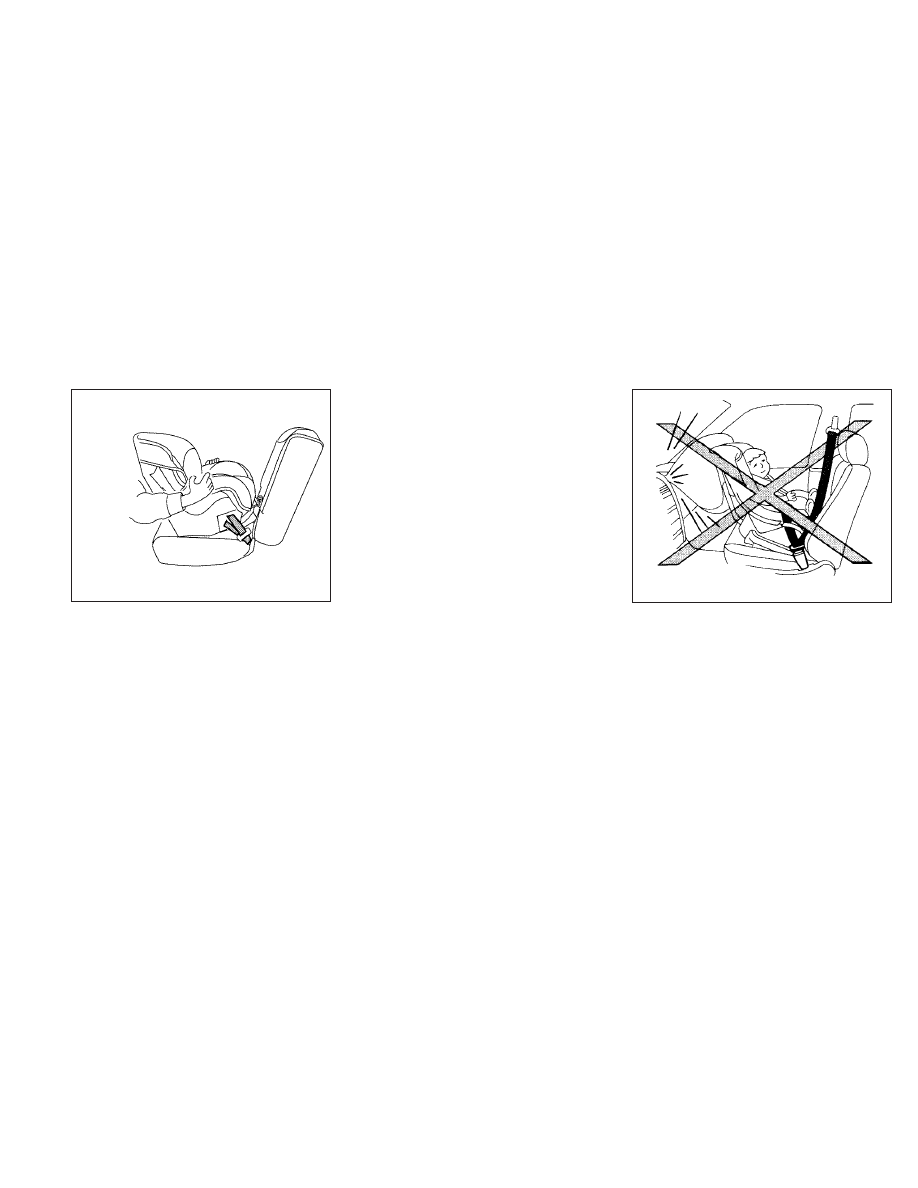

6. Remove any additional slack from the seat

belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.

7. After attaching the child restraint, test it be-

8. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

9. Check to make sure the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.

Forward-facing – step 6

WRS0681

Forward-facing – step 7

WRS0698

1-30

Safety—Seats, seat belts and supplemental restraint system

10.

If the child restraint is installed in the front

passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light

should illuminate. If this

light is not illuminated see

⬙Front passenger

air bag and status light

⬙ in this section.

Move the child restraint to another
seating

position.

Have

the

system

checked by a NISSAN dealer.

After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child re-
straint mode) is canceled.

INSTALLING TOP TETHER STRAP

First, secure the child restraint with the LATCH
lower anchors (rear outboard seat positions only)
or the seat belt, as applicable.

1. Flip up the anchor cover

䊊

from the anchor

point which is located directly behind the
child seat.

2. Position the top tether strap over the top of

the seatback

䊊

3. Secure the tether strap to the tether anchor

point on the rear parcel shelf

䊊

4. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.

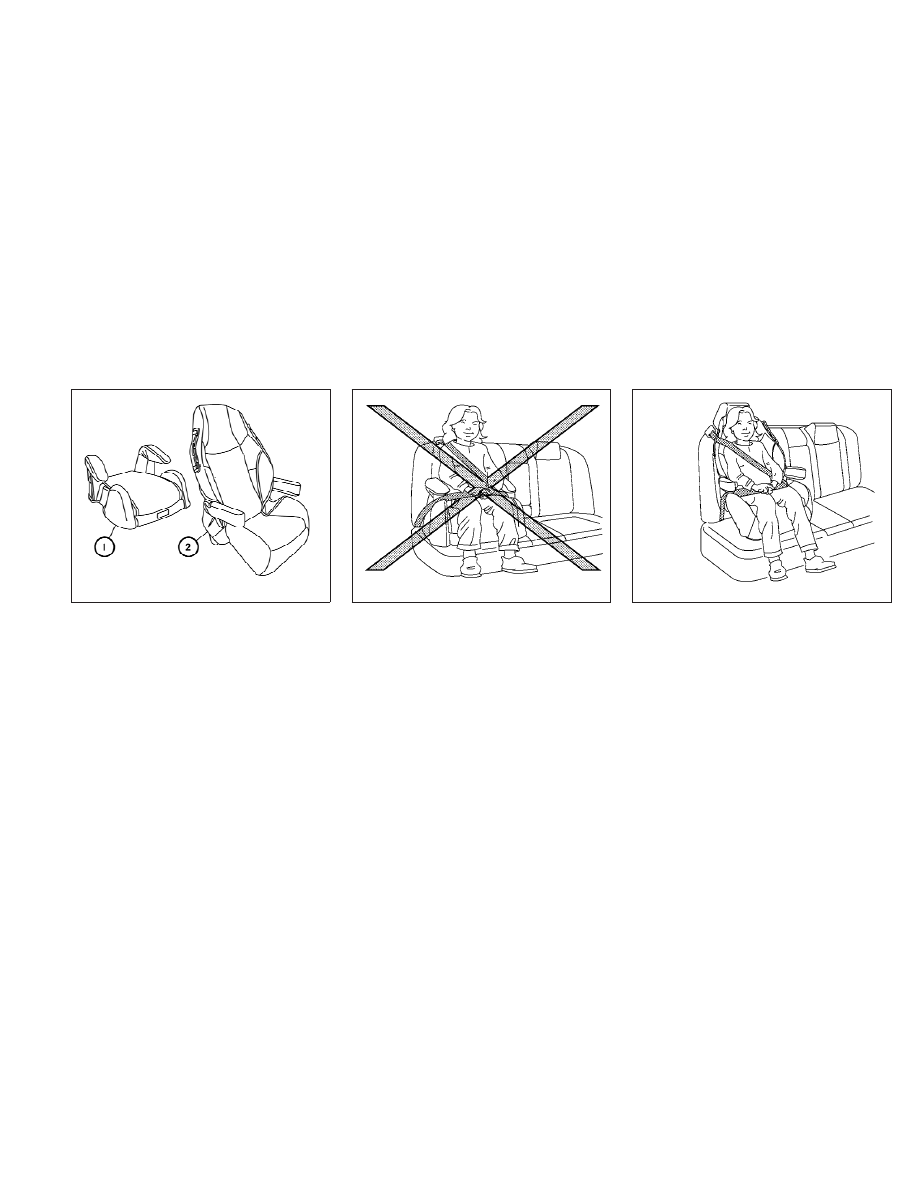

BOOSTER SEATS

Precautions on booster seats

WARNING

If a booster seat and seat belt are not used
properly, the risk of a child being injured
in a sudden stop or collision greatly
increases:

– Make sure the shoulder portion of

the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.

– Make sure the shoulder belt is not

behind the child or under the child’s
arm.

– A booster seat must only be installed

in a seating position that has a
lap/shoulder belt.

Forward-facing – step 10

WRS0475

LRS0798

Safety—Seats, seat belts and supplemental restraint system

1-31

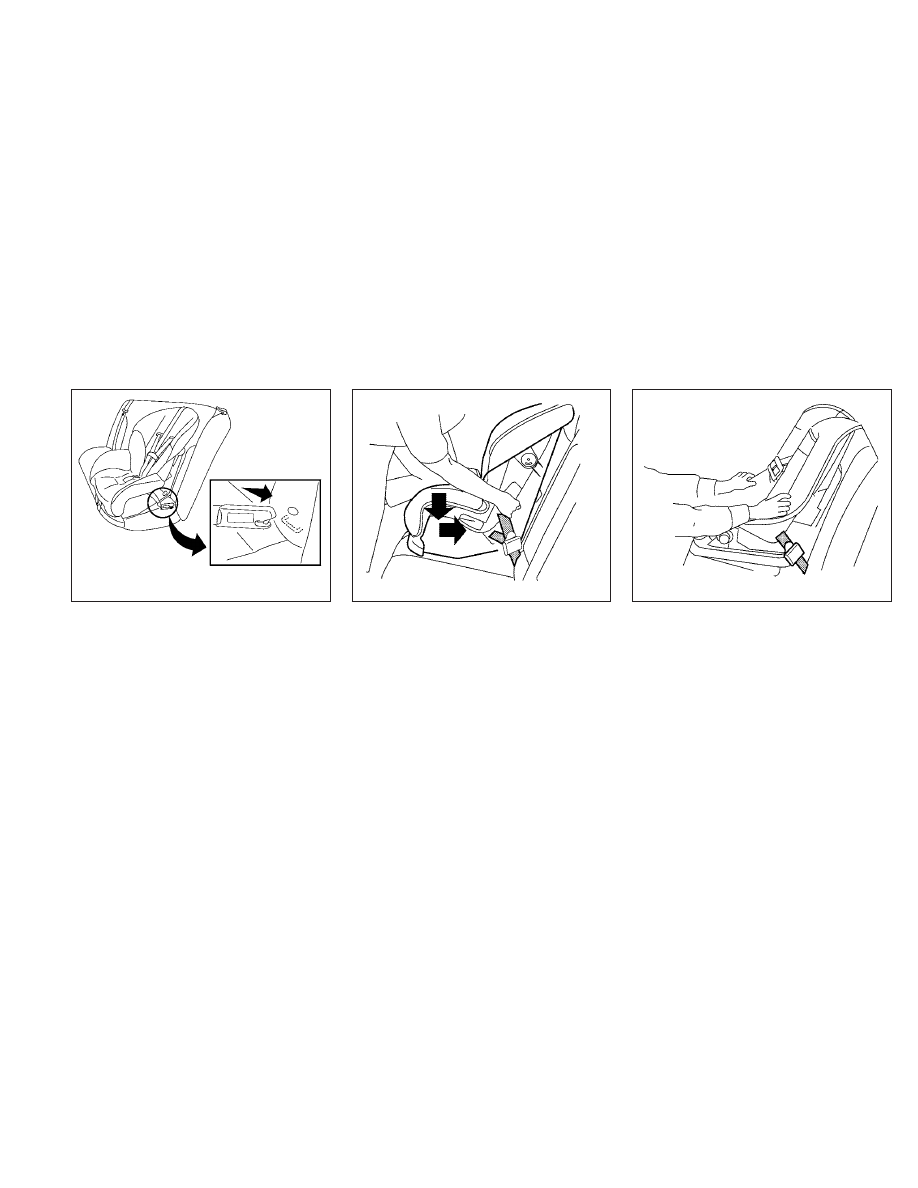

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

● Choose only a booster seat with a label

certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

● Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat

䊊

is chosen, the

vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat

䊊

should be used.

● If the booster seat is compatible with your

vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended pro-
cedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.

LRS0455

LRS0453

LRS0464

1-32

Safety—Seats, seat belts and supplemental restraint system

Booster seat installation

CAUTION

Do not use the lap/shoulder belt in the
Automatic Locking Retractor mode when
using a booster seat with the seat belts.

Refer to all Warnings and Cautions in the “Child
Safety”, “Child Restraint” and “Booster Seats”
sections before installing a child restraint.

Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:

1. If you must install a booster seat in the

front seat, move the seat to the rear-
most position.

2. Position the booster seat on the seat. Only

place it in a front-facing direction. Always
follow the booster seat manufacturer’s in-
structions.

3. The booster seat should be positioned on

the vehicle seat so that it is stable.

If necessary, adjust or remove the head re-
straint to obtain the correct booster seat fit. If
the head restraint is removed, store it in a
secure place. Be sure to reinstall the
head restraint when the booster seat is
removed. See “Head restraints” in this sec-
tion for head restraint adjustment, removal
and installation information.

WRS0699

Front passenger position

LRS0454

Safety—Seats, seat belts and supplemental restraint system

1-33

If the seating position does not have an
adjustable head restraint and it is interfering
with the proper booster seat fit, try another
seating position or a different booster seat.

4. Position the lap portion of the seat belt low

and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s in-
structions for adjusting the seat belt routing.

5. Pull the shoulder belt portion of the seat belt

toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
seat belt routing.

6. Follow the warnings, cautions and instruc-

tions for properly fastening a seat belt
shown in “Three-point type seat belt with
retractor” earlier in this section.

7. If the booster seat is installed in the front

passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light

may or may not illuminate,

depending on the size of the child and the
type of booster seat being used. See “Front
passenger air bag and status light” later in
this section.

PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEM

This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems:

● Driver and passenger supplemental front-

impact air bag (NISSAN Advanced Air Bag
System)

● Front seat-mounted side-impact supple-

mental air bag

● Roof-mounted curtain side-impact supple-

mental air bag

● Seat belt with pretensioner

Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can help
cushion the impact force to the head and chest of
the driver and front passenger in certain frontal
collisions.

Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest and pelvic
area of the driver and front passenger in certain
side-impact collisions. The supplemental side air
bag is designed to inflate on the side where the
vehicle is impacted.

WRS0475

SUPPLEMENTAL RESTRAINT
SYSTEM

1-34

Safety—Seats, seat belts and supplemental restraint system

Roof-mounted curtain side-impact supple-
mental air bag system: This system can help
cushion the impact force to the head of occu-
pants in front and rear outboard seating positions
in certain side-impact collisions. The curtain
side-impact air bags are designed to inflate on
the side where the vehicle is impacted.

These supplemental restraint systems are de-
signed to supplement the crash protection pro-
vided by the driver and front passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door finish-
ers. (See “Seat belts” earlier in this section for
instructions and precautions on seat belt usage.)

The supplemental air bags operate only
when the ignition switch is placed in the
ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

WARNING

● The front air bags ordinarily will not

inflate in the event of a side impact, rear
impact, rollover, or lower severity fron-
tal collision. Always wear your seat
belts to help reduce the risk or severity
of injury in various kinds of accidents.

● The front passenger air bag will not

inflate if the passenger air bag status
light is lit or if the front passenger seat
is unoccupied. See “Front passenger air
bag and status light” later in this
section.

● The seat belts and the front air bags are

most effective when you are sitting well
back and upright in the seat. The front
air bags inflate with great force. Even
with the NISSAN Advanced Air Bag Sys-
tem, if you are unrestrained, leaning
forward, sitting sideways or out of posi-
tion in any way, you are at greater risk of
injury or death in a crash. You may also
receive serious or fatal injuries from the
front air bag if you are up against it
when it inflates. Always sit back against
the seatback and as far away as practi-
cal from the steering wheel or instru-
ment panel. Always use the seat belts.

WRS0031

Safety—Seats, seat belts and supplemental restraint system

1-35

● The driver and front passenger seat belt

buckles are equipped with sensors that
detect if the seat belts are fastened. The
Advanced Air Bag System monitors the
severity of a collision and seat belt us-
age then inflates the air bags. Failure to
properly wear seat belts can increase
the risk or severity of injury in an
accident.

● The front passenger seat is equipped

with an occupant classification sensor
(pattern sensor) that turns the front
passenger air bag OFF under some
conditions. This sensor is only used in
this seat. Failure to be properly seated
and wearing the seat belt can increase
the risk or severity of injury in an acci-
dent. See “Front passenger air bag and
status light” later in this section.

● Keep hands on the outside of the steer-

ing wheel. Placing them inside the
steering wheel rim could increase the
risk that they are injured when the front
air bag inflates.

ARS1133

1-36

Safety—Seats, seat belts and supplemental restraint system

WARNING

● Children may be severely injured or

killed when the front air bags, side air
bags or curtain air bags inflate if they
are not properly restrained. Pre-teens
and children should be properly re-
strained in the rear seat, if possible.

● Even with the NISSAN Advanced Air

Bag System, never install a rear-facing
child restraint in the front seat. An in-
flating front air bag could seriously in-
jure or kill your child. See “Child re-
straints” earlier in this section for
details.

ARS1044

ARS1045

ARS1046

1-38

Safety—Seats, seat belts and supplemental restraint system

Nissan Altima Hybrid (2010 year). Manual - part 4
