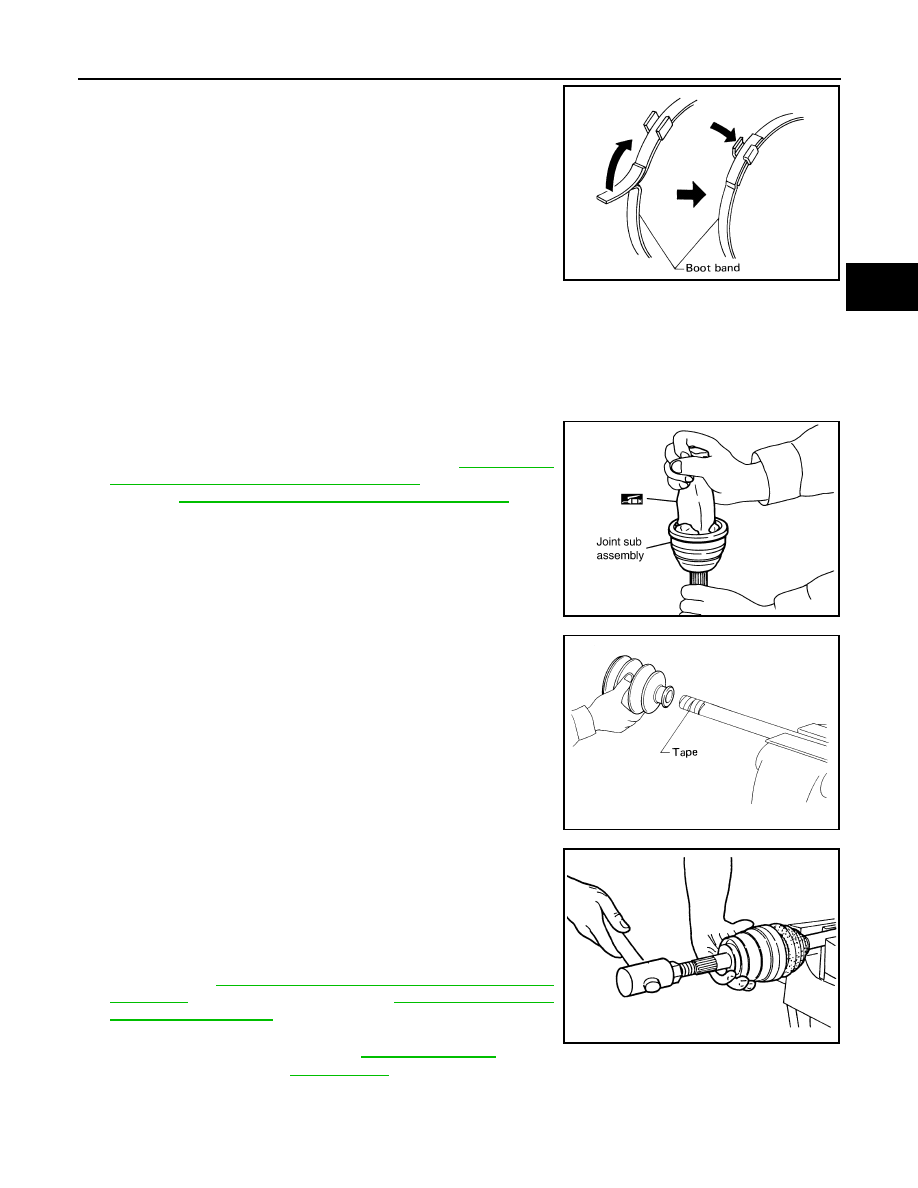

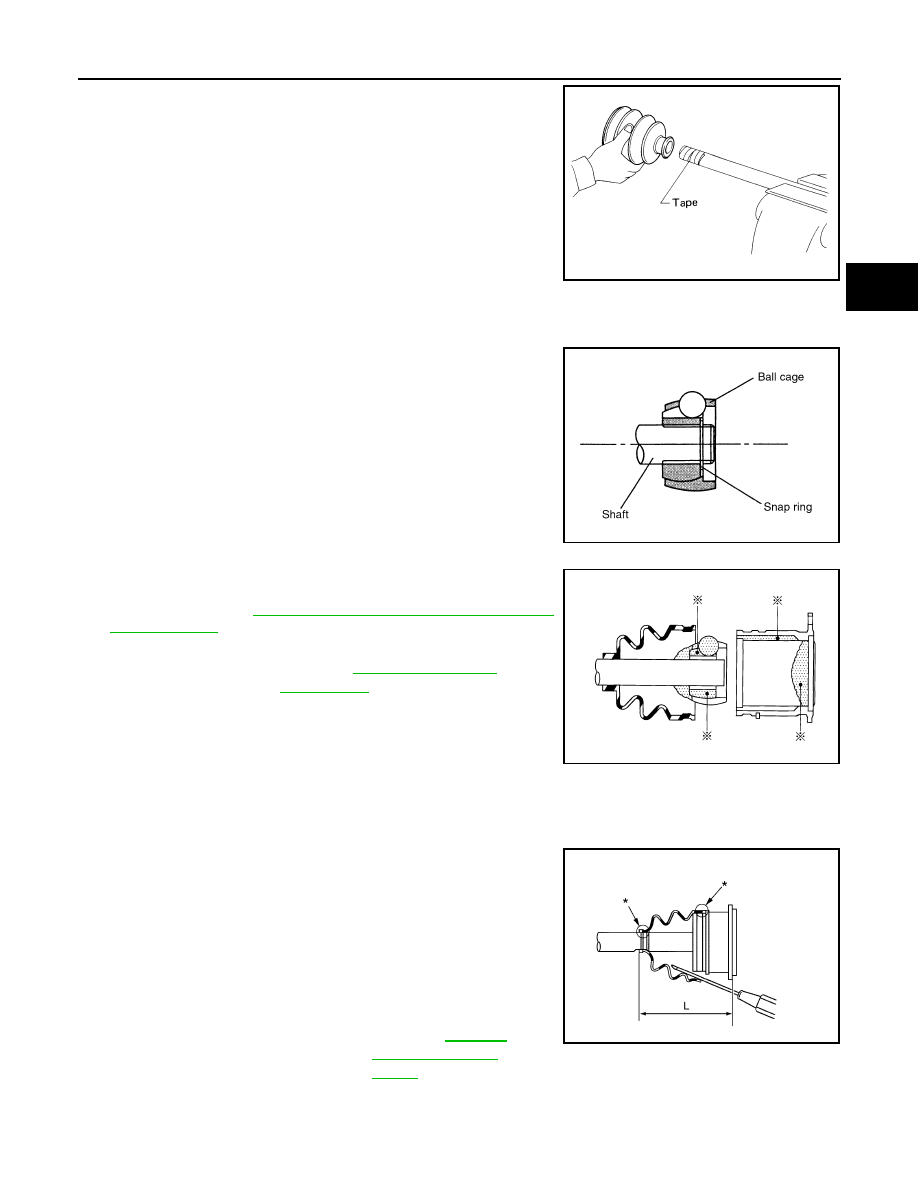

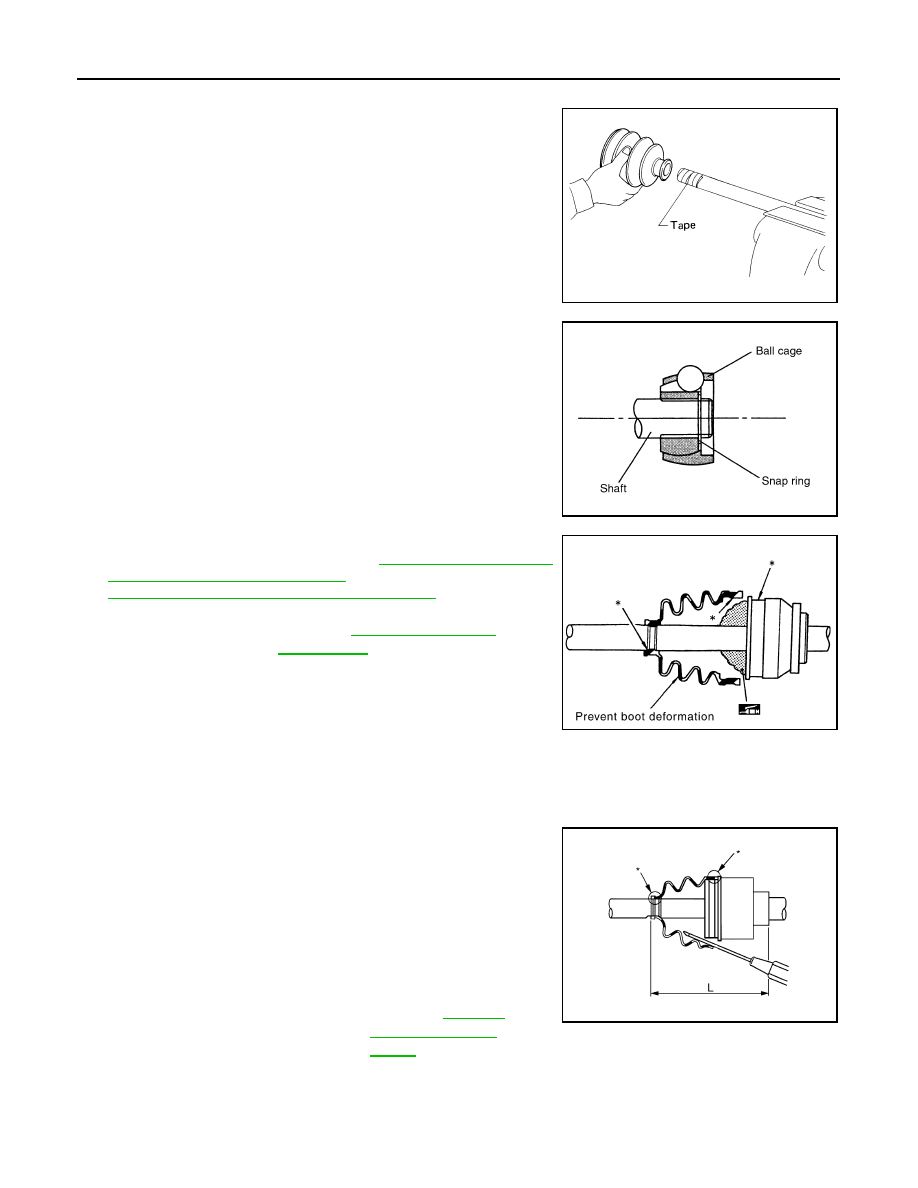

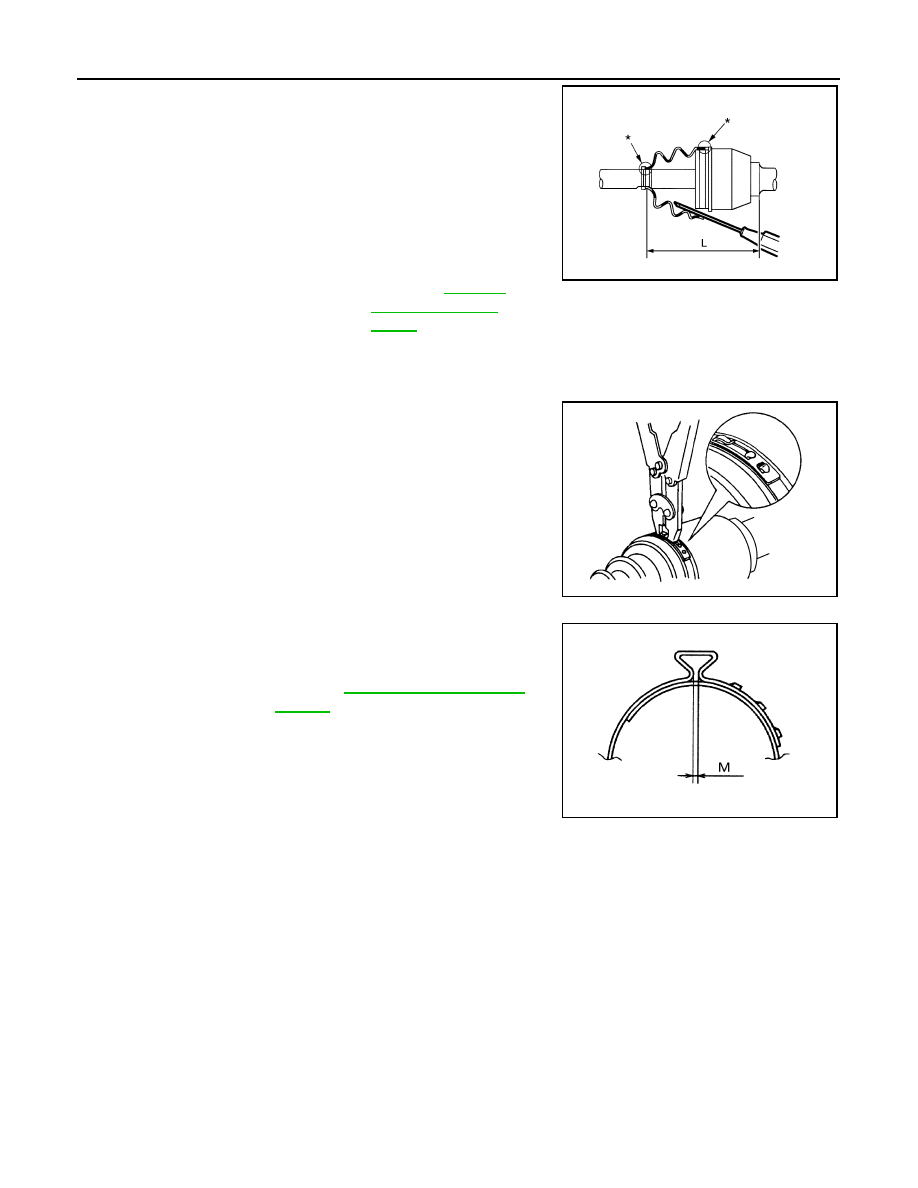

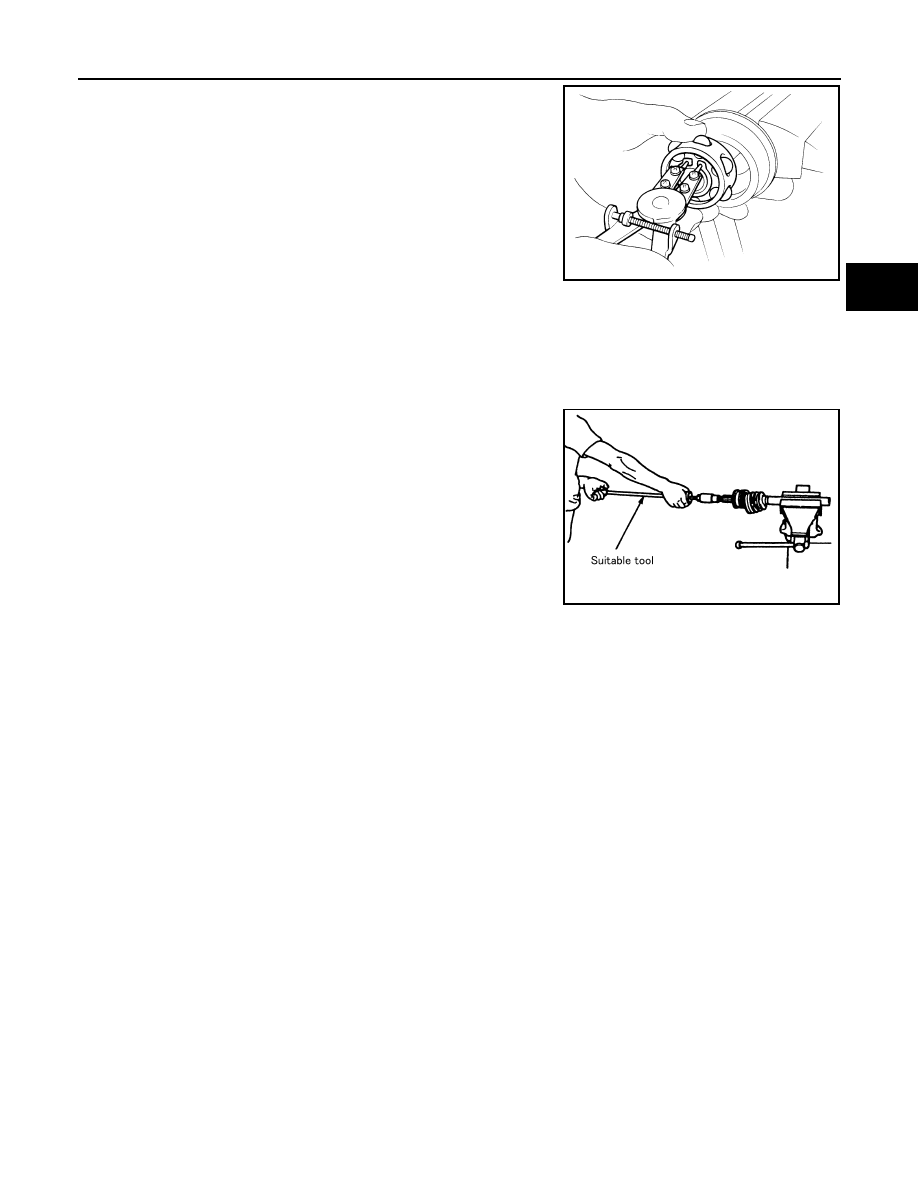

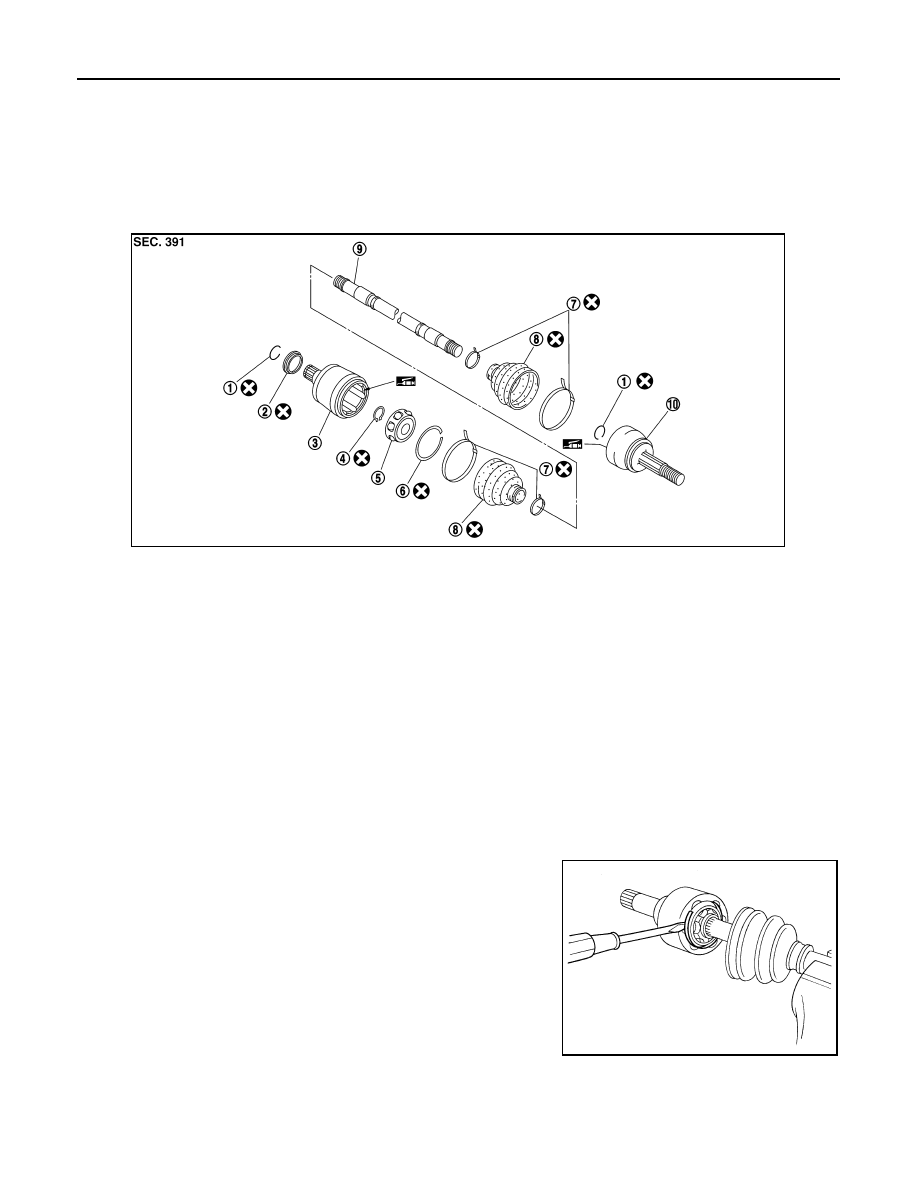

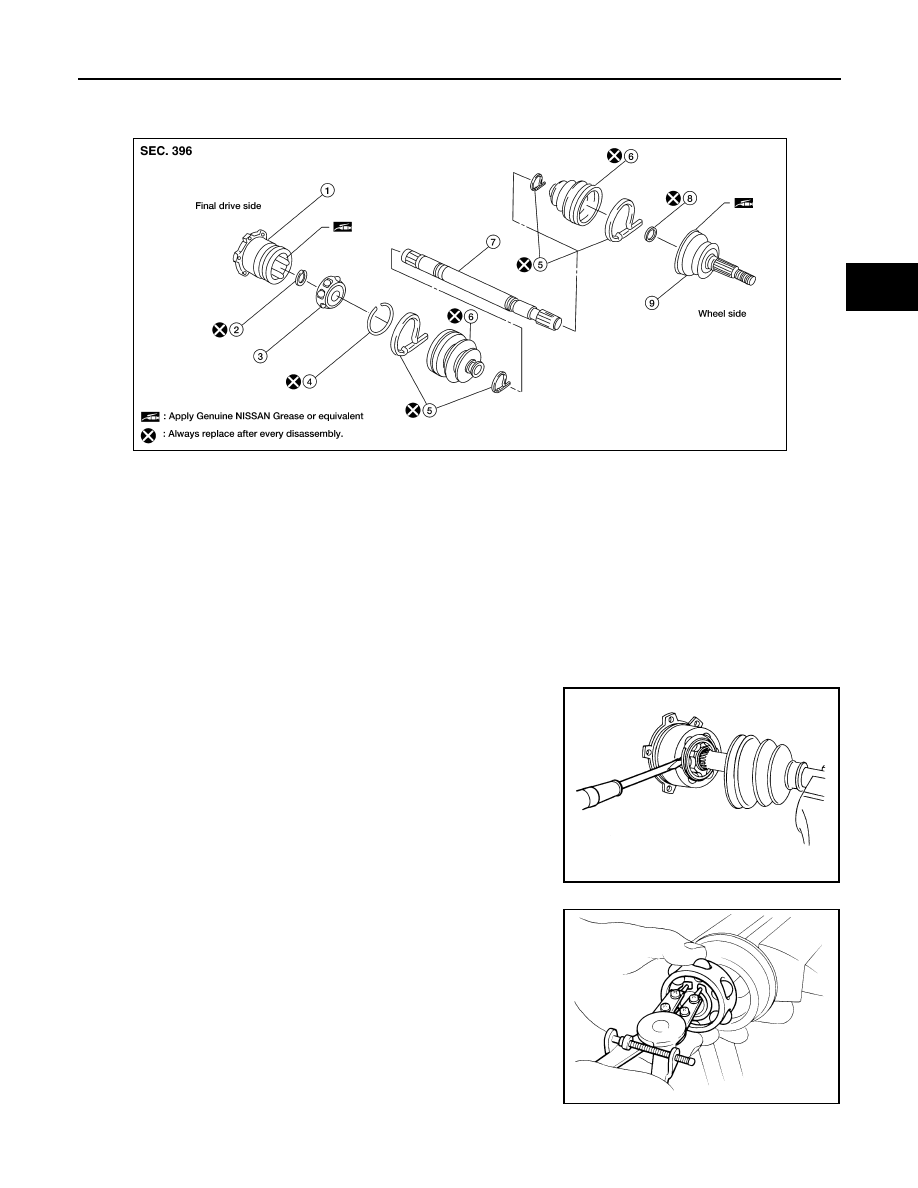

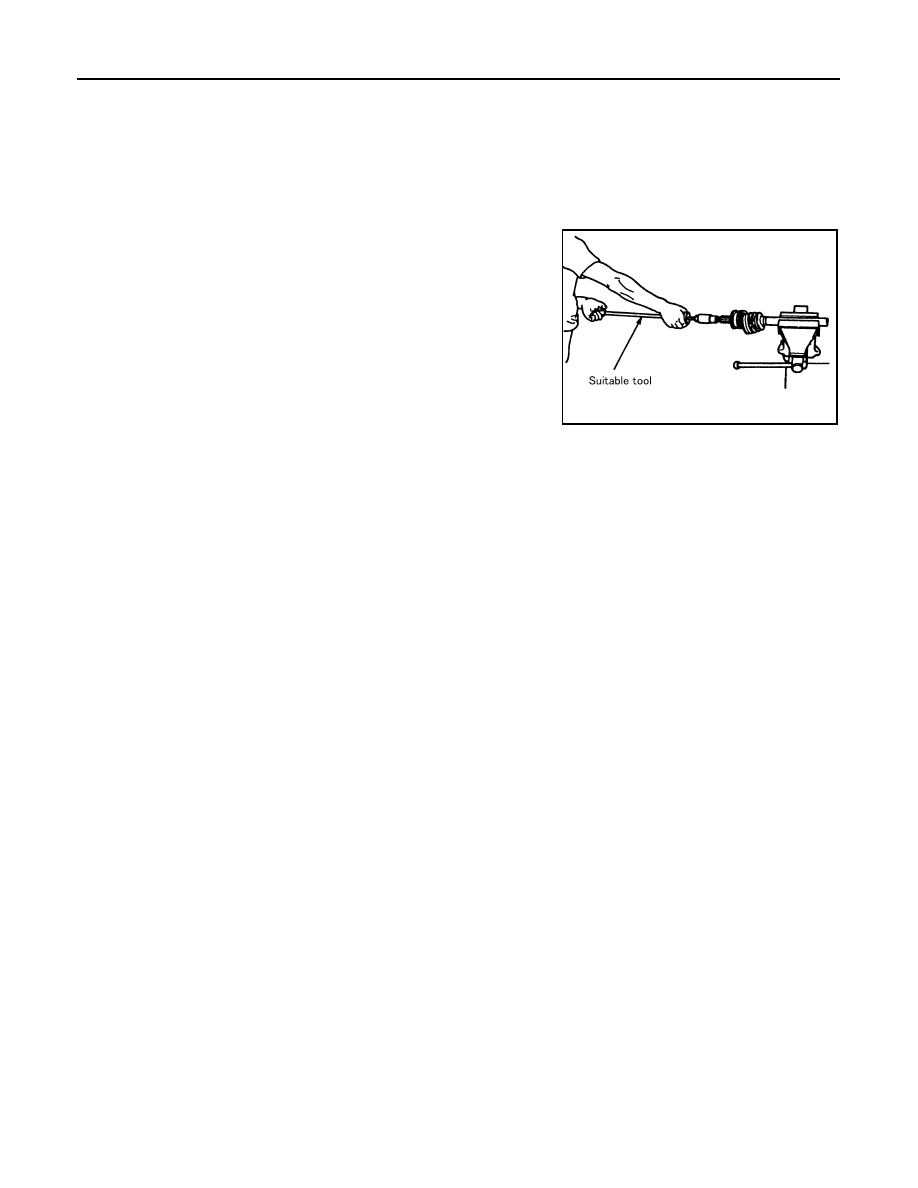

FAX-12 < UNIT DISASSEMBLY AND ASSEMBLY > DRIVE SHAFT UNIT DISASSEMBLY AND ASSEMBLY DRIVE SHAFT VQ40DE INFOID:0000000007357681 DISASSEMBLY Final Drive Side 1. Mount the drive shaft in a vise. CAUTION: When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the drive shaft. 2. Remove boot bands and slide the boot back. CAUTION: Use paint or similar substance for matching marks. Do not scratch the surfaces. 4. Remove the stopper ring with a suitable tool as shown, and pull the housing off. 1. Circlip 2. Dust cover 3. Housing 4. Snap ring 5. Ball cage, steel ball and inner race assembly 6. Stopper ring 7. Boot band 8. Boot 9. Shaft 10. Joint sub-assembly WDIA0342E SFA476 August 2012 2012 Pathfinder |
